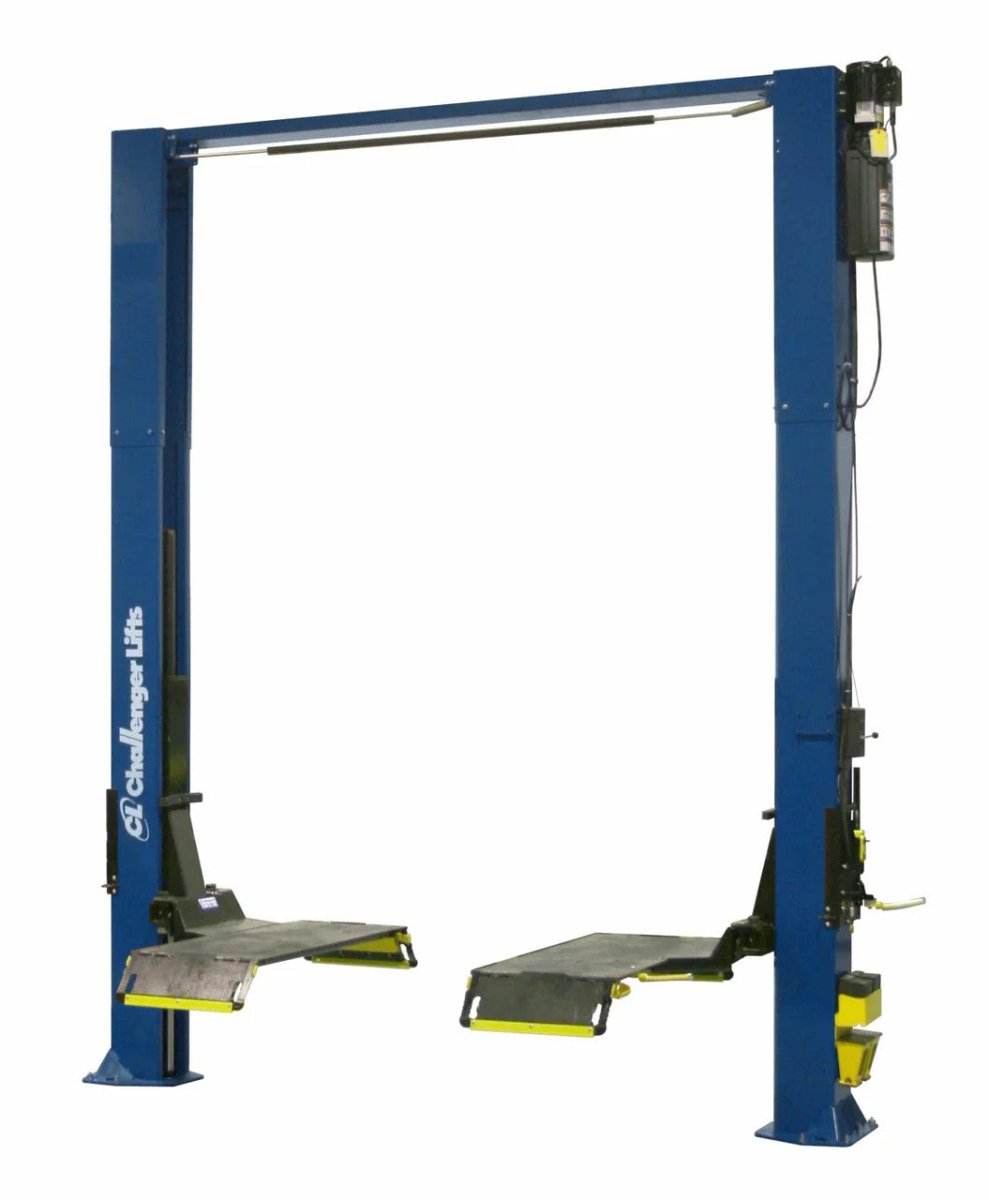

Challenger CL10-XP9-3 Two-Post Drive-On Automotive Lift 9000 lb
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger CL10-XP9-3 9,000 lb Two-Post Lift with Drive-On Express Pads for High-Volume Service Bays
The Challenger CL10-XP9-3 is a 9,000 lb capacity surface-mounted two-post lift engineered for high-volume express service operations. Featuring integrated drive-on express pads with flip-up ramps, this lift enables one-attempt vehicle spotting that eliminates arm-positioning time. The 3-foot column extension provides 176 inches overall height and 70 inches of rise, accommodating taller trucks and SUVs in facilities with higher ceilings. ALI Certified and ETL Listed with a 5-year structural warranty, the CL10-XP9-3 delivers the performance and reliability professional shops demand.
Challenger CL10-XP9-3 Features
Drive-On Express Pad Workflow
The XP9 configuration uses integrated drive-on express service pads that enable one-attempt vehicle spotting without manual arm positioning. Technicians simply drive vehicles onto the low-profile 2.25 inch platform height, eliminating the swing-arm adjustment steps required by traditional two-post lift designs. This streamlined workflow reduces per-vehicle cycle time in oil change stations, tire service centers, and quick-lube operations.
Adjustable Platform Length with Flip-Up Ramps
Platform length adjusts from 58 inches to 75 inches using integrated flip-up ramps, accommodating wheelbase variations across passenger cars, light trucks, and extended SUVs. The three-position adjustment (58", 66.5", and 75") eliminates the need for aftermarket wheelbase adapters and enables service facilities to handle a broader vehicle mix without workflow interruptions.
Extended Height Configuration
The 3-foot column extension brings overall height to 176 inches (14 ft 8 in) with a 70 inch rise height, serving facilities with higher ceilings that need full lift clearance for taller trucks and SUVs. This extended configuration improves ergonomics for undercar service by providing additional clearance for technicians working beneath raised vehicles.
Quick Cycle Performance System
The optional Quick Cycle system achieves 27-second rise time and 17-second descent, compared to 38 seconds standard rise time. This reduces vehicle-on-lift time by 11 seconds per cycle versus standard operation, directly increasing daily service capacity without additional bay construction. For facilities processing 40+ vehicles daily, the accumulated time savings translate to meaningful throughput gains.
Heavy-Duty Equalization System
The equalization system features an oversized 5 inch diameter pulley, heavy-duty 5/16 inch equalization cable, and 48 inch elongated carriage design. These specifications exceed standard two-post lift components, reducing cable stress and extending service intervals between cable replacement while providing additional stability for heavier vehicles.
ALI and ETL Dual Certification
The CL10-XP9-3 carries both ALI Gold Label certification (meeting ANSI/ALI ALCTV standards) and ETL listing from Intertek Testing Services. Challenger Lifts maintains active board membership with the Automotive Lift Institute, contributing to the development of industry safety standards. This dual certification ensures compliance with OSHA requirements and provides documentation for insurance compliance, building permits, and facility safety audits.
Challenger CL10-XP9-3 Applications
- Express Service Bays: Oil change stations, tire rotation centers, and quick-lube operations requiring rapid vehicle cycling and minimal setup time between services benefit from the drive-on express pad design.
- Tire Service Centers: High-volume tire installation, balancing, and rotation facilities processing passenger cars, light trucks, and SUVs throughout the service day can maximize throughput with the optional Quick Cycle system.
- Brake Inspection and Service: Facilities performing brake pad replacement, rotor inspection, and brake system maintenance on vehicles up to 9,000 lb gain improved access with the extended rise height.
- Fleet Maintenance Facilities: Commercial operations maintaining mixed fleets of passenger vehicles, light trucks, and SUVs with consistent undercar service requirements benefit from the adjustable platform length.
- Dealership Service Departments: New and used car dealerships requiring efficient pre-delivery inspection, warranty service, and general maintenance operations can handle diverse vehicle inventory with a single lift configuration.
- Long Wheelbase Vehicles: Full-size trucks, crew cab pickups, and extended SUVs are easily accommodated using the 75 inch maximum platform length with flip-up ramps.
Challenger CL10-XP9-3 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Capacity Per Platform | 4,500 lb |
| Specification | Value |
|---|---|
| Overall Height | 176" |
| Rise Height | 70" |
| Platform Height (Lowered) | 2.25" |
| Platform Length (Adjustable) | 58" / 66.5" / 75" |
| Carriage Length | 48" |
| Specification | Value |
|---|---|
| Standard Rise Time | 38 seconds |
| Quick Cycle Rise Time (Optional) | 27 seconds |
| Quick Cycle Descent Time (Optional) | 17 seconds |
| Specification | Value |
|---|---|
| Configuration | Surface-Mounted Two-Post |
| Column Extension | 3 ft |
| Equalization Pulley Diameter | 5" |
| Equalization Cable | 5/16" |
| Specification | Value |
|---|---|
| ALI Certified | Yes (Gold Label - ANSI/ALI ALCTV) |
| ETL Listed | Yes (Intertek Testing Services) |
Challenger CL10-XP9-3 Installation Requirements
Electrical Requirements
Power: Verify electrical requirements in the installation manual for your specific configuration. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength required. The concrete must be fully cured and free of cracks, expansion joints, or hollow areas at anchor locations. Consult the installation manual for complete anchor bolt specifications and placement requirements.
Space Requirements
Overall Height: 176" minimum ceiling clearance required. Drive-On Clearance: Ensure adequate approach space for vehicle drive-on access to both platforms. Account for door swing, adjacent equipment, and technician work space around the lift.
Professional Installation
Professional installation by qualified technicians is strongly recommended to ensure proper setup, safety compliance, and warranty validity. Contact Garage Supply Guys for information about installation services in your area.
What's Included with the Challenger CL10-XP9-3
- Two-post lift columns with 3-foot height extension
- Drive-on express service pads with flip-up ramps
- Heavy-duty equalization system with 5" pulley and 5/16" cable
- 48" elongated carriages
- Hydraulic power unit
- Anchor bolts and hardware
- Installation and operation manual
Optional Accessories: Quick Cycle performance system for 27-second rise time.
Not Included: Electrical wiring and installation, concrete work or floor preparation, professional installation labor, wheel alignment accessories.
Challenger CL10-XP9-3 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for a custom shipping quote.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery is standard; liftgate service available upon request for additional fee. Inspection: Inspect all packages for visible damage before signing the bill of lading. Note any damage on the delivery receipt and photograph damaged packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10-XP9-3 Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts backs the CL10-XP9-3 with comprehensive warranty protection:
- 5 Years: Structural components including columns, carriages, and frames
- 2 Years: Hydraulic cylinders
- 1 Year: All other components including power unit, cables, and hardware
Requirements: Warranty requires proper installation per manufacturer specifications and routine maintenance per the operation manual. Commercial use applications only. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9-3?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9-3 FAQ
What is the maximum lifting capacity of the CL10-XP9-3?
The Challenger CL10-XP9-3 has a maximum lifting capacity of 9,000 lb total, with 4,500 lb capacity per platform. This accommodates passenger cars, light trucks, and SUVs within the weight rating.
What ceiling height do I need for the CL10-XP9-3?
The CL10-XP9-3 has an overall height of 176 inches (14 ft 8 in), so your ceiling must be at least this height. The 3-foot column extension on this model is designed for facilities with higher ceilings that want to maximize working clearance beneath raised vehicles.
What are the electrical requirements?
Electrical requirements vary by configuration. Consult the installation manual for specific voltage, phase, and amperage requirements for your unit. All electrical work must be performed by a licensed electrician and meet local codes.
Can I install the CL10-XP9-3 myself?
While the lift can be self-installed by qualified individuals, professional installation is strongly recommended. Proper installation ensures safe operation, code compliance, and maintains warranty validity. Contact us for installation service recommendations in your area.
What warranty comes with the CL10-XP9-3?
The CL10-XP9-3 includes a 5-year structural warranty covering columns, carriages, and frames. Hydraulic cylinders are covered for 2 years, and all other components including the power unit, cables, and hardware are covered for 1 year.
What is included with the lift purchase?
The lift includes the two-post columns with 3-foot extension, drive-on express service pads with flip-up ramps, heavy-duty equalization system, 48" elongated carriages, hydraulic power unit, anchor bolts and hardware, and the installation/operation manual. The optional Quick Cycle system is available separately.
How is the lift shipped and delivered?
The CL10-XP9-3 ships via freight carrier with free shipping to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading. Curbside delivery is standard, with liftgate service available for an additional fee.
What is the Quick Cycle option?
The optional Quick Cycle performance system reduces rise time from 38 seconds to 27 seconds and descent time to 17 seconds. This option is ideal for high-volume express service bays where faster cycle times directly increase daily throughput capacity.
How does the CL10-XP9-3 compare to traditional swing-arm two-post lifts?
Unlike traditional swing-arm two-post lifts that require technicians to position each arm under the vehicle's lift points, the CL10-XP9-3 features drive-on express pads that enable one-attempt vehicle spotting. This eliminates arm-positioning time and reduces per-vehicle cycle time, making it ideal for high-volume express service operations.
What vehicles can the adjustable platform length accommodate?
The platform length adjusts to three positions: 58", 66.5", and 75". This range accommodates compact cars at the shorter settings and full-size trucks, crew cab pickups, and extended SUVs at the maximum 75" setting using the flip-up ramps.
What concrete requirements are needed for installation?
The lift requires a minimum 4" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The concrete must be fully cured and free of cracks, expansion joints, or hollow areas at anchor bolt locations. See the installation manual for complete specifications.
Is the CL10-XP9-3 ALI certified?
Yes, the CL10-XP9-3 carries both ALI Gold Label certification meeting ANSI/ALI ALCTV standards and ETL listing from Intertek Testing Services. This dual certification ensures compliance with OSHA requirements and provides documentation for insurance compliance, building permits, and facility safety audits.
