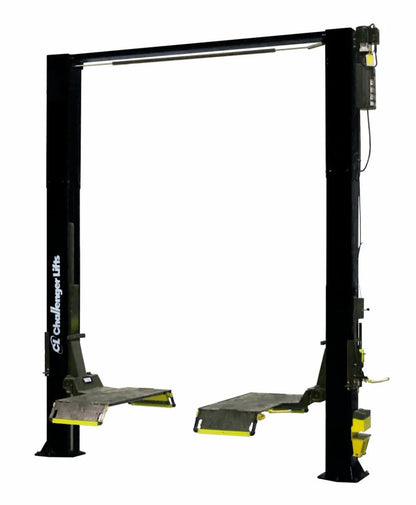

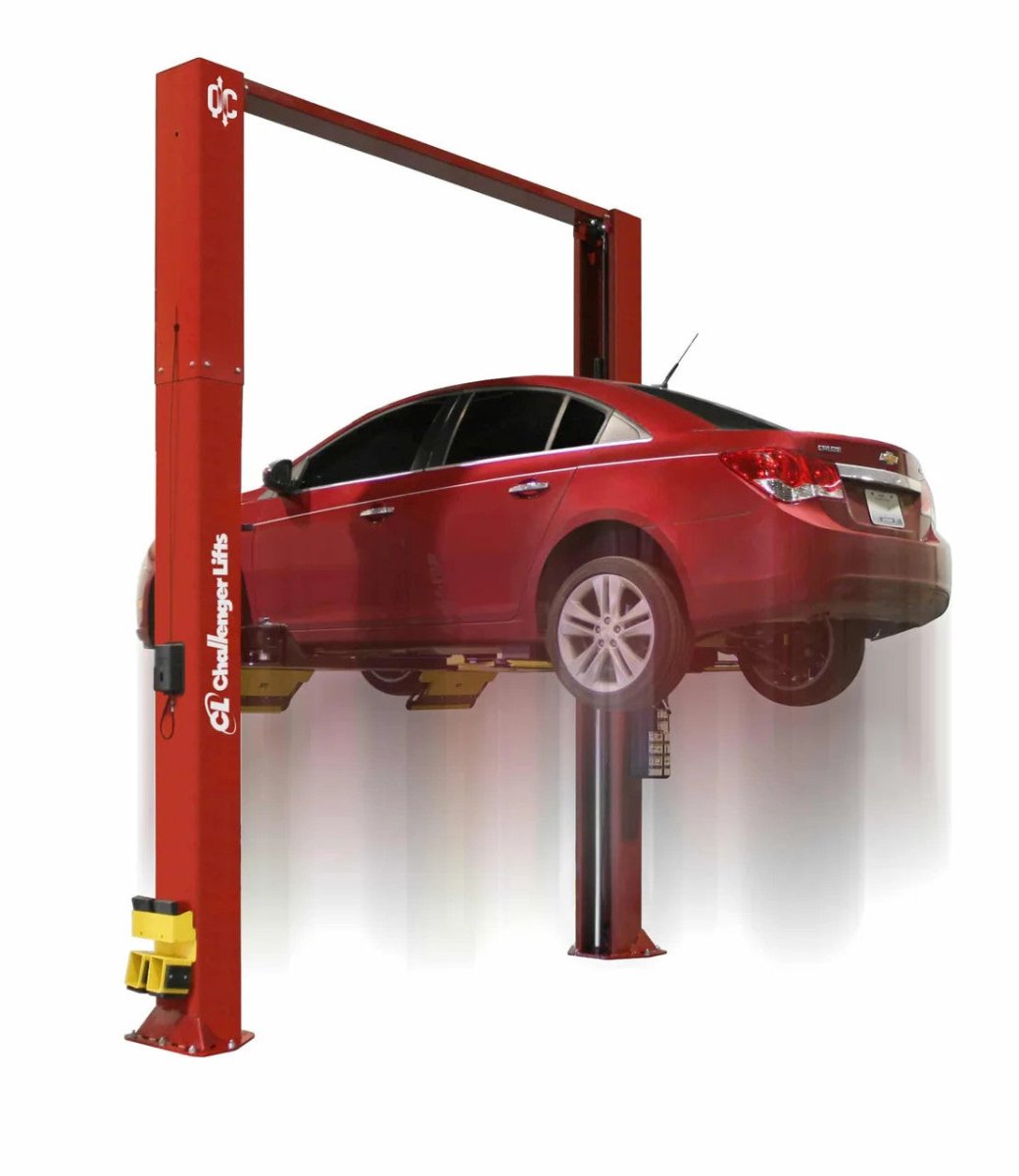

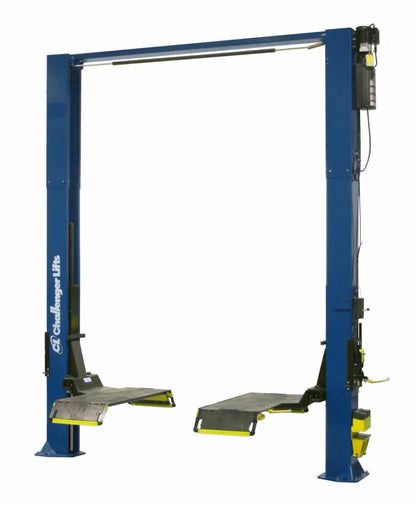

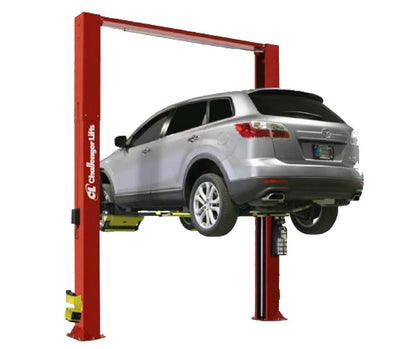

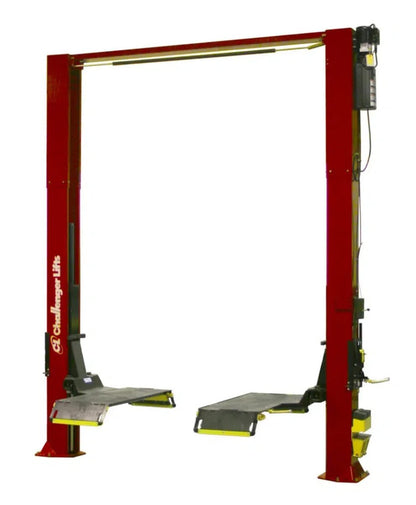

CHALLENGER LIFTS CL10-XP9-3-DPC 9,000 lb Two-Post Lift
Challenger CL10-XP9-3-DPC - 9,000 lb ALI Certified Two-Post Lift for Express Service Operations
The Challenger CL10-XP9-3-DPC delivers 9,000 lb (4,082 kg) capacity in a surface-mounted, ALI/ETL certified two-post lift engineered for high-throughput express service environments. Featuring a drive-on express pad system with flip-up ramps for rapid vehicle spotting, dual pendant controls for operator flexibility, and a factory-installed 3-foot column extension package, this lift handles quick lube facilities, tire shops, and inspection lanes with 70 inches (1,778 mm) of rise height.
Key Features & Benefits
Express Service Throughput Optimization
The drive-on express pad eliminates traditional swing arm positioning, featuring a 2.25-inch low-profile platform with reinforced flip-up ramps that extend to three configurations (58", 66.5", 75") for wheelbase adaptability. This fixed-platform design accommodates vehicles with as little as 3.5-4 inches of ground clearance, including sports cars, lowered vehicles, and EVs that can't navigate standard 4-6 inch drive-on ramps.
Traditional two-post lifts require technicians to manually position swing arms for each vehicle, consuming 2-5 minutes per lift cycle. In high-volume quick lube operations processing 30 vehicles daily, this arm-positioning time compounds into 60-150 minutes of lost productivity. The express pad system addresses this industry-wide challenge through first-try vehicle spotting without any arm adjustment.
This enables shops to process 4-10 additional service appointments daily by recapturing positioning time. The flip-up ramp configuration provides drive-on access from either direction while maintaining full undercarriage visibility for oil changes, tire rotations, and inspection work.
Dual Pendant Control Workflow Efficiency
The portable dual pendant power control system allows lift operation from either column, featuring single-point mechanical lock release accessible from both positions. Each pendant includes raise, lower, and safety lock controls with padded overhead shutoff protection that triggers at maximum rise height to prevent over-travel.
Traditional single-pendant systems force technicians to walk around vehicles to access controls, adding 15-30 seconds per lift cycle while obstructing sight lines to critical lift points. In multi-technician operations, this creates bottlenecks when one tech needs to control the lift from an optimal vantage point while another preps the next vehicle. The dual pendant configuration addresses this workflow limitation by enabling control from the technician's working position.
This improves inspection lane throughput by allowing the operator to raise vehicles from the driver's side for emissions testing, then control lowering from the passenger side for final inspection steps. In tire rotation workflows, technicians maintain unobstructed views of all four corners without repositioning to reach controls.
176-Inch Height Flexibility for Standard Buildings
The factory-installed 3-foot column extension package achieves 176 inches (14'8") total height while delivering the full 70-inch rise capacity, enabling installation in standard 15-foot ceiling commercial buildings. This configuration maintains 90-inch drive-through clearance for tall vehicles and service vans while fitting within building codes that typically specify 15-foot minimum ceiling heights for automotive service bays.
Most 10,000+ lb capacity lifts require 16+ foot ceiling clearance to achieve comparable rise heights, forcing facility retrofits that involve structural modifications, HVAC relocation, and electrical work. These ceiling height modifications cost $15,000-40,000 per bay and require permits, engineering reviews, and extended downtime. The extended-height variant addresses this facility constraint by providing professional service capability within existing building parameters.
This eliminates the need for costly ceiling modifications when upgrading from lower-capacity lifts or converting general commercial spaces into automotive service facilities. Shops can install the lift in leased buildings without permanent structural alterations that complicate lease agreements or require landlord approval.
ALI/ETL Third-Party Certification
This lift carries ALI (Automotive Lift Institute) Gold Label certification meeting ANSI/ALI ALCTV-2011 safety standards and ETL certification by Intertek Testing Services to ANSI/UL 201 and CAN/CSA C22.2 electrical safety standards. Independent third-party testing validates structural integrity, load distribution, safety system function, and electrical compliance through documented test protocols that exceed manufacturer self-certification programs.
Commercial insurance underwriters require ALI certification for automotive lifts in professional service facilities, with non-certified equipment triggering policy exclusions or surcharges of $2,000-5,000 annually. OSHA regulations and local building codes increasingly mandate third-party certified lifting equipment for worker safety compliance, and inspectors verify certification status during routine facility inspections and after workplace incidents.
This certification enables shops to maintain full liability coverage without equipment-related policy exclusions while meeting OSHA 1910.147 lockout/tagout requirements and state inspection program equipment standards. The ALI Directory listing provides documentation for insurance audits, franchise agreement compliance, and facility sale or lease transactions.
Application-Specific Design for Express Service
The fixed drive-on pad configuration prioritizes speed over positioning flexibility, using a 48-inch elongated carriage with oversized 5-inch diameter pulleys and heavy-duty 5/16-inch equalization cables engineered specifically for repetitive lift cycles in high-volume express service applications. This design trades the swing arm adjustability of general-service lifts for pure throughput performance in oil changes, tire rotations, and inspections.
General-service two-post lifts require arm repositioning for each vehicle type, making them versatile for varied repair work but inefficient for standardized express services where the same 4-6 operations repeat throughout the day. Quick lube facilities and tire shops processing identical service menus prioritize cycle time reduction over the positioning flexibility needed for drivetrain removal or body work.
This enables express service operations to reduce average service time by 5-8% through eliminated positioning steps, directly increasing daily vehicle capacity. The drive-on platform maintains compatibility with passenger cars, light trucks, SUVs, and crossovers under 9,000 lb while delivering consistent undercarriage access for fluid services and tire work.
Complete Included Accessory Package
The lift ships with (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, and (2) column-mounted storage caddies for organized block storage at each column position. Dual integrated rubber door guards protect vehicle doors from column contact during entry and exit, while the reinforced front and rear flip-up locking access ramps provide stable drive-on entry without separate ramp components.
Many competitive lifts ship as base units requiring separate adapter purchases or provide minimal spotting blocks that limit vehicle compatibility. Technicians working without proper blocks improvise with wood blocks or makeshift spacers that create unstable contact points and safety risks. The included storage caddies keep blocks accessible at working height rather than stored on floor shelves where they get misplaced or contaminated with fluids.
This eliminates the $200-400 cost of aftermarket adapter kits while ensuring technicians have correct spotting heights immediately available for different vehicle types. The dual door guard system prevents the paint damage and insurance claims common when vehicles contact unprotected columns during positioning.
Applications & Use Cases
- Quick Lube & Express Oil Change: Rapid undercarriage access for oil changes, filter replacements, and fluid services on passenger cars, light trucks, and SUVs under 9,000 lb
- Tire Service & Rotation: Fast vehicle elevation for tire mounting, dismounting, balancing, and rotation services with unobstructed wheel access
- Brake Inspection & Service: Comprehensive brake work including disc and drum inspection, pad replacement, rotor service, and caliper maintenance
- State Safety & Emissions Inspection: Compliant undercarriage inspection access for state safety programs, emissions testing, and annual vehicle certification lanes
- Light Maintenance & Undercarriage Repair: Suspension work (shocks, struts), exhaust system service (mufflers, catalytic converters), and general undercar maintenance within capacity limits
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Rise Height | 70 inches (1,778 mm) |
| Lifting Speed (Standard) | 38 seconds |
| Lifting Speed (QuickCycle) | 27 seconds rise / 17 seconds lower |
| Motor | 2 HP, Single Phase, 60Hz |
| Specification | Value |
|---|---|
| Overall Height (with 3ft extension) | 176 inches (4,470 mm) |
| Overall Width | 138.5 inches (3,518 mm) |
| Drive-Through Clearance | 90 inches (2,286 mm) |
| Platform Height | 2.25 inches (57 mm) |
| Platform Width | 24 inches (610 mm) |
| Specification | Value |
|---|---|
| Voltage | 208-230V |
| Amperage (Bucher Power Unit) | 20A |
| Amperage (Earlier Configurations) | 30A |
| Phase | Single Phase |
| Component | Specification |
|---|---|
| Carriage Design | 48-inch elongated heavy-duty |
| Pulley Diameter | Oversized 5-inch |
| Equalization Cable | Heavy-duty 5/16-inch |
| Finish | Nano-ceramic powder coating (Red, Blue, or Black) |
Installation Requirements
Foundation Requirements
- Concrete Thickness: 4 inches minimum; 6 inches recommended for 9,000-10,000 lb capacity lifts
- Concrete Strength: 3,500 PSI minimum per Challenger specifications
- Reinforcement: Steel rebar or wire mesh required for structural integrity
- Curing Time: Minimum 28 days before installation
- Level Tolerance: Within 3/8 inch across installation footprint
- Surface: Single continuous slab; no installation across expansion joints or cracks
Power Requirements
- Electrical Service: Dedicated 208-230V single-phase circuit
- Circuit Breaker: 20A for Bucher power unit (2025+ models); 30A for earlier configurations
- Wiring: Must comply with NEC (National Electrical Code) and local electrical codes
- Installation: Licensed electrician required for final connection and inspection
Clearance Requirements
- Ceiling Height: 15 feet minimum for 3ft extension model (12 feet for base model)
- Working Space: Adequate clearance around columns for operator access and vehicle maneuvering
- Environmental: Indoor or covered installation recommended; level, crack-free, spall-free concrete surface required
Installation Notes
- Professional Installation: Installation must be performed by qualified personnel following manufacturer installation manual to maintain warranty validity
- Permits: Verify local code compliance and permit requirements before installation
- Anchoring: Proper anchor bolt installation critical for safety and certification compliance
Shipping & Delivery
Freight Coverage
Shipping: Free LTL (Less Than Load) freight shipping to commercial addresses in the lower 48 contiguous United States. Alaska, Hawaii, and rural locations may incur surcharges.
Delivery Timeframe: Ships from manufacturer; delivery timeframe varies based on inventory availability and shipping destination.
International: Contact for international shipping rates and availability.
Delivery Requirements
Unloading Equipment Required: Forklift, pallet jack, or equivalent machinery with sufficient capacity to handle freight. Typical shipping weight 1,700-2,000 lb depending on configuration.
Delivery Type: Curbside delivery via 48-foot semi flatbed. Liftgate service not available due to size and weight constraints.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Damage Reporting
Within 15 days: Full coverage for replacement parts and freight costs for concealed damage discovered during installation
Within 30 days: Partial coverage for replacement parts and freight (shared cost)
After 30 days: No coverage (customer responsible for parts and freight costs)
Warranty Coverage
Warranty Program
Structural Parts: Lifetime warranty to original purchaser (per some dealer sources) or 5-year structural warranty (per CL10 series documentation). Verify specific coverage terms with authorized dealer or manufacturer at time of purchase.
Functional Parts: 2 years from installation date covering hydraulic components, electrical systems, and mechanical parts
Labor Coverage: Verify labor coverage terms with authorized dealer (typically 1 year per industry standards)
Warranty Requirements
Registration: Product registration required within 30 days of purchase to activate warranty coverage
Eligibility: Valid for original purchaser only (non-transferable)
Installation: Installation must be performed by qualified personnel following manufacturer installation manual and specifications
Maintenance: Proper maintenance and operation per manufacturer guidelines required to maintain warranty validity
Extended Coverage
Optional 3-year extended warranty available (5 years total functional coverage) if purchased within 30 days of original purchase. Contact dealer for extended warranty pricing and terms.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm specific warranty terms, included accessories, and installation requirements for your facility.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10-XP9-3-DPC?
The lift has a maximum lifting capacity of 9,000 lb (4,082 kg) and is designed for passenger cars, light trucks, SUVs, and crossovers under this weight limit. The drive-on express pad system with 2.25-inch platform height accommodates low-clearance vehicles including sports cars and EVs with as little as 3.5-4 inches of ground clearance.
What accessories are included with the CL10-XP9-3-DPC?
The lift includes (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, (2) column-mounted storage caddies, dual integrated rubber door guards, reinforced flip-up locking ramps, dual pendant power control set (DPC), single-point mechanical lock release, and padded overhead shutoff. The 3-foot column extension is factory-installed on the -3 variant.
What are the concrete foundation requirements for installation?
Requires 4-inch minimum concrete thickness (6 inches recommended), 3,500 PSI minimum compressive strength, steel rebar or wire mesh reinforcement, and 28-day minimum curing time. Foundation must be a single continuous slab with no expansion joints or cracks, level within 3/8 inch tolerance, and free from surface defects.
What ceiling height is required for the 3-foot extension model?
The CL10-XP9-3-DPC with 3-foot column extension requires 15-foot minimum ceiling height to accommodate the 176-inch (14 feet 8 inches) overall height while providing adequate operational clearance. This configuration fits standard commercial building codes that typically specify 15-foot minimum ceiling heights for automotive service bays, eliminating the need for costly ceiling modifications required by many 10,000+ lb capacity lifts that need 16+ foot clearance.
What certifications does the CL10-XP9-3-DPC carry?
The lift carries ALI (Automotive Lift Institute) Gold Label certification meeting ANSI/ALI ALCTV-2011 safety standards and ETL certification by Intertek Testing Services (NRTL) to ANSI/UL 201 and CAN/CSA C22.2 electrical safety standards. These independent third-party certifications validate structural integrity, load distribution, safety system function, and electrical compliance, meeting commercial insurance underwriter requirements and OSHA regulations for professional service facilities.
What are the electrical power requirements?
The lift requires a dedicated 208-230V single-phase circuit with a 2 HP motor operating at 60Hz. Models equipped with the Bucher AB-9367-DLH power unit (2025 and later) require a 20A circuit breaker, while earlier configurations may require 30A. All electrical installation must comply with NEC (National Electrical Code) and local electrical codes, with final connection and inspection performed by a licensed electrician.
What type of vehicles can the CL10-XP9-3-DPC service?
Designed for passenger cars, light trucks, SUVs, and crossovers under 9,000 lb capacity. The 2.25-inch low-profile platform accommodates low-clearance vehicles with 3.5-4 inches of ground clearance, including sports cars, lowered vehicles, and EVs like Porsche 911 (4.1"), Tesla Model 3 Performance (4.5"), and Honda Civic Si (4.7"). Flip-up ramps extend to three configurations (58", 66.5", 75") for broad wheelbase compatibility.
What warranty coverage is provided?
Coverage includes structural parts (lifetime to original purchaser per some sources; 5-year per CL10 documentation - verify with dealer), 2-year functional parts (hydraulic, electrical, mechanical components), and typically 1-year labor. Optional 3-year extended warranty (5 years total) available if purchased within 30 days. Registration required within 30 days to activate coverage; non-transferable to subsequent owners.
