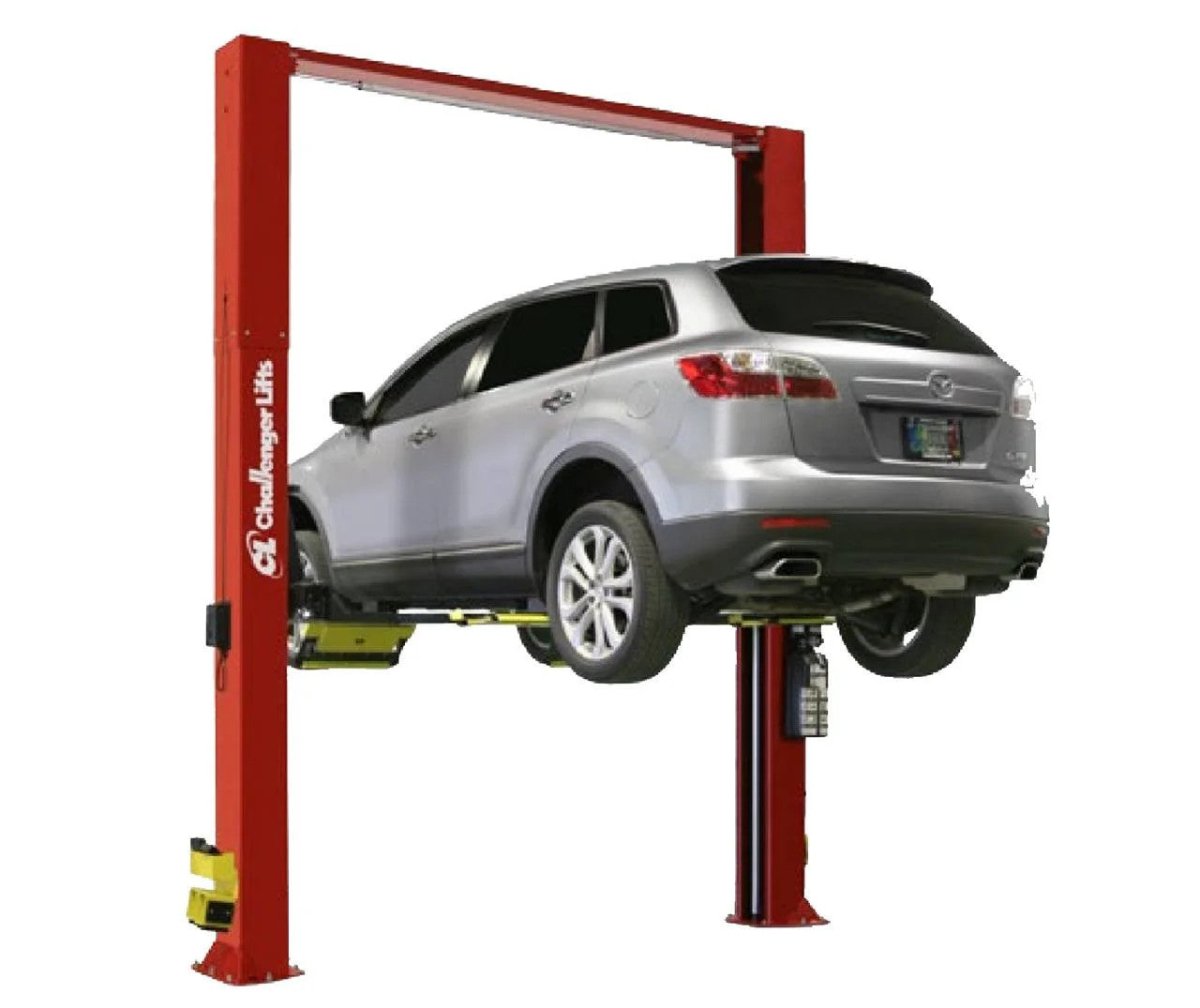

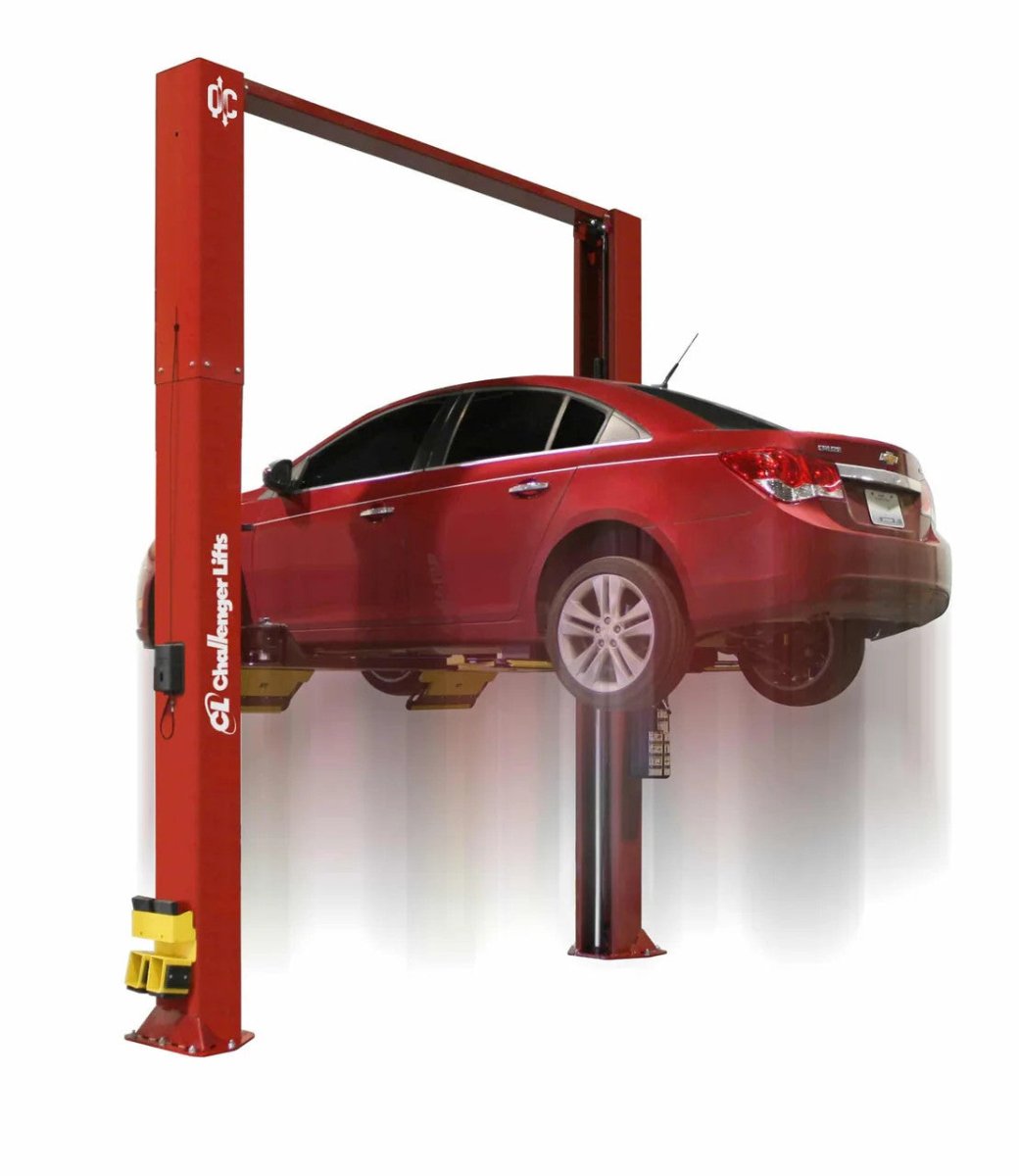

Challenger CL10-XP9-2 Two-Post Car Lift 9,000 lb Express
Challenger CL10-XP9-2 9,000 lb ALI Certified Two-Post Lift with Drive-On Express Pads for High-Volume Express Service
The Challenger CL10-XP9-2 delivers 9,000 lb lifting capacity in a surface-mount two-post design engineered specifically for high-volume express service applications. Featuring drive-on express pads with flip-up ramps that eliminate manual arm positioning, a 48-inch elongated carriage with oversized 5-inch pulleys, and factory-included 2-foot column extensions for 13' 8" total height, this lift handles quick lube, tire rotation, brake service, and multi-point inspection workflows with exceptional efficiency. Backed by Challenger's 5-year structural warranty and dual ALI Gold Label/ETL certification, the CL10-XP9-2 is built for commercial shops demanding fast throughput and long-term reliability.
Challenger CL10-XP9-2 Features

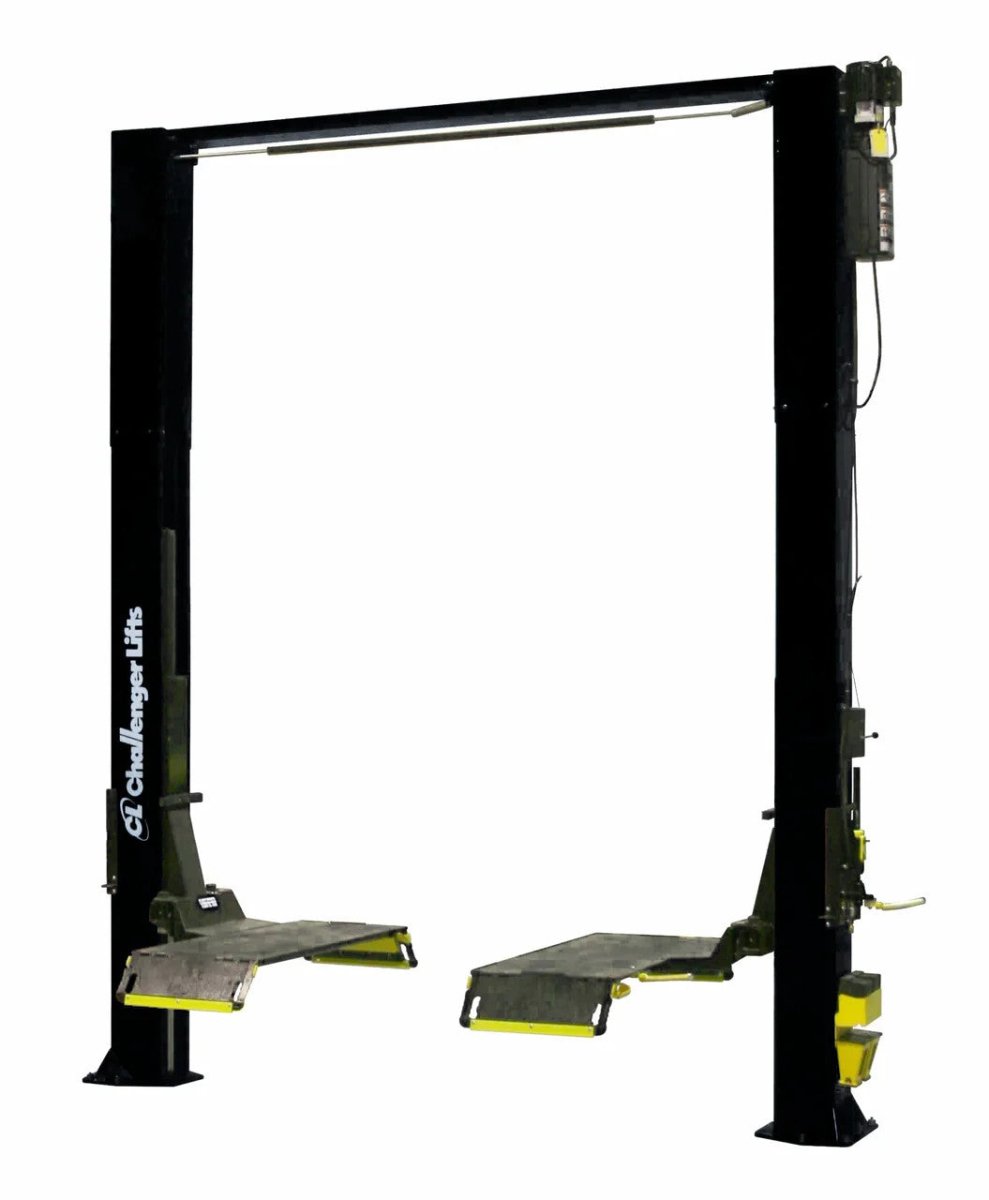

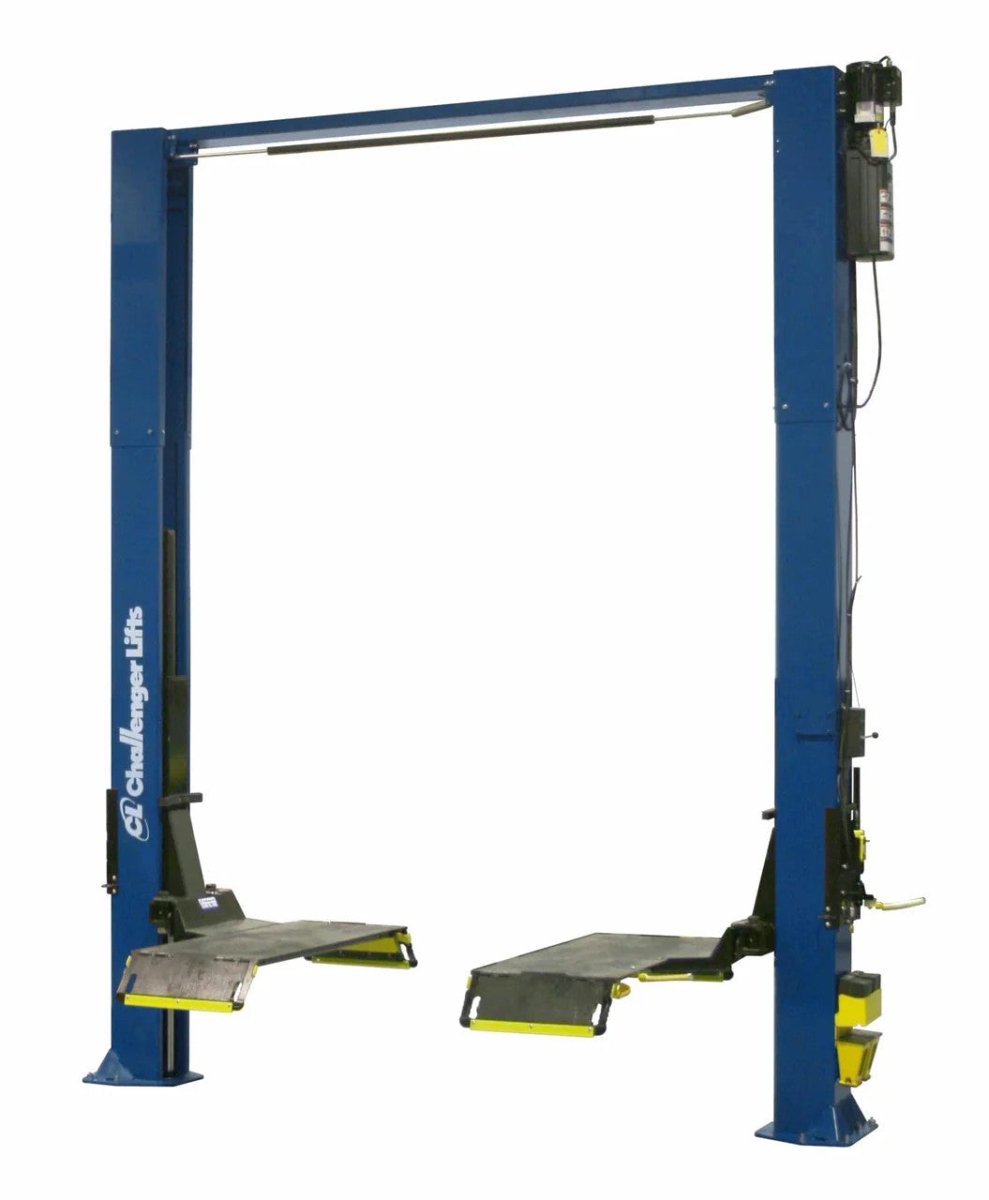

Drive-On Express Pad Design for Fast Vehicle Spotting
The drive-on express pad system features low-profile 2.25-inch platforms with integrated flip-up ramps that extend from 58 inches to 75 inches, accommodating longer wheelbases without repositioning. Unlike traditional two-post lifts requiring manual arm positioning under lift points, vehicles drive directly onto the pads while flip-up ramps automatically secure front and rear wheels. This eliminates 2-5 minutes of positioning time per vehicle, enabling shops running 8-12 lifts per hour to increase productivity by 15-25%.
Commercial-Grade 48-Inch Elongated Carriage System
The 48-inch elongated carriage distributes lifting forces across 20% more surface area than typical 36-40 inch designs. Paired with oversized 5-inch diameter pulleys and heavy-duty 5/16-inch aircraft-grade steel cable, this system reduces cable wear and bearing stress under continuous commercial use. The larger pulley diameter improves cable tracking stability, extending cable replacement intervals from typical 4-5 years to 7-10 years in high-volume environments.

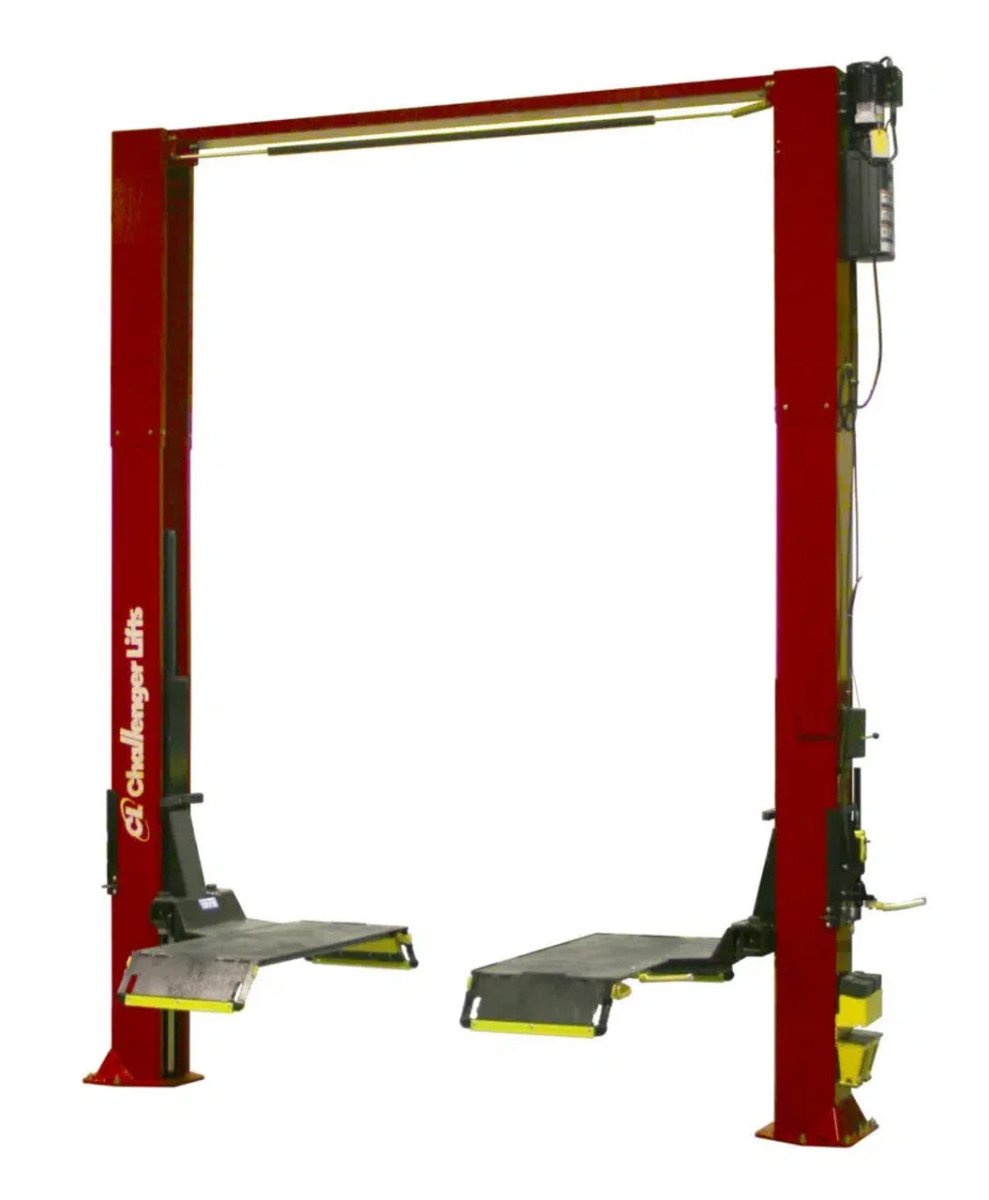

Factory-Included 2-Foot Column Extensions
The CL10-XP9-2 model designation indicates factory-included 2-foot column extensions, bringing total column height to 13' 8" (164 inches) without additional cost. Most manufacturers sell height extensions as separate accessories adding $500-$800 to the purchase price. The included extensions arrive pre-configured with the lift, ensuring proper integration without field modification or compatibility concerns during installation.
ALI Gold Label and ETL Dual Certification
The CL10-XP9-2 carries both ALI Gold Label certification and ETL listing through Intertek, meeting ANSI/ALI ALCTV-2017 construction standards and ANSI/UL 201 garage equipment safety requirements. This dual certification provides independent third-party verification with ongoing surveillance and plant inspections, satisfying commercial insurance requirements and fleet contract specifications without waiver requests.
Low-Profile 2.25-Inch Pad Design
The 2.25-inch platform height creates a minimal approach angle that accommodates lowered vehicles, sports cars, and performance builds with limited ground clearance. Combined with tapered flip-up ramps and non-skip surface treatment, the system accepts vehicles with as little as 3 inches of ground clearance without scraping or contact damage during drive-on, expanding your addressable vehicle range without purchasing specialized low-rise equipment.
Extended 5-Year Structural Warranty Program
The tiered warranty structure provides 5 years on structural components (columns, carriage, overhead beam, ramps), 2 years on functional parts (hydraulics, cables, controls), and 1 year on labor. This exceeds many competitor offerings that range from 1-3 years on primary load-bearing components, reducing long-term ownership risk through the critical first five years when manufacturing defects typically manifest.
Challenger CL10-XP9-2 Applications
- Express Service Operations: Quick lube and oil change facilities requiring fast vehicle throughput with minimal positioning time, tire rotation and balancing services, brake inspection and service operations, and multi-point vehicle inspections where eliminating arm positioning saves 2-5 minutes per vehicle.
- State and Safety Inspection Lanes: Emission testing facilities needing undercarriage access for exhaust system inspection, safety inspection stations performing brake and suspension checks, and fleet inspection programs requiring standardized lift positioning for consistent workflow.
- Fluid Service Applications: Transmission service and differential fluid changes, coolant system service and radiator work, and undercarriage fluid leak diagnosis and repair where fast vehicle positioning improves bay turnover rates.
- General Undercarriage Work: Exhaust system repair and replacement, undercarriage protective coating application, and chassis component inspection and service for vehicles up to 9,000 lb.
- Vehicle Type Compatibility: Passenger cars including sedans, coupes, and hatchbacks; light trucks and SUVs up to 9,000 lb; crossover vehicles and cargo vans; passenger vans and longer wheelbase vehicles utilizing the 58-inch to 75-inch adjustable ramp positions.
Challenger CL10-XP9-2 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Capacity Per Arm | 2,250 lb |
| Rise Height | 70" |
| Specification | Value |
|---|---|
| Overall Height (with extensions) | 13' 8" (164") |
| Column Extensions | 2' (24") - Included |
| Carriage Length | 48" |
| Platform Height | 2.25" |
| Ramp Extension Range | 58" - 75" |
| Pulley Diameter | 5" |
| Specification | Value |
|---|---|
| Mounting Type | Surface Mount |
| Cable Diameter | 5/16" Aircraft-Grade Steel |
| Lift Type | Two-Post with Drive-On Express Pads |
| Specification | Value |
|---|---|
| ALI Certification | ALI Gold Label Certified |
| ETL Listing | ETL Listed (Intertek) |
| Standards | ANSI/ALI ALCTV-2017, ANSI/UL 201 |
Challenger CL10-XP9-2 Installation Requirements
Electrical Requirements
Power: Single-phase or three-phase power supply required (verify specific requirements in installation manual). A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4-inch thick concrete slab with 3,000 PSI compressive strength required for surface-mount installation. Concrete must be properly cured and free of cracks, coatings, or sealers that could affect anchor performance. Reinforced concrete recommended for commercial applications.
Space Requirements
Ceiling Height: Minimum 13' 8" (164") with included column extensions. Bay Width: Allow adequate clearance for vehicle doors and technician movement around the lift. Verify specific dimensional requirements in the installation manual for your facility layout.
Professional Installation
Professional installation by a qualified lift technician is strongly recommended to ensure proper setup, safety compliance, and warranty coverage. Improper installation may void warranty coverage and create safety hazards. Contact Garage Supply Guys for installation service referrals in your area.
What's Included with the Challenger CL10-XP9-2
- Complete CL10-XP9-2 two-post lift assembly
- Drive-on express pads with flip-up ramps
- 2-foot column extensions (pre-configured)
- 48-inch elongated carriage assemblies
- 5/16-inch aircraft-grade steel cables
- Hydraulic power unit
- Safety locks and controls
- Mounting hardware and anchor kit
- Installation and operation manual
Optional Accessories: Additional height extensions, drip trays, LED work lights, and wheel alignment accessories available separately.
Not Included: Electrical wiring and connection to power source, concrete work or floor preparation, professional installation labor, and any permits required by local authorities.
Challenger CL10-XP9-2 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days from order confirmation; transit time varies by location. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Lift ships on pallets and requires equipment capable of handling the shipping weight. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages thoroughly for damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph damaged packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies to all returns. Buyer is responsible for return freight costs. Damaged or defective products should be reported within 48 hours of delivery.
Challenger CL10-XP9-2 Warranty
Challenger Lifts Tiered Warranty Program
The Challenger CL10-XP9-2 is backed by a comprehensive tiered warranty that exceeds industry standards for structural component coverage.
- 5 Years: Structural components including columns, carriage, overhead beam, and ramps
- 2 Years: Functional parts including hydraulic cylinders, cables, and control systems
- 1 Year: Labor coverage for warranty repairs
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity, and adherence to recommended maintenance schedules. Commercial use is covered. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9-2?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9-2 FAQ
What is the lifting capacity of the Challenger CL10-XP9-2?
The Challenger CL10-XP9-2 has a maximum lifting capacity of 9,000 lb, with 2,250 lb capacity per arm. This accommodates passenger cars, light trucks, SUVs, crossovers, and vans within the weight rating. The lift is ALI Gold Label certified, meaning the capacity has been independently verified through third-party testing.
What ceiling height do I need for this lift?
With the included 2-foot column extensions, the CL10-XP9-2 has a total height of 13' 8" (164 inches). Your ceiling must accommodate this height plus adequate clearance for overhead obstructions such as lighting, sprinklers, and HVAC equipment. For facilities with lower ceilings, contact us about Challenger models without the extended columns.
What are the electrical requirements?
The CL10-XP9-2 requires either single-phase or three-phase electrical power depending on configuration. Specific voltage and amperage requirements are detailed in the installation manual. All electrical work must be performed by a licensed electrician and comply with local building codes. The electrical circuit should be dedicated to the lift.
What are the concrete requirements for installation?
The lift requires a minimum 4-inch thick concrete slab with at least 3,000 PSI compressive strength. The concrete must be fully cured, structurally sound, and free of cracks or deterioration in the anchor locations. Reinforced concrete is recommended for commercial installations. The surface must be free of coatings or sealers that could affect anchor performance.
What does the warranty cover?
Challenger provides a tiered warranty: 5 years on structural components (columns, carriage, overhead beam, ramps), 2 years on functional parts (hydraulics, cables, controls), and 1 year on labor. This exceeds typical industry warranties of 1-3 years on structural components. Warranty requires proper installation and use within rated specifications.
What is included with the lift purchase?
The CL10-XP9-2 includes the complete two-post lift assembly, drive-on express pads with flip-up ramps, factory-installed 2-foot column extensions, 48-inch elongated carriages, hydraulic power unit, safety locks, controls, mounting hardware, anchor kit, and installation manual. Electrical wiring, concrete work, and installation labor are not included.
How does shipping and delivery work?
Free freight shipping is included to commercial addresses in the 48 contiguous United States. The lift ships on pallets and requires a forklift or loading dock for unloading. Curbside delivery is standard. Always inspect shipments before signing the bill of lading and note any damage on the delivery receipt.
What makes the drive-on express pads different from standard two-post lifts?
Traditional two-post lifts require technicians to manually position swing arms under vehicle lift points for each service, consuming 2-5 minutes per vehicle. The CL10-XP9-2's drive-on express pads allow vehicles to drive directly onto 2.25-inch platforms where flip-up ramps secure the wheels without adjustment. This dramatically increases throughput for express service operations.
Can this lift handle lowered vehicles?
Yes. The 2.25-inch platform height creates a minimal approach angle that accommodates vehicles with as little as 3 inches of ground clearance. The tapered flip-up ramps and low-profile design allow lowered vehicles, sports cars, and modified builds to drive on without scraping or undercarriage contact.
Why are the column extensions included instead of sold separately?
Most manufacturers sell 2-foot column extensions as separate accessories costing $500-$800. Challenger includes them with the CL10-XP9-2 model, eliminating the accessory markup and simplifying procurement. The extensions arrive factory-configured for proper integration without field modification or compatibility issues during installation.
What maintenance does the lift require?
Regular maintenance includes visual inspection of cables, pulleys, and safety mechanisms; lubrication of moving parts per the maintenance schedule; checking hydraulic fluid levels; and periodic inspection of anchors and structural components. Following the manufacturer's maintenance schedule helps ensure safe operation and maintains warranty coverage.
What certifications does this lift have?
The CL10-XP9-2 carries dual certification: ALI Gold Label certification meeting ANSI/ALI ALCTV-2017 construction standards, and ETL listing through Intertek meeting ANSI/UL 201 garage equipment safety requirements. This dual certification satisfies most commercial insurance requirements and fleet contract specifications for certified lift equipment.
