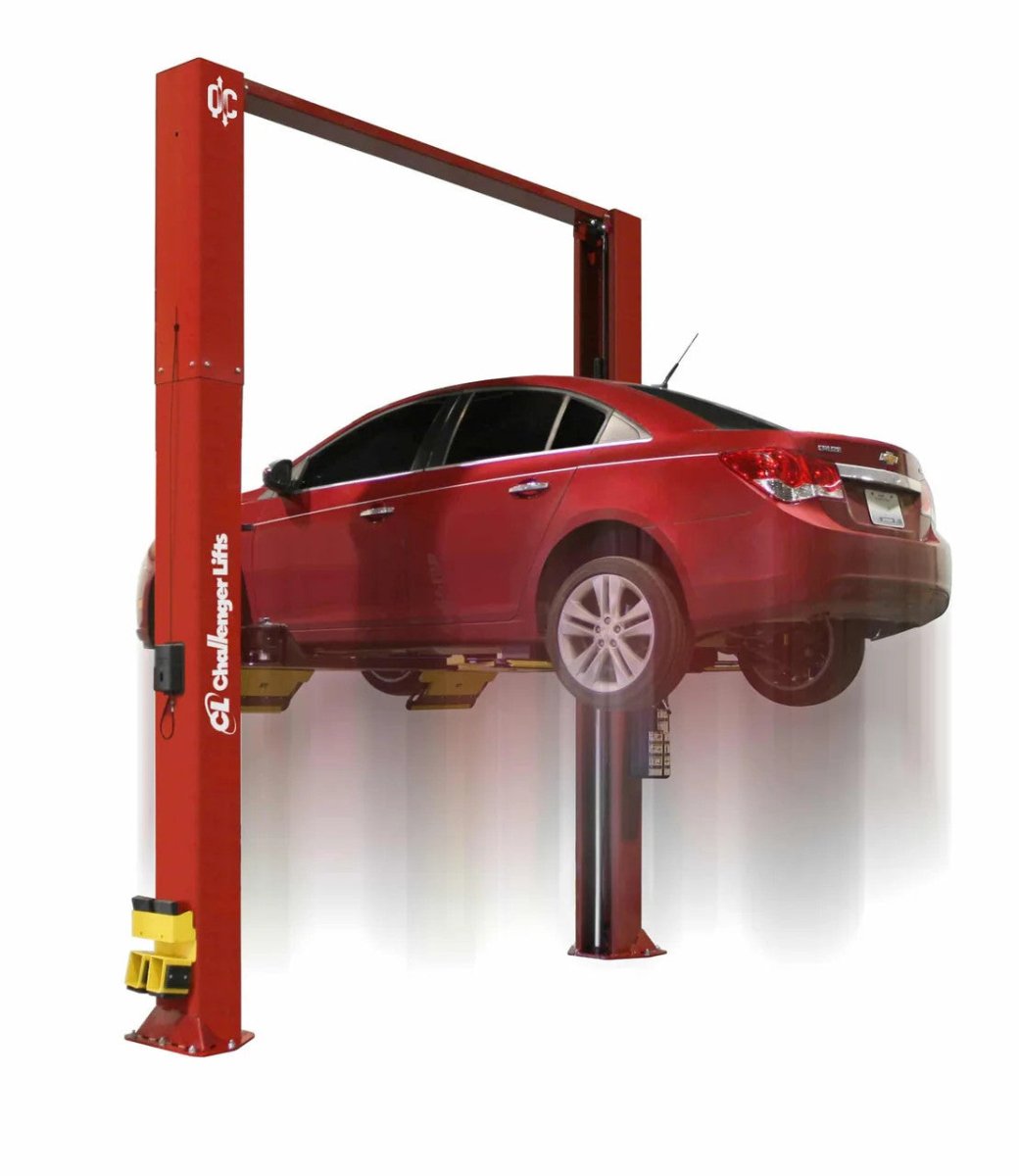

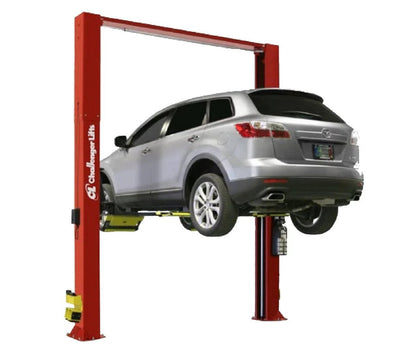

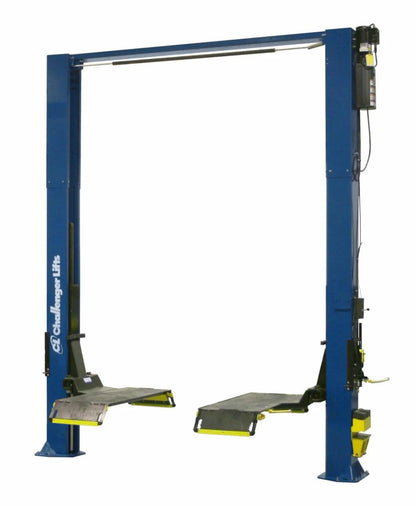

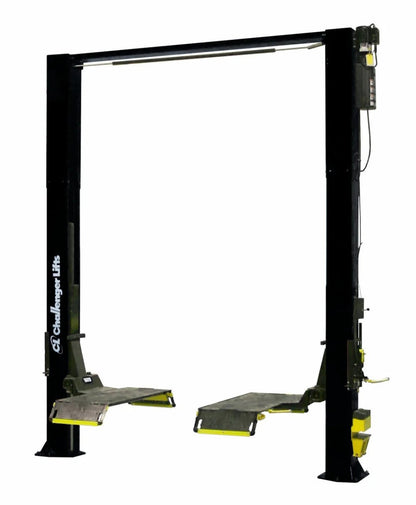

CHALLENGER LIFTS CL10-XP9 Two Post Lift, 9,000 Lbs Drive-On Style
Challenger CL10-XP9 - 9,000 lb Drive-On Two-Post Lift for Express Service Bays
The Challenger CL10-XP9 delivers 9,000 lb capacity in a surface-mounted two-post design with drive-on express service pads and reinforced flip-up ramps. Engineered for high-throughput environments like quick lube centers, tire shops, and express maintenance bays, this ALI-certified lift eliminates manual arm positioning entirely, enabling rapid first-try vehicle spotting that maximizes bay productivity.
Key Features & Benefits

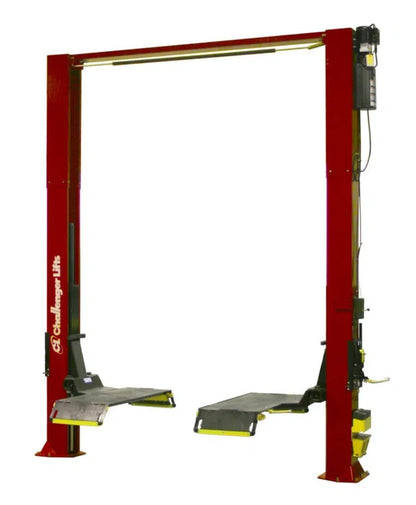

Drive-On Express Pad Design
The CL10-XP9's drive-on express pads eliminate manual arm positioning entirely, allowing technicians to spot vehicles on the first try without adjusting swing arms or adapters. The 24-inch wide platforms with reinforced front and rear flip-up access ramps accommodate a wide range of wheelbases while maintaining a 2.25-inch platform height that minimizes approach clearance issues.
Traditional two-post lifts require technicians to position four swing arms under vehicle lift points for every service, a process that adds 30-60 seconds per vehicle. In express service environments processing 40+ vehicles daily, this translates to significant lost productivity. The drive-on design addresses this industry-wide challenge by converting arm positioning time to zero.
This enables faster vehicle throughput in quick lube bays, tire rotation stations, and inspection lanes. Technicians simply guide drivers onto the platforms, eliminating the training curve and consistency issues associated with proper arm placement on conventional two-post lifts.
QuickCycle Speed Technology
The optional QuickCycle configuration delivers 27-second rise time and 17-second descent, dramatically reducing cycle times compared to standard hydraulic systems. This performance upgrade utilizes an enhanced power unit to cut cycle times by 50% or more versus conventional lift cycles while maintaining smooth, controlled operation throughout the full 70-inch rise height.
Standard two-post lifts typically require 45-60+ seconds to reach full height, creating bottlenecks in high-volume service environments. QuickCycle addresses this by delivering sub-30-second rise times, directly impacting the number of vehicles a single bay can process per hour.
This improves express bay economics by increasing vehicle throughput without additional real estate or equipment investment. For operations running 8+ hours daily, the cumulative time savings translate to meaningful revenue potential through additional service capacity.
Low-Profile Platform Architecture
The 2.25-inch platform height represents one of the lowest approach profiles available in drive-on two-post designs. This minimized height reduces the risk of undercarriage contact during vehicle approach, accommodating lowered vehicles, sport packages, and aftermarket suspension modifications that would scrape on taller platform designs.
Many quick lube operations serve a diverse vehicle mix including sports cars, modified vehicles, and luxury sedans with reduced ground clearance. Standard drive-on platforms at 3-4 inches create hesitation for drivers and potential damage claims. The 2.25-inch profile addresses this by accepting virtually any street-legal vehicle without special procedures.
This eliminates driver hesitation during approach and reduces the need for spotters or approach guides. Technicians can confidently direct all customer vehicles onto the lift without pre-screening for ground clearance issues.
Configurable Platform Length System
The flip-up ramp design enables platform length adjustment from 58 inches to 75 inches without equipment changes or adapter swaps. The three length options (58 in, 66.5 in, and 75 in) accommodate wheelbases ranging from compact cars to full-size trucks within a single lift configuration, with reinforced ramps that handle repeated cycling.
Traditional drive-on lifts with fixed platform lengths force shops to either limit their service range or purchase multiple lift configurations. The configurable system addresses this by providing wheelbase flexibility through a simple flip-up mechanism that takes seconds to adjust.
This enables shops to service their full customer mix on one lift without specialized equipment for different vehicle classes. The 90-inch drive-thru clearance and 110-inch column spacing further expand the range of vehicles that can be accommodated.
ALI/ETL Dual Certification
The CL10-XP9 carries both ALI Gold Label Certification (Automotive Lift Institute) and ETL Listing (Intertek), meeting ANSI/ALI ALCTV safety standards and UL 201 electrical safety requirements. These certifications verify third-party testing of structural integrity, safety mechanism function, and electrical system compliance.
Commercial service operations face increasing insurance and liability scrutiny around lift equipment. Non-certified lifts can void coverage, expose owners to liability, and fail International Building Code compliance inspections. Dual certification addresses these risks by providing documented proof of safety standard compliance.
This enables commercial operators to satisfy insurance requirements, pass facility inspections, and demonstrate due diligence in equipment selection. The certifications also support resale value by providing transferable documentation of safety compliance.
Domestic Manufacturing & Support
The CL10-XP9 is manufactured in Louisville, Kentucky by Challenger Lifts, a company founded in 1992 with a US-based parts inventory, authorized installer network, and technical support available at (502) 625-0700. This domestic production ensures consistent quality control and reduces supply chain delays that affect import equipment.
Import lifts often face extended lead times for replacement parts, language barriers in technical support, and inconsistent build quality across production runs. Domestic manufacturing addresses these concerns by keeping parts inventory, technical expertise, and production oversight within the continental US.
This reduces downtime risk when service or parts are needed. The authorized installer network ensures proper installation by trained technicians, which is required to activate the full warranty coverage and maintains the lift's certification compliance.
Applications & Use Cases
- Quick Lube & Oil Change Centers: High-volume express oil change operations requiring rapid vehicle cycling and minimal technician training for vehicle positioning.
- Tire Rotation & Balancing Stations: Tire service facilities performing wheel-off services where drive-on access provides immediate wheel accessibility without arm interference.
- Brake Inspection & Service: Brake service bays requiring full wheel and brake system access with vehicles securely positioned at working height.
- State Inspection Check Lanes: Vehicle inspection stations processing high volumes where consistent, rapid vehicle positioning improves throughput and reduces customer wait times.
- Express Maintenance Bays: Multi-point inspection and light maintenance operations in dealership service departments and independent shops.
- Fleet Maintenance Operations: Commercial fleet service facilities maintaining passenger cars, light trucks, SUVs, crossovers, and vans within the 9,000 lb capacity rating.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Rise Height | 70 in (1,778 mm) |
| QuickCycle Rise Time | 27 seconds |
| QuickCycle Descent Time | 17 seconds |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 140 in (3,556 mm) |
| Overall Height (Cylinder Extended) | 143 in (3,632 mm) |
| Overall Height (2 ft Extension) | 164 in (4,166 mm) |
| Overall Height (3 ft Extension) | 176 in (4,470 mm) |
| Overall Width | 138.5 in (3,518 mm) |
| Drive-Thru Clearance | 90 in (2,286 mm) |
| Inside of Columns | 110 in (2,794 mm) |
| Specification | Value |
|---|---|
| Platform Height | 2.25 in (57 mm) |
| Platform Width | 24 in (610 mm) |
| Platform Length (Short) | 58 in (1,473 mm) |
| Platform Length (Medium) | 66.5 in (1,689 mm) |
| Platform Length (Extended) | 75 in (1,905 mm) |
| Specification | Value |
|---|---|
| Motor Voltage | 208-230V, 60 Hz, Single Phase |
Installation Requirements
Concrete Foundation
- Minimum Depth: 4 inches
- Concrete Strength: 3,500 PSI minimum
- Reinforcement: Steel reinforcement required
- Curing Time: 28+ days minimum
- Level Tolerance: 3/8 inch over installation area
- Anchor Clearance: No anchors within 8 inches of any crack, edge, or expansion joint
Ceiling Clearance
- Standard (No Extensions): 12 ft minimum
- With 2 ft Extensions: 14 ft minimum
- With 3 ft Extensions: 15 ft minimum
Electrical Requirements
- Power Supply: Dedicated 208-230V single-phase circuit
- Grounding: Properly grounded installation required
Installation Notes
- Professional Installation: Must be installed by authorized Challenger installer to activate warranty coverage.
- Permits: Verify local code compliance and permit requirements before installation.
Shipping & Delivery
Freight Delivery
Shipping Method: Ships via flatbed freight truck.
Shipping Weight: 1,400-2,000 lb depending on configuration (standard vs. extended columns, QuickCycle vs. standard power unit).
Lead Times: Delivery windows vary by dealer - contact for current availability.
Delivery Requirements
Unloading Equipment: Forklift or hoist required for unloading. Lift gate delivery is not available due to equipment weight and dimensions.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Parts: Covers carriage, columns, column extensions, overhead beams, arms, cross beams, runways, wheel stops, ramps, bolsters, sync rails, and plungers.
2 Years - Functional Parts: Covers power units, cylinders, sheaves, sheave pins, hoses, hydraulic and pneumatic fittings, cables, adapters, latches, valves, and controls.
1 Year - Labor: Covers labor costs for warranty repairs during the first year of ownership.
Warranty Requirements
Registration: Product registration required at challengerlifts.com/register-your-lift.
Eligibility: Valid for original purchaser only (non-transferable).
Installation: Must be installed by authorized Challenger installer to activate warranty coverage.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10-XP9?
The Challenger CL10-XP9 has a maximum lifting capacity of 9,000 lb (4,082 kg), designed for passenger cars, light trucks, SUVs, crossovers, and vans. This capacity rating covers most consumer vehicles including full-size pickup trucks like Ford F-150s and Chevrolet Silverados, mid-size SUVs, and passenger vans. The drive-on pad design distributes vehicle weight evenly across the 24-inch wide platforms during service operations.
What are the concrete requirements for the CL10-XP9 installation?
The CL10-XP9 requires a concrete foundation with minimum 4-inch depth, 3,500 PSI compressive strength, steel reinforcement, and 28+ days curing time before installation. Level tolerance must be within 3/8 inch over the installation area. Anchors must be positioned at least 8 inches from any crack, edge, or expansion joint to ensure proper load distribution and long-term structural integrity.
What ceiling height is required for the Challenger CL10-XP9?
Standard configuration requires 12 ft minimum ceiling height, which accommodates the 143-inch overall height when the cylinder is fully extended. With 2 ft column extensions (-2 suffix models), 14 ft minimum is required for the 164-inch extended height. With 3 ft column extensions (-3 suffix models), 15 ft minimum ceiling clearance is needed for the 176-inch configuration. Measure from finished floor to lowest obstruction.
What is included with the Challenger CL10-XP9 two-post lift?
The CL10-XP9 includes the complete two-post lift assembly with drive-on pads, (4) 1.5 in rubber spotting blocks, (4) 3 in rubber spotting blocks, (2) column-mounted spotting block storage caddies, reinforced front and rear flip-up access ramps, dual integrated rubber door guards, power unit with hydraulic components, complete hardware and anchor kit, and installation/operation/maintenance manual.
What is the QuickCycle rise time on the CL10-XP9?
With the optional QuickCycle configuration, the CL10-XP9 achieves 27-second rise time to full 70-inch height and 17-second descent time. Standard hydraulic two-post lifts typically require 45-60+ seconds for the same travel distance. QuickCycle uses an enhanced power unit to deliver this performance improvement, making it ideal for high-volume express service bays where cycle time directly impacts daily throughput.
What certifications does the Challenger CL10-XP9 have?
The CL10-XP9 carries dual certification: ALI Gold Label Certification from the Automotive Lift Institute and ETL Listing from Intertek. These certifications verify compliance with ANSI/ALI ALCTV safety standards for automotive lifting equipment and UL 201 requirements for garage equipment electrical safety. Dual certification satisfies most commercial insurance requirements and International Building Code compliance for service facility equipment.
What is the warranty on the Challenger CL10-XP9?
The CL10-XP9 features a 5-2-1 tiered warranty structure. Structural parts including columns, carriages, overhead beams, arms, runways, and cross beams are covered for 5 years. Functional parts such as power units, cylinders, sheaves, cables, and valves are covered for 2 years. Labor costs are covered for 1 year. Warranty activation requires product registration and installation by an authorized Challenger installer.
What is the drive-thru clearance on the CL10-XP9?
The CL10-XP9 provides 90-inch drive-thru clearance between the platforms and 110-inch spacing between the inside faces of the columns. This accommodates full-size trucks, SUVs, and vans including extended cab and crew cab configurations. The 138.5-inch overall width allows installation in standard two-car garage bays while maintaining adequate side clearance for technician access around the vehicle.
