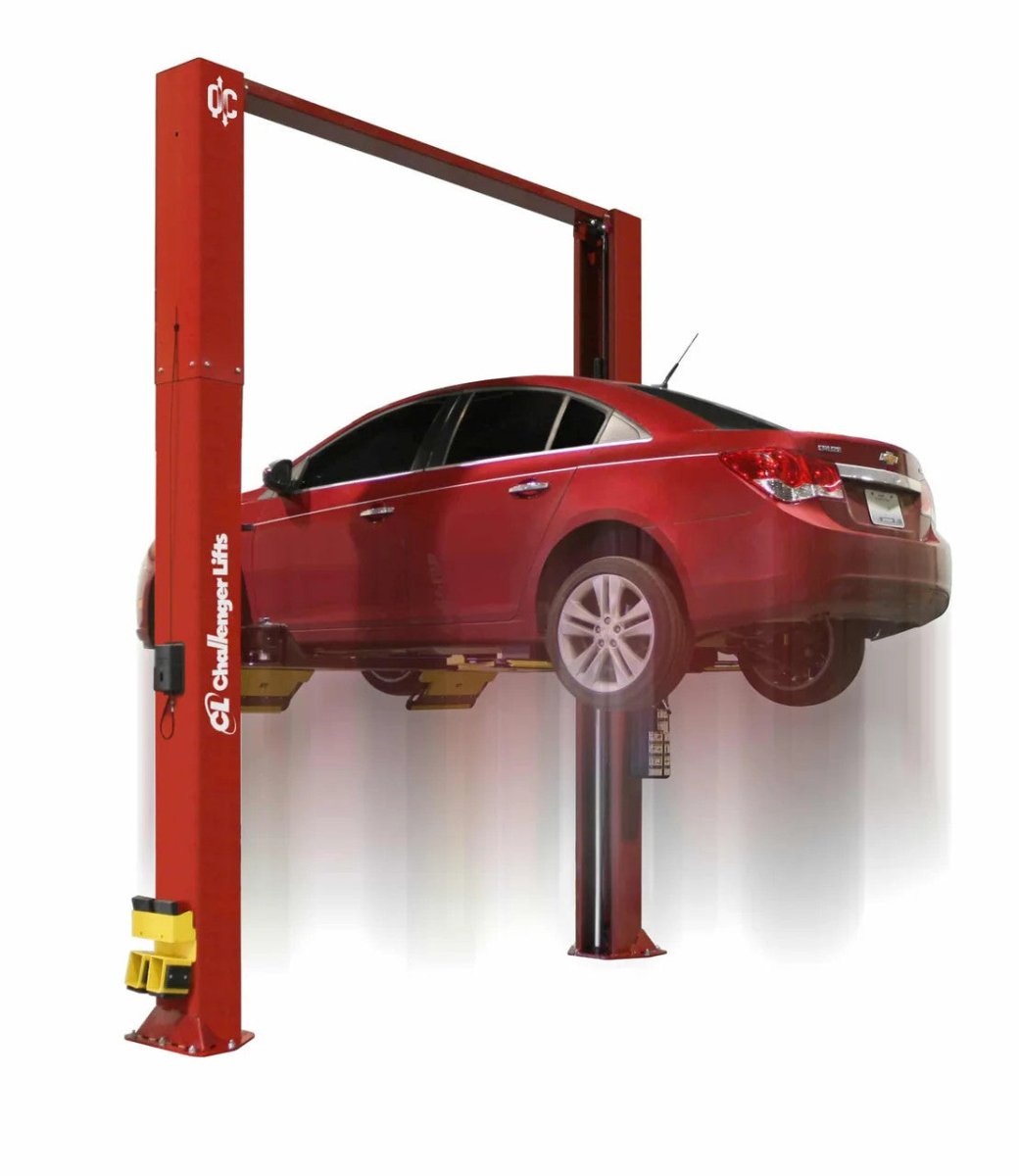

Challenger CL10-XP9-2-DPC-QC Two-Post Automotive Lift 9,000 lb
Challenger CL10-XP9-2-DPC-QC 9,000 lb ALI-Certified Two-Post Lift for Express Service Operations
The Challenger CL10-XP9-2-DPC-QC is a commercial-grade, ALI/ETL dual-certified two-post automotive lift engineered for high-throughput express service operations. Featuring QuickCycle technology that delivers a 27-second rise time and 17-second descent, this lift operates 40% faster than standard hydraulic two-post lifts. The drive-on express pad configuration with flip-up ramps eliminates swing-arm positioning entirely, while included 2-foot column extensions provide 164 inches total height for taller vehicles. Powered by a 3 HP, 208/230V single-phase motor, this lift is backed by Challenger's comprehensive warranty and American manufacturing quality.
Challenger CL10-XP9-2-DPC-QC Features
QuickCycle Express Service Technology
QuickCycle hydraulic technology delivers 27-second rise time and 17-second descent, operating 40% faster than conventional two-post lifts with 45-48 second cycles. Combined with the drive-on express pad configuration, this creates compound time savings that can enable 10-15 additional service cycles per 8-hour shift in high-volume express bay operations, directly translating to increased revenue capacity for quick lube centers and tire shops.
Dual Pendant Control System
Two independent pendant control units enable lift operation from either the power column or idler column, providing critical operational flexibility. Each pendant includes all lift, lower, and safety lock release functions, allowing technicians to control the lift from the optimal vantage point without column obstruction. This dual-location architecture eliminates positioning blind spots and improves first-attempt correct positioning accuracy.
Drive-On Express Pad Configuration
Low-profile 2.25" platform height with reinforced flip-up ramps accommodates three wheelbase ranges (58", 66.5", and 75" platform lengths) without swing-arm repositioning. The 24" platform width with 31.5" spacing provides adequate tire contact area while maintaining drive-through clearance. Vehicles drive directly onto platforms, technicians lock ramps in position, and the lift engages with zero arm adjustment required.
48-Inch Elongated Carriage Engineering
Extended 48" carriage length exceeds typical 40-42" designs in competitive models, distributing operational stress loads across 15-20% greater surface area. Combined with oversized 5" diameter sheaves and heavy-duty 5/16" synchronizer cables, the carriage design prioritizes commercial longevity for express bay applications cycling 40-60+ times daily, reducing maintenance frequency and extending service intervals.
Included 2-Foot Column Extensions
Standard inclusion of 2-foot extension kit raises total height from 140" to 164", differentiating from competitive models that charge $200-400 for extension accessories sold separately. The extensions accommodate taller vehicles including lifted trucks, commercial vans, and high-roof cargo vehicles. Shops can install at standard height initially and add extensions later, or install in extended configuration from the start.
ALI/ETL Dual Certification
Gold Label ALI Certification (ANSI/ALI ALCTV-2017 compliance) combined with ETL listing by Intertek satisfies commercial building permit requirements in jurisdictions mandating third-party safety validation. This dual certification enables access to ALI-certified lift inspectors for required annual inspections, supporting ongoing OSHA compliance and liability risk management while eliminating permitting and insurance compliance risks.
Challenger CL10-XP9-2-DPC-QC Applications
- Express Service Bays and Quick Lube Operations: High-volume oil changes, fluid services, and routine maintenance where rapid vehicle throughput drives profitability. QuickCycle technology and drive-on pads maximize vehicles serviced per shift.
- Tire Service Centers: Tire rotation, mounting, balancing, and seasonal tire changes for passenger cars, SUVs, crossovers, and light trucks up to 9,000 lb. Multiple wheelbase positions eliminate repositioning between vehicle types.
- Brake Inspection and Service: Brake pad replacement, rotor service, and brake system diagnostics requiring vehicle elevation for wheel removal. Platform configuration provides stable, level lifting for precision brake work.
- State Inspection Lanes: Safety and emissions inspection operations requiring undercarriage access and standardized lift procedures. ALI certification meets regulatory requirements for commercial inspection facilities.
- General Automotive Maintenance: Suspension work, exhaust service, fluid leak diagnosis, and routine undercarriage inspections. 70" rise height provides comfortable working clearance for technicians.
- Fleet Service and Maintenance: Commercial fleet operations maintaining mixed passenger cars, light trucks, and delivery vans within 9,000 lb capacity. Column extensions accommodate high-roof cargo vehicles and lifted trucks.
Challenger CL10-XP9-2-DPC-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Capacity Per Platform | 4,500 lb |
| Rise Time (QuickCycle) | 27 seconds |
| Descent Time (QuickCycle) | 17 seconds |
| Specification | Value |
|---|---|
| Rise Height | 70" |
| Overall Height (Standard) | 140" |
| Overall Height (With 2' Extensions) | 164" |
| Overall Width | 138.5" |
| Drive-Thru Clearance | 90" |
| Inside of Columns | 110" |
| Floor to Overhead Switch | 134.5" |
| Platform Height | 2.25" |
| Platform Width | 24" |
| Platform Lengths | 58" / 66.5" / 75" |
| Width Between Platforms | 31.5" |
| Carriage Length | 48" |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Voltage | 208/230V |
| Phase | Single Phase (1Ph) |
| Frequency | 60 Hz |
| Breaker Requirement | 20 Amp |
| Specification | Value |
|---|---|
| Sheave Diameter | 5" |
| Synchronizer Cable | 5/16" Heavy Duty |
| Approximate Shipping Weight | 1,835-2,025 lb |
| Certifications | ALI/ETL Certified |
Challenger CL10-XP9-2-DPC-QC Installation Requirements
Electrical Requirements
Power: 208/230V single-phase, 60 Hz with 20 amp dedicated circuit and breaker. A licensed electrician must install and verify the electrical supply meets local codes prior to lift operation.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete floor with 3,000 PSI compressive strength required. Anchor bolts must be installed per Challenger specifications. Floor must be level and free of cracks, expansion joints, or voids within the anchor pattern.
Space Requirements
Ceiling Height: Minimum 12 feet for standard installation, 14 feet with 2-foot extensions installed. Overall Width: 138.5". Drive-Thru Clearance: 90". Allow adequate clearance around lift for vehicle doors, technician movement, and equipment access.
Professional Installation
Installation by an authorized Challenger installer is required for warranty validation. Professional installation ensures proper anchor placement, electrical connections, safety system verification, and operator training. Contact Garage Supply Guys for installation service recommendations in your area.
What's Included with the Challenger CL10-XP9-2-DPC-QC
- Complete two-post lift assembly with express service drive-on pads
- 2-foot column extension kit (pre-installed or for field installation)
- Dual pendant control units with lift, lower, and lock release functions
- Flip-up ramps for three wheelbase positions (58", 66.5", 75")
- (4) 1.5" rubber spotting blocks
- (4) 3" rubber spotting blocks
- (2) Spotting block storage caddies
- Column-mounted spotting block storage caddy
- Dual integrated rubber door guards
- Padded overhead shut-off system
- QuickCycle hydraulic power unit
- Complete anchor hardware kit
- Installation and operation manual
Optional Accessories: 3-foot column extensions (Part# A2006-3), air and electric workstation (Part# B10264), tire hanger kit (Part# THK-CLXP9-STD), tire tool manager workstation (Part# B99700).
Not Included: Electrical wiring and breaker installation, concrete work or floor preparation, professional installation labor (recommended), hydraulic fluid for initial fill.
Challenger CL10-XP9-2-DPC-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days from Louisville, Kentucky. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Shipping weight is approximately 1,835-2,025 lb. Delivery Type: Curbside delivery standard. Liftgate service available for additional fee if no forklift access. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph damaged packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 30% restocking fee applies for Challenger products. Buyer responsible for return freight costs. Contact support@garagesupplyguys.com to initiate return process.
Challenger CL10-XP9-2-DPC-QC Warranty
Challenger Lifts Limited Warranty
Challenger Lifts, Inc. guarantees this lift to the original owner. Challenger will repair or replace defective parts and cover reasonable transportation and labor costs for the warranty periods stated below.
- 5 Years: Structural components including carriage, columns, platforms, and base plates
- 2 Years: Functional parts including power unit, cylinders, sheaves, hoses, cables, and controls
- Extended Warranty Available: Additional 3 years functional parts coverage (5 years total) available for purchase within 30 days of lift invoice
Requirements: Lift must be installed by an authorized Challenger installer. Warranty registration required online at challengerlifts.com or warranty period begins from invoice date. Warranty does not cover normal maintenance, adjustments, or damage from improper installation, abuse, misuse, or negligence. Use of unapproved parts or accessories will void warranty. Warranty is non-transferable.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9-2-DPC-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9-2-DPC-QC FAQ
What is the lifting capacity of the CL10-XP9-2-DPC-QC?
The Challenger CL10-XP9-2-DPC-QC has a rated lifting capacity of 9,000 lb, evenly distributed across both drive-on platforms (4,500 lb per side). This capacity handles passenger cars, SUVs, crossovers, and light trucks. The lift is ALI-certified, meaning capacity ratings have been independently verified and tested to ANSI/ALI standards.
What ceiling height do I need for this lift?
The standard lift configuration requires a minimum 12-foot ceiling height (140" overall height). With the included 2-foot column extensions installed, you need a minimum 14-foot ceiling (164" overall height). Always calculate ceiling clearance based on the full raised height of the lift plus the tallest vehicle you plan to service.
What are the electrical requirements?
The CL10-XP9-2-DPC-QC requires 208/230V single-phase power at 60 Hz with a dedicated 20-amp circuit and breaker. The 3 HP motor is compatible with standard commercial electrical service. A licensed electrician should install and verify the electrical supply meets local codes before operating the lift.
Does installation need to be done by a professional?
Yes, installation by an authorized Challenger installer is required to validate the warranty. Professional installation ensures proper anchor placement in your concrete floor, correct electrical connections, safety system verification, and operator training. Contact Garage Supply Guys for installer recommendations in your area.
What does the warranty cover?
Challenger provides a 5-year warranty on structural components (carriage, columns, platforms, base plates) and a 2-year warranty on functional parts (power unit, cylinders, sheaves, hoses, cables, controls). An extended warranty adding 3 years of functional parts coverage is available for purchase within 30 days of invoice. Warranty requires professional installation and registration.
What's included with the lift?
The lift includes the complete two-post assembly with drive-on express pads, 2-foot column extensions, dual pendant controls, flip-up ramps for three wheelbase positions, (4) 1.5" and (4) 3" rubber spotting blocks, (2) storage caddies, door guards, padded overhead shutoff, QuickCycle power unit, anchor hardware, and installation manual. Electrical wiring, concrete work, and installation labor are not included.
How is the lift shipped and delivered?
The lift ships via freight truck from Louisville, Kentucky within 5-10 business days. Free freight shipping is included to commercial addresses in the 48 contiguous states. Curbside delivery is standard; you will need a forklift or loading dock to unload the approximately 2,000 lb shipment. Liftgate service is available for an additional fee if needed.
What accessories are available for this lift?
Optional accessories include 3-foot column extensions (Part# A2006-3) for even taller ceiling installations, air and electric workstation (Part# B10264), tire hanger kit (Part# THK-CLXP9-STD), and tire tool manager workstation (Part# B99700). Contact our equipment specialists for accessory pricing and compatibility.
How does this compare to a traditional swing-arm two-post lift?
The CL10-XP9-2-DPC-QC eliminates the time required to position swing arms under vehicle lift points. With traditional two-post lifts, technicians must adjust asymmetric arms for each vehicle wheelbase. This drive-on pad configuration lets vehicles drive directly onto the platforms, flip-up ramps lock into position for the wheelbase, and the lift operates. Combined with QuickCycle speed, this can save 30-90 seconds per vehicle versus conventional two-post designs.
What maintenance does this lift require?
Regular maintenance includes visual inspection of cables, sheaves, and safety locks before each use; periodic lubrication of moving parts per the manual; hydraulic fluid level checks; and annual professional inspection by an ALI-certified lift inspector. The 48" elongated carriage and oversized 5" sheaves are designed to reduce wear and extend service intervals compared to economy lift designs.
What is QuickCycle technology?
QuickCycle is Challenger's upgraded hydraulic system that delivers significantly faster lift and lower speeds. The CL10-XP9-2-DPC-QC rises in just 27 seconds and lowers in 17 seconds, approximately 40% faster than standard two-post lifts that typically cycle in 45-48 seconds. This speed advantage can enable 10-15 additional service cycles per 8-hour shift in high-volume express service operations.
What concrete floor requirements must be met?
The lift requires a minimum 4-inch thick reinforced concrete floor with 3,000 PSI compressive strength. The floor must be level and free of cracks, expansion joints, or voids within the anchor bolt pattern. If your existing floor does not meet these specifications, consult with a concrete contractor about reinforcement options before purchasing.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
