Challenger CL10-XP9-2-DPC-QC 9,000 lb Quick Cycle Two-Post Lift for Express Service Bays
The Challenger CL10-XP9-2-DPC-QC delivers 9,000 lb capacity in a drive-on express pad configuration engineered for high-volume express service bays and quick-lube facilities. Featuring proprietary Quick Cycle hydraulic technology with 27-second rise times, dual pendant controls for operational flexibility, and a 2-foot column extension providing 164" total height, this lift handles passenger cars, light trucks, and SUVs with ease. The drive-on express pads eliminate arm positioning steps, reducing total cycle time to 35-45 seconds per vehicle. ALI Gold Label certified and ETL listed for commercial safety compliance. Backed by Challenger's comprehensive warranty.
Challenger CL10-XP9-2-DPC-QC Features
Quick Cycle Technology - 27-Second Rise Time
Quick Cycle hydraulic technology delivers 27-second rise times and 17-second lowering times - 40% faster than standard two-post lifts requiring 38-45 seconds. Optimized hydraulic flow rates and cylinder sizing achieve this performance while maintaining smooth, controlled operation throughout the full 70" rise height. In high-volume environments performing 40-50 services daily, this speed advantage enables 2-3 additional service appointments without extending operating hours.

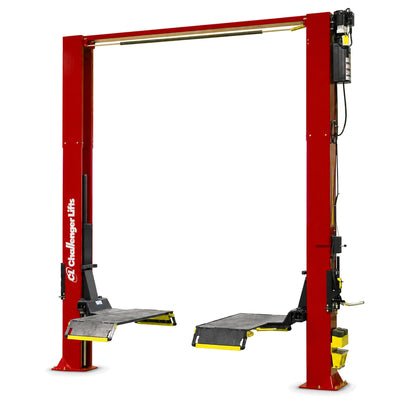

Drive-On Express Pad Configuration

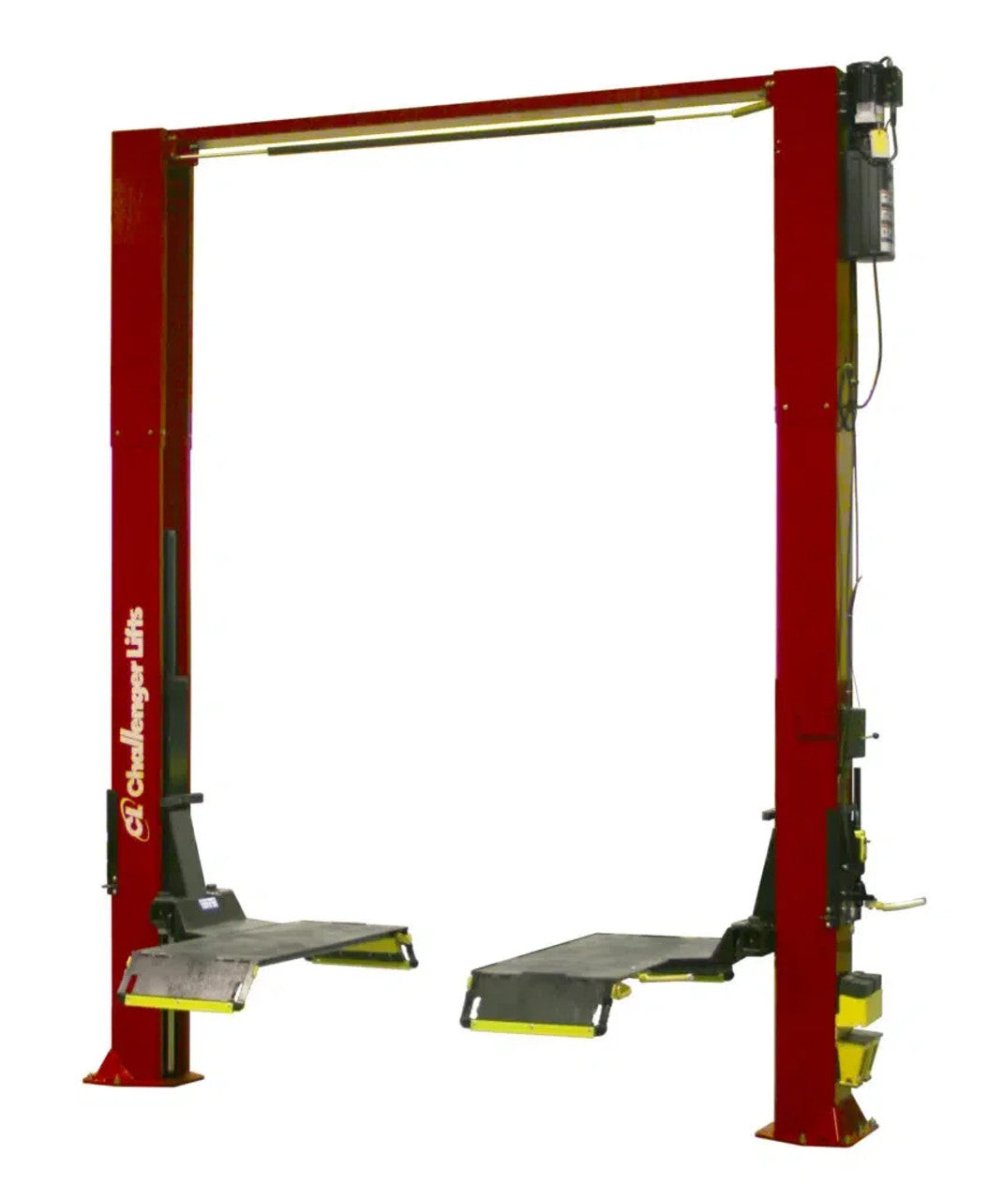

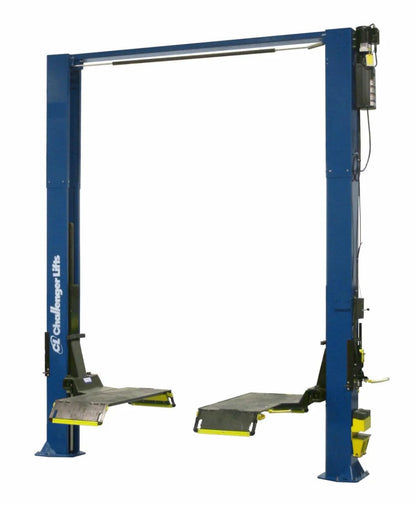

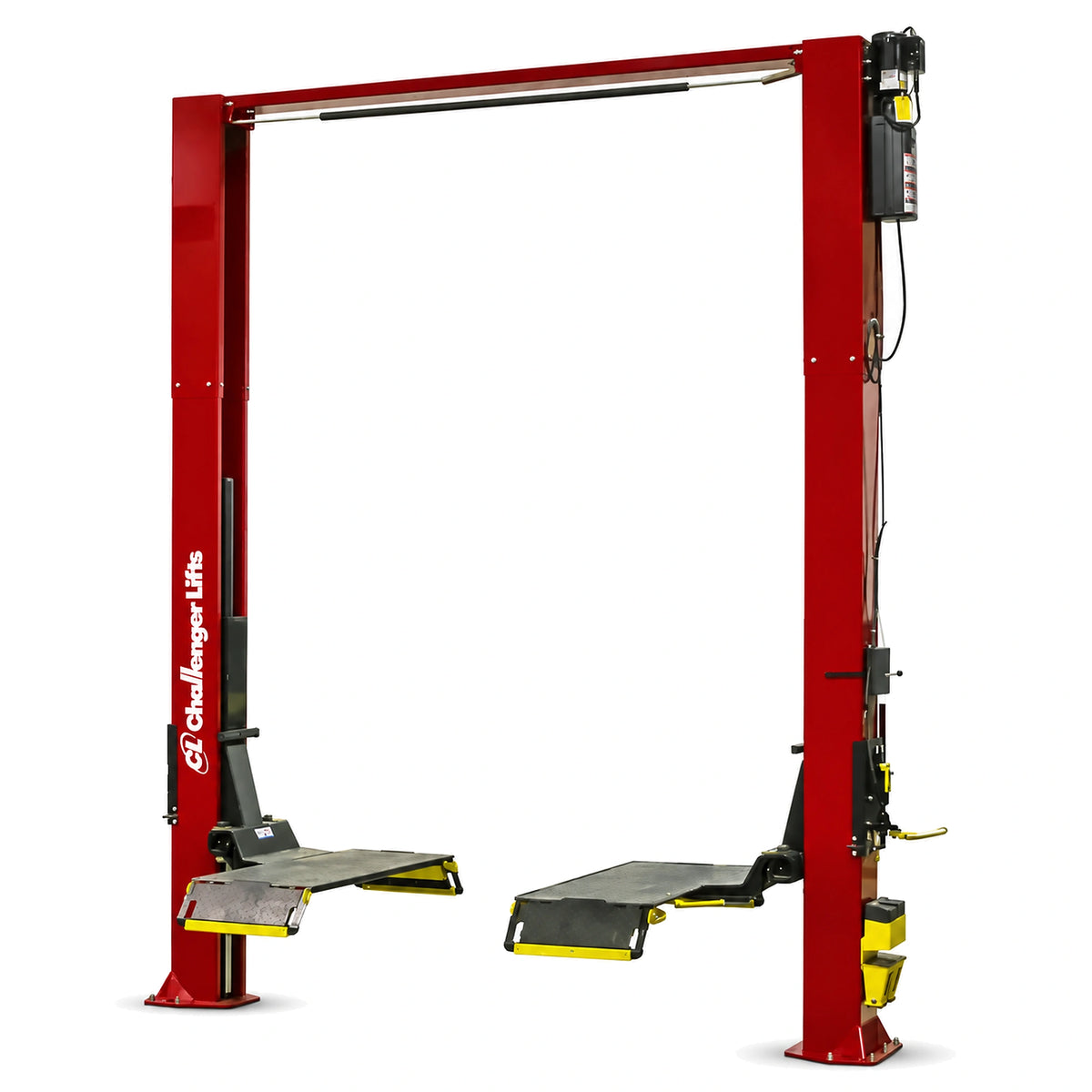

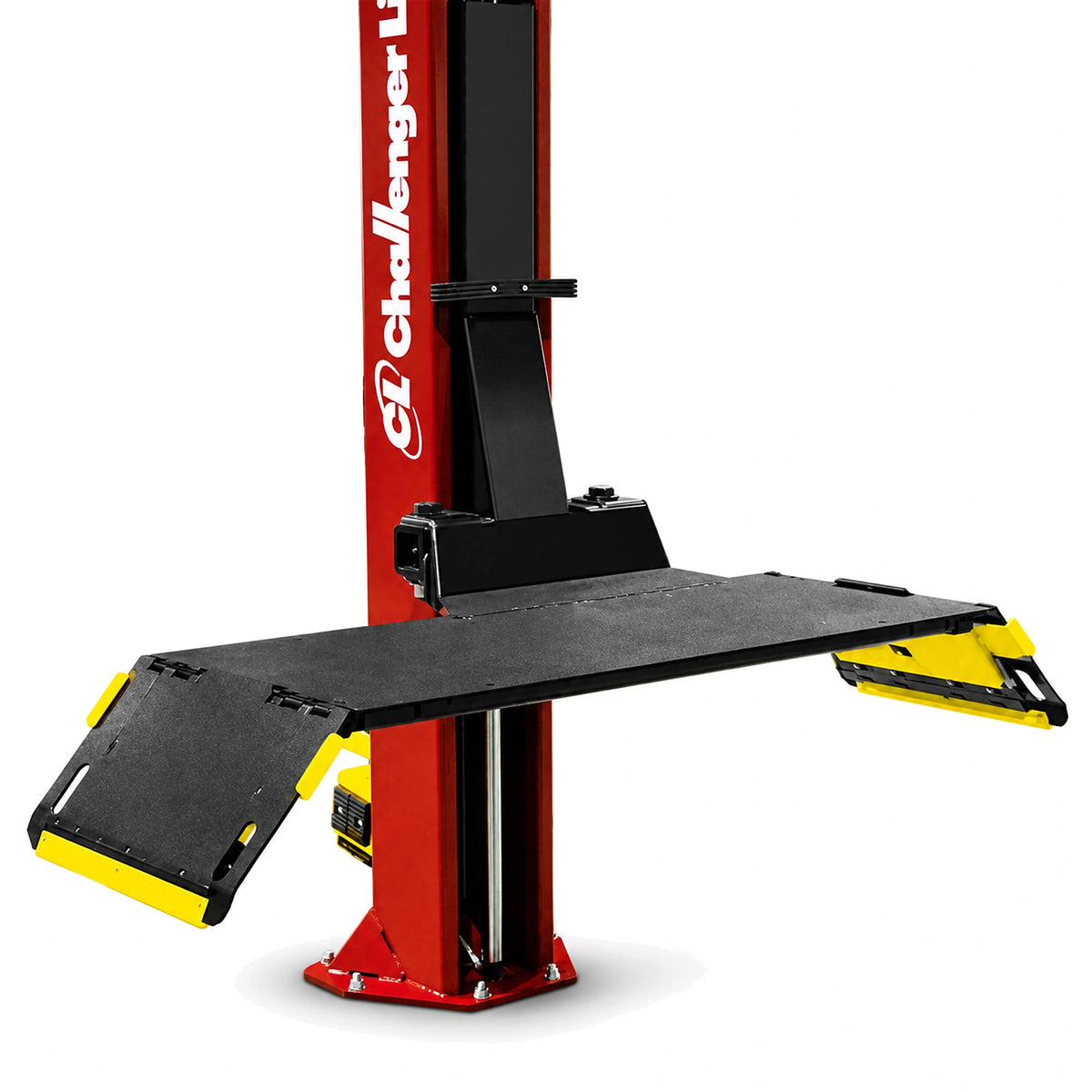

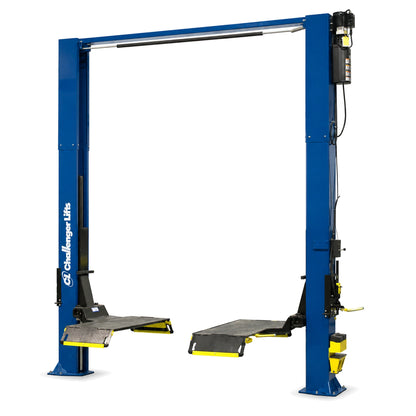

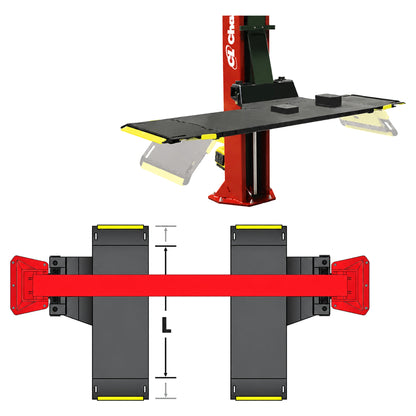

The drive-on express pad design features 2.25" low-profile platforms with flip-up locking ramps extending to adjustable lengths (58", 66.5", or 75"). Vehicles drive directly onto the lifting platforms, eliminating the need to position individual swing arms under frame rails. This reduces per-vehicle setup time by 30-60 seconds and minimizes training requirements for new technicians, dropping total vehicle-to-working-height time from 90-120 seconds to just 35-45 seconds.
Dual Pendant Control System (DPC)
The dual pendant power control system provides two independent pendant controllers that plug into either the power column or idler column. Technicians can operate the lift from the driver side or passenger side, choosing the optimal viewing position for safe vehicle spotting. This eliminates 8-12 steps per cycle, reducing unnecessary technician walking by 320-480 steps daily (0.15-0.25 miles), improving both productivity and comfort during extended shifts.
ALI Gold Label and ETL Certified Safety
The lift carries both ALI Gold Label certification and ETL listing, confirming compliance with ANSI/ALI ALCTV-2017 and ANSI/UL 201 safety standards. These third-party certifications verify that design, materials, and construction meet nationally recognized standards for commercial automotive lifting equipment. This ensures regulatory compliance from installation, satisfying both municipal permit requirements and commercial insurance policy conditions.
48-Inch Elongated Carriage Design
The carriage assembly measures 48" in length - 6-12" longer than competing 9,000 lb lifts in the 36-42" range. This extended length distributes lifting load across a greater surface area on the column slide tracks, reducing contact pressure at each bearing point by 15-20%. Lower contact pressure extends time-to-overhaul by 1-2 years in high-throughput applications, deferring major maintenance costs and reducing unplanned downtime events.
Heavy-Duty Cable and Sheave System
The synchronization system uses 5" diameter oversized sheaves paired with 5/16" (8mm) synchronizer cables - exceeding standard specifications of 4" sheaves with 1/4" cables. The larger sheave diameter reduces cable bending stress by 25%, while the thicker cable provides 56% greater tensile strength. This extends Mean Time Between Failures (MTBF) from 5-7 years to 8-10+ years in high-volume operations.
Challenger CL10-XP9-2-DPC-QC Applications
- Express Service Bays: Oil changes, fluid services, and routine inspections requiring rapid vehicle cycling and high daily throughput with minimal setup time between vehicles.
- Quick-Lube Facilities: High-volume lubrication services prioritizing speed over extended repair time, handling 40+ vehicles daily with consistent, repeatable positioning.
- Tire Service Centers: Tire rotation, replacement, and seasonal changeovers on passenger vehicles, light trucks, and SUVs up to 9,000 lb capacity.
- Brake Service Operations: Brake pad replacement, rotor service, and brake system maintenance on vehicles within capacity, with quick access to undercar components.
- General Automotive Repair: Undercar service and component access for exhaust work, suspension repair, drivetrain service, and general maintenance tasks.
- Inspection Lanes: State safety inspections and emissions testing requiring consistent vehicle positioning, repeatable workflow, and rapid throughput.
- Vehicle Types: Passenger cars (sedans, coupes, hatchbacks), light trucks up to 9,000 lb, SUVs and crossovers, and vans within capacity limits.
Challenger CL10-XP9-2-DPC-QC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb |
| Capacity Per Arm | 2,250 lb |
| Specification | Value |
|---|---|
| Rise Time | 27 seconds |
| Lowering Time | 17 seconds |
| Rise Height | 70" |
| Specification | Value |
|---|---|
| Overall Height | 164" (with 2-foot extension) |
| Column Extension | 24" (2 feet) |
| Minimum Ceiling Height | 13'3" - 13'9" |
| Express Pad Height | 2.25" |
| Adjustable Pad Lengths | 58", 66.5", or 75" |
| Carriage Length | 48" |
| Specification | Value |
|---|---|
| Sheave Diameter | 5" |
| Synchronizer Cable | 5/16" (8mm) |
| Control Type | Dual Pendant Control (DPC) |
| Specification | Value |
|---|---|
| Power Requirements | 208-230V, Single Phase, 60Hz |
| Motor | 2 HP |
| Specification | Value |
|---|---|
| ALI Certification | ALI Gold Label (ANSI/ALI ALCTV-2017) |
| ETL Listing | ETL Listed (ANSI/UL 201) |
Challenger CL10-XP9-2-DPC-QC Installation Requirements
Electrical Requirements
Power: 208-230V, single phase, 60Hz circuit with appropriate amperage for the 2 HP motor. A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength. Concrete must be fully cured and free of cracks or voids at anchor locations. Proper anchor bolt installation is critical for safe operation and warranty compliance.
Space Requirements

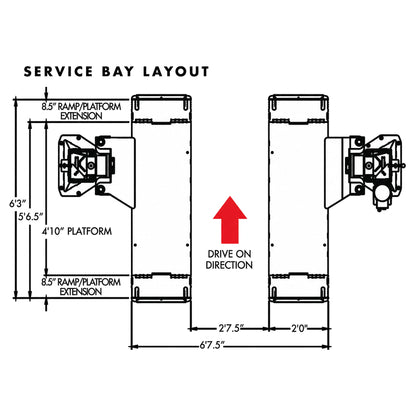

Ceiling Height: 13'3" to 13'9" minimum required for full operation with 2-foot column extension. Bay Width: Allow adequate clearance for vehicle doors and technician movement around columns. Verify all dimensions before installation.
Professional Installation
Professional installation by qualified technicians is strongly recommended and may be required for warranty coverage. Proper installation ensures safe operation, optimal performance, and compliance with ALI certification requirements. Contact us for installation service options in your area.
What's Included with the Challenger CL10-XP9-2-DPC-QC
- Complete two-post lift assembly with 2-foot column extensions
- Drive-on express pad platforms with flip-up locking ramps
- Dual pendant control system (DPC) with two controllers
- Power unit with 2 HP motor
- Heavy-duty synchronizer cables and 5" sheaves
- Anchor bolts and hardware kit
- Installation and operation manual
Optional Accessories: Contact us for available accessories including drip trays, truck adapters, and additional safety equipment.
Not Included: Electrical wiring and connection to power source, concrete work or floor preparation, professional installation labor (available separately), permits and inspections as required by local codes.
Challenger CL10-XP9-2-DPC-QC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days, transit time varies by location. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Lift ships on pallets and requires equipment capable of handling heavy components. Delivery Type: Curbside delivery standard - driver will not unload or move product beyond truck. Inspection: Inspect all packages for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt to preserve claim rights.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Damaged or defective items should be reported within 48 hours of delivery.
Challenger CL10-XP9-2-DPC-QC Warranty
Challenger Lifts Warranty
Challenger Lifts backs this lift with comprehensive warranty coverage for commercial applications:
- 5 Years: Structural components including columns, carriages, and base plates
- 2 Years: Hydraulic cylinders and power unit components
- 1 Year: Electrical components, cables, and general parts
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use within rated capacity, and adherence to recommended maintenance schedules. Commercial use covered. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9-2-DPC-QC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9-2-DPC-QC FAQ
What is the lifting capacity of the CL10-XP9-2-DPC-QC?
The Challenger CL10-XP9-2-DPC-QC has a rated lifting capacity of 9,000 lb, with 2,250 lb capacity per arm. This capacity handles most passenger cars, light trucks, SUVs, crossovers, and vans. Always verify the actual weight of the vehicle before lifting and ensure proper positioning on the drive-on pads.
What ceiling height do I need for this lift?
The CL10-XP9-2-DPC-QC requires a minimum ceiling height of 13'3" to 13'9" for proper operation. The lift includes a 2-foot column extension that provides 164" total height. Measure your ceiling height before ordering and account for any obstructions such as lighting, ductwork, or sprinkler systems.
What are the electrical requirements?
This lift requires 208-230V, single phase, 60Hz power supply for the 2 HP motor. A licensed electrician should install a dedicated circuit meeting local electrical codes. The specific amperage requirements are detailed in the installation manual. Ensure your facility can provide adequate power before ordering.
How fast does the lift raise and lower vehicles?
The Quick Cycle hydraulic system provides a 27-second rise time and 17-second lowering time - approximately 40% faster than standard two-post lifts. Combined with the drive-on express pads that eliminate arm positioning, total vehicle-to-working-height time is reduced to 35-45 seconds, significantly improving throughput in express service environments.
Do I need professional installation?
Professional installation by qualified technicians is strongly recommended and may be required for full warranty coverage. Proper installation ensures safe operation, optimal performance, and compliance with ALI certification standards. Incorrect installation can void warranty coverage and create safety hazards. Contact us for installation service options in your area.
What warranty coverage is included?
Challenger provides comprehensive warranty coverage: 5 years on structural components (columns, carriages, base plates), 2 years on hydraulic cylinders and power unit, and 1 year on electrical components, cables, and general parts. Warranty requires proper installation and use within rated capacity. See the warranty document for complete terms and conditions.
What's included with the lift?
The CL10-XP9-2-DPC-QC includes the complete two-post lift assembly with 2-foot column extensions, drive-on express pad platforms with flip-up ramps, dual pendant control system, power unit with motor, heavy-duty synchronizer cables and sheaves, anchor bolts, hardware kit, and installation manual. Electrical wiring, concrete work, and installation labor are not included.
How is the lift shipped and delivered?
The lift ships via freight carrier with free shipping to commercial addresses in the 48 contiguous US states. Delivery is curbside - a forklift or loading dock is required for unloading. Lead time is typically 5-10 business days plus transit time. Inspect all packages for damage before signing the Bill of Lading and note any damage on the delivery receipt.
What makes this lift different from standard two-post lifts?
The CL10-XP9-2-DPC-QC is specifically engineered for high-volume express service environments. Key differences include: Quick Cycle hydraulics (40% faster than standard), drive-on express pads (no arm positioning needed), dual pendant controls (operate from either side), 48" elongated carriages (reduced wear), and heavy-duty 5" sheaves with 5/16" cables (extended service life).
What certifications does this lift have?
The CL10-XP9-2-DPC-QC carries both ALI Gold Label certification (ANSI/ALI ALCTV-2017) and ETL listing (ANSI/UL 201). These third-party certifications verify compliance with nationally recognized safety standards for commercial automotive lifting equipment. Most US commercial building codes and insurance underwriters require ALI certification for new lift installations.
What concrete specifications are required?
The lift requires a minimum 4" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The concrete must be fully cured and free of cracks or voids at anchor locations. Proper anchor bolt installation is critical for safe operation. If your concrete doesn't meet these specifications, remediation may be required before installation.
How often does this lift need maintenance?
Regular maintenance extends lift life and ensures safe operation. Recommended maintenance includes daily visual inspections, monthly lubrication of moving parts, quarterly cable and safety lock inspections, and annual professional service. The heavy-duty components (48" carriages, 5" sheaves, 5/16" cables) are designed for extended service intervals in high-volume applications. Consult the manual for complete maintenance schedules.
