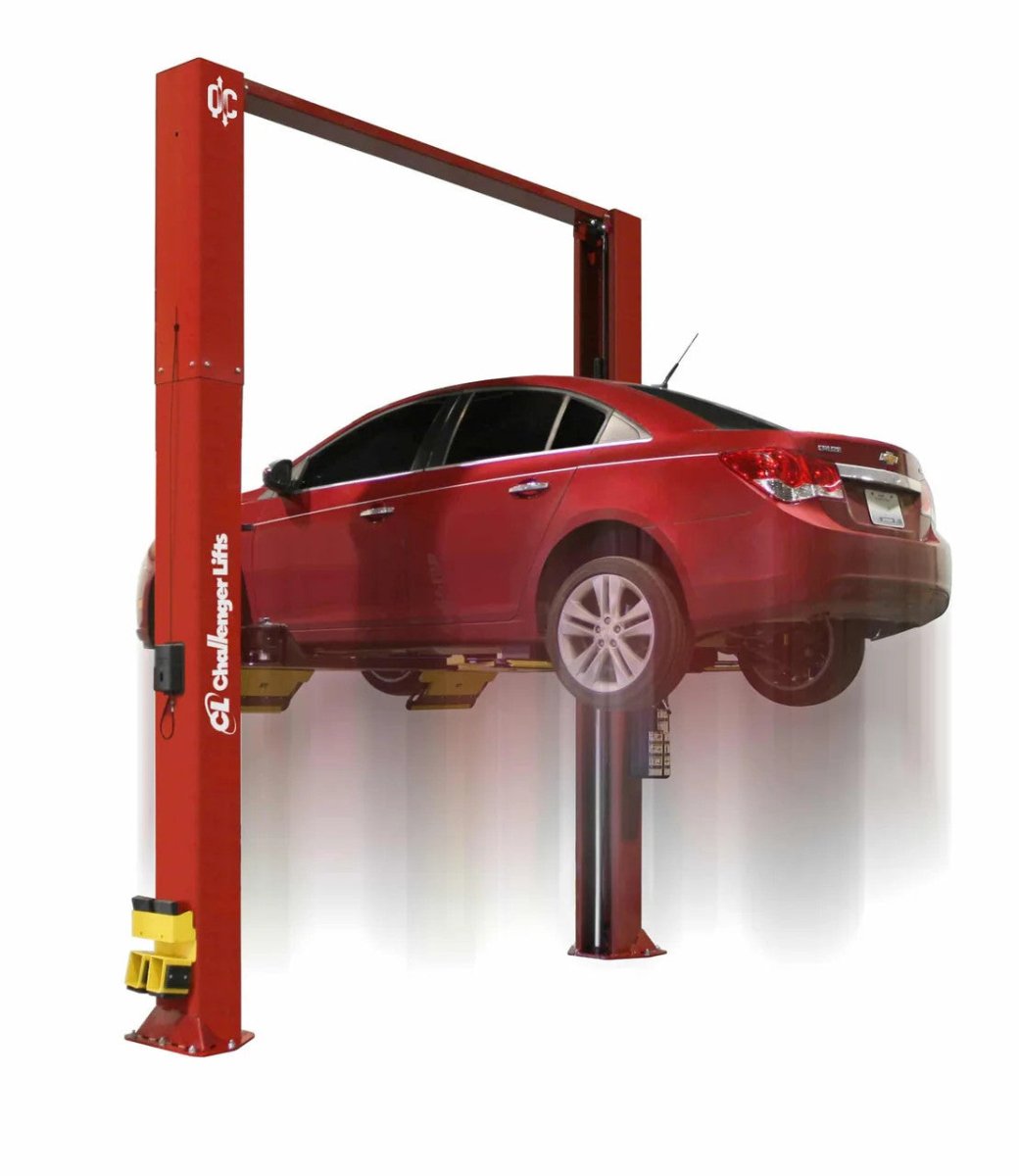

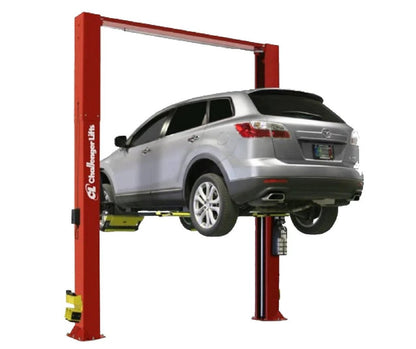

CHALLENGER LIFTS CL10-XP9-2-DPC-QC 9,000 Lbs, Drive On Style Two Post Lifts W/ Dual Pendant Control, Quick Cycle And 2ft Extensions
Challenger CL10-XP9-2-DPC-QC - 9,000 lb ALI-Certified Two-Post Lift for Express Service Operations
The Challenger CL10-XP9-2-DPC-QC is a commercial-grade, ALI-certified two-post automotive lift rated at 9,000 lb capacity, specifically engineered for high-throughput express service operations. QuickCycle technology delivers 27-second rise and 17-second descent times—40% faster than standard hydraulic two-post lifts. The model includes 2-foot column extensions as standard equipment, providing 164 inches total height for taller vehicles or facilities with higher ceilings.
Key Features & Benefits
QuickCycle Express Service Velocity
The integration of QuickCycle hydraulic technology delivers 27-second rise time and 17-second descent—40% faster than conventional two-post lifts operating at 45-48 second cycles. Combined with the drive-on express pad configuration, this creates a compound time-saving advantage: drive-on pads with flip-up ramps eliminate the 30-60 seconds typically required for swing-arm positioning, while the accelerated hydraulic cycle reduces lift and lower time.
Traditional two-post lifts require technicians to precisely position asymmetric arms under vehicle lift points and manually adjust for each wheelbase, then wait through standard-speed hydraulic cycles. This model addresses both bottlenecks simultaneously. Vehicles drive directly onto low-profile 2.25-inch platforms, technicians lock flip-up ramps in the appropriate position for the wheelbase, and QuickCycle engages.
This enables 10-15 additional service cycles per 8-hour shift in high-volume express bay operations, directly translating to increased revenue capacity for quick lube centers and tire shops operating on per-vehicle throughput models.
Dual Pendant Control System
Two independent pendant control units enable operation from either the power column or idler column, providing critical operational flexibility. Each pendant includes all lift, lower, and safety lock release functions, allowing technicians to control the lift from the optimal vantage point for verifying pad contact and vehicle positioning without column obstruction.
Traditional single-control designs mount the pendant on one column, requiring technicians to reposition themselves between columns to verify safe engagement from different angles—particularly problematic for solo operators in express bays who must confirm proper contact before lifting. This dual-location control architecture eliminates positioning blind spots regardless of vehicle approach angle or bay layout.
This improves first-attempt correct positioning accuracy and minimizes re-spotting delays. Technicians maintain unobstructed sightlines to vehicle lift points during the entire engagement process, supporting ambidextrous workflow for left- or right-side bay configurations.

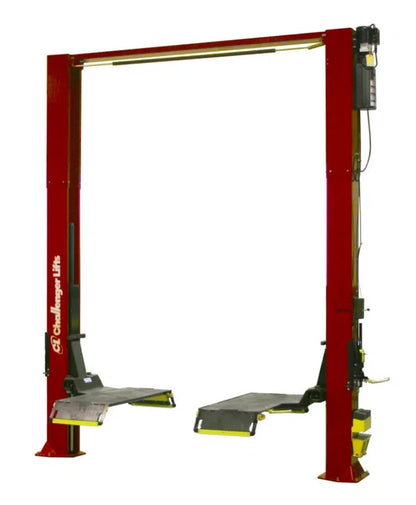

Drive-On Platform Configuration
Low-profile 2.25-inch platform height with reinforced flip-up ramps accommodates three wheelbase ranges (58 in., 66.5 in., 75 in. platform lengths) without swing-arm repositioning. The 24-inch platform width with 31.5-inch spacing provides adequate tire contact area while maintaining drive-through clearance for longer wheelbase vehicles, addressing both compact cars and light trucks within a single configuration.
Traditional swing-arm two-post designs require technicians to adjust asymmetric arms for each vehicle, consulting lift point charts and measuring vehicle centerline between services. Express bay technicians handling varied vehicle types—from compact sedans through full-size pickup trucks—face workflow interruption with every vehicle change when using conventional designs.
This eliminates swing-arm adjustment workflow entirely. Vehicle drives onto platforms, technician locks ramps in appropriate position based on visual wheelbase assessment, lift engages. Zero time spent on arm repositioning or centerline measurement between services, critical for quick lube and tire rotation operations prioritizing vehicle throughput.
48-Inch Elongated Carriage Engineering
Extended 48-inch carriage length exceeds typical 40-42 inch designs in competitive 9,000 lb capacity models, distributing operational stress loads across 15-20% greater surface area. Combined with oversized 5-inch diameter sheaves (versus 4-4.5 inch standard) and heavy-duty 5/16-inch synchronizer cables, the carriage design prioritizes commercial longevity over initial cost reduction.
Express bay applications cycling 40-60+ times daily generate significantly higher cumulative stress than residential hobby use at 5-10 cycles weekly. Shorter carriages concentrate stress at column slide points, accelerating wear rate and deflection under repeated cycling. Traditional economy designs optimize for lower manufacturing cost rather than extended commercial duty cycles.
This reduces stress concentration at column slide points, decreasing wear rate and maintaining platform stability under repeated daily cycling. Longer carriage contact translates to reduced maintenance frequency and extended service intervals for high-volume commercial installations where downtime directly impacts revenue.
Included 2-Foot Column Extensions
Standard inclusion of 2-foot extension kit raises total height from 140 inches to 164 inches, differentiating from competitive models that charge $200-400 for extension accessories sold separately. The extensions accommodate taller vehicles including lifted trucks, commercial vans, and high-roof cargo vehicles without requiring separate upgrade purchases.
Many shops purchase lifts for current vehicle mix but face capability limitations when fleet composition changes—adding lifted trucks, commercial delivery vans, or modified vehicles to their service scope. Competitive models ship at single fixed height, requiring separate extension kit purchase and installation if vehicle mix evolves, creating both cost burden and installation downtime.
This provides installation flexibility for facilities with varying ceiling heights or changing vehicle mix. Shops can install at standard 140-inch height initially and add extensions later if needed, or install extended configuration from start if working higher-profile fleet vehicles. Configuration adapts to operational needs without additional equipment purchases.
ALI/ETL Dual Certification
Gold Label ALI Certification (ANSI/ALI ALCTV-2017 compliance) combined with ETL listing by Intertek (Nationally Recognized Testing Laboratory) satisfies commercial building permit requirements in jurisdictions mandating third-party safety validation. The dual certification framework enables access to ALI-certified lift inspectors for required annual inspections, supporting ongoing OSHA compliance and liability risk management.
Many competitive imports claim generic capacity ratings or international certifications without ANSI/ALI compliance, creating permitting complications or inspection failures in commercial installations. Building departments and insurance carriers increasingly require documented third-party validation for commercial automotive equipment—non-certified lifts may void coverage or trigger violations during workplace safety audits.
This eliminates permitting and insurance compliance risks while providing documented safety validation for workplace injury protection. Shops operating under commercial insurance policies or municipal inspection regimes avoid coverage voids and regulatory violations through verified certification status.
Applications & Use Cases
- Express Service Bays & Quick Lube Operations: High-volume oil changes, fluid services, and routine maintenance where rapid vehicle throughput drives profitability.
- Tire Service Centers: Tire rotation, mounting, balancing, and seasonal tire changes for passenger cars, SUVs, crossovers, and light trucks up to 9,000 lb.
- Brake Inspection & Service: Brake pad replacement, rotor service, and brake system diagnostics requiring vehicle elevation for wheel removal.
- State Inspection Lanes: Safety and emissions inspection operations requiring undercarriage access and standardized lift procedures.
- General Automotive Maintenance: Suspension work, exhaust service, fluid leaks diagnosis, and routine undercarriage inspections.
- Fleet Service & Maintenance: Commercial fleet operations maintaining mixed passenger cars, light trucks, and delivery vans within 9,000 lb capacity.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Rise Height | 70 in. (1,778 mm) |
| Quick Cycle Rise Time | 27 seconds |
| Quick Cycle Lower Time | 17 seconds |
| Specification | Value |
|---|---|
| Overall Height (Standard) | 140 in. (3,556 mm) |
| Overall Height (with 2ft Extension) | 164 in. (4,166 mm) / 13'-8" |
| Overall Width | 138.5 in. (3,518 mm) |
| Drive-Thru Clearance | 90 in. (2,286 mm) |
| Inside of Columns | 110 in. (2,794 mm) |
| Platform Height | 2.25 in. (57 mm) |
| Platform Width | 24 in. (610 mm) |
| Platform Length Options | 58 in. / 66.5 in. / 75 in. |
| Width Between Platforms | 31.5 in. (800 mm) |
| Specification | Value |
|---|---|
| Motor Power | 2-3 HP |
| Voltage | 208-230V, Single Phase, 60 Hz |
| Circuit Breaker Required | 20 Amp minimum |
| Carriage Length | 48 in. (1,219 mm) |
| Sheave Diameter | 5 in. (127 mm) |
| Synchronizer Cable | 5/16 in. (8 mm) heavy-duty |
| Hydraulic System | Dual cylinder configuration |
| Specification | Value |
|---|---|
| Column Construction | Single-piece steel (no welded joints) |

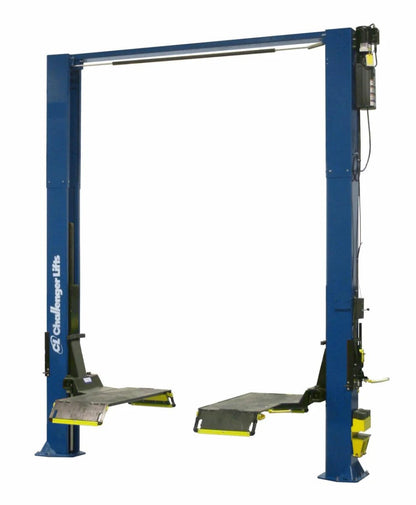

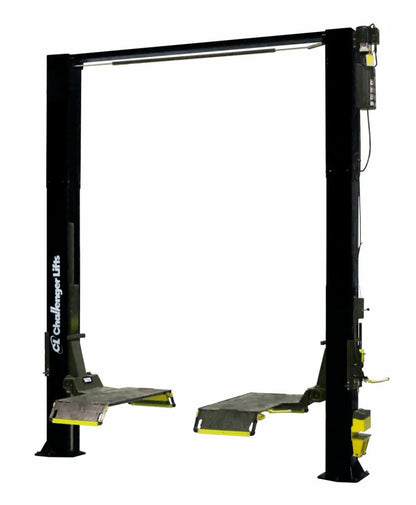

| Powder Coat Finish Options | Red, Blue, Black |
| Shipping Weight | 1,400-1,450 lb (635-658 kg) |
| Anchor Bolts Included | (14) 3/4 in. x 5.5 in. |
Complete Included Package
- (4) 1.5 in. (38 mm) rubber spotting blocks
- (4) 3 in. (76 mm) rubber spotting blocks
- (2) Column-mounted spotting block storage caddies
- Drive-on express pads with reinforced flip-up ramps
- Dual pendant control units with power cables
- Overhead shutoff bar with padded cushion
- Dual mechanical safety lock system
- Synchronizer cable set (matched equalization cables)
- 2 ft column extension kit (pair)
- Power unit with integrated hydraulic pump and motor
- Installation hardware kit with anchor bolts
- Operation & Maintenance manual
- Safety decals and warning labels
- ALI/ETL certification documentation
Installation Requirements
Foundation Specifications
- Concrete Minimum Thickness: 4 in. (102 mm)
- Concrete Strength: 3,500 PSI minimum
- Reinforcement: Steel rebar required
- Curing Time: 28 days minimum per commercial standards
- Anchor Exclusion: No anchors within 8 in. of cracks, edges, or expansion joints
- Anchor Points: 14 total (7 per column), torque to 80 ft-lbs
Clearance Requirements
- Ceiling Height (Standard Configuration): 12 ft (3,658 mm) minimum for 140 in. model
- Ceiling Height (with 2ft Extensions): 14 ft minimum recommended for 164 in. configuration
- Bay Width: 12-14 ft recommended for comfortable operation and vehicle maneuvering
Electrical Requirements
- Dedicated Circuit: 20 Amp circuit breaker or time-delay fuse
- Power Supply: 208-230V single-phase
- Compliance: Must meet local electrical codes
- GFCI: May be required per local jurisdiction
Installation Notes
- Qualified Personnel Required: Installation must be performed by qualified personnel following ANSI/ALI ALIS standards (current edition)
- Professional Installation: Required for warranty validation
- Estimated Installation Time: 6-8 hours for experienced installers
- Environmental: Indoor use only (outdoor installation prohibited). Operating temperature range: 41°F to 104°F (5°C to 40°C)
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Method
Carrier: Ships via LTL (Less-Than-Truckload) commercial freight carrier on 48 ft semi truck (commercial dock-height delivery standard).
Weight: 1,400-1,450 lb (635-658 kg)
Packaging: Components shipped pallet-mounted with banding and wrapping. Column assemblies and hardware may ship as separate palletized units.
Delivery Requirements
Customer Responsibility: Unloading from delivery truck is the customer's responsibility.
Equipment Required: Forklift, bobcat, tractor, tow truck, or backhoe capable of lifting 1,400+ lb minimum. Item exceeds liftgate service capacity and cannot be hand-unloaded.
Alternative Option: Delivery to nearest freight terminal for customer pickup with appropriate trailer.
Scheduling: Customer must arrange delivery appointment with carrier (typically 24-48 hours advance notice required).
Important Notes
Inspection: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Packaging Retention: Protect packaging until installation is complete for warranty and damage claim purposes.
Dealer Variations: Some authorized dealers include free shipping in pricing. Liftgate service availability and freight details vary by dealer. Confirm specific freight terms and unloading responsibilities with seller before purchase.
Warranty Coverage
Multi-Tier Warranty Structure
5 Years - Structural Parts: Carriage assemblies, columns, column extensions, overhead beams, drive-on pads, ramps, cross beams, and primary load-bearing structural components.
2 Years - Functional Parts: Power units, hydraulic cylinders, sheaves, sheave pins, hydraulic hoses and fittings, synchronizer cables, adapters, latches, valves, control pendants, and other operational wear components.
1 Year - Labor Coverage: Labor costs from installation date, including diagnostics and repair time.
Warranty Requirements
Registration: Product registration required at challengerlifts.com/register-your-lift.
Eligibility: Valid for original purchaser only (non-transferable).
Installation: Installation must be performed by qualified installer following manufacturer specifications. Professional installation required for warranty validation.
Exclusions: Does not cover normal maintenance, adjustments, consumables, or wear-and-tear items. Excludes damage from misuse, abuse, accidents, or improper installation. Use of non-approved parts or modifications voids warranty.
Extended Warranty Available
Extended Coverage: Available for purchase within 30 days of lift invoice. Extends Functional Parts coverage by 3 additional years (5 years total functional coverage). Does not extend structural or labor coverage periods. Does not apply to accessories purchased separately.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What is the lifting capacity of the Challenger CL10-XP9-2-DPC-QC?
The lift has a 9,000 lb (4,082 kg) capacity, suitable for passenger cars, SUVs, crossovers, and light-duty pickup trucks. The QuickCycle technology delivers 27-second rise time and 17-second descent time—40% faster than standard hydraulic two-post lifts. The drive-on express pad configuration accommodates wheelbase lengths of 58 in., 66.5 in., or 75 in. through flip-up ramp positioning.
What accessories and components are included with the lift?
The complete package includes (4) 1.5 in. and (4) 3 in. rubber spotting blocks, (2) column-mounted storage caddies, drive-on express pads with reinforced flip-up ramps, dual pendant control units, overhead shutoff bar with padded cushion, dual mechanical safety lock system, synchronizer cable set, 2 ft column extension kit (pair), power unit with integrated hydraulic pump and motor, installation hardware kit with (14) 3/4 in. x 5.5 in. anchor bolts, Operation & Maintenance manual, safety decals, and ALI/ETL certification documentation.
What are the concrete foundation requirements for installation?
The foundation requires minimum 4 in. (102 mm) thick concrete with 3,500 PSI minimum strength, steel rebar reinforcement, and 28 days minimum curing time per commercial standards. No anchors can be placed within 8 in. of cracks, edges, or expansion joints. Installation uses 14 total anchor points (7 per column) torqued to 80 ft-lbs. Professional installation following ANSI/ALI ALIS standards is required for warranty validation.
What ceiling height is required for this lift?
The standard 140 in. (3,556 mm) configuration requires 12 ft (3,658 mm) minimum ceiling height. With the included 2-foot column extensions installed (164 in. / 13'-8" total height), 14 ft minimum ceiling height is recommended. Bay width of 12-14 ft is recommended for comfortable operation and vehicle maneuvering. The lift provides 90 in. drive-thru clearance and 110 in. inside column spacing.
What are the electrical requirements?
The lift requires 208-230V single-phase, 60 Hz power with a dedicated 20 Amp minimum circuit breaker or time-delay fuse. Installation must meet local electrical codes, and GFCI protection may be required depending on local jurisdiction. The motor is rated at 2-3 HP. A qualified electrician should verify electrical service capacity and compliance with local codes before installation.
What certifications does this lift have?
The lift is ALI Certified with Gold Label (ANSI/ALI ALCTV-2017 compliance for construction, testing, and validation) and ETL Listed by Intertek (ANSI/UL 201 compliance - Nationally Recognized Testing Laboratory approval). It also meets ANSI/ALI ALOIM (operation, inspection, maintenance) and ANSI/ALI ALIS (installation and service) standards. This dual certification satisfies commercial building permit requirements and enables access to ALI-certified lift inspectors for required annual inspections.
What is the warranty coverage structure?
The warranty provides 5-year coverage for structural parts (carriage, columns, beams, pads, ramps), 2-year coverage for functional parts (power units, hydraulic cylinders, sheaves, cables, valves, pendants), and 1-year labor coverage from installation date. Valid for original purchaser only (non-transferable) and requires product registration at challengerlifts.com. Professional installation following manufacturer specifications is required for warranty validation. Extended warranty available for purchase within 30 days, extending functional parts coverage to 5 years total.
How is the lift delivered and what equipment is needed for unloading?
The lift ships via LTL (Less-Than-Truckload) commercial freight carrier with weight of 1,400-1,450 lb (635-658 kg). Customer is responsible for unloading from the delivery truck. You'll need a forklift, bobcat, tractor, tow truck, or backhoe capable of lifting 1,400+ lb minimum. The item exceeds liftgate service capacity and cannot be hand-unloaded. Alternative option: delivery to nearest freight terminal for customer pickup with appropriate trailer. Inspect all packages before signing bill of lading and note any visible damage on BOL before driver departs.
