Challenger CL10-EH2 – 2-Foot Height Extension for CL10 Series Lifts
The Challenger CL10-EH2 (OEM part A2006-57-2) is a 24-inch column height extension kit designed specifically for Challenger CL10 Series 2-post automotive lifts. This bolt-on extension increases your lift's structural height, enabling safe service of taller vehicles like vans, high-roof SUVs, and trucks without replacing the base lift.
Key Features & Benefits

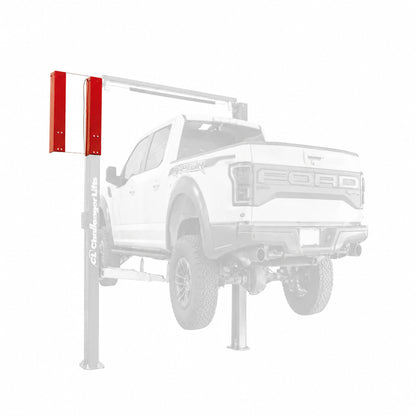

24-Inch Structural Extension for Overhead Clearance
The CL10-EH2 adds 24 inches (2 feet / 610 mm) of column height to the existing CL10 or CL10V3 lift frame through matched steel extension sections that bolt directly onto both lift columns. This engineered extension maintains the lift's original alignment, synchronization, and load-bearing characteristics while providing the additional clearance required for taller vehicles.
Professional service facilities encounter overhead height limitations when lifting vans with extended roof lines, full-size SUVs, or pickup trucks with specialized equipment mounted on the roof. This addresses the common industry challenge where existing 2-post lift systems prove inadequate for taller vehicle classes without facility modification or lift replacement.
This enables expanded service capability within existing shop footprint, allowing technicians to safely service taller vehicles on your current CL10 lift platform. The 24-inch increase accommodates most van and high-roof SUV applications while maintaining the base lift's operating characteristics and warranty coverage.
Matched Pair Column Extensions with Synchronized Design
The kit includes a matched pair of extension sections—one for each lift column—engineered to identical specifications to maintain proper synchronization and alignment. Each extension bolts securely to the existing column using installation hardware, ensuring both sides rise and lower uniformly during operation. The paired design eliminates height differential risks that can occur with generic or mismatched extensions.
Synchronization is critical for 2-post lift safety and smooth operation. Asymmetrical column heights create binding risks, uneven load distribution, and potential arm misalignment during service. Matched extensions address this industry requirement by delivering engineered-pair configuration that preserves the lift's original dual-column synchronization mechanism.
This ensures safe, balanced lifting across the entire extended height range. Technicians experience smooth, predictable operation without the operational instability that can result from height mismatches between columns, maintaining full vehicle stability during service work.
New Length Lift Cables Included for Proper Operation
The extension kit includes new length lift cables matched to the extended column configuration, ensuring proper cable tension, smooth raising and lowering action, and consistent load distribution throughout the extended lift range. Attempting to reuse original-length cables on extended columns creates cable slack, synchronization failures, and unsafe operational characteristics.
Cable length directly impacts lift synchronization and safety. When columns extend 24 inches without cable adjustment, the mechanical advantage changes, resulting in uneven rise, potential column binding, and loss of synchronized operation. OEM-matched cables address this critical safety requirement by providing proper tension and engagement across the extended lift range.
This eliminates the need to source and purchase separate cable replacements, keeping installation straightforward and reducing total project cost. Proper cable length ensures the extended lift operates identically to the original, maintaining smooth single-arm control and eliminating the operational drift that occurs with inadequate cable length.
OEM-Engineered Fitment Preserves Warranty Coverage
The CL10-EH2 carries OEM status as part A2006-57-2, engineered specifically for the CL10 and CL10V3 series to integrate seamlessly with the lift's original structure. This certified component design ensures installations that follow manufacturer requirements maintain full warranty coverage, whereas generic or non-certified extensions may void coverage or create liability exposure.
Warranty claims on 2-post lifts often hinge on using manufacturer-approved components and installation methods. Professional repair shops and fleet facilities depend on warranty coverage for equipment reliability over multi-year service cycles. OEM-engineered extensions provide certainty that proper installation preserves existing lift warranties and protects against future coverage disputes.
This delivers peace of mind for shop owners and facility managers managing equipment investments. Using the OEM extension supports warranty registration and claim eligibility, whereas aftermarket alternatives may trigger coverage exclusions or require expensive warranty reinstatement, directly protecting your equipment investment.
Applications & Use Cases
- Van Service: Accommodates extended-roof commercial vans, cargo vans, and passenger vans with 24-inch height clearance for safe service positioning without vehicle overhang interference.
- High-Roof SUV Maintenance: Enables safe lifting and servicing of full-size SUVs, third-row seating vehicles, and high-profile sport utility platforms requiring additional overhead clearance.
- Truck Service Operations: Supports light-duty pickup truck service including those with roof-mounted equipment, roof racks, or aftermarket cab enclosures requiring expanded height accommodation.
- Fleet Lift Capacity Expansion: Allows fleet maintenance facilities to expand service capability on existing lift infrastructure without purchasing additional lift systems or facility modification.
Technical Specifications
| Specification | Value |
|---|---|
| Height Increase | 24 inches (2 ft / 610 mm) |
| OEM Part Number | A2006-57-2 |
| Product Type | Column height extension kit (2-post lifts) |
| Compatible Lift Series | Challenger CL10 Series (including CL10V3) |
| Kit Configuration | Matched pair of column extension sections |
| Included Components | Two (2) column extensions, installation hardware, new length lift cables |
Installation Requirements
Lift Compatibility & Ceiling Clearance
- Compatible Lift Required: A properly installed and functioning Challenger CL10 or CL10V3 Series 2-post lift in good working condition
- Ceiling Height Verification: Verify your facility ceiling height provides sufficient clearance for the lift plus 24-inch extension plus normal vehicle height. Inadequate ceiling clearance can prevent full lift rise and create safety hazards.
- Structural Clearance Check: Confirm no obstructions (HVAC ducts, electrical conduit, sprinkler heads, support beams) interfere with the extended column height or vehicle clearance envelope
Professional Installation Recommended
- Authorized Installation: Professional or authorized installer recommended to maintain warranty eligibility and ensure proper alignment, cable routing, and fastener torque specifications
- Alignment Verification: Installation requires verification that both column extensions are properly aligned and synchronized to prevent binding, uneven rise, or loss of operational balance
- Cable Tension Setup: New length cables must be routed and tensioned according to manufacturer specifications to ensure smooth operation and synchronization across the full extended height range
Installation Notes
- Warranty Preservation: Installation by qualified personnel following the manufacturer installation requirements is required to maintain the lift's existing warranty coverage
- Local Codes: Verify local building codes and facility regulations regarding equipment modifications and installation permits before proceeding
Shipping & Delivery
Freight Shipping
Shipping Method: Ships via freight due to size and steel construction weight of the extension sections.
Delivery Requirements: Receiver must have capacity to receive and position the shipment. Arrangements for unloading (forklift, pallet jack) depend on delivery location and seller logistics terms.
Delivery Timeframe: Varies by seller and freight carrier routing. Confirm delivery timeline during checkout.
Damage Reporting & Inspection
Upon Delivery: Inspect the shipped extension sections for any visible damage before accepting the shipment. Note any damage on the bill of lading before the carrier departs.
Concealed Damage: Report any damage discovered after unboxing within the timeframe specified by your seller to initiate freight claims.
Warranty Coverage
Limited Manufacturer Warranty
Coverage: The CL10-EH2 is covered under Challenger Lifts' standard limited warranty covering defects in material and workmanship when installed according to manufacturer requirements and instructions.
Warranty Registration: Warranty may require registration within a specified period of purchase. Confirm registration procedures and any required documentation with your seller or Challenger Lifts directly.
Coverage Scope: Standard limited warranty typically covers manufacturing defects but excludes normal wear, misuse, unauthorized modifications, improper installation, and inadequate maintenance. Verify complete coverage scope and exclusions in manufacturer documentation.
Installation Requirements for Warranty Eligibility
Professional Installation: Installation by qualified personnel following manufacturer installation manual and specifications is required to maintain warranty eligibility.
Existing Lift Warranty: Proper installation of the OEM extension preserves the original lift's warranty coverage. Installation by unauthorized or unqualified personnel may void existing lift warranty.
Ready to Expand Your Lift Capacity?
Verify ceiling clearance, confirm CL10 series compatibility, and get expert guidance on installation planning. Our team can help with specification confirmation, lift compatibility verification, and installation recommendations.
Frequently Asked Questions
How much height does the CL10-EH2 add to my lift?
The CL10-EH2 adds exactly 24 inches (2 feet / 610 mm) of column height to your CL10 Series lift. This extension accommodates taller vehicles like vans, high-roof SUVs, and pickup trucks that would otherwise exceed your original lift's height capacity.
Is the CL10-EH2 compatible with all CL10 lift models?
The CL10-EH2 is designed specifically for Challenger CL10 Series 2-post lifts, including the CL10V3 model. Before ordering, verify your lift's exact model designation to confirm compatibility. If you're unsure of your model, call +1 (855) 498-2147 to confirm before purchase.
What components are included in the CL10-EH2 kit?
The CL10-EH2 kit includes a matched pair of column height extension sections (one for each lift column), installation fasteners and hardware, and new length lift cables engineered for the extended configuration. No additional components are required for standard installation.
What is the OEM part number for this extension?
The official Challenger Lifts OEM part number for this extension is A2006-57-2. Using this OEM component supports warranty preservation and ensures proper engineering fitment with your CL10 lift system.
Does this extension require professional installation?
Professional or authorized installation is strongly recommended to maintain warranty eligibility and ensure proper column synchronization, cable routing, and operational safety. Improper installation can compromise lift performance and void warranty coverage. Installation by qualified personnel following the manufacturer manual ensures alignment and safe operation.
How do I know if my facility ceiling has adequate clearance?
Measure your facility ceiling height to the lowest obstruction (HVAC ducts, sprinklers, beams). Add 24 inches for the extension, then add the approximate height of the tallest vehicle you plan to service. Confirm this total exceeds your ceiling height with safety margin. Consult with an installer to verify clearance before purchasing the extension.
Will using this extension void my CL10 lift warranty?
The CL10-EH2 is OEM-engineered specifically for the CL10 Series, and when installed by qualified personnel following manufacturer requirements, it preserves the original lift's warranty coverage. Using non-certified extensions or improper installation could void coverage, but proper installation of this OEM component maintains your warranty eligibility.
Are new lift cables required when installing the extension?
Yes, new length lift cables matched to the extended column height are included in the CL10-EH2 kit. Attempting to reuse original cables on extended columns creates improper cable tension, synchronization failures, and unsafe operation. The included new-length cables ensure proper lift synchronization throughout the extended range.
