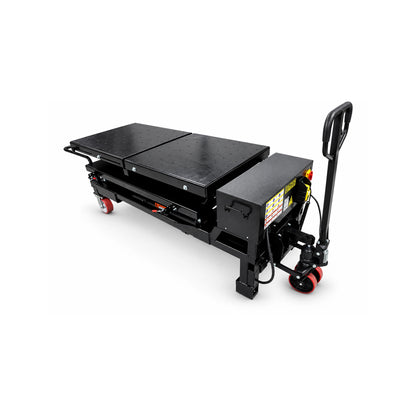

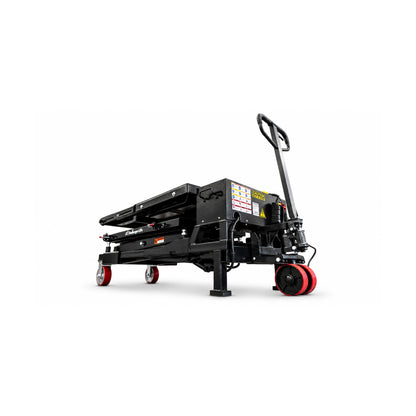

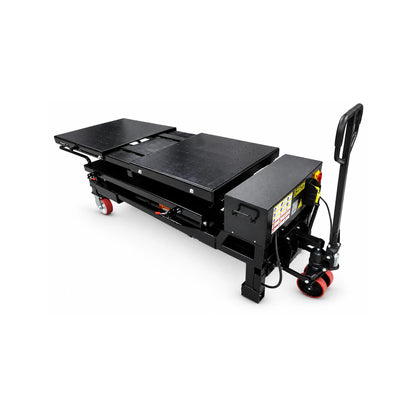

Challenger BT3300 3.3K Power Train Lift Table – 110V Electric Scissor Lift
The Challenger BT3300 is a professional-grade 3,300 lb capacity electric scissor lift table engineered for safe EV battery, engine, transmission, and drivetrain component service in automotive repair facilities. This 110 V powered platform delivers precision height control, 6-degree platform tilt adjustment, and side-shift capability for accurate positioning during complex assembly and disassembly operations.
Key Features & Benefits
3,300 lb Capacity for Heavy Drivetrain Components

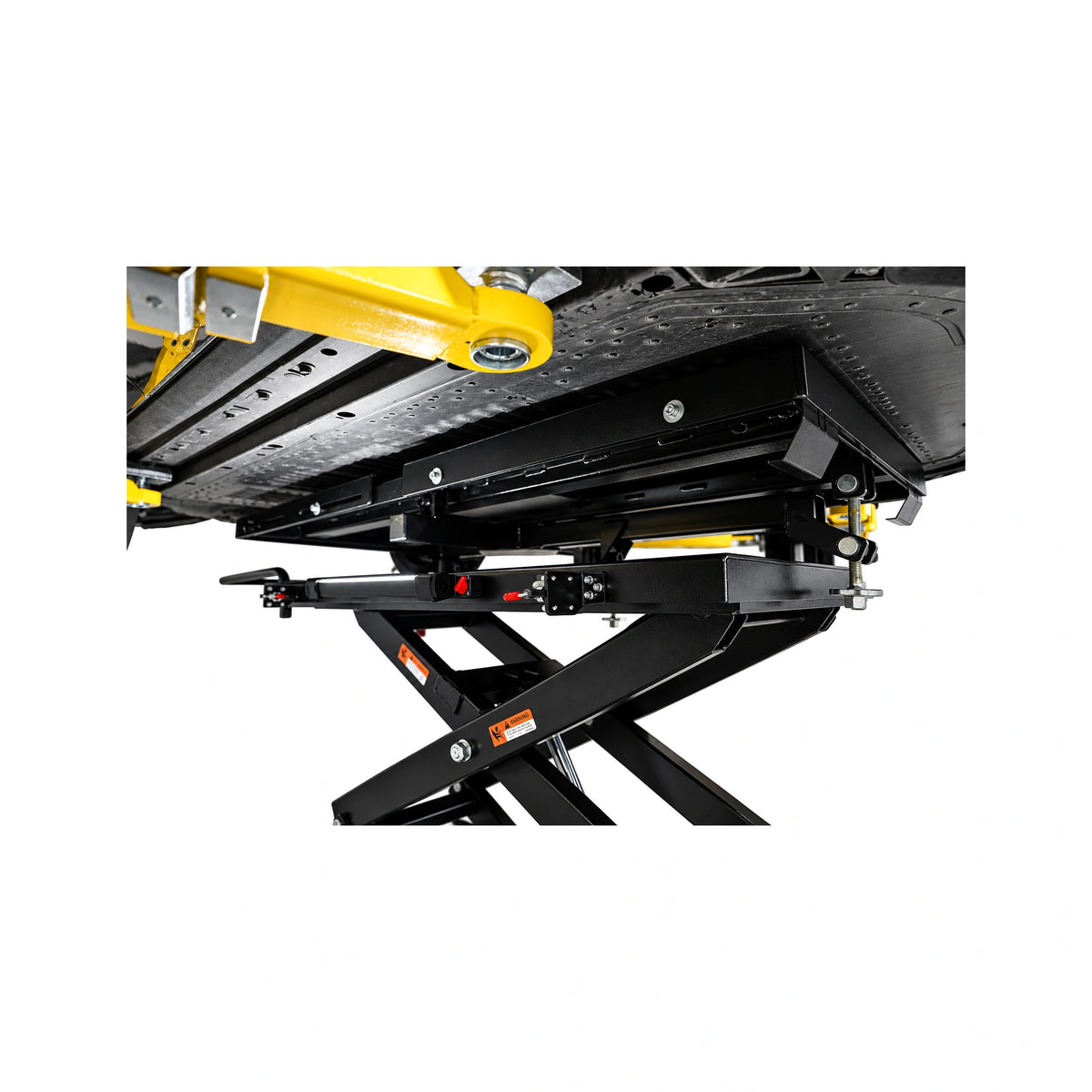

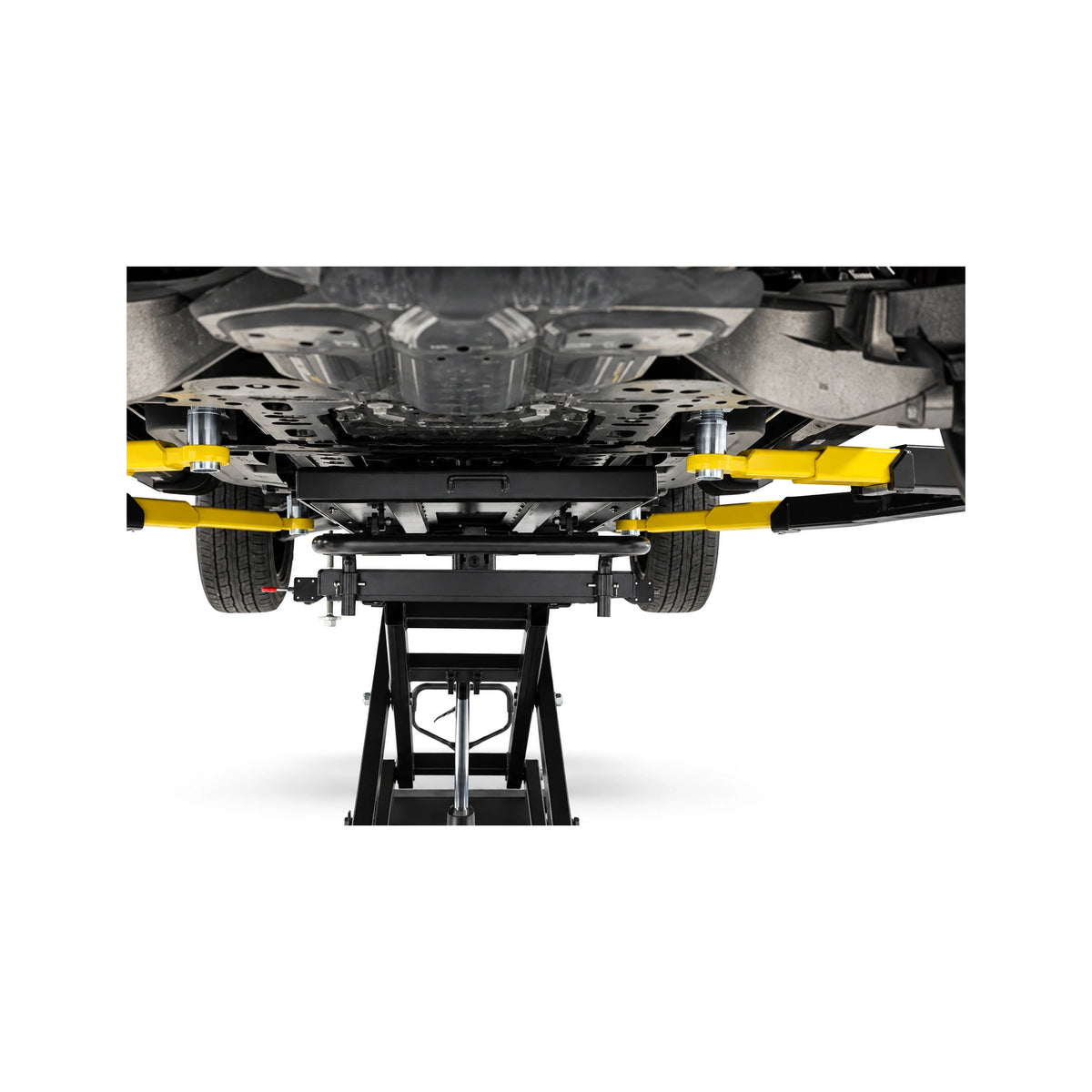

The BT3300 delivers a 3,300 lb lifting capacity (1,500 kg) engineered specifically to safely support EV battery packs, complete engine and transmission assemblies, differentials, and other heavy drivetrain components during removal and installation procedures. This capacity class accommodates the full range of modern vehicle powertrains from compact EVs to light-duty trucks.
Professional automotive shops performing EV service, engine rebuilding, and transmission work require lift tables that safely handle complete assemblies without risk of overload or platform collapse. Standard lift tables often lack the capacity for heavy engine blocks or battery packs, creating safety hazards and requiring multiple equipment transfers. The 3,300 lb capacity addresses this requirement by handling the heaviest components in a single safe lift operation.
This enables safer, faster component service workflows by eliminating equipment transfers and unsafe load handling. Technicians safely position complete powertrains and battery systems in optimal work height, reducing fatigue and improving service accuracy across engine, transmission, and EV battery maintenance tasks.

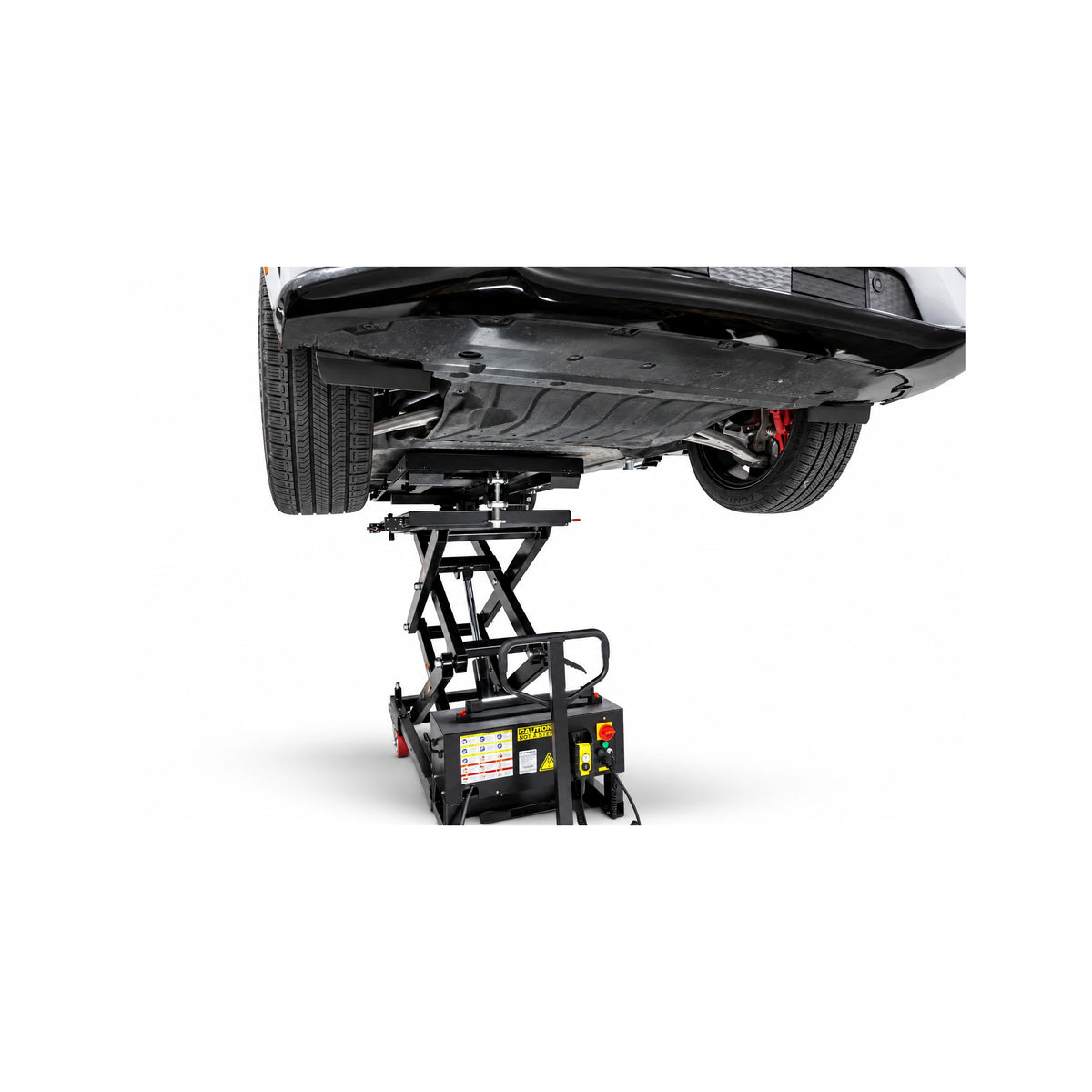

76.77-Inch Maximum Rise Height for Complete Access
The BT3300 platform rises to a maximum height of 76.77 inches, providing complete vertical access and ergonomic work positioning for technicians performing detailed assembly, disassembly, and inspection tasks. This extended reach accommodates both seated and standing work positions, reducing technician back strain and improving precision work quality during extended service procedures.
Industry-standard work height ergonomics require platform heights between 36 to 42 inches for optimal standing work and 48 to 50 inches for seated operations. The BT3300's 76.77-inch maximum height accommodates technician movement, tool access, and component inspection from multiple angles without awkward bending or stretching. This comprehensive height range addresses all operational scenarios in modern automotive service.
This improves technician safety and comfort across long service procedures, reducing fatigue-related errors and improving overall service quality. The extended rise height enables complete visual inspection of assembled components and proper alignment verification before final installation, directly supporting service accuracy and first-time quality outcomes.

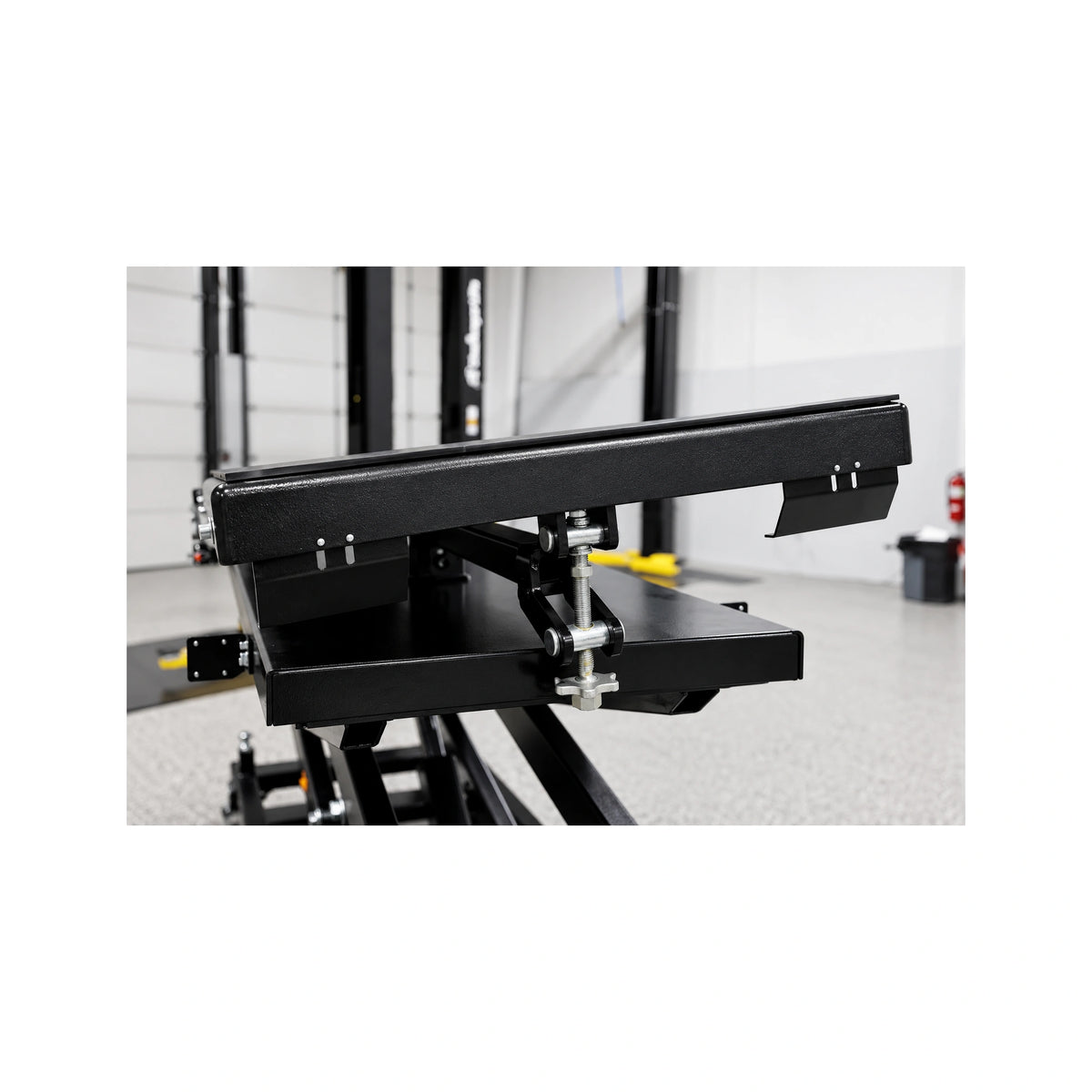

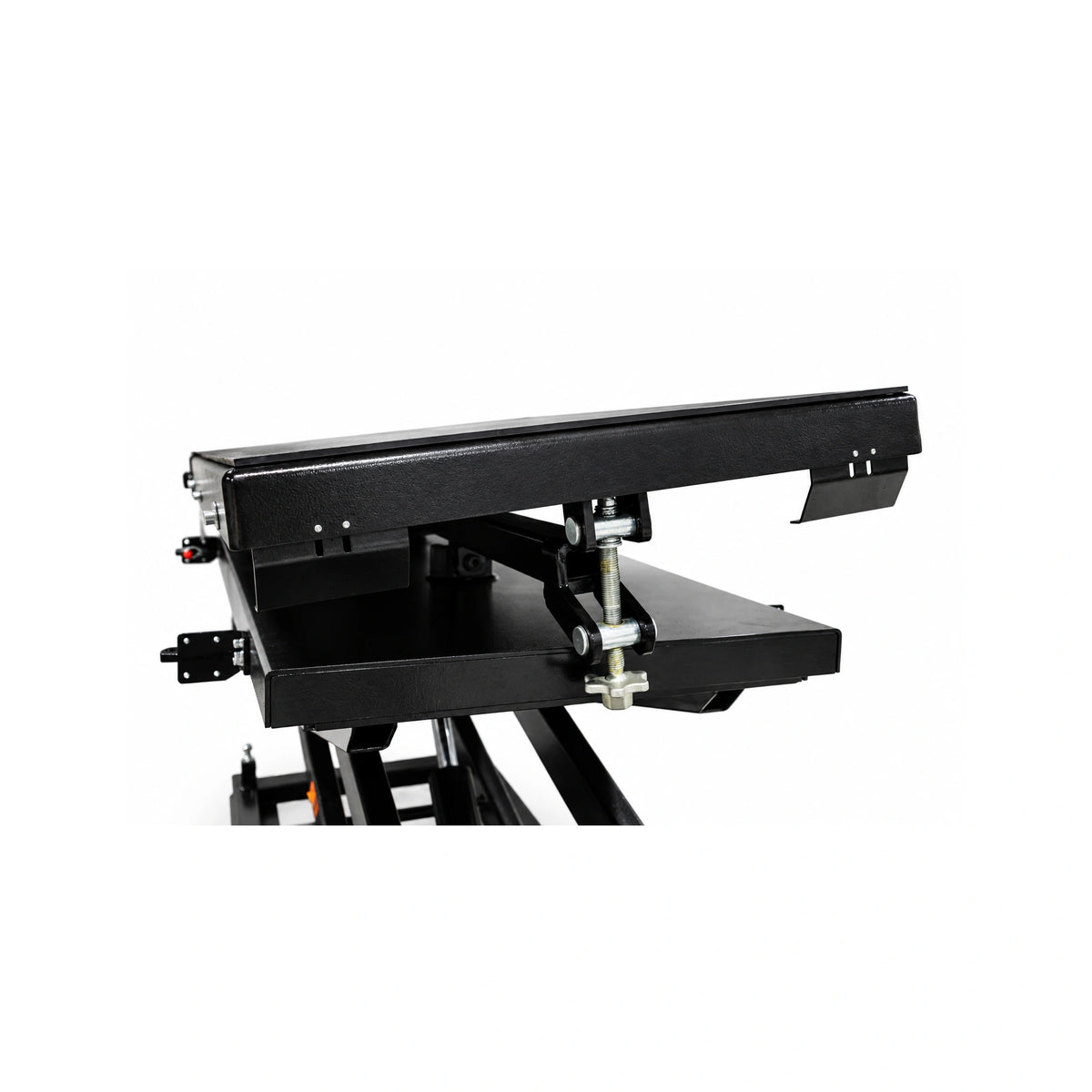

6-Degree Platform Tilt with Adjustable Length Design
The BT3300 features a 6-degree platform tilt adjustment mechanism combined with an adjustable platform length spanning 68.54 to 81.34 inches, enabling precise component positioning and angle adjustment for complex alignment and installation tasks. This dual-adjustment capability allows technicians to tilt the entire platform and extend the work surface to accommodate different component shapes and assembly sequences.
EV batteries, engines, and transmissions require precise angular positioning during installation—too steep and components risk sliding off the platform; too shallow and technicians cannot access critical connection points. Adjustable tilt combined with extending platform length enables optimal positioning for each specific component type and installation procedure, eliminating the need for separate positioning tools or manual component repositioning.
This enables precise component positioning and alignment without separate equipment or manual adjustment procedures. Technicians achieve optimal work angles in a single setup, accelerating service procedures and improving installation accuracy. The combined tilt and length adjustment addresses diverse component geometries and assembly requirements across all vehicle platforms.
ASME PASE-2019 Compliance for Safety Assurance
The BT3300 is designed and manufactured in compliance with ASME PASE-2019, the American Society of Mechanical Engineers' professional platform lift and scissor table safety standard. This explicit compliance certification confirms the platform meets rigorous industry safety requirements for load capacity, structural integrity, control system reliability, and emergency stop functionality.
Professional automotive shops and fleet service facilities must operate equipment that meets industry safety standards to protect technicians, customers, and the facility from liability exposure. ASME PASE-2019 compliance provides documented proof that the BT3300 meets established safety protocols and engineering best practices. Non-compliant equipment creates regulatory liability and insurance coverage gaps that can result in costly claim denials.
This delivers confidence that your facility operates with standards-certified equipment meeting professional safety requirements. ASME compliance supports your shop's safety documentation and regulatory compliance position, protecting your facility from liability exposure while ensuring technicians work with equipment engineered for maximum safety and reliability.
Product Demonstration
Applications & Use Cases

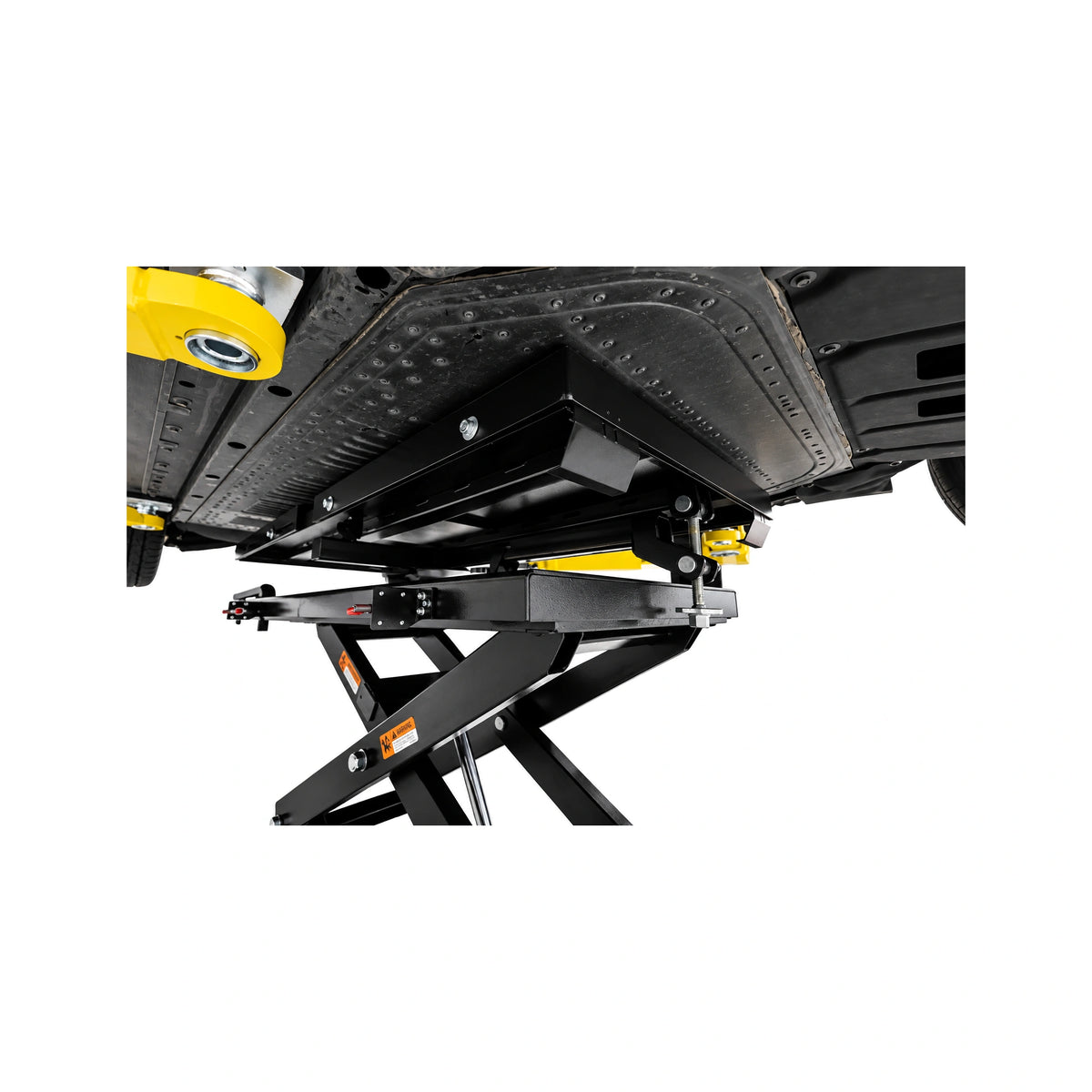

- EV Battery Service: Safe removal, installation, positioning, and diagnostic work on EV battery packs, modules, and management systems for hybrid and fully electric vehicles during repair and refurbishment.
- Engine and Transmission Work: Complete engine block and transmission assembly lifting, positioning, and service for alignment work, rebuild procedures, and component inspection across gasoline and diesel platforms.
- Drivetrain Component Service: Differential, axle assembly, and transfer case positioning for inspection, repair, and replacement procedures on light-duty trucks, vans, and utility vehicles.
- Chassis and Suspension Component Work: Heavy subframe, cradle assembly, and suspension component positioning for access and service on modern vehicle architectures requiring precise alignment and positioning.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 3,300 lbs (1,500 kg) |
| Maximum Rise Height | 76.77 inches (1,950 mm) |
| Platform Length (Adjustable) | 68.54 to 81.34 inches (1,741 to 2,066 mm) |
| Platform Width | 31.5 inches (800 mm) |
| Platform Tilt Adjustment | 6 degrees |
| Motor Power | 2 HP (1.5 kW) |
| Electrical Supply | 110 V, 60 Hz, single phase |
| Hydraulic Pressure | 3,625 psi |

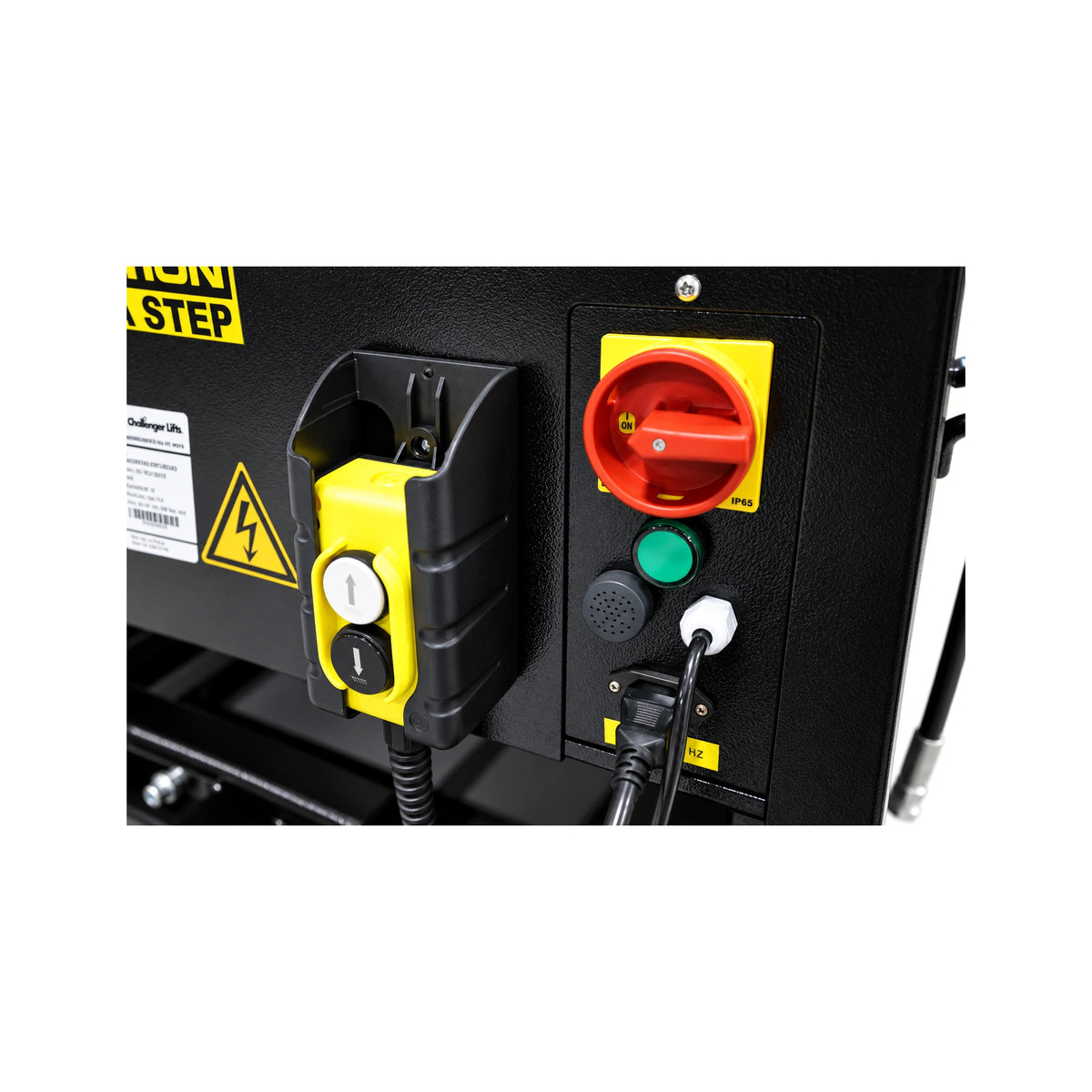

| Safety Features | Safety limit switch, pendant control |
| Compliance | ASME PASE-2019 standard |
Installation & Power Requirements
Electrical Installation
- Power Supply: Standard 110 V, 60 Hz, single-phase electrical outlet. No special wiring or three-phase installation required.
- Power Cord: Included with unit. Verify facility outlet capacity and accessibility before delivery to installation location.
- Outlet Location: Position lift table near convenient 110 V outlet to minimize extension cord use. Dedicated outlet recommended for optimal performance and safety.
Floor Installation & Setup
- Floor Surface: Install on level, stable concrete floor capable of supporting combined weight of lift table, load, and technician. Uneven surfaces may affect platform stability and safety.
- Clearance Space: Verify adequate overhead clearance for maximum 76.77-inch rise height and sufficient space around platform for technician access and component movement.
- Delivery & Positioning: Forklift or equivalent equipment may be required for delivery and positioning at installation location due to platform weight and dimensions.
Pre-Operation Setup
- Hydraulic System Check: Verify hydraulic fluid level before first use and confirm safety limit switch operation per manufacturer procedures.
- Control System Testing: Test pendant control raise and lower functions and emergency stop button operation before loading with components.
- Load Testing: Conduct empty platform and light-load test cycles to verify smooth operation and control response before full-capacity use.
Shipping & Delivery
Freight Shipping
Shipping Method: Ships via LTL (less-than-truckload) freight carrier due to platform size and weight. Delivery timeframe is defined by the freight carrier and is subject to carrier routing and regional schedules.
Delivery Requirements: Receiver must have capability to receive shipment and position the lift table at installation location. Forklift or equivalent equipment is recommended for unloading from freight truck at delivery location. Liftgate service is available through seller for additional fee if unloading equipment is unavailable.
Receiving & Inspection
Upon Delivery: Inspect lift table shipment for any visible damage before accepting delivery from freight carrier. Note any damage on the bill of lading before driver departs to protect your freight claim rights and preserve documentation for insurance or warranty claim purposes.
Concealed Damage Reporting: Report any damage discovered after delivery within 15 days of delivery to the freight carrier and seller to initiate freight claim coverage. Photographic evidence of damage condition supports claim processing.
Warranty Coverage
Limited Warranty
Coverage: The BT3300 power train lift table is covered under a limited manufacturer warranty covering defects in material and workmanship under normal use and operation.
Warranty Duration: Warranty duration is defined by the seller at time of purchase and is documented in the seller's order confirmation and warranty documentation. Standard industry warranty is two years on parts and one year on labor, but confirm exact duration with your seller at checkout.
Coverage Scope: Standard limited warranty covers manufacturing defects in materials and workmanship but excludes normal wear, misuse, unauthorized modifications, improper installation, inadequate maintenance, and damage from accidents or unauthorized repairs. Verify complete warranty terms, registration requirements, and exclusions in seller warranty documentation.
Warranty Registration & Claim Process
Registration: Warranty coverage is defined by the seller's warranty policy at time of purchase. Confirm whether warranty registration is required within a specified period of purchase and what documentation is needed for registration and future claims.
Maintenance Requirements: Warranty coverage is conditioned on proper maintenance including regular hydraulic fluid level checks, control system testing, and adherence to manufacturer maintenance schedules documented in the operations manual. Failure to maintain the equipment may void coverage under standard warranty terms.
Ready to Add Professional Lift Capacity to Your Shop?
Verify electrical supply availability, confirm floor space and overhead clearance, and get expert installation guidance. Our team can help with specification confirmation, facility planning, and delivery coordination for your new BT3300 power train lift table.
Frequently Asked Questions
What is the BT3300 power train lift table used for?
The Challenger BT3300 is a professional-grade electric scissor lift table with 3,300 lb capacity designed for safe removal, installation, and positioning of EV batteries, engines, transmissions, and heavy drivetrain components during automotive repair and service procedures. The lift table provides precise height control and platform tilt adjustment for accurate component alignment during assembly and disassembly tasks.
What is the maximum lift height of the BT3300?
The BT3300 platform rises to a maximum height of 76.77 inches (1,950 mm), providing complete vertical access for technician work positioning and comprehensive component access. This extended reach accommodates both seated and standing work positions, reducing technician fatigue and improving precision work quality during extended service procedures on engines, transmissions, and battery systems.
Does the BT3300 require special electrical installation?
No, the BT3300 plugs into standard 110 V, 60 Hz, single-phase electrical outlets. No special three-phase wiring, dedicated circuits, or professional electrician installation is required. The lift table comes with a power cord and can be positioned near any facility outlet. A dedicated outlet near the installation location is recommended to minimize extension cord use and ensure optimal power delivery to the 2 HP motor.
What does ASME PASE-2019 compliance mean?
ASME PASE-2019 is the American Society of Mechanical Engineers' safety standard for professional platform lifts and scissor tables. BT3300 compliance confirms the lift meets industry safety requirements for load capacity, structural integrity, control reliability, and emergency stop functionality. This certification provides documented proof that the lift table meets established engineering safety protocols and professional industry standards, protecting your facility and technicians while supporting regulatory compliance requirements.
Can the platform length be adjusted on the BT3300?
Yes, the platform length is adjustable from 68.54 inches to 81.34 inches, and the platform includes a 6-degree tilt adjustment mechanism. This dual-adjustment capability enables precise component positioning for diverse assembly and disassembly procedures. The combined tilt and length adjustment accommodates different component shapes and installation sequences, eliminating the need for separate positioning equipment or manual component repositioning between procedures.
What is the weight capacity of the BT3300?
The BT3300 has a lifting capacity of 3,300 lbs (1,500 kg), safely supporting EV battery packs, complete engine and transmission assemblies, and other heavy drivetrain components. This capacity accommodates the full range of modern vehicle powertrains from compact electric vehicles to light-duty trucks and commercial vehicles, enabling safe single-lift operations for the heaviest automotive components without equipment transfers.
What warranty coverage does the BT3300 include?
Warranty duration is defined by the seller at time of purchase and is documented in seller warranty documentation. Standard industry warranty is two years parts and one year labor. The BT3300 is covered under a limited manufacturer warranty covering defects in material and workmanship under normal use and operation. Standard warranty excludes normal wear, misuse, unauthorized modifications, improper installation, and inadequate maintenance. Confirm exact duration, registration requirements, and coverage scope with your seller at time of purchase.
What floor and space requirements are needed for installation?
Install the BT3300 on a level, stable concrete floor capable of supporting the combined weight of the lift table, maximum load (3,300 lbs), and technician weight without deflection or settlement. Verify facility overhead clearance allows for the full 76.77-inch maximum rise height plus component height. Ensure adequate space around the platform for technician access, component movement, and tool positioning during service procedures. Uneven floors or insufficient clearance may affect platform stability and operation safety.
