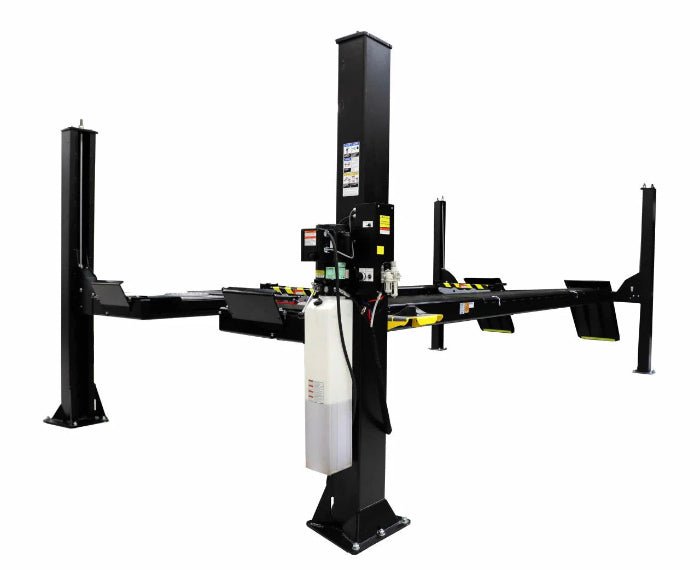

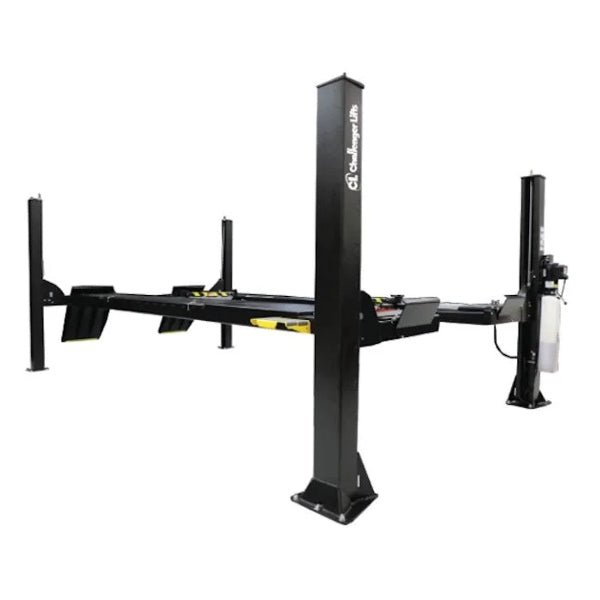

Challenger AR4115XAX - 15,000 lb Closed-Front Extended-Length Alignment Rack Package
The Challenger AR4115XAX delivers 15,000 lb lifting capacity in a closed-front, extended-length 4-post alignment rack configuration, engineered for professional automotive service shops, dealerships, and fleet service centers. Featuring a 78-inch rise height, 210-inch maximum wheelbase capacity, and a complete alignment package with dual 7,500 lb rolling jacks, this ALI/ETL certified lift handles vehicles from passenger cars to medium-duty trucks and vans.
Key Features & Benefits
Extended-Length Runway Design for Long-Wheelbase Vehicles
The AR4115XAX features 275.5 inches of overall length with a maximum wheelbase capacity of 210 inches. This extended configuration accommodates full-size trucks, cargo vans, and fleet vehicles that standard-length alignment racks cannot properly service.
Many shops lose alignment work on long-wheelbase vehicles because their existing equipment can't handle the extended dimensions. The AR4115XAX addresses this limitation by providing the runway length needed for full-size pickups, Sprinter-class vans, and commercial fleet vehicles without requiring additional equipment investment.
This enables shops to capture a broader range of alignment work from a single piece of equipment, expanding service capabilities and revenue potential without dedicating additional bay space to specialty lifts.
Complete Alignment Rack Package Included
The AR4115XAX ships as a complete alignment rack package with two RJ7.5 rolling jacks (7,500 lb capacity each), internal airline kit, flush-mount stainless steel turning radius gauges, free-floating rear slip plates, turn plate bridges, multi-position work steps, and automatic wheel stops. All alignment-ready components are included at purchase.
Base 4-post deck models require separate accessory purchases for alignment capability, adding cost and complexity to the buying process. The AR designation indicates this package bundles all necessary components, eliminating the need to source rolling jacks, turn plates, and slip plates separately.
This reduces procurement complexity and ensures all components are factory-matched for proper fit and function. Shops receive everything needed for alignment service in a single shipment rather than coordinating multiple orders from different suppliers.
78-Inch Rise Height for Maximum Technician Clearance
The AR4115XAX provides 78 inches of rise height combined with a lowered runway height of 7 inches. This combination maximizes usable working clearance beneath the vehicle while maintaining a low drive-on profile for easy vehicle loading.
Insufficient rise height forces technicians to work in awkward positions during extended undercar service sessions, increasing fatigue and reducing productivity. The 78-inch rise allows most technicians to stand upright beneath the vehicle without hunching or crouching.
This improves ergonomics during alignment procedures, brake service, suspension work, and general undercar inspection. Reduced physical strain helps maintain technician productivity throughout the workday and supports long-term workplace health.
17-Position Locking System with Single-Point Air Release
The lift features 17 locking positions with automatic engagement and a single-point air-actuated lock release that disengages all four columns simultaneously. This system provides fine height adjustment while streamlining the raise and lower cycle.
Traditional multi-lock systems require technicians to manually release each column individually, adding time to every height adjustment. The single-point air release eliminates this step, allowing faster transitions between working heights without walking around the lift.
This enables quicker vehicle positioning and more efficient workflow during busy service days. The 17 locking positions provide flexibility to set the optimal working height for different vehicle types and service procedures.
Closed-Front Enclosed Column Design
The AR4115XAX uses a closed-front configuration with enclosed columns and crossbeams. Internal components are protected from debris, and the streamlined profile presents a clean appearance in the service bay.
Open-front and exposed-column designs allow dirt, oil, and shop debris to accumulate on internal mechanisms, potentially affecting long-term reliability. The enclosed design shields cables, pulleys, and other components from contamination while simplifying cleaning around the lift.
This improves bay aesthetics and reduces maintenance requirements associated with debris buildup on exposed components. The clean sightlines also enhance technician visibility when positioning vehicles on the runways.
ALI/ETL Dual Certification
The AR4115XAX carries both ALI Gold Label certification (Automotive Lift Institute) and ETL listing for ANSI/UL 201 compliance. The lift is designed per ANSI/ALI ALCTV for construction, testing, and validation, and per ANSI/ALI ALOIM for operation, inspection, and maintenance.
Commercial shops, fleet operations, and dealerships increasingly require certified lift equipment for insurance compliance, customer audits, and jurisdictional regulations. Third-party certification provides documented verification that the lift meets established safety and performance standards.
This eliminates compliance questions during facility inspections and customer due diligence reviews. The dual certification demonstrates commitment to safety standards that many commercial and fleet customers require from their service providers.
Applications & Use Cases
- Four-Wheel Alignment Service: Full alignment capability for vehicles with wheelbases from 68 to 158 inches using the included turn plates, slip plates, and rolling jacks. Compatible with CCD and 3D imaging alignment systems.
- Two-Wheel Alignment Service: Front-end alignment procedures for passenger vehicles requiring steering angle correction and toe adjustment.
- Fleet Service Centers: Extended-length runways accommodate commercial vans, delivery vehicles, and fleet trucks up to 210-inch wheelbase capacity.
- Medium-Duty Truck Service: 15,000 lb capacity supports medium-duty trucks including box trucks, stake beds, and service vehicles.
- Tire, Brake, and Suspension Work: Dual 7,500 lb rolling jacks provide wheel-off capability for tire service, brake inspection, and suspension component replacement.
- General Undercar Service: 78-inch rise height enables comfortable access for exhaust work, drivetrain inspection, and fluid services.
- Dealership Service Departments: ALI/ETL certification meets manufacturer and insurance requirements for warranty service operations.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 15,000 lb |
| Rolling Jack Capacity (each) | 7,500 lb |
| Rise Height | 78 inches |
| Rise Time | 85 seconds |
| Locking Positions | 17 |
| Maximum Wheelbase | 210 inches |
| 4-Wheel Alignment Wheelbase Range | 68 - 158 inches |
| Specification | Value |
|---|---|
| Overall Length | 275.5 inches |
| Overall Width | 142 inches |
| Column Height | 98 inches |
| Runway Height (Lowered) | 7 inches |
| Configuration | 4-Post, Closed-Front, Extended Length (XL) |
| Specification | Value |
|---|---|
| Motor | 2 HP |
| Electrical (Standard) | 208V - 230V, 60Hz, Single-Phase |
| Air Supply Required | 90 - 120 PSI |
| Mounting | Surface-Mounted |
| Certification | Standard |
|---|---|
| ALI Certified | Automotive Lift Institute Gold Label |
| ETL Listed | ANSI/UL 201 Compliance |
| Design Standards | ANSI/ALI ALCTV, ANSI/ALI ALOIM |
Installation Requirements
Foundation Requirements
- Concrete Depth: Minimum 4 inches
- Concrete Strength: Minimum 3,500 PSI compressive strength
- Reinforcement: Steel reinforcement per local commercial practice
- Cure Time: Minimum 28 days before installation
- Floor Levelness: Within 1/2 inch side-to-side, 2-1/2 inches front-to-rear
- Mounting: Surface-mounted (no in-ground pit required)
Power Requirements
- Electrical (Standard): 208V - 230V, 60Hz, Single-Phase
- 3-Phase Option: Available for 4115 Series
- Motor: 2 HP
Air Supply Requirements
- Operating Pressure: 90 - 120 PSI
- Air Quality: Clean, dry air required for lock release and rolling jack operation
Bay Size & Clearances
- Recommended Bay Size: 14 ft x 26 ft minimum
- Installation: Installation by authorized Challenger installer required for warranty validity
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Information
Shipping Method: Ships freight via common carrier. Some dealers advertise free shipping or no added shipping fees - terms vary by reseller.
Lead Time: 6 - 8 weeks from order placement (subject to inventory and production schedules).
Shipping Weight: 2,000 lb.
Delivery & Receiving
Inspection: Inspect all packages upon delivery before signing the bill of lading. Note any visible damage on the BOL before the driver departs.
Unloading: Forklift or other appropriate equipment required for unloading. Confirm delivery requirements with dealer at time of order.
Origin: Manufactured in Louisville, Kentucky, USA.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Parts: Coverage for structural components including columns, runways, and frame assemblies.
2 Years - Functional Parts: Coverage for hydraulic cylinders, cables, sheaves, and operating components - exceeds typical 1-year industry standard.
1 Year - Labor: Coverage for labor costs associated with warranty repairs.
Extended Warranty Option
+3 Years Functional Coverage: Extended functional parts warranty available if purchased within 30 days of lift purchase.
Warranty Requirements
Registration: Product registration required to activate warranty coverage.
Eligibility: Valid for original purchaser only (non-transferable).
Installation: Installation must be performed by authorized Challenger installer to maintain warranty validity.
Confirmation: Confirm current warranty terms directly with manufacturer or authorized dealer at time of purchase.
Ready to Upgrade Your Shop?
Get expert guidance on the right alignment lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm current lead times and included accessories.
Frequently Asked Questions
What is the lifting capacity of the Challenger AR4115XAX?
The AR4115XAX has a 15,000 lb lifting capacity, making it suitable for passenger cars, SUVs, light trucks, and medium-duty commercial vehicles. The included RJ7.5 rolling jacks provide 7,500 lb capacity each for wheel-off service procedures including tire changes, brake inspections, and suspension component replacement while the vehicle remains on the lift.
What is included with the AR4115XAX alignment rack package?
The package includes two RJ7.5 rolling jacks (7,500 lb capacity each), internal airline kit for dual rolling jack operation, flush-mount stainless steel turning radius gauges, free-floating rear slip plates, turn plate bridges, multi-position work steps, automatic wheel stops, and louvered approach ramps. All alignment-ready components ship with the lift as a complete package.
What are the concrete requirements for the AR4115XAX?
The lift requires minimum 4-inch concrete depth with 3,500 PSI compressive strength, steel reinforcement per local commercial practice, and a minimum 28-day cure time before installation. The floor must be level within 1/2 inch side-to-side and 2-1/2 inches front-to-rear. Refer to the official installation manual for complete foundation specifications and anchor requirements.
What are the electrical requirements for the Challenger AR4115XAX?
Standard electrical configuration is 208V - 230V, 60Hz, single-phase with a 2 HP motor. A 3-phase option is available for the 4115 Series for shops with commercial electrical service. The lift also requires 90 - 120 PSI clean, dry air supply for the single-point lock release system and rolling jack operation. Verify electrical panel capacity before installation.
What is the maximum wheelbase capacity of the AR4115XAX?
The AR4115XAX accommodates vehicles up to 210 inches wheelbase, making it suitable for full-size trucks, cargo vans, Sprinter-class vehicles, and commercial fleet vehicles. The 4-wheel alignment wheelbase range is 68 - 158 inches using the included turn plates and slip plates. Overall runway length is 275.5 inches to support extended-length vehicles.
Is the AR4115XAX ALI certified?
Yes, the AR4115XAX carries ALI Gold Label certification from the Automotive Lift Institute and ETL listing for ANSI/UL 201 compliance. The lift is designed per ANSI/ALI ALCTV standards for construction, testing, and validation, and per ANSI/ALI ALOIM standards for operation, inspection, and maintenance. This dual certification meets insurance and regulatory requirements for commercial service facilities.
What is the warranty on the Challenger AR4115XAX?
The lift includes a 5-2-1 warranty program: 5 years on structural parts, 2 years on functional parts (exceeding typical 1-year industry standard), and 1 year on labor. An extended warranty option adds 3 years of functional coverage if purchased within 30 days. Product registration and installation by an authorized Challenger installer are required for warranty validity.
What bay size is recommended for the AR4115XAX?
The recommended minimum bay size is 14 ft x 26 ft. The lift overall dimensions are 275.5 inches long by 142 inches wide with 98-inch column height. Verify adequate ceiling clearance for the column height plus vehicle height when raised. The lift provides 78 inches of rise height. Consult the installation manual for complete clearance requirements and door height considerations.
