Challenger 44060E 60,000 lb Heavy-Duty Four Post Lift for Commercial Trucks and Transit Vehicles
The Challenger 44060E is a 60,000 lb capacity chain-driven four post lift engineered for commercial truck fleets, transit authorities, and heavy equipment service operations. This extended-length model accommodates wheelbases up to 370 inches, fitting longer transit buses, extended-cab trucks, and commercial vehicles that exceed standard lift capacities. The variable-synchro power system with dual hydraulic cylinders provides synchronized or independent front and rear lifting for vehicles with uneven weight distribution. Featuring 32" wide diamond plate runways, a 73" rise, and 10-position twin ladder locks, the 44060E is backed by Challenger's 5-year structural warranty and 1-year parts and labor coverage.
Challenger 44060E Features
Variable-Synchro Power System with Dual Hydraulic Cylinders
The 44060E uses dual heavy-duty hydraulic lift cylinders that operate in synchronized or independent mode. This allows technicians to apply variable power to the front or rear of the lift, which is critical when servicing vehicles with uneven weight distribution like waste trucks, front-heavy transit buses, or construction equipment. Lever controls provide precise front-to-rear balance adjustment for safe, level lifting.
Velocity-Fused Redundant Hydraulic Safety System
Each hydraulic cylinder includes a velocity fuse that prevents uncontrolled descent in the event of a hydraulic line failure. This redundant safety system provides an additional layer of protection beyond the mechanical locks, ensuring the lift remains secure even under catastrophic hydraulic failure conditions.
Heavy-Duty Chain Drive with Sealed Roller Bearings
The lift uses high-tensile-strength leaf chain running on sealed roller bearings for smooth, consistent lifting performance. This chain-driven design handles the full 60,000 lb capacity with reliability and minimal maintenance. Sealed bearings protect against contamination in demanding shop environments where dust, dirt, and fluids are present.
10-Position Twin Ladder Lock System
Ten twin ladder lock positions provide flexible working heights throughout the 73" rise range. The single-point air-actuated lock release allows technicians to disengage all four column locks simultaneously from a single control point, streamlining the lowering process and improving workflow efficiency.
32" Diamond Plate Runways with Adjustable Width
The 32" wide anti-skid diamond plate runways provide confident drive-on access for wide commercial tires. Runway width adjusts from 36" to 58" between runways to accommodate different vehicle track widths. Heavy-duty fixed approach ramps with diamond plate surfaces ensure positive traction during loading of heavy vehicles.
Built-In Runway Rail System for Accessories
The integrated runway rail system accepts optional rolling jacks and sliding oil drain pans without modification. This allows shops to configure the lift for wheel-off brake service, transmission work, or other operations requiring component removal while the vehicle remains elevated.
Challenger 44060E Applications
- Transit Bus Fleets: The 370" wheelbase capacity handles extended-length transit buses, articulated coaches, and commuter vehicles that exceed standard lift dimensions.
- Commercial Truck Service: Heavy-duty capacity supports class 7 and class 8 trucks, waste haulers, concrete mixers, and other commercial vehicles requiring routine maintenance and repair.
- Municipal Fleet Maintenance: Fire departments, public works, and municipal fleets rely on the 44060E for servicing specialized heavy vehicles including fire apparatus and utility trucks.
- Construction Equipment: The variable-synchro system accommodates front-heavy loaders, graders, and other construction equipment with uneven weight distribution.
- RV and Motorcoach Service: Extended-length recreational vehicles and motorcoaches fit within the 370" wheelbase capacity for chassis service and undercarriage access.

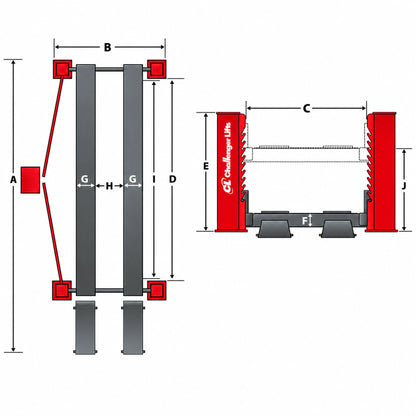

Challenger 44060E Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 60,000 lb |
| Maximum Wheelbase | 370" |
| Capacity Per Runway | 30,000 lb |
| Specification | Value |
|---|---|
| Rise | 73" |
| Runway Width | 32" |
| Width Between Runways | 36" - 58" (adjustable) |
| Lock Positions | 10 twin ladder lock positions |
| Specification | Value |
|---|---|
| Power Requirements | 230V single-phase |
| Amperage | 29 amps |
| Circuit Protection | 30-amp time delay fuse or circuit breaker |
| Wire Gauge | 10-gauge minimum (8-gauge preferred) |
| Specification | Value |
|---|---|
| Drive Type | Chain-driven with sealed roller bearings |
| Hydraulic System | Dual cylinder variable-synchro |
| Safety System | Velocity-fused redundant hydraulic |
| Lock Release | Single-point air-actuated |
Challenger 44060E Installation Requirements
Electrical Requirements
Power: 230V single-phase, 29 amps. Requires dedicated circuit with 30-amp time delay fuse or circuit breaker. Minimum 10-gauge wire required (8-gauge preferred). A licensed electrician must install and verify the electrical supply. Motors and electric controls are not sealed against weather or moisture - indoor installation required.
Concrete Foundation
Anchoring: Minimum 4" thickness of steel-reinforced concrete with minimum compressive strength of 3,000 PSI. Anchors must be at least 5" from slab edge or any seam. Maximum floor variation between any two posts is 2". Use 3/4" carbide drill bit for anchor holes. Do not use impact wrench for anchor installation.
Space Requirements
Minimum Bay Size: 15'-6" x 35'-0" for extended model. Ceiling Height: 16' minimum recommended - higher ceiling may be required depending on vehicle height. Additional length required if track extensions are purchased. Allow clearance for approach ramps and technician access around all sides of the lift.
Professional Installation
Professional installation by a qualified lift technician is strongly recommended. Proper installation ensures safe operation, optimal performance, and full warranty coverage. Installation includes leveling, anchoring, hydraulic system setup, electrical connection, and operational testing. Contact Garage Supply Guys for installation service recommendations in your area.
What's Included with the Challenger 44060E
- Complete four post lift assembly with extended-length runways
- Dual hydraulic cylinders with velocity fuse safety system
- Power unit with hydraulic pump and controls
- Diamond plate approach ramps
- All mounting hardware and anchor bolts
- Hydraulic hoses and fittings
- Pneumatic control system components
- Installation and operation manual
Optional Accessories: Rolling jacks for wheel-off service, sliding oil drain pans, 3' track extensions, wheel alignment accessories.
Not Included: Hydraulic oil (approximately 6 gallons SAE-10 or equivalent), electrical wiring and circuit installation, concrete work, installation labor, optional rolling jacks and drain pans.
Challenger 44060E Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quote and lead time.
Delivery Requirements
Unloading: Forklift or loading dock required - this is a heavy commercial lift shipped on pallets. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt. Report missing or damaged parts within 30 days of delivery.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Installed or used lifts cannot be returned.
Challenger 44060E Warranty
Challenger Lifts Limited Warranty
Challenger Lifts backs the 44060E with comprehensive warranty coverage for professional installations.
- 5 Years: Structural components including columns, runways, and main frame assemblies
- 1 Year: Labor and functional parts including hydraulic cylinders, power unit, chains, and mechanical components
Requirements: Warranty coverage requires professional installation according to Challenger specifications. Lift must be used for its intended purpose and maintained according to the operation manual. Warranty does not cover damage from misuse, overloading, improper installation, or failure to perform required maintenance. See warranty document for complete terms and conditions.
Documents
Click to open in a new tab.
Questions About the Challenger 44060E?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44060E FAQ
What is the difference between the 44060 and 44060E?
The 44060E is the extended-length version of the Challenger 44060. The standard 44060 accommodates wheelbases up to 310 inches, while the 44060E extends that capacity to 370 inches. This additional length is necessary for longer transit buses, extended-cab commercial trucks, and motorcoaches that exceed standard lift dimensions. Both models share the same 60,000 lb lifting capacity and feature set.
What vehicles can the 44060E lift?
The Challenger 44060E can lift commercial vehicles up to 60,000 lb with wheelbases up to 370 inches. This includes transit buses, class 7 and class 8 trucks, waste haulers, fire apparatus, concrete mixers, large RVs and motorcoaches, and construction equipment. The variable-synchro system makes it particularly suited for vehicles with uneven front-to-rear weight distribution.
What are the electrical requirements for the 44060E?
The Challenger 44060E requires 230V single-phase power at 29 amps. A dedicated circuit with a 30-amp time delay fuse or circuit breaker is required. Minimum 10-gauge wire is required, though 8-gauge is preferred for longer runs. A licensed electrician should install and verify the electrical supply before operating the lift.
What concrete specifications are required for installation?
The floor must be a minimum of 4 inches of steel-reinforced concrete with a minimum compressive strength of 3,000 PSI. Anchors must be at least 5 inches from any slab edge or seam. Maximum floor variation between any two posts is 2 inches. Failure to meet these specifications could result in unsafe operation and will void warranty coverage.
What does the warranty cover?
Challenger provides a 5-year warranty on structural components including columns, runways, and frame assemblies. Functional parts including hydraulic cylinders, power unit, chains, and mechanical components are covered for 1 year, including labor. Professional installation according to Challenger specifications is required for warranty coverage.
What is included with the lift purchase?
The 44060E ships complete with the four post lift assembly, extended-length runways, dual hydraulic cylinders with velocity fuse safety system, power unit, diamond plate approach ramps, all mounting hardware and anchor bolts, hydraulic hoses and fittings, pneumatic control components, and the installation manual. Hydraulic oil, electrical installation, and optional accessories are not included.
How is the 44060E shipped and delivered?
The lift ships via freight truck to commercial addresses in the 48 contiguous states with free shipping. A forklift or loading dock is required for unloading. Delivery is curbside - the freight carrier will not bring the lift inside your facility. Inspect all packages before signing and note any damage on the bill of lading.
Can I use rolling jacks with the 44060E?
Yes, the 44060E includes a built-in runway rail system that accepts optional rolling jacks without modification. This allows wheel-off brake service, tire changes, and other operations requiring wheel removal while the vehicle remains elevated. Rolling jacks are sold separately and are rated to match the lift's heavy-duty capacity.
What is the variable-synchro power system?
The variable-synchro power system uses dual hydraulic cylinders that can operate in synchronized or independent mode. In synchronized mode, both cylinders lift evenly for balanced loads. In independent mode, technicians can apply more power to the front or rear cylinder to compensate for vehicles with uneven weight distribution. This is essential for safely lifting front-heavy buses, waste trucks, and construction equipment.
How much space do I need for the 44060E?
The 44060E requires a minimum bay area of 15'-6" x 35'-0" for the extended model. Ceiling height should be at least 16 feet, though higher ceilings may be required depending on the vehicles you service. Additional length is needed if optional track extensions are purchased. Allow adequate clearance around all sides of the lift for technician access and safe vehicle approach.
What maintenance does the 44060E require?
Perform 30-day maintenance including checking all bolts and nuts for tightness, inspecting equalizer chains for proper tension, checking hydraulic lines and fittings for leaks, verifying locking latches and releases operate properly, and visually inspecting concrete for cracks near the base plates. During the first week after installation, check and tighten anchor bolts daily. Use SAE-10 hydraulic oil or automatic transmission fluid.
Is professional installation required?
While not strictly required, professional installation is strongly recommended and is necessary for full warranty coverage. Proper installation ensures safe operation, correct leveling and alignment, proper hydraulic system setup, and optimal lift performance. The installation manual provides complete instructions for qualified technicians. Contact Garage Supply Guys for installation service recommendations in your area.
