Challenger 44050X 4-Post Lift 50000 lb Heavy Duty
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

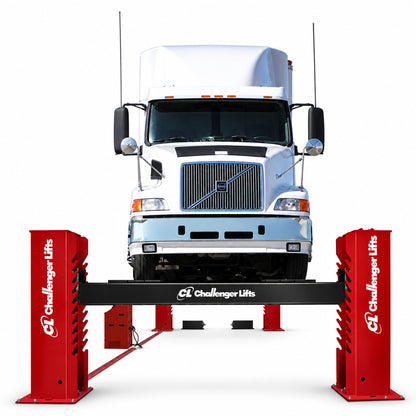

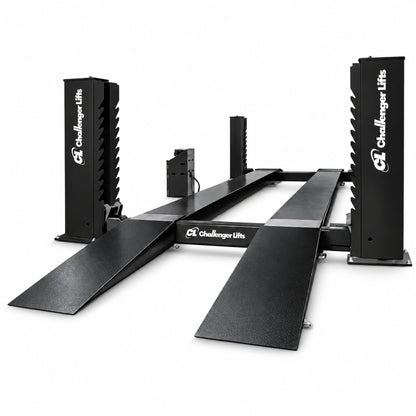

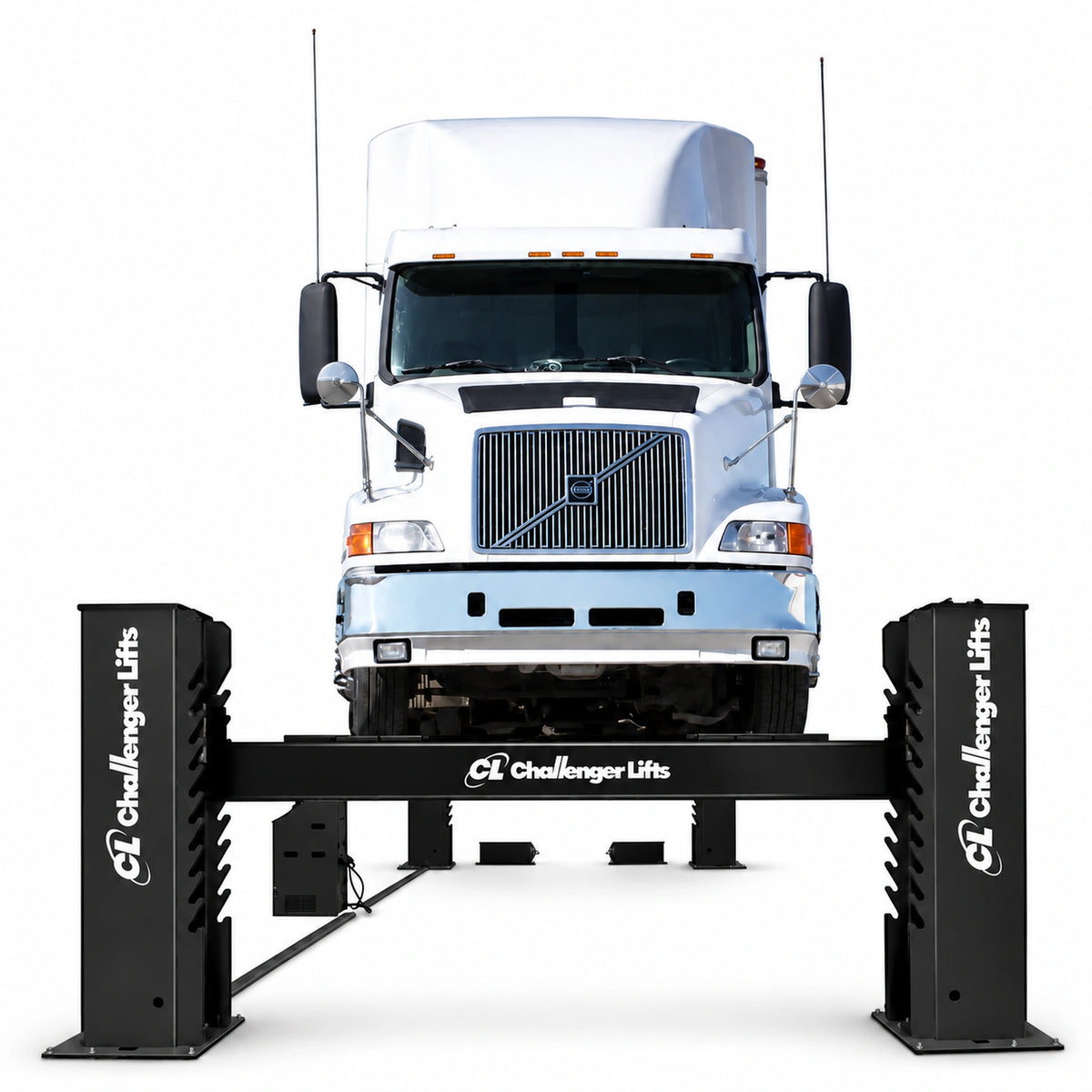

Challenger Lifts 44050X 50,000 lb Heavy-Duty Chain-Driven 4-Post Lift for Commercial Fleet Service
The Challenger Lifts 44050X is a 50,000 lb capacity heavy-duty 4-post lift engineered for commercial fleet maintenance and heavy truck service operations. With an extended 430" maximum wheelbase and 46' overall length, this lift accommodates waste trucks, construction vehicles, and other large commercial equipment. The synchro-power system with dual heavy-duty lift cylinders delivers variable or synchronous power to front and rear suspensions, while 32" wide diamond-plated runways provide confident drive-on positioning for oversized vehicles. Powered by a 15HP three-phase motor and backed by Challenger's comprehensive warranty, the 44050X delivers American-made quality for demanding commercial applications.
Challenger 44050X Features
Synchro-Power Hydraulic System
The dual heavy-duty lift cylinder design with lever controls provides variable or synchronous power to front and rear suspensions independently. This feature is essential for lifting large axle vehicles with uneven weight distribution, including waste trucks, concrete mixers, and construction equipment with heavier front or rear ends.
Extended Wheelbase Capacity
With a 430" maximum wheelbase and 410" between columns, the 44050X accommodates the longest commercial chassis on the road. The 46' overall length provides ample runway for positioning extended cab configurations and vehicles with rear-mounted equipment.
32" Wide Diamond-Plated Runways
Extra-wide 32" runways with diamond-plate anti-skid surfacing provide confident drive-on positioning for wide-track commercial vehicles. The textured surface ensures positive traction during loading, even with wet or oily tires common in fleet operations.
10-Position Mechanical Locking System
Ten lock positions at various heights maximize working headroom for technicians servicing underneath vehicles. The single-point air actuated lock release allows one technician to simultaneously disengage all column locks for efficient lowering operations.
Heavy-Duty Chain Drive
Industrial chain-driven lifting mechanism delivers reliable, synchronized elevation across all four posts. The robust chain system handles the demands of daily commercial use while maintaining smooth, controlled lift and descent operations.
Diamond-Plate Approach Ramps
Factory-installed approach ramps feature the same diamond-plate anti-skid surface as the runways, providing positive vehicle traction during loading. The gradual incline allows low-clearance vehicles to drive on without scraping.
Challenger 44050X Applications
- Waste Management Fleets: Purpose-built for refuse trucks and recycling vehicles with heavy rear-mounted compaction systems requiring variable lift control.

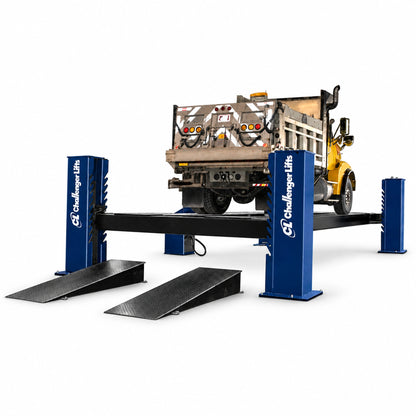

- Construction Equipment Service: Accommodates dump trucks, concrete mixers, and other construction vehicles with extended wheelbases and uneven weight distribution.

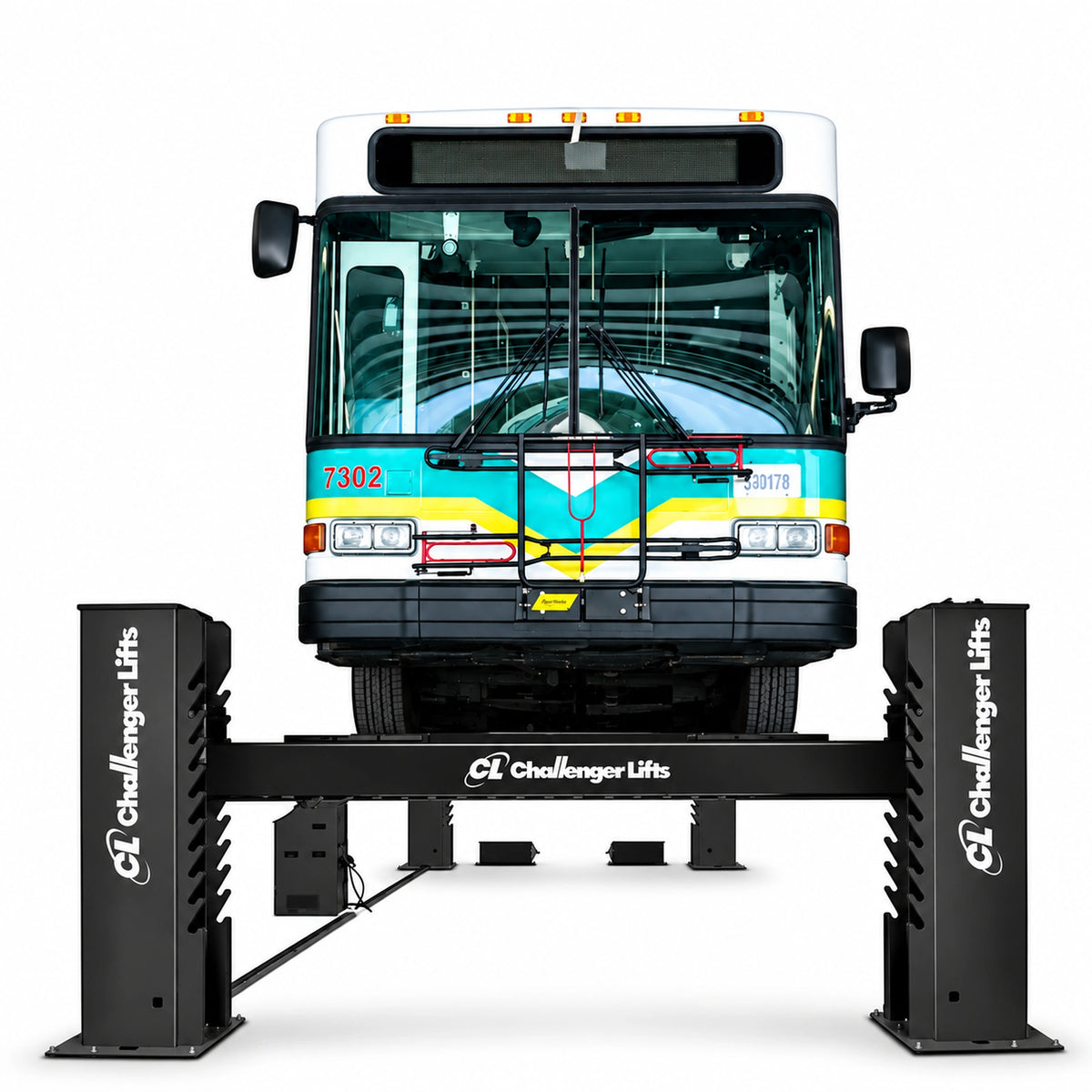

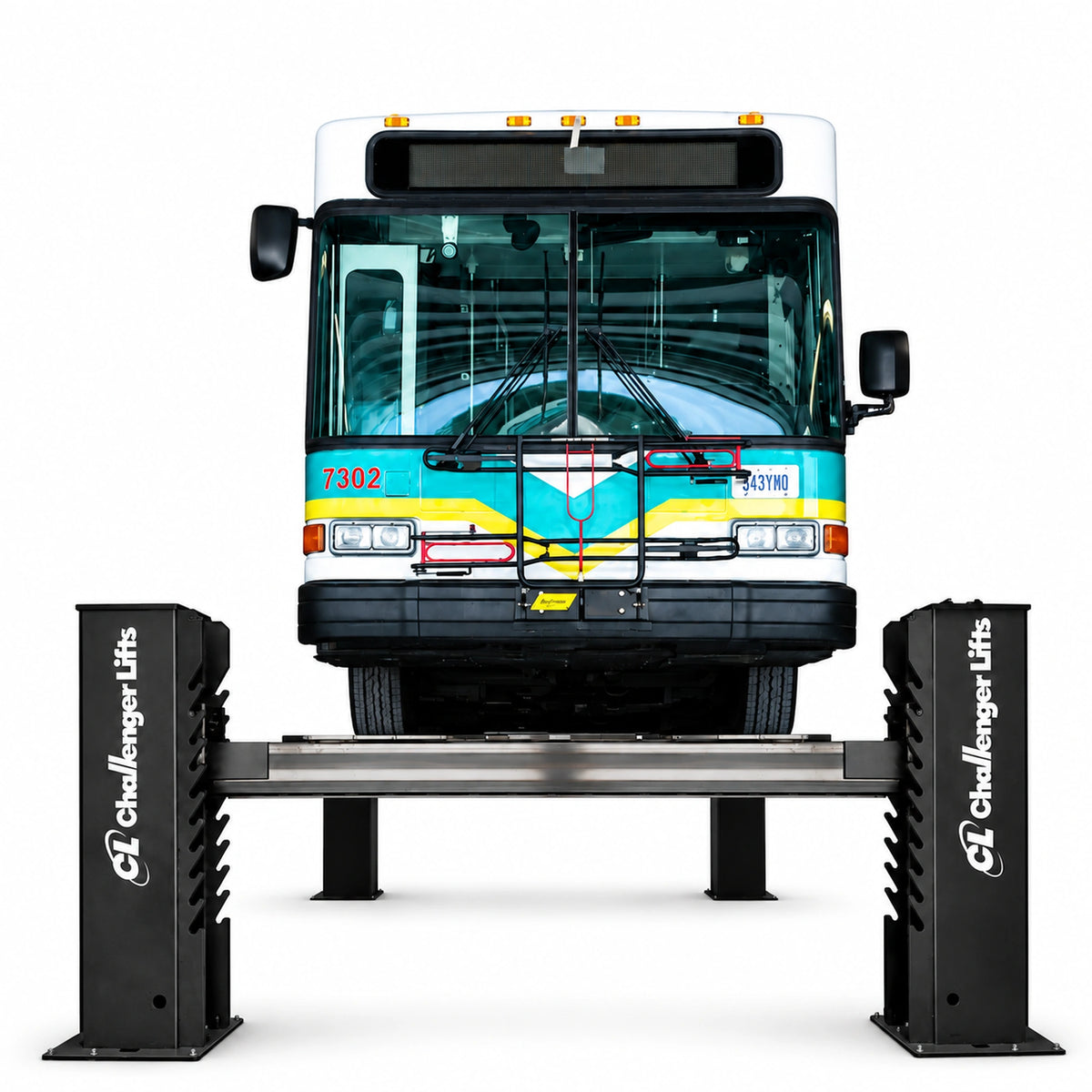

- Transit and Bus Maintenance: The 430" wheelbase capacity handles city buses, shuttle buses, and transit vehicles requiring undercarriage access.
- Heavy-Duty Truck Dealerships: Ideal for Class 7 and Class 8 truck service departments performing warranty work, inspections, and major repairs.

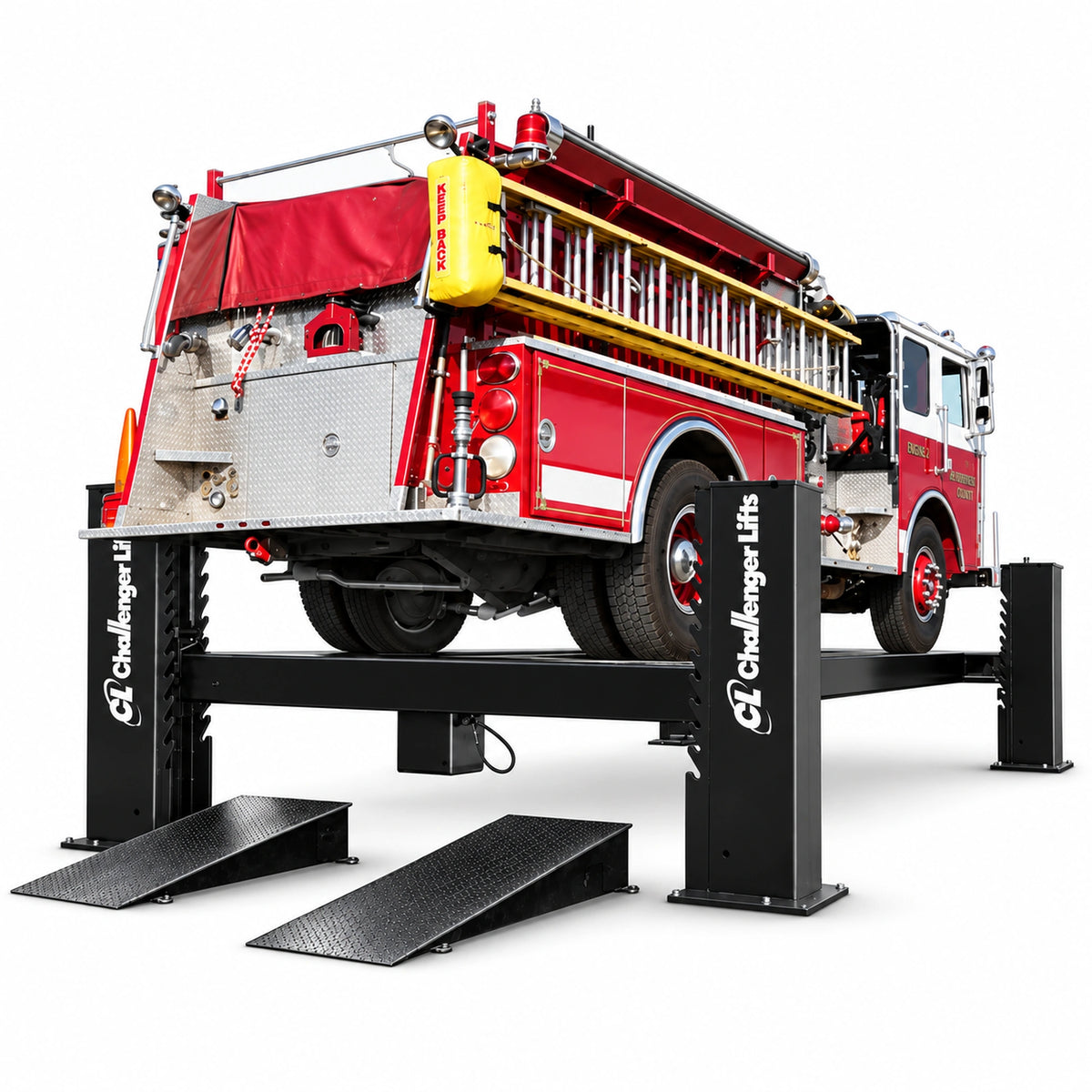

- Municipal Fleet Operations: Supports maintenance of fire apparatus, public works vehicles, and other municipal equipment up to 50,000 lb.

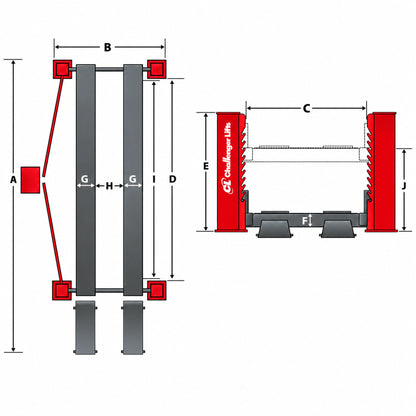

Challenger 44050X Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 50,000 lb |
| Maximum Wheelbase | 430" |
| Optional Rolling Jacks | 15,000 lb - 35,000 lb capacity |
| Specification | Value |
|---|---|
| Rise Height | 73" |
| Overall Length | 46' |
| Overall Width | 17' 1.25" |
| Height Overall | 92" |
| Inside Columns | 144" |
| Between Columns | 410" |
| Height of Runways | 14" |
| Width of Runways | 32" |
| Width Between Runways | 36" - 58" |
| Width Between Runways (with jacks) | 43" - 53.5" |
| Specification | Value |
|---|---|
| Motor | 15HP |
| Voltage | 230 - 460v Three Phase |
| Amperage | 42 - 21 amps |
| Speed of Rise | 70 seconds |
| Specification | Value |
|---|---|
| Lock Positions | 10 |
| Lock Release | Single-point air actuated |
| Colors Available | Black |
Challenger 44050X Installation Requirements
Electrical Requirements
Power: 230-460v three-phase, 42-21 amps (depending on voltage configuration). A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength required. All four columns must be anchored to properly prepared concrete. Consult installation manual for anchor bolt specifications and torque requirements.
Space Requirements
Overall Length: 46'. Overall Width: 17' 1.25". Ceiling Height: Minimum 92" clearance required. Allow additional clearance for vehicle height when raised and technician working space around the lift perimeter.
Professional Installation
Professional installation by qualified technicians is strongly recommended for this heavy-duty commercial lift. Proper installation ensures safe operation and validates warranty coverage. Contact Garage Supply Guys for installation service referrals in your area.
What's Included with the Challenger 44050X
- Complete 4-post lift structure with black powder-coated columns
- 32" wide diamond-plated runways
- Diamond-plate approach ramps
- 15HP hydraulic power unit
- Dual heavy-duty lift cylinders
- Synchro-power control system with lever controls
- Single-point air actuated lock release mechanism
- Anchor bolts and mounting hardware
- Installation and operation manual
Optional Accessories: 15,000 lb - 35,000 lb rolling jacks for complete heavy-duty servicing optimization.
Not Included: Electrical wiring and installation, concrete work or floor preparation, compressed air supply for lock release, installation labor, rolling jacks (sold separately).
Challenger 44050X Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required - this is heavy commercial equipment shipped on flatbed or enclosed trailers. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages and crating for damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph if necessary.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 44050X Warranty
Challenger Lifts Warranty
Challenger Lifts backs the 44050X with comprehensive warranty protection for commercial and professional use:
- 5 Years: Structural components including columns, runways, and frame
- 2 Years: Hydraulic cylinders and power unit components
- 1 Year: Electrical components, seals, and wear items
Requirements: Warranty coverage requires professional installation per manufacturer specifications, use within rated capacity, and adherence to maintenance schedules outlined in the operation manual. Commercial and fleet use is covered.
Documents
Click to open in a new tab.
Questions About the Challenger 44050X?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44050X FAQ
What is the maximum vehicle weight the 44050X can lift?
The Challenger 44050X has a rated lifting capacity of 50,000 lb (25 tons). This capacity is suitable for Class 7 and Class 8 commercial trucks, waste management vehicles, transit buses, and heavy construction equipment. Always verify your vehicle's gross weight before lifting.
What is the maximum wheelbase the 44050X can accommodate?
The 44050X accommodates wheelbases up to 430" with 410" between columns. This extended capacity handles the longest commercial chassis including waste trucks with extended bodies, transit buses, and trucks with sleeper cabs or rear-mounted equipment.
What electrical service is required for the 44050X?
The 44050X requires 230-460v three-phase electrical service. At 230v, the lift draws 42 amps; at 460v, it draws 21 amps. A licensed electrician must install a dedicated circuit with appropriate disconnect and verify compliance with local electrical codes.
How is the 44050X installed?
The 44050X must be anchored to a reinforced concrete floor meeting minimum specifications (6" thick, 3,000 PSI). All four columns are bolted to the floor using provided anchor hardware. Professional installation is strongly recommended due to the size and complexity of this commercial lift.
What warranty coverage does the 44050X include?
Challenger provides a 5-year warranty on structural components, 2-year coverage on hydraulic cylinders and power unit, and 1-year warranty on electrical components and wear items. Warranty requires professional installation and adherence to maintenance schedules. Commercial use is covered.
What is included with the 44050X purchase?
The 44050X includes the complete 4-post lift structure, 32" diamond-plated runways, approach ramps, 15HP power unit, dual lift cylinders, synchro-power controls, air-actuated lock release, anchor hardware, and installation manual. Rolling jacks are optional accessories sold separately.
How is the 44050X shipped and delivered?
The 44050X ships via freight carrier to commercial addresses in the continental US with free shipping. A forklift or loading dock is required for unloading. Delivery is curbside - inspect all components for shipping damage before signing the bill of lading.
What rolling jack options are available for the 44050X?
Optional rolling jacks with capacities from 15,000 lb to 35,000 lb are available for the 44050X. These jacks provide complete axle lifting capability for tire service, brake work, and suspension repairs on heavy-duty vehicles. Contact sales for rolling jack pricing and specifications.
How does the 44050X compare to the 44050 and 44050E models?
All three 44050 series models share the same 50,000 lb capacity and core features. The difference is wheelbase: the 44050 handles 310" max wheelbase (36' length), the 44050E handles 370" (41' length), and the 44050X handles 430" (46' length). Choose based on the longest vehicles in your fleet.
What maintenance does the 44050X require?
Regular maintenance includes checking hydraulic fluid levels, inspecting chains and cables for wear, lubricating moving parts per the manual schedule, testing safety locks, and inspecting anchor bolts. Follow the maintenance schedule in the installation manual to ensure safe operation and maintain warranty coverage.
What is the synchro-power system and why is it important?
The synchro-power system uses dual hydraulic cylinders with lever controls to provide variable or synchronous power to front and rear suspensions. This allows technicians to level vehicles with uneven weight distribution - essential for waste trucks, concrete mixers, and other vehicles with significantly heavier front or rear ends.
What ceiling height is required for the 44050X?
The 44050X has an overall height of 92", so ceiling clearance must exceed this measurement plus the height of vehicles when raised and adequate working space. For most commercial applications, a minimum 16-18' ceiling is recommended to accommodate raised vehicles and overhead lighting.
