Challenger 44050E 50,000 lb Heavy-Duty Chain-Driven 4-Post Lift for Commercial Fleet Service
The Challenger 44050E is a heavy-duty 50,000 lb capacity chain-driven 4-post lift engineered for servicing large commercial vehicles including waste trucks, construction equipment, and fleet vehicles. Featuring a 370" maximum wheelbase and 41' overall length, this extended-length lift accommodates longer chassis configurations. The synchro-power system with dual heavy-duty cylinders and lever controls delivers variable or synchronous power to front and/or rear suspension, making it ideal for vehicles with uneven weight distribution. Powered by a 15HP, 230-460V three-phase motor and backed by Challenger's 5-year structural warranty, the 44050E is built for demanding commercial environments.
Challenger 44050E Features
Synchro-Power Hydraulic System
The dual heavy-duty lift cylinder design with lever controls provides variable or synchronous power to the front and/or rear suspension of the lift. This makes the 44050E perfect for lifting large axle vehicles with heavier front or rear ends, allowing technicians to level unbalanced loads safely and efficiently.
Extended 370" Wheelbase Capacity
With a 370" maximum wheelbase and 41' overall length, the 44050E extended model accommodates longer commercial vehicles that standard 4-post lifts cannot handle. The 350" between columns measurement provides ample room for positioning larger chassis configurations.
32" Wide Diamond-Plate Runways
Extra-wide 32" runways with diamond-plate anti-skid surfaces provide maximum drive-on confidence for operators positioning heavy commercial vehicles. The textured surface ensures positive traction in all conditions, reducing the risk of tire slip during loading.
10 Lock Positions for Maximum Headroom
The 44050E features 10 lock positions throughout its 73" rise height, allowing technicians to select the optimal working height for any service task. This flexibility maximizes headroom underneath vehicles while ensuring secure positioning at each height setting.
Single-Point Air Actuated Lock Release
The pneumatic lock release system allows technicians to disengage all column locks simultaneously from a single control point. This streamlines the lift cycle and improves workflow efficiency, especially important in high-volume commercial service environments.
Heavy-Duty Chain Drive System
Unlike cable-driven lifts, the 44050E uses a robust chain drive mechanism designed for the demands of 50,000 lb loads. The chain system delivers consistent, reliable lifting performance with reduced maintenance requirements compared to cable alternatives in heavy-duty applications.
Challenger 44050E Applications
- Waste Management Fleets: The 50,000 lb capacity and extended wheelbase handle front-loader and rear-loader garbage trucks, with the synchro-power system accommodating their uneven weight distribution.
- Construction Equipment Service: Service dump trucks, concrete mixers, and heavy construction vehicles with confidence on the reinforced 4-post platform designed for commercial loads.
- Municipal Fleet Maintenance: Fire trucks, street sweepers, and other municipal vehicles benefit from the extended length and heavy-duty capacity of the 44050E.
- Commercial Truck Dealerships: Perform PDI inspections, warranty work, and routine maintenance on Class 6-8 commercial trucks with the professional-grade lifting capacity.
- Heavy Equipment Rental Centers: Maintain rental fleets of commercial trucks and equipment with a lift built for continuous heavy-duty use and demanding service schedules.

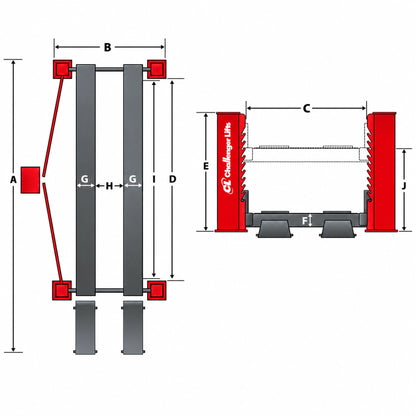

Challenger 44050E Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 50,000 lb |
| Max Wheelbase | 370" |
| Rise Height | 73" |
| Lock Positions | 10 |
| Speed of Rise | 70 seconds |
| Specification | Value |
|---|---|
| Overall Length | 41' |
| Overall Width | 17' 1.25" |
| Height Overall | 92" |
| Inside Columns | 144" |
| Between Columns | 350" |
| Height of Runways | 14" |
| Width of Runways | 32" |
| Width Between Runways | 36" - 58" |
| Width Between Runways (with jacks) | 43" - 53.5" |
| Specification | Value |
|---|---|
| Motor | 15HP |
| Voltage | 230-460V Three Phase |
| Amperage | 42A (230V) / 21A (460V) |
| Colors Available | Black |
Challenger 44050E Installation Requirements
Electrical Requirements
Power: 230-460V three-phase electrical supply, 42 amps at 230V or 21 amps at 460V. A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength required. The installation area must be level and free of cracks. Anchor bolts must be properly installed per the installation manual specifications.
Space Requirements
Overall Length: 41'. Overall Width: 17' 1.25". Height Clearance: Minimum 92" ceiling height required. Allow additional clearance for vehicle height when raised and technician access around all sides of the lift.
Professional Installation
Professional installation by a qualified lift installer is strongly recommended. Proper installation is required to maintain warranty coverage. Challenger Lifts requires product registration to activate warranty benefits.
What's Included with the Challenger 44050E
- Complete 4-post lift structure with black powder-coated columns
- Dual heavy-duty hydraulic cylinders
- Chain drive system
- 15HP three-phase power unit
- 32" diamond-plate runways
- Diamond-plate approach ramps
- Lever control system for synchro-power operation
- Single-point air actuated lock release
- Hardware and anchor bolt kit
- Installation and operation manual
Optional Accessories: 15,000 lb - 35,000 lb rolling jacks provide complete optimization for heavy-duty servicing needs.
Not Included: Electrical installation and wiring, concrete work or floor preparation, installation labor, air compressor for pneumatic lock release, rolling jacks (sold separately).
Challenger 44050E Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-10 business days typical, contact for current availability. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required - this is a heavy commercial lift shipped on pallets. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 44050E Warranty
Challenger Lifts Limited Warranty
Challenger Lifts guarantees the 44050E to the original owner when properly installed and maintained according to specifications.
- 5 Years: Structural parts including columns, runways, cross beams, ramps, and plungers
- 1 Year: Functional parts including power unit, cylinders, chains, hoses, fittings, latches, valves, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Product must be registered at challengerlifts.com to activate warranty. Professional installation required. Warranty does not cover normal maintenance, damage from improper use, or repairs attempted by non-authorized service representatives. This warranty is non-transferable.
Documents
Click to open in a new tab.
Questions About the Challenger 44050E?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44050E FAQ
What is the maximum vehicle weight the 44050E can lift?
The Challenger 44050E has a lifting capacity of 50,000 lb, making it suitable for heavy commercial vehicles including waste trucks, construction vehicles, and Class 6-8 trucks. Always ensure the gross vehicle weight does not exceed this capacity.
What is the difference between the 44050 and 44050E models?
The "E" in 44050E designates the extended wheelbase model. The 44050E accommodates vehicles up to 370" wheelbase with a 41' overall length, while the standard 44050 handles up to 310" wheelbase with a 36' overall length. Both models share the same 50,000 lb capacity.
What electrical power is required for the 44050E?
The 44050E requires 230-460V three-phase power. At 230V, the unit draws 42 amps; at 460V, it draws 21 amps. A licensed electrician must install the appropriate circuit and verify the electrical supply meets all requirements.
What are the concrete floor requirements?
The lift requires a minimum 6" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The floor must be level and free of cracks in the anchor locations. Refer to the installation manual for complete foundation specifications.
What does the 5-year structural warranty cover?
The 5-year structural warranty covers the columns, runways, cross beams, ramps, and plungers. Functional parts including the power unit, cylinders, chains, and controls are covered for 1 year. Labor is covered for 1 year. The product must be registered at challengerlifts.com to activate warranty coverage.
What is included with the lift purchase?
The 44050E includes the complete 4-post structure, dual hydraulic cylinders, chain drive system, 15HP power unit, 32" diamond-plate runways, approach ramps, lever controls, air actuated lock release, hardware kit, and installation manual. Rolling jacks are optional accessories sold separately.
How is the 44050E shipped and delivered?
The lift ships via freight truck to commercial addresses in the contiguous 48 states with free shipping. A forklift or loading dock is required for unloading. Curbside delivery is standard. Inspect all packages before signing and note any damage on the delivery receipt.
What rolling jacks are compatible with the 44050E?
Challenger offers optional rolling jacks from 15,000 lb to 35,000 lb capacity that are designed for use with the 44050E. These provide complete wheel-free service capability for brake, suspension, and tire work on heavy commercial vehicles.
How does the synchro-power system work?
The synchro-power system uses dual heavy-duty cylinders with lever controls that allow variable or synchronous power to the front and/or rear of the lift independently. This enables operators to level vehicles with uneven weight distribution, such as waste trucks with heavier front or rear ends.
How long does it take to raise a vehicle?
The 44050E has a rise speed of 70 seconds from floor level to full 73" rise height. The 10 lock positions allow technicians to stop at the optimal working height for each service task.
Is professional installation required?
While not strictly required, professional installation is strongly recommended. Proper installation is necessary to maintain warranty coverage, and Challenger requires product registration to activate warranty benefits. The installation involves electrical work, concrete anchoring, and precise leveling.
What is the ceiling height requirement?
The 44050E has an overall height of 92". You must also account for the height of the vehicle being lifted plus working clearance. A minimum ceiling height of 14-16 feet is typically recommended for commercial truck service applications.
