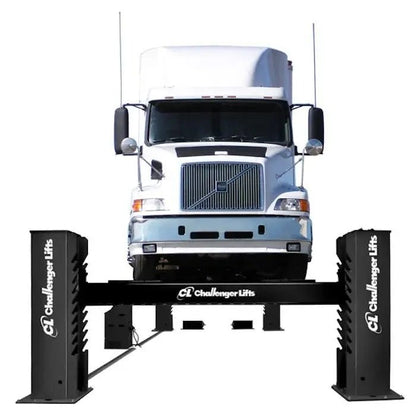

Challenger Lifts 44040X four-post heavy-duty lift, 40,000 lb capacity, shown hoisting a semi-truck on reinforced steel platforms for commercial fleet and service bay use.

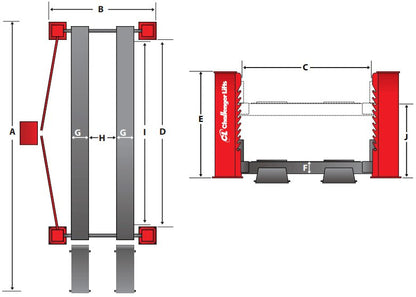

Challenger Lifts 44040X four-post heavy-duty lift technical diagram showing top and side views with labeled dimensions A–I for platform width, post spacing, and overall lift height and length specifications

Popular Add-ons

Challenger 44RK40 | 96-Inch Fixed Ramp Kit for Easy Vehicle Access

CHALLENGER LIFTS 44RK40 Ramp Kit, Fixed, 96 in Long

$13,208.18

CHALLENGER LIFTS 10310 Air/Electric Workstation

$663.28

CHALLENGER LIFTS 10267 Oil Drain Pan Kit, 32 Gallons

$2,316.87

Challenger

CHALLENGER LIFTS 44040X 40,000 lbs XL Extended Chain Driven, Four-Post Car Lift

$151,560.20

Product variants

44040X Product Information

Challenger Lifts 44040X 40,000 Lbs XL Extended "Chain Driven" Four Post Car Lift

The Challenger 44040X is a heavy-duty, chain-driven four-post lift with a lifting capacity of 40,000 to 60,000 lbs, designed for servicing large commercial trucks and transit vehicles. This lift offers superior durability with its high-tensile strength leaf chains and sealed roller bearings, ensuring reliable and smooth performance. Its adjustable runways, anti-skid diamond plate ramps, and dual hydraulic lift cylinders make it ideal for heavy-duty service work, allowing technicians to handle a wide variety of vehicles safely and efficiently.

Features

40,000 - 60,000 lb. lifting capacity for heavy commercial trucks and transit vehicles
Heavy-duty, high-tensile strength leaf chain with sealed roller bearings for maximum reliability
Variable-synchro power system with dual hydraulic lift cylinders for independent or simultaneous lifting of the front or rear vehicle suspension
Velocity-fused redundant hydraulic safety system for maximum safety
Single-point air-actuated lock release system for simultaneous disengagement of all column locks
Diamond plate anti-skid runways and heavy-duty fixed approach ramps for long-lasting durability and traction
Adjustable runways to accommodate a variety of tread and axle widths
Built-in runway rail system for optional accessories like rolling jacks and oil drain pans (sold separately)
10-level twin ladder lock positions for a comfortable working height across various vehicle types
Independent control console with variable-synchro power system for easy access to power controls, allowing simultaneous or independent suspension lifting
Anti-skid diamond plate ramps for safe and easy vehicle drive-on

44040X Specifications

Model Number	44040X
Lift Capacity	40,000 lb.
Length Overall	46’
Width Overall	17’ 1¼”
Inside Columns	144”
Between Columns	410”
Height Overall	92”
Height of Runways	14”
Width of Runways	32”
Width Between Runways	36” - 58”
Max Wheelbase	430”
Rise Height	73”
Min - Max 4 Wheel Align	N/A
Max 2 Wheel Alignment	N/A
Motor	3HP
Voltage	230 - 460v Three Phase
Speed of Rise	70 sec.
Amps	30

Additional Parts and Accessories *Sold Separately

Part Number	Description
SAJ25	Air/Hydraulic operated rolling jack, 25,000 lb. capacity, adjustable width 45” - 55”
SAJ35	Air/Hydraulic operated rolling jack, 35,000 lb. capacity, adjustable width 45” - 55”
44RK40	Fixed Ramp kit, 96” long for drive-thru operation
10267	Oil drain pan kit, adjustable width, 32 gallon
