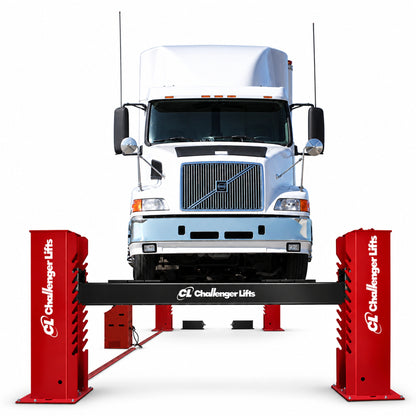

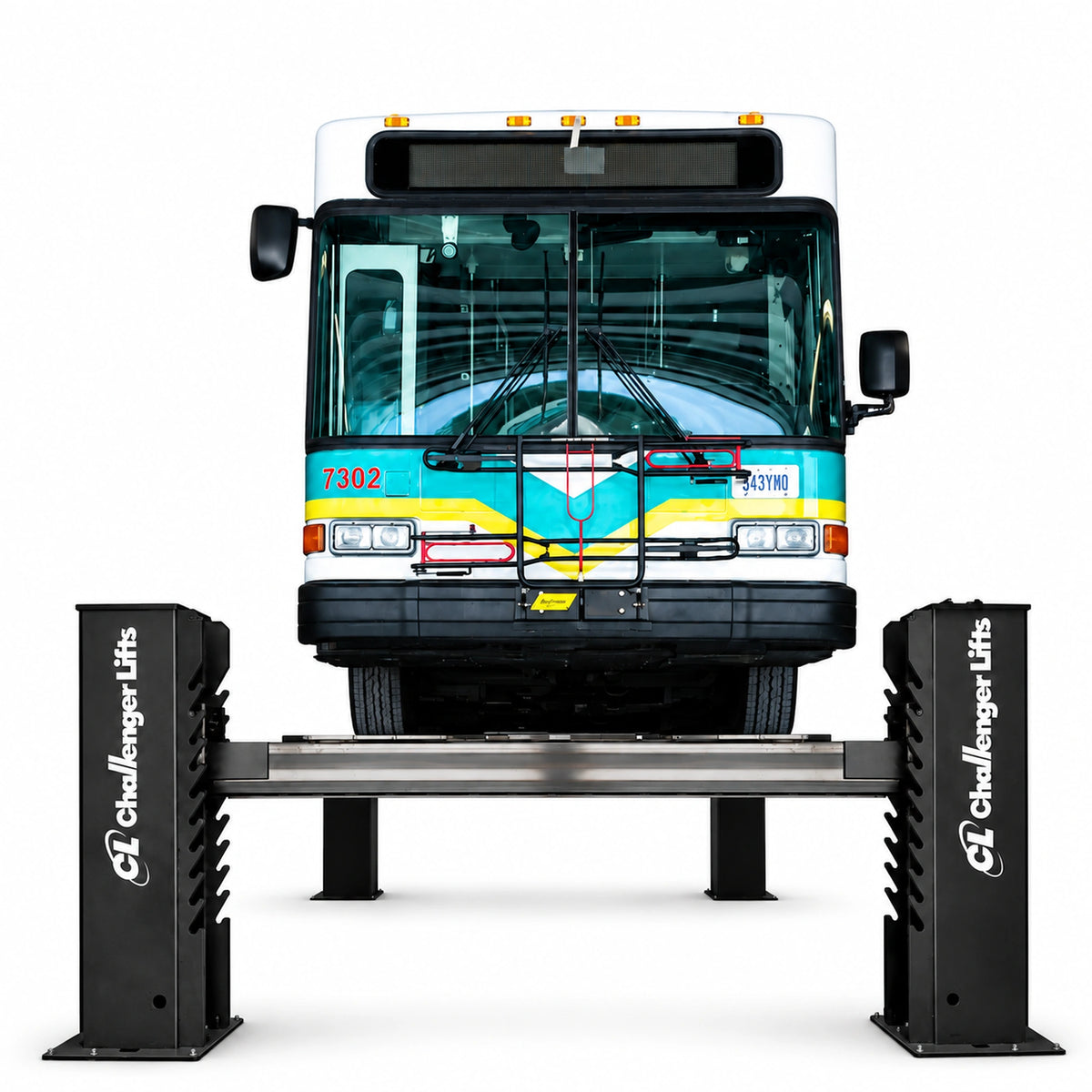

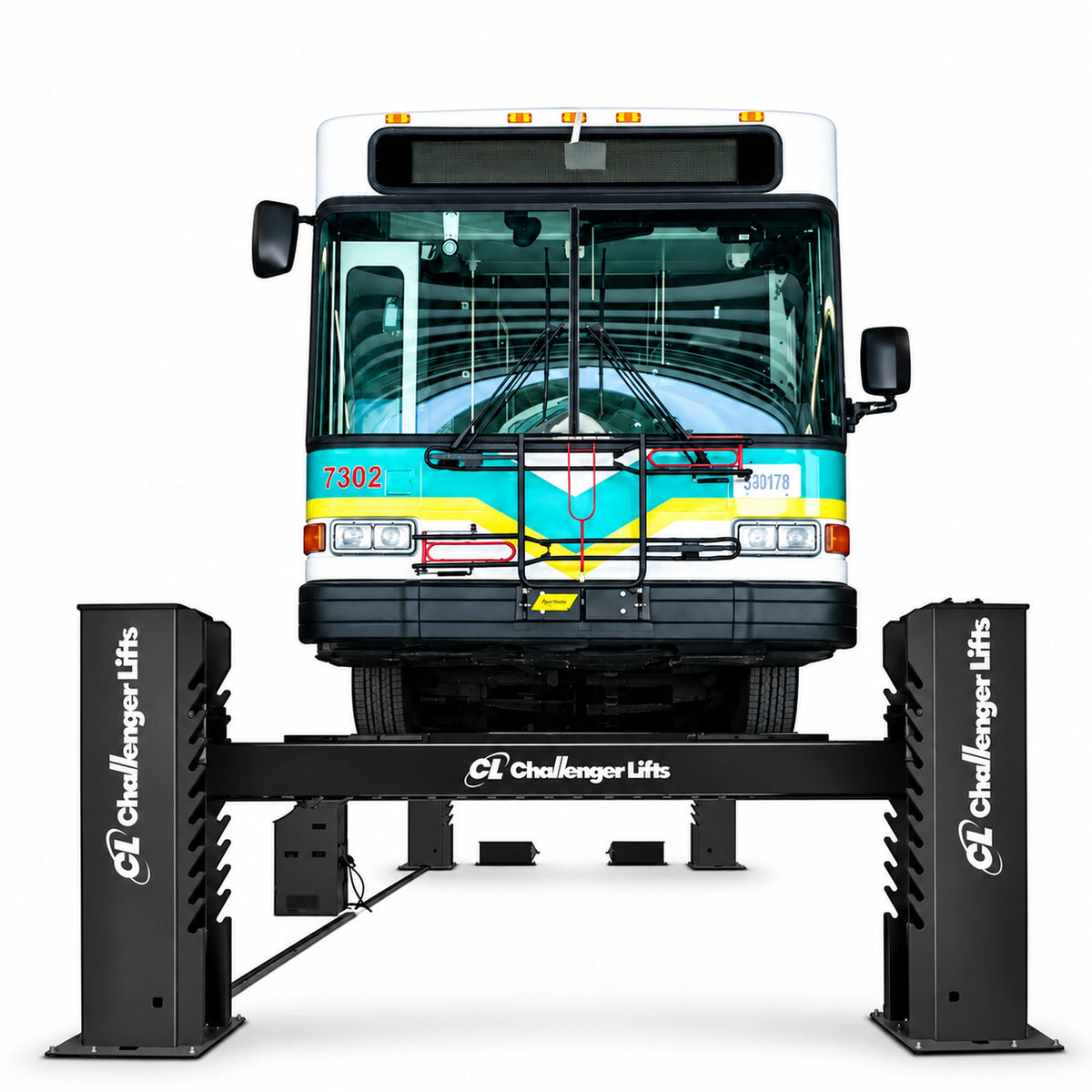

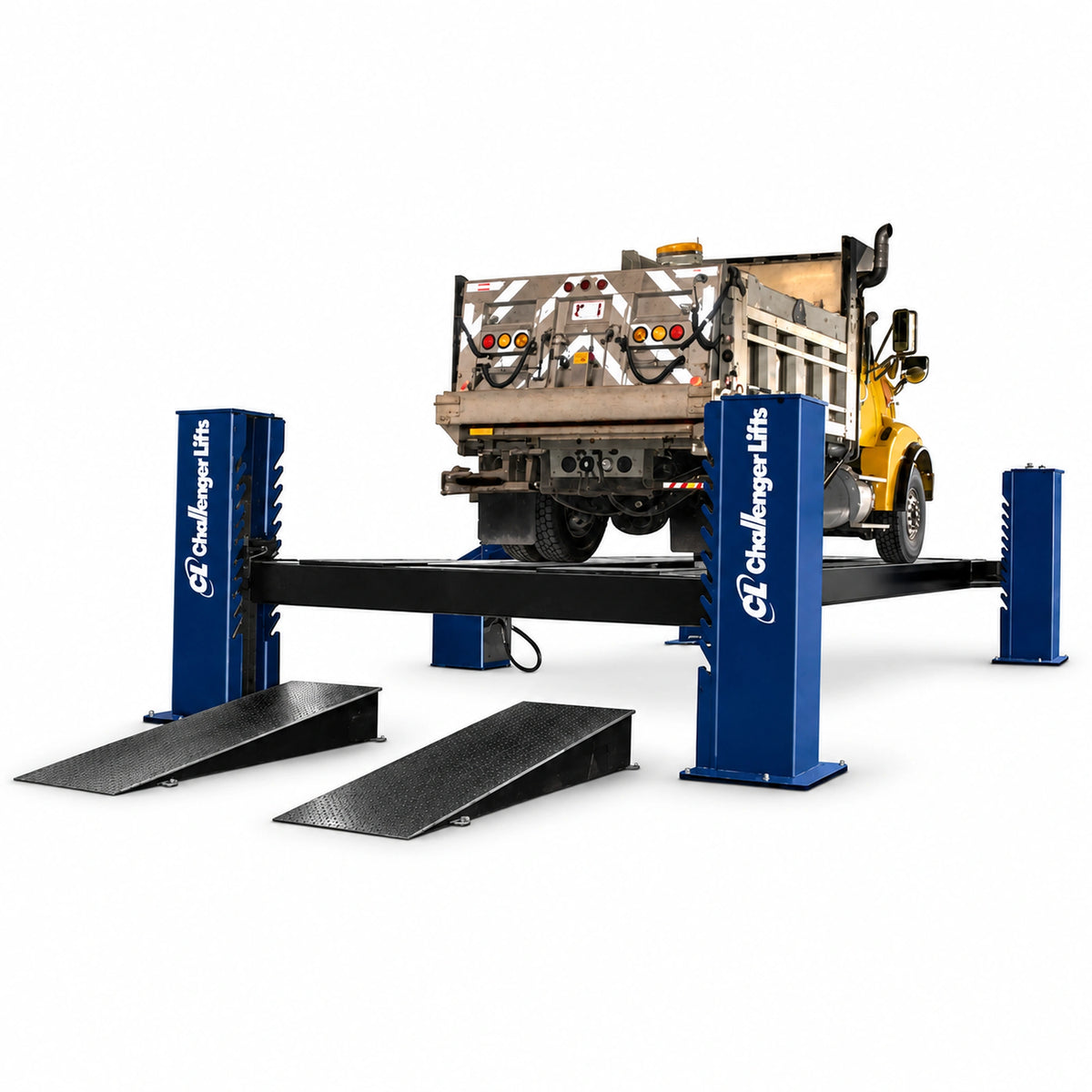

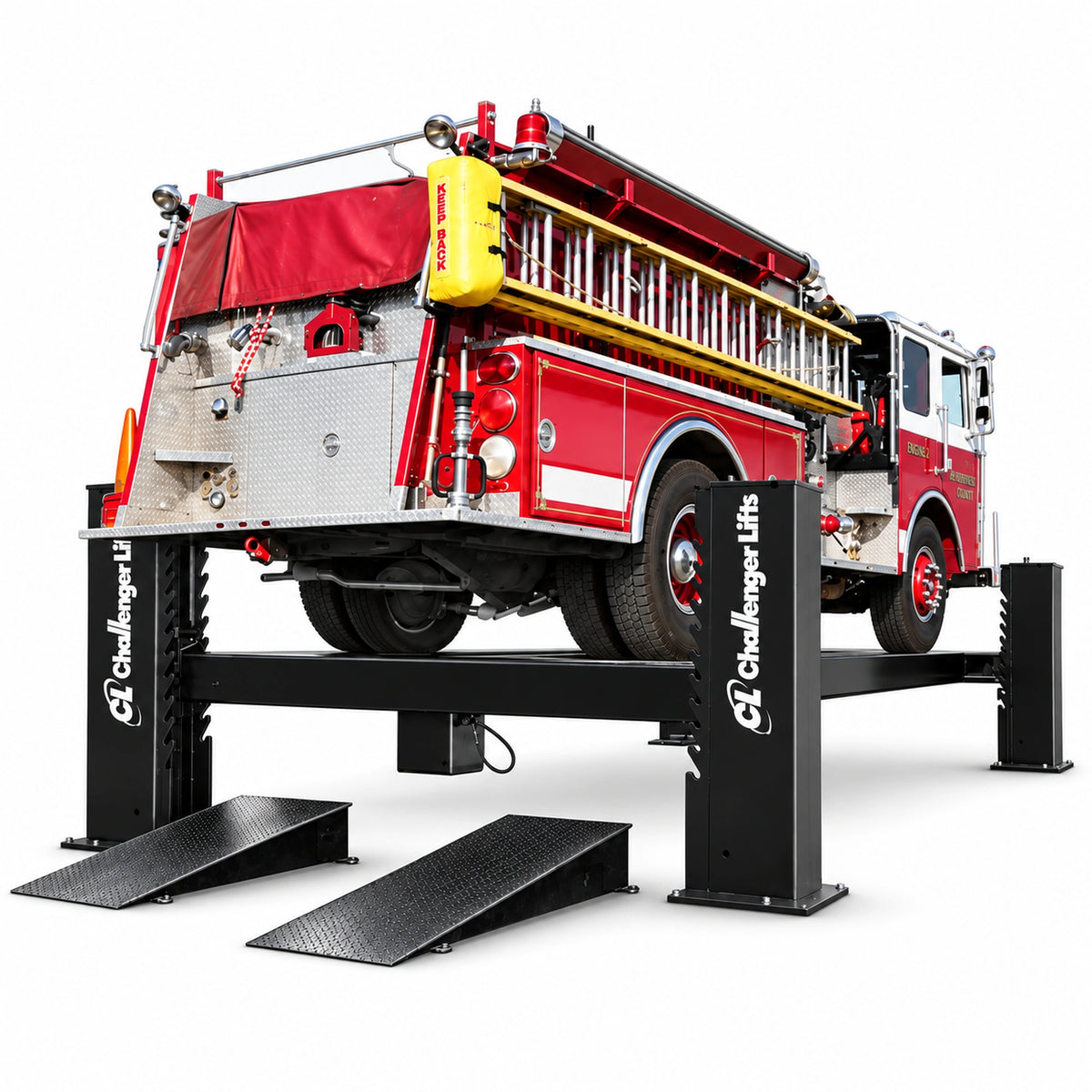

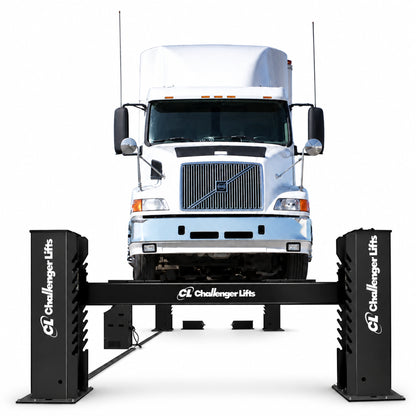

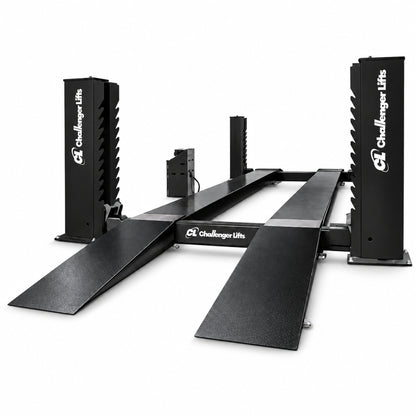

Challenger 44040X 40,000 lb Heavy-Duty Chain-Driven 4-Post Lift for Commercial Truck Service
The Challenger 44040X is a heavy-duty 40,000 lb capacity chain-driven 4-post lift engineered for servicing large commercial vehicles including waste trucks, construction equipment, and heavy-duty fleet vehicles. With an industry-leading 430" maximum wheelbase and 46' overall length, this lift accommodates the longest vehicles in your fleet. The synchro-power system with dual heavy-duty cylinders provides variable or synchronous lifting power to handle uneven weight distribution common in specialty trucks. Powered by a 10HP, 230-460V three-phase motor and backed by Challenger's 5-year structural warranty, the 44040X delivers the performance and reliability professional heavy-duty shops demand.
Challenger 44040X Features
Synchro-Power Hydraulic System
The dual heavy-duty lift cylinder system with lever controls provides variable or synchronous power to the front and rear of the lift independently. This allows technicians to level vehicles with uneven weight distribution, making it ideal for waste trucks, dump trucks, and other vehicles with heavier front or rear axles.
Extended 430" Maximum Wheelbase
The 44040X offers the longest wheelbase capacity in the 40,000 lb class at 430", with 410" between columns. This extended configuration accommodates full-size refuse trucks, concrete mixers, and other long-wheelbase commercial vehicles that won't fit on standard heavy-duty lifts.
32" Wide Diamond-Plate Runways
Extra-wide 32" runways with diamond-plate anti-skid surfaces provide confident drive-on capability for dual rear wheel vehicles and wide commercial trucks. The textured surface ensures positive traction during positioning, even with wet or oily tires.
10-Position Safety Lock System
The 10 lock positions allow technicians to set the optimal working height for any service task, maximizing headroom underneath the vehicle. The single-point air-actuated lock release allows simultaneous disengagement of all column locks for efficient operation.
Diamond-Plate Approach Ramps
Heavy-duty approach ramps feature the same diamond-plate anti-skid surface as the runways, providing secure footing as vehicles drive onto the lift. The gradual incline reduces approach angle concerns for low-clearance equipment.
Heavy-Duty Chain Drive System
Unlike cable-driven lifts, the 44040X uses a robust chain drive system designed for the demands of high-capacity commercial lifting. Chain drives offer superior durability and require less frequent adjustment than cable systems in heavy-duty applications.
Challenger 44040X Applications
- Waste Management Fleets: The extended wheelbase and synchro-power system make the 44040X ideal for servicing refuse trucks with heavy rear-loaded containers and uneven weight distribution.
- Construction Equipment Service: Accommodate dump trucks, concrete mixers, and heavy construction vehicles up to 40,000 lb with room for long wheelbases up to 430".
- Municipal Fleet Maintenance: Service fire trucks, street sweepers, and other specialized municipal vehicles that require extended wheelbase capacity and heavy lifting power.
- Commercial Truck Dealerships: Provide comprehensive service capabilities for medium and heavy-duty commercial trucks, from delivery vehicles to Class 7 and 8 trucks.
- Heavy-Duty Independent Shops: Expand your service offerings to include large commercial vehicles with a lift that handles the weight and dimensions of today's heavy-duty trucks.

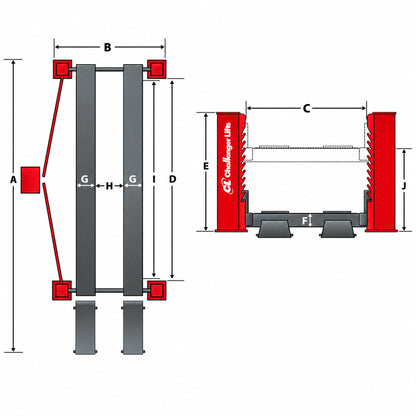

Challenger 44040X Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 40,000 lb |
| Maximum Wheelbase | 430" |
| Rise Height | 73" |
| Speed of Rise | 70 seconds |
| Lock Positions | 10 |
| Specification | Value |
|---|---|
| Overall Length | 46' |
| Overall Width | 17' 1.25" |
| Overall Height | 92" |
| Inside Columns | 144" |
| Between Columns | 410" |
| Width of Runways | 32" |
| Height of Runways | 14" |
| Width Between Runways | 36" - 58" |
| Width Between Runways (with jacks) | 43" - 53.5" |
| Specification | Value |
|---|---|
| Motor | 10HP |
| Voltage | 230-460V Three Phase |
| Amperage | 28A (230V) / 14A (460V) |
| Specification | Value |
|---|---|
| Drive System | Chain-Driven |
| Available Colors | Black |
| Optional Rolling Jacks | 15,000 lb - 35,000 lb capacity |
Challenger 44040X Installation Requirements
Electrical Requirements
Power: 230-460V three-phase electrical service with 28A (230V) or 14A (460V) dedicated circuit. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength. The concrete must be fully cured and free of cracks or deterioration at anchor points. Consult the installation manual for specific anchor bolt patterns and torque specifications.
Space Requirements
Overall Length: 46'. Overall Width: 17' 1.25". Overall Height: 92". Ensure adequate clearance for vehicle approach, technician access, and overhead obstructions. Allow additional space around the lift for safe operation and maintenance access.
Professional Installation
Professional installation by a qualified lift installer is strongly recommended. Proper installation is required for warranty coverage. Challenger offers installation services through their authorized dealer network. Contact Garage Supply Guys for installation options in your area.
What's Included with the Challenger 44040X
- Complete 4-post lift structure with black columns
- Diamond-plate runways (32" wide)
- Diamond-plate approach ramps
- 10HP power unit (230-460V three phase)
- Synchro-power hydraulic system with dual cylinders
- Single-point air-actuated lock release
- Lever controls for variable/synchronous operation
- Anchor bolts and hardware
- Installation and operation manual
Optional Accessories: Rolling jacks (15,000 lb - 35,000 lb capacity) provide complete optimization for heavy-duty servicing needs including brake, suspension, and drivetrain work.
Not Included: Electrical work and wiring, concrete work or repairs, installation labor, air compressor for lock release system, rolling jacks (optional accessory).
Challenger 44040X Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days, delivery typically 2-4 weeks depending on location. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift with minimum 6,000 lb capacity or loading dock required for unloading. Delivery Type: Curbside delivery to commercial address is standard. Inspection: Inspect all packages thoroughly for damage before signing the Bill of Lading. Note any visible damage on the delivery receipt and photograph all packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 44040X Warranty
Challenger Lifts Limited Warranty
The Challenger 44040X is backed by Challenger Lifts' comprehensive warranty program, protecting your investment in American-made lift equipment.
- 5 Years: Structural components including columns, runways, cross beams, ramps, and carriages
- 1 Year: Functional parts including power unit, cylinders, hoses, hydraulic fittings, valves, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Warranty registration must be completed online at challengerlifts.com within 30 days of purchase. Lift must be installed according to Challenger specifications by qualified personnel. Use of unapproved parts or accessories voids warranty coverage. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger 44040X?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44040X FAQ
What is the maximum vehicle weight the Challenger 44040X can lift?
The Challenger 44040X has a rated lifting capacity of 40,000 lb. This capacity is suitable for most medium and heavy-duty commercial vehicles including refuse trucks, dump trucks, delivery trucks, and municipal vehicles. Never exceed the rated capacity, and always ensure the vehicle weight is evenly distributed on the runways.
What is the longest wheelbase vehicle that will fit on the 44040X?
The 44040X accommodates wheelbases up to 430", with 410" between the columns. This extended configuration is the longest available in Challenger's 40,000 lb 4-post lineup, making it suitable for full-size refuse trucks, concrete mixers, and other long commercial vehicles.
What electrical service is required for the Challenger 44040X?
The 44040X requires 230-460V three-phase electrical service. At 230V, the lift draws 28 amps; at 460V, it draws 14 amps. A dedicated circuit and proper disconnect must be installed by a licensed electrician. Three-phase power is standard in most commercial and industrial facilities but may not be available in residential settings.
How long does it take to raise a vehicle to full height?
The 44040X reaches full rise height of 73" in approximately 70 seconds under normal load conditions. The 10HP three-phase motor provides consistent lifting speed even with heavy vehicles.
What is covered under the Challenger warranty?
The 44040X includes a 5-year warranty on structural components (columns, runways, cross beams, ramps, carriages) and 1-year coverage on functional parts (power unit, cylinders, hoses, valves, controls) and labor. Warranty requires registration at challengerlifts.com and proper installation per Challenger specifications.
What is included with the lift purchase?
The 44040X includes the complete lift structure with black columns, 32" diamond-plate runways, approach ramps, 10HP power unit, synchro-power hydraulic system, air-actuated lock release, lever controls, anchor hardware, and installation manual. Rolling jacks are available as optional accessories. Electrical work, concrete work, and installation labor are not included.
How is the Challenger 44040X shipped and delivered?
The lift ships via freight truck with free delivery to commercial addresses in the 48 contiguous states. Lead time is typically 5-10 business days to ship, with delivery 2-4 weeks depending on location. A forklift (minimum 6,000 lb capacity) or loading dock is required for unloading. Curbside delivery is standard.
Do I need rolling jacks with a 4-post lift?
Rolling jacks are optional but highly recommended for shops performing brake, suspension, tire, and drivetrain work. The optional 15,000 lb - 35,000 lb capacity rolling jacks allow you to lift individual axles off the runways for wheel-off service. Without rolling jacks, 4-post lifts are primarily suited for general inspection, fluid services, and undercarriage work.
What is the difference between the 44040, 44040E, and 44040X models?
All three models share the same 40,000 lb capacity but differ in wheelbase accommodation. The 44040 handles up to 310" wheelbase, the 44040E extends to 370", and the 44040X offers the longest configuration at 430". Choose based on the longest vehicles you need to service. Overall length is 36' (44040), 41' (44040E), or 46' (44040X).
What are the concrete requirements for installation?
The lift requires a minimum 6" thick reinforced concrete floor with 3,000 PSI compressive strength. The concrete must be fully cured (minimum 28 days) and free of cracks or deterioration at anchor locations. Consult the installation manual for specific anchor patterns and consult a structural engineer if you have concerns about your existing floor.
What does the synchro-power system do?
The synchro-power system uses dual heavy-duty cylinders with lever controls that allow independent or synchronized control of the front and rear lift sections. This lets technicians level vehicles with uneven weight distribution, such as waste trucks with loaded rear containers or construction vehicles with heavy front-mounted equipment.
Is professional installation required?
While not strictly required, professional installation is strongly recommended and may be required for warranty coverage. Proper installation ensures safe operation and compliance with local codes. Challenger lifts must be installed according to manufacturer specifications. Contact Garage Supply Guys for installation service options in your area.
