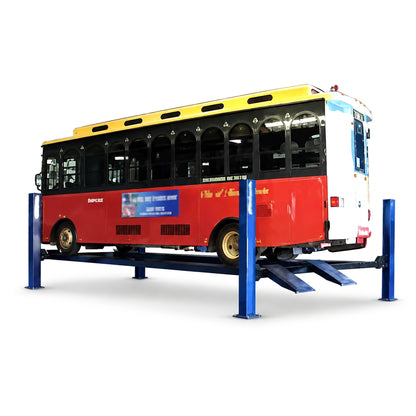

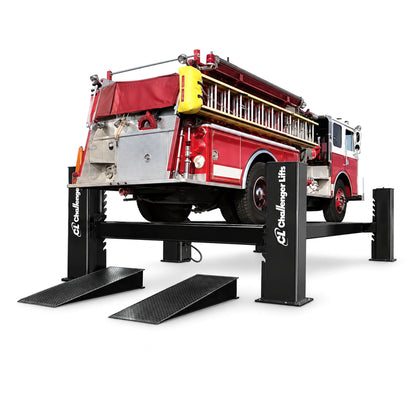

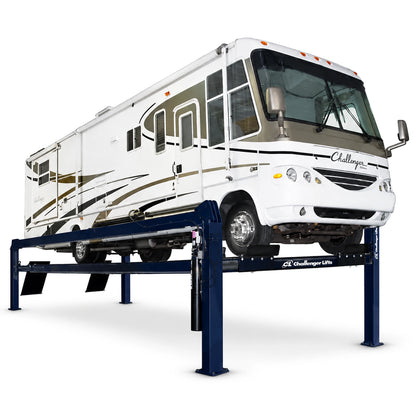

Challenger 44030XAR 30,000 lb Four Post Alignment Lift Extra Extended
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger 44030XAR 30,000 lb Chain-Driven Four-Post Alignment Lift for Heavy-Duty Fleet Service
The Challenger 44030XAR delivers 30,000 lb lifting capacity in a chain-driven, surface-mounted four-post design engineered for commercial fleet maintenance operations. Featuring a synchro-power dual cylinder system, adjustable runway width from 54 to 75 inches, and a 68" rise height, this extra-extended model handles wheelbases up to 350" for transit buses, motor coaches, waste trucks, and long-wheelbase fleet vehicles. Powered by a 3HP motor operating on 208-230V single-phase power, the 44030XAR includes alignment capability built into the platform for complete wheel service operations.
Challenger 44030XAR Features
Synchro-Power Dual Cylinder System
The 44030XAR uses dual heavy-duty hydraulic lift cylinders with lever controls that deliver variable or synchronous power to the front and rear suspension independently. This system allows operators to compensate for uneven axle weight distribution common in fleet vehicles like waste trucks with front-mounted equipment or delivery vehicles with rear cargo loads, enabling level positioning for safer undercarriage access regardless of load configuration.
High Tensile Strength Chain Drive System
The lift operates on high tensile strength leaf chain with sealed roller bearings that deliver smooth, consistent lifting performance throughout the 68" rise. Chain-driven systems eliminate the cable stretch issues that affect cable-driven lifts over time, maintaining calibration accuracy and reducing maintenance intervals. Sealed roller bearings protect against contamination in shop environments where brake dust, fluids, and debris are common.
Extra-Extended 350" Wheelbase Capacity
The 44030XAR model accommodates wheelbases up to 350" with an overall length of 34' 7.5", handling transit buses, motor coaches, and long-wheelbase straight trucks that exceed standard lift dimensions. The alignment rack configuration supports max 2-wheel alignment up to 326", enabling complete wheel service on extended-length commercial vehicles without compromising on equipment capability.
Adjustable Runway Width Configuration
The 44030XAR features 54" to 75" adjustable width between runways, accommodating vehicle track widths from standard delivery trucks to wide-body transit buses on a single lift. The 24" wide diamond plate runways provide ample tire contact area for stable positioning of dual-rear-wheel configurations, improving bay utilization by allowing any technician to service any vehicle on any available lift.
Single-Point Air Actuated Lock Release
The safety system features single-point air actuated lock release that disengages all column locks simultaneously from a single operator position. The internal multi-position lock ladder provides 10 secure stopping points throughout the 68" rise, allowing technicians to select the optimal working height for each service task while eliminating multiple trips around the lift during busy service days.
Built-In Runway Rail System for Accessories
The runway design includes an internal rail system supporting optional rolling bridge jacks from 15,000 to 35,000 lb capacity. Sliding oil drain pans integrate with the runway structure for fluid maintenance operations. The diamond plate anti-skid surfaces extend to approach ramps for secure drive-on positioning, enabling complete wheel, brake, and suspension service without additional floor equipment.
Challenger 44030XAR Applications
- Transit Bus Maintenance: The 350" wheelbase capacity and 30,000 lb lifting power handle full-size transit buses for scheduled maintenance, brake service, and undercarriage inspections at municipal and private transit operations.
- Motor Coach Service: Extended-length touring coaches and charter buses fit the extra-extended platform with room for complete alignment service and wheel-off maintenance using optional rolling bridge jacks.
- Refuse and Waste Fleet Service: The synchro-power dual cylinder system compensates for front-heavy waste trucks with mounted compaction equipment, enabling level lifting for transmission and drivetrain work.
- Straight Truck and Box Truck Maintenance: Long-wheelbase delivery trucks, moving vans, and refrigerated straight trucks benefit from the extended platform and adjustable runway width for diverse fleet configurations.
- Construction Equipment Service: Medium-duty construction vehicles, concrete mixers, and utility trucks within the 30,000 lb capacity receive full-service access including alignment capability on the integrated rack.
Challenger 44030XAR Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 30,000 lb |
| Max Wheelbase | 350" |
| Max 2-Wheel Alignment | 326" |
| Lock Positions | 10 |
| Specification | Value |
|---|---|
| Rise Height | 68" |
| Overall Length | 34' 7.5" |
| Overall Width | 12' 5.5" |
| Height Overall | 92" |
| Height of Runways | 9" |
| Width of Runways | 24" |
| Width Between Runways | 54" - 75" (adjustable) |
| Inside Columns | 132.5" |
| Between Columns | 353.75" |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208-230V |
| Phase | Single Phase |
| Amps | 30 |
| Speed of Rise | 105 seconds |
| Specification | 44030AR | 44030EAR | 44030XAR |
|---|---|---|---|
| Max Wheelbase | 230" | 290" | 350" |
| Overall Length | 24' 7.5" | 29' 7.5" | 34' 7.5" |
| Between Columns | 233.75" | 293.75" | 353.75" |
| Max 2-Wheel Alignment | 206" | 266" | 326" |
Challenger 44030XAR Installation Requirements
Electrical Requirements
Power: 208-230V single-phase, 30 amp dedicated circuit with proper grounding. A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength required for proper anchor holding capacity. The installation area must be level within 1/4" across the lift footprint. Consult installation manual for specific anchor bolt specifications and patterns.
Space Requirements
Overall Length: 34' 7.5". Overall Width: 12' 5.5". Height: 92" minimum ceiling clearance required. Allow additional clearance for vehicle height when raised and adequate working space around all sides of the lift for safe operation and maintenance access.
Professional Installation
Professional installation by qualified technicians is strongly recommended to ensure proper setup, calibration, and warranty compliance. Challenger lifts should be installed according to manufacturer specifications and all applicable local codes and regulations.
What's Included with the Challenger 44030XAR
- Complete four-post lift assembly with columns, runways, and approach ramps
- 3HP power unit with hydraulic cylinders
- Chain drive system with sealed roller bearings
- Single-point air actuated lock release system
- Diamond plate anti-skid runway surfaces
- Alignment rack components (AR model)
- Hardware kit with anchor bolts
- Installation and operation manual
Optional Accessories: Rolling bridge jacks (15,000-35,000 lb capacity), sliding oil drain pans, wheel alignment equipment and accessories.
Not Included: Electrical work and wiring, concrete work or floor preparation, installation labor, wheel alignment instruments and components, air compressor for lock release system.
Challenger 44030XAR Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Please contact sales for current availability and estimated delivery times. International: Contact sales for international shipping quotes and arrangements.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading - this is a heavy commercial lift shipped on pallets. Delivery Type: Curbside delivery is standard for freight shipments. Inspection: Inspect all packages thoroughly for shipping damage before signing the bill of lading. Note any visible damage on the delivery receipt and photograph damage for claims.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact customer service before returning any equipment.
Challenger 44030XAR Warranty
Challenger Lifts Warranty
Challenger Lifts backs the 44030XAR with comprehensive warranty coverage for commercial and professional use.
- 5 Years: Structural components including columns, runways, and main frame assemblies
- 2 Years: Hydraulic cylinders, power unit, and mechanical components
- 1 Year: Electrical components, controls, and accessories
Requirements: Warranty coverage requires professional installation according to manufacturer specifications, proper maintenance per the operation manual, and use within rated capacity. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger 44030XAR?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44030XAR FAQ
What is the lifting capacity of the Challenger 44030XAR?
The Challenger 44030XAR has a lifting capacity of 30,000 lb, designed for heavy-duty commercial vehicles including transit buses, waste trucks, motor coaches, and medium-duty fleet vehicles. The synchro-power dual cylinder system allows independent front and rear lifting to accommodate vehicles with uneven weight distribution.
What is the maximum wheelbase the 44030XAR can accommodate?
The 44030XAR is the extra-extended model with a maximum wheelbase capacity of 350". This makes it suitable for full-size transit buses, motor coaches, and long-wheelbase straight trucks. The standard 44030AR handles up to 230" wheelbase, and the 44030EAR extended model handles up to 290".
What are the electrical requirements for the 44030XAR?
The Challenger 44030XAR requires 208-230V single-phase power with a 30 amp dedicated circuit. The 3HP motor powers the hydraulic system with a rise time of 105 seconds. A licensed electrician should install and verify the electrical supply meets all local codes and manufacturer specifications.
What floor space is needed for the Challenger 44030XAR?
The 44030XAR has an overall length of 34' 7.5" and an overall width of 12' 5.5". The overall height is 92", so ensure adequate ceiling clearance for both the lift structure and the raised vehicles you plan to service. Allow additional clearance around all sides for safe working access.
What warranty coverage comes with the 44030XAR?
Challenger provides warranty coverage including 5 years on structural components (columns, runways, frame), 2 years on hydraulic cylinders and power unit, and 1 year on electrical components and controls. Warranty requires professional installation and proper maintenance per manufacturer specifications.
What is included with the Challenger 44030XAR?
The 44030XAR includes the complete four-post lift assembly with columns, runways, approach ramps, 3HP power unit, chain drive system, single-point air actuated lock release, diamond plate surfaces, alignment rack components, hardware kit, and installation manual. Optional accessories like rolling jacks and oil drain pans are sold separately.
How is the 44030XAR shipped and delivered?
The 44030XAR ships via freight to commercial addresses in the 48 contiguous states. Curbside delivery is standard, requiring a forklift or loading dock for unloading. Inspect all packages for damage before signing the bill of lading and note any damage on the delivery receipt. Contact sales for international shipping quotes.
What optional accessories are available for the 44030XAR?
The built-in runway rail system supports optional rolling bridge jacks from 15,000 to 35,000 lb capacity for wheel-off service. Sliding oil drain pans integrate with the runway structure for fluid maintenance. Note that rolling jack applications require fixed runways rather than adjustable runway configuration.
What is the difference between the 44030AR, 44030EAR, and 44030XAR models?
All three models share the same 30,000 lb capacity, 68" rise, and feature set. The difference is length: the 44030AR (standard) handles 230" wheelbase at 24' 7.5" overall length, the 44030EAR (extended) handles 290" wheelbase at 29' 7.5" length, and the 44030XAR (extra-extended) handles 350" wheelbase at 34' 7.5" length. All "AR" models include alignment rack capability.
How does the adjustable runway width work?
The 44030XAR runways adjust from 54" to 75" width between runways to accommodate different vehicle track widths from standard trucks to wide-body buses. The 24" wide diamond plate runways provide stable positioning for dual-rear-wheel configurations. Note that rolling jack applications require fixed runway positions rather than adjustable configuration.
What maintenance does the 44030XAR require?
The chain drive system with sealed roller bearings requires less maintenance than cable-driven alternatives, eliminating cable stretch adjustments. Regular maintenance includes checking hydraulic fluid levels, inspecting chain tension, lubricating moving components per the manual schedule, and verifying safety lock operation. Professional inspection is recommended annually for commercial operations.
Can the 44030XAR perform wheel alignments?
Yes, the 44030XAR is an alignment rack model (AR designation) with built-in capability for wheel alignment service. The maximum 2-wheel alignment capacity is 326" wheelbase. Alignment instruments, turntables, and slip plates are typically sold separately depending on your specific alignment system requirements.
