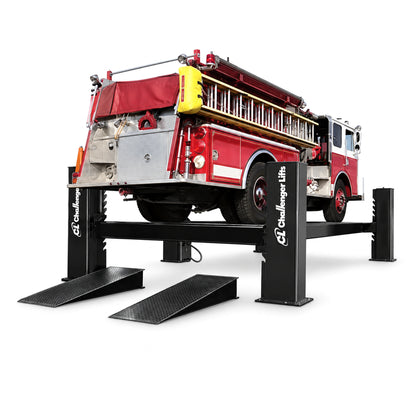

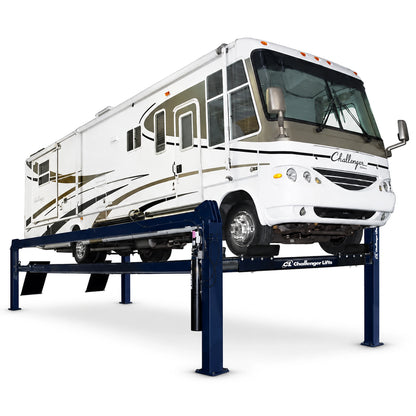

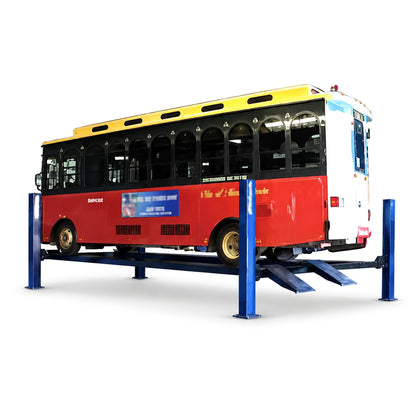

Challenger 44030X 30,000 lb Heavy-Duty Chain-Driven 4-Post Lift for Commercial Fleet Service
The Challenger 44030X is an extended-wheelbase heavy-duty 4-post lift engineered for medium-duty commercial vehicles, delivery trucks, and fleet maintenance operations. With a 30,000 lb lifting capacity and 350" maximum wheelbase, this chain-driven lift handles Class 6 and Class 7 vehicles with ease. The synchro-power system features dual heavy-duty lift cylinders with lever controls for variable or synchronous power to front and rear suspension, making it ideal for vehicles with uneven weight distribution. Built in Louisville, Kentucky, the 44030X operates on single-phase 208-230V power, making it accessible for facilities without three-phase service. Backed by Challenger's 5-year structural warranty.
Challenger 44030X Features
Synchro-Power Dual Cylinder System
The 44030X features Challenger's synchro-power system with dual heavy-duty lift cylinders and lever controls. This system provides variable or synchronous power to the front and rear suspension independently, allowing technicians to safely lift vehicles with uneven weight distribution such as loaded delivery trucks or service vehicles with heavy tool compartments.
Extended 350" Maximum Wheelbase
Designed for longer commercial vehicles, the 44030X accommodates wheelbases up to 350 inches. This extended capacity makes it ideal for box trucks, stake beds, utility trucks, and other medium-duty vehicles that won't fit on standard lifts with shorter wheelbase capacities.
Single-Phase Power Operation
Unlike higher-capacity models requiring three-phase power, the 44030X operates on single-phase 208-230V service with a 3 HP motor. This makes the lift accessible to facilities without costly three-phase electrical infrastructure while still delivering reliable heavy-duty performance.
Diamond-Plate Approach Ramps
Diamond-plate anti-skid approach ramps provide positive vehicle traction during loading and unloading. The textured surface ensures confident drive-on positioning even in wet or oily shop conditions, reducing the risk of tire slippage.
Single-Point Air-Actuated Lock Release
A single-point air-actuated lock release allows technicians to simultaneously disengage all column locks from one convenient location. This safety feature speeds up workflow while ensuring all locks release together for smooth, controlled lowering.
Heavy-Duty Chain Drive System
Unlike cable-driven lifts, the 44030X uses a robust chain-drive system engineered for continuous heavy-duty use. Chain drives offer superior durability and require less frequent adjustment than cable systems, reducing maintenance costs over the lift's service life.
Challenger 44030X Applications
- Delivery Fleet Maintenance: Box trucks, step vans, and parcel delivery vehicles fit within the 350" wheelbase capacity, making the 44030X ideal for logistics and courier fleet operations.
- Utility and Service Vehicles: Bucket trucks, service bodies, and utility vehicles with extended wheelbases benefit from the synchro-power system when dealing with heavy equipment mounted at the rear.
- Municipal Fleet Service: Parks department trucks, public works vehicles, and smaller municipal equipment up to 30,000 lb can be serviced efficiently with single-phase power availability.
- Landscape and Construction Equipment: Dump trucks, flatbeds, and landscape trailers within the weight capacity benefit from the extended wheelbase and independent lifting control.
- RV and Specialty Vehicle Service: Class A and Class C motorhomes, ambulances, and specialty vehicles requiring undercarriage access fit comfortably on the extended platform.
Challenger 44030X Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 30,000 lb |
| Maximum Wheelbase | 350" |
| Specification | Value |
|---|---|
| Overall Length | 34' 7.5" |
| Overall Width | 12' 5.5" |
| Overall Height | 92" |
| Rise Height | 68" |
| Inside Columns | 132.5" |
| Between Columns | 353.75" |
| Runway Width | 24" |
| Runway Height | 9" |
| Width Between Runways | 54" - 75" |
| Specification | Value |
|---|---|
| Motor | 3 HP |
| Voltage | 208-230V, Single Phase |
| Amperage | 30A |
| Rise Time | 105 seconds |
| Specification | Value |
|---|---|
| Drive Type | Chain Drive |
| Column Color | Black |
| Approach Ramps | Diamond-plate anti-skid |
Challenger 44030X Installation Requirements
Electrical Requirements
Power: 208-230V, single-phase, 30 amps. A licensed electrician must install a dedicated circuit meeting local codes and the lift's specifications. Single-phase power makes this lift accessible to facilities without three-phase service.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete, rated at 3,500+ PSI, free from cracks and seams, and cured for at least 28 days. The lift must be anchored to the floor using the supplied hardware per Challenger's installation specifications.
Space Requirements
Overall Length: 34' 7.5". Overall Width: 12' 5.5". Overall Height: 92". Ensure adequate clearance above the lift for the vehicle plus working room. Account for approach ramp space and technician access around the perimeter.
Professional Installation
Professional installation by a qualified lift technician is strongly recommended. Improper installation may void the warranty and create safety hazards. Contact Garage Supply Guys for installation service recommendations in your area.
What's Included with the Challenger 44030X
- Complete 44030X 4-post lift assembly with columns, runways, and crossbeams
- 3 HP single-phase power unit
- Dual heavy-duty lift cylinders
- Diamond-plate approach ramps
- Synchro-power lever controls
- Air-actuated lock release system
- Anchor hardware kit
- Installation and operation manual
Optional Accessories: 15,000 lb rolling jacks provide wheel-free service capability for brake, suspension, and tire work.
Not Included: Electrical wiring and installation, concrete work or floor preparation, installation labor, rolling jacks (sold separately).
Challenger 44030X Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required to unload freight. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt to preserve freight claim rights.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer is responsible for return freight costs.
Challenger 44030X Warranty
Challenger Limited Warranty
Challenger Lifts backs the 44030X with comprehensive warranty coverage for the original purchaser:
- 5 Years: Structural parts including columns, runways, cross beams, ramps, and carriages
- 1 Year: Functional parts including power unit, cylinders, hoses, cables, valves, and controls
- 1 Year: Labor for warranty repairs
Requirements: Warranty is valid only when the lift is installed, used, and maintained according to Challenger's specifications. Registration must be completed online at challengerlifts.com within 30 days of purchase. Use of unapproved parts or accessories voids the warranty.
Documents
Click to open in a new tab.
Questions About the Challenger 44030X?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44030X FAQ
What is the maximum vehicle weight the Challenger 44030X can lift?
The Challenger 44030X has a lifting capacity of 30,000 lb, making it suitable for Class 6 and Class 7 commercial vehicles including delivery trucks, utility vehicles, box trucks, and medium-duty fleet vehicles.
What is the longest wheelbase vehicle that fits on the 44030X?
The 44030X accommodates vehicles with wheelbases up to 350 inches. The "X" designation indicates this is the extended-wheelbase model in the 30,000 lb capacity class. The standard 44030 model has a 230" wheelbase capacity, while the 44030E offers 290".
What electrical service does the 44030X require?
The 44030X requires 208-230V single-phase power at 30 amps. Unlike the higher-capacity 40K-60K models that require three-phase service, the 44030X can operate on standard single-phase power available at most commercial facilities.
What are the concrete requirements for installing the 44030X?
The lift requires a minimum 4" thick reinforced concrete floor rated at 3,500+ PSI. The concrete must be free from cracks and seams and must have cured for at least 28 days before installation.
What is covered under the Challenger warranty?
Challenger provides a 5-year warranty on structural parts (columns, runways, cross beams, ramps, carriages) and a 1-year warranty on functional parts (power unit, cylinders, hoses, valves, controls) and labor. The warranty is valid for the original purchaser when the lift is properly installed and registered.
What is included with the Challenger 44030X purchase?
The 44030X includes the complete lift assembly with columns, runways, crossbeams, 3 HP single-phase power unit, dual lift cylinders, diamond-plate approach ramps, synchro-power controls, air-actuated lock release, anchor hardware, and installation manual. Rolling jacks and installation labor are not included.
How is the 44030X shipped and delivered?
The lift ships via freight carrier with free delivery to commercial addresses in the 48 contiguous states. A forklift or loading dock is required to unload. Delivery is curbside; the carrier does not bring equipment inside. Inspect all packages before signing and note any damage on the delivery receipt.
Are rolling jacks available for the 44030X?
Yes, Challenger offers optional 15,000 lb rolling jacks that work with the 44030X for wheel-free service. These allow brake, suspension, and tire work without removing wheels from the runways. The runway spacing of 54" to 75" accommodates standard rolling jack configurations.
How does the 44030X compare to the 44040, 44050, and 44060 models?
The 44030X is the extended-wheelbase 30,000 lb model with single-phase power operation. The 44040, 44050, and 44060 series offer 40,000 lb, 50,000 lb, and 60,000 lb capacities respectively but require three-phase power. The higher-capacity models also feature wider 32" runways versus the 44030X's 24" runways and a taller 73" rise versus 68".
What does the synchro-power system do?
The synchro-power system uses dual heavy-duty lift cylinders with lever controls that allow independent or synchronized lifting of the front and rear sections. This is essential for safely lifting vehicles with uneven weight distribution, such as a delivery truck with a heavy cargo box or a service vehicle with mounted equipment.
How long does it take to raise a vehicle to full height?
The 44030X achieves its full 68" rise height in approximately 105 seconds under normal load conditions. The single-phase 3 HP motor provides reliable lifting power while keeping electrical requirements accessible.
Is professional installation required?
While not strictly required, professional installation is strongly recommended. Improper installation can create safety hazards and may void the warranty. Contact Garage Supply Guys for installer recommendations in your area.
