Challenger 44030EAR 30,000 lb Extended Length 4-Post Alignment Lift for Heavy-Duty Truck Service
The Challenger 44030EAR is an extended length heavy-duty four-post alignment lift engineered to handle 30,000 lb capacity vehicles with wheelbases up to 290". This alignment rack model features turning radius gauge cutouts and accommodates optional flush-mounted 10500HD gauges for professional wheel alignment services. With an overall length of 29' 7-1/2" and a 68" rise height, this hydraulic lift delivers the workspace and versatility needed for commercial truck service operations. Powered by a 3HP motor operating on 208-230V power, the 44030EAR reaches full height in just 105 seconds.
Challenger 44030EAR Features
Heavy-Duty Hydraulic Lifting System
The 44030EAR utilizes heavy-duty hydraulic cylinders paired with high tensile strength leaf chain and sealed roller bearings for maximum reliability and optimum lifting performance. This superior lifting system delivers consistent operation with minimum maintenance requirements, ensuring years of dependable service in demanding commercial environments.
Alignment Rack Configuration
Designed specifically for wheel alignment services, the 44030EAR features turning radius gauge cutouts built into the runways and accommodates optional flush-mounted 10500HD turning radius gauges. This alignment-ready configuration allows shops to expand their heavy-duty truck service offerings and increase profitability with professional alignment capabilities.
Single Point Air Lock Release
The single point air actuated lock release system disengages all post column locks simultaneously with one simple action. This feature streamlines workflow by eliminating the need to manually release each column lock individually, saving time and reducing operator fatigue during high-volume operations.
Diamond Plate Approach Ramps
Heavy-duty diamond plate approach ramps provide excellent drive-on tread traction for safe vehicle loading. The ramps feature heavy-duty steel rolling wheels engineered for high-volume durability, making them ideal for busy commercial service centers handling dozens of vehicles daily.
Anti-Skid Runway Surfaces
The runways feature anti-skid surfaces that provide positive traction during vehicle approach and unloading. This safety feature ensures vehicles remain securely positioned throughout the service process, protecting both technicians and equipment from potential accidents.
Multi-Position Internal Lock Ladder
The multi-position internal lock ladder provides a variety of comfortable work heights to accommodate different service tasks and technician preferences. This flexibility allows technicians to position the lift at the optimal height for each specific repair or maintenance procedure, improving ergonomics and productivity.
Challenger 44030EAR Applications
- Heavy-Duty Truck Alignment: The alignment rack configuration with turning radius gauge cutouts makes this lift ideal for commercial truck alignment services, allowing shops to offer complete alignment solutions for fleet vehicles and heavy-duty trucks.

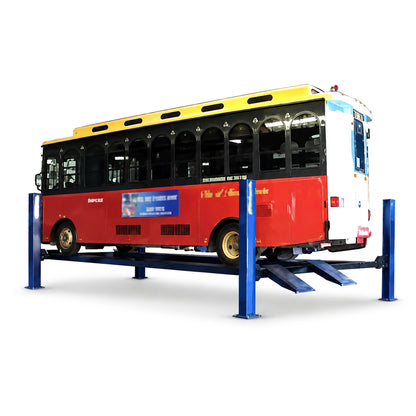

- Commercial Fleet Maintenance: With its 30,000 lb capacity and extended wheelbase accommodation, the 44030EAR handles delivery trucks, box trucks, and commercial fleet vehicles requiring routine maintenance and brake service.

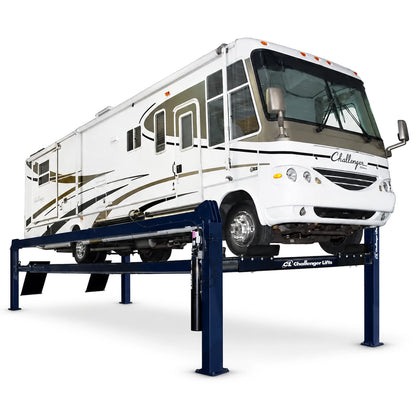

- RV and Motorhome Service: The extended length runways and high capacity make this lift suitable for recreational vehicles and motorhomes that exceed the dimensions of standard automotive lifts.

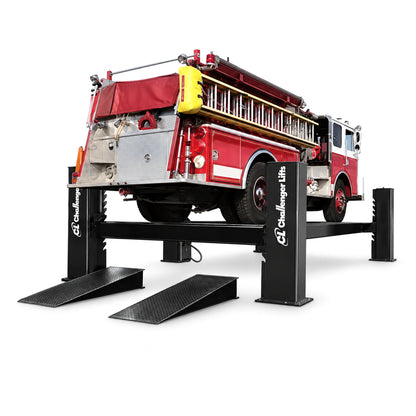

- Municipal and Government Vehicles: Fire trucks, ambulances, utility vehicles, and other municipal equipment benefit from the heavy-duty capacity and professional alignment capabilities of this lift.
- Agricultural Equipment Service: Large farm trucks and agricultural support vehicles can be safely lifted and serviced using the 44030EAR's robust construction and generous dimensions.
Challenger 44030EAR Specifications
| Specification | Value |
|---|---|
| Lift Capacity | 30,000 lb |
| Maximum Wheelbase | 290" |
| Max 2-Wheel Alignment | 266" |
| Specification | Value |
|---|---|
| Overall Length | 29' 7-1/2" |
| Overall Width | 12' 5-1/2" |
| Overall Height | 92" |
| Inside Columns | 132-1/2" |
| Between Columns | 293-3/4" |
| Rise Height | 68" |
| Height of Runways | 9" |
| Width of Runways | 24" |
| Width Between Runways | 54" - 75" |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208V - 230V |
| Amperage | 30 Amps |
| Speed of Rise | 105 seconds |
| Specification | Value |
|---|---|
| Shipping Weight | 5,950 lb (2,699 kg) |
Challenger 44030EAR Installation Requirements
Electrical Requirements
Power: 208V - 230V single phase, 30 amp circuit required. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications before operation.
Concrete Foundation
Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength required. The concrete must be fully cured and free of cracks or voids in the anchor locations. Consult the installation manual for specific anchor bolt requirements and torque specifications.
Space Requirements
Overall Length: 29' 7-1/2". Overall Width: 12' 5-1/2". Overall Height: 92". Ensure adequate ceiling clearance for full rise height plus vehicle height. Allow additional space around the lift for safe technician movement and equipment access.
Professional Installation
Professional installation by qualified technicians is strongly recommended. Proper installation ensures safe operation, validates warranty coverage, and confirms compliance with all applicable safety standards. Contact Garage Supply Guys for installation service recommendations in your area.
What's Included with the Challenger 44030EAR
- Complete 4-post lift structure with columns and runways
- Heavy-duty hydraulic power unit with 3HP motor
- Diamond plate approach ramps with rolling wheels
- Multi-position internal lock ladder system
- Single point air actuated lock release system
- Anchor bolts and hardware kit
- Installation and operation manual
Optional Accessories: 10500HD flush-mounted turning radius gauges, rolling jacks for brake and wheel work, oil drain pan, and heavy-duty ramp kits are available separately to create a complete productivity solution.
Not Included: Electrical installation, concrete work, compressed air supply, turning radius gauges, rolling jacks, and professional installation labor are not included with the lift purchase.
Challenger 44030EAR Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Shipping weight is 5,950 lb. Delivery Type: Curbside delivery standard. Inside delivery or liftgate service available for additional charge upon request. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 44030EAR Warranty
Challenger Lifts Warranty Coverage
Challenger Lifts stands behind the quality and durability of their products with comprehensive warranty protection.
- 5 Years: Structural components including columns, runways, and frames
- 2 Years: Hydraulic cylinders and power unit components
- 1 Year: Electrical components, seals, and wear items
Requirements: Warranty coverage requires proper installation according to manufacturer specifications, use of the lift within rated capacity limits, and adherence to recommended maintenance schedules. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger 44030EAR?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44030EAR FAQ
What is the lifting capacity of the Challenger 44030EAR?
The Challenger 44030EAR has a maximum lifting capacity of 30,000 lb, making it suitable for heavy-duty trucks, commercial vehicles, RVs, and fleet vehicles. Always ensure the combined weight of the vehicle and any accessories or fluids does not exceed the rated capacity.
What is the maximum wheelbase this lift can accommodate?
The 44030EAR extended length model accommodates wheelbases up to 290". For longer wheelbases up to 350", consider the 44030XAR extra extended length model. The standard 44030AR handles wheelbases up to 230".
What electrical power is required for the 44030EAR?
The lift requires 208V - 230V single phase power with a 30 amp dedicated circuit. A licensed electrician should install the electrical supply and verify it meets local codes and manufacturer specifications before operating the lift.
Can this lift be used for wheel alignments?
Yes, the 44030EAR is an alignment rack model specifically designed for wheel alignment services. It features turning radius gauge cutouts in the runways and accepts optional flush-mounted 10500HD turning radius gauges. The maximum 2-wheel alignment wheelbase is 266".
What concrete specifications are required for installation?
The lift requires a minimum 6" thick reinforced concrete floor with at least 3,000 PSI compressive strength. The concrete must be fully cured and in good condition without cracks or voids where anchors will be placed. Consult the installation manual for complete foundation requirements.
What is included with the Challenger 44030EAR purchase?
The lift includes the complete 4-post structure with columns and runways, hydraulic power unit with 3HP motor, diamond plate approach ramps, multi-position lock ladder, air actuated lock release system, anchor hardware, and installation manual. Turning radius gauges, rolling jacks, and installation labor are not included.
How is the lift shipped and what do I need for delivery?
The 44030EAR ships via freight truck with a shipping weight of 5,950 lb. Free freight shipping is included to commercial addresses in the continental US. You will need a forklift or loading dock to unload the shipment. Inspect all packages for damage before signing the bill of lading.
What optional accessories are available for the 44030EAR?
Optional accessories include 10500HD flush-mounted turning radius gauges for alignment work, heavy-duty rolling jacks for brake and wheel service, oil drain pans, and additional ramp kits. These accessories transform the lift into a complete heavy-duty truck service center.
What is the difference between the 44030EAR and other 44030 models?
The 44030 series includes standard (44030), extended (44030E), and extra extended (44030X) lengths, each available in standard or alignment rack (AR) versions. The 44030EAR is the extended length alignment rack model with a 290" wheelbase capacity. AR models include turning radius gauge cutouts for alignment work.
How fast does the lift raise to full height?
The 44030EAR reaches its full 68" rise height in approximately 105 seconds. This speed is consistent across all 44030 series models regardless of length configuration.
What warranty coverage comes with the Challenger 44030EAR?
Challenger provides warranty coverage including 5 years on structural components, 2 years on hydraulic cylinders and power unit, and 1 year on electrical components and wear items. Warranty requires proper installation and adherence to maintenance schedules. See the warranty document for complete terms.
Is professional installation required?
While not strictly required, professional installation is strongly recommended to ensure safe operation, proper warranty coverage, and compliance with safety standards. Contact Garage Supply Guys for installation service recommendations in your area.
