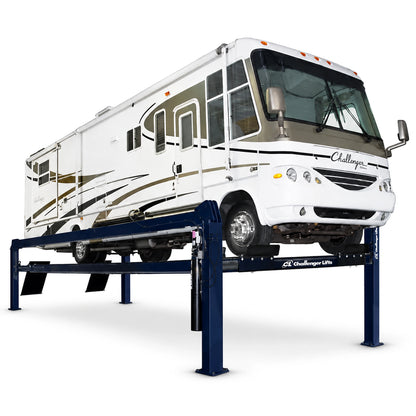

Challenger 44030AR 30,000 lb Chain-Drive Four Post Alignment Lift for Commercial Fleet Service
The Challenger 44030AR is a heavy-duty 30,000 lb capacity chain-drive four post alignment lift engineered for commercial fleet and heavy vehicle service operations. Built with a traditional four post alignment design featuring runway cutouts for turning radius gauges, this lift is available in three lengths: Standard (24' 7.5"), Extended (29' 7.5"), and Extra Extended (34' 7.5") to accommodate wheelbases up to 350". The synchro-power system with dual heavy-duty lift cylinders and lever controls provides variable or synchronous power to the front and rear suspension, making it ideal for lifting large axle vehicles with uneven weight distribution. Powered by a 3HP motor on 208-230V single phase electrical, this American-made lift is backed by Challenger's 5-year structural warranty.
Challenger 44030AR Features
Synchro-Power Dual Cylinder System
The synchro-power system features dual heavy-duty lift cylinders with lever controls that provide variable or synchronous power to the front and rear suspension independently. This allows technicians to safely lift vehicles with heavier front or rear ends, including waste trucks, construction vehicles, and commercial transit buses.
Heavy-Duty Chain-Drive Operation
High tensile strength leaf chain with sealed roller bearings delivers smooth, reliable lift operation with minimal maintenance. The chain-drive system is engineered for the demands of high-volume commercial service environments, providing consistent performance throughout the lift's lifecycle.
Diamond Plate Anti-Skid Runways
32" wide runways with diamond plate anti-skid surfaces and heavy-duty approach ramps provide positive vehicle traction and confident drive-on for large commercial vehicles. The durable construction ensures long-lasting performance even under heavy daily use.
Single Point Air Actuated Lock Release
The air actuated lock release system allows technicians to disengage all column locks simultaneously from a single point, improving workflow efficiency. Ten lock positions provide maximum headroom flexibility for working underneath a variety of vehicle sizes.
Adjustable Runway Width
Runways adjust between 54" and 75" to accommodate a variety of commercial transit buses, trucks, and other large vehicles. This versatility allows shops to service a broader range of fleet vehicles with a single lift investment.
Built-In Runway Rail System
The integrated runway rail system provides versatility to add convenience options like rolling jacks (15,000-35,000 lb capacity) and sliding oil drain pans. This modular approach allows shops to customize their lift configuration as service needs evolve.
Challenger 44030AR Applications
- Commercial Fleet Service: Designed for shops servicing delivery trucks, box trucks, and commercial fleet vehicles requiring heavy-duty lifting capacity and alignment capabilities.

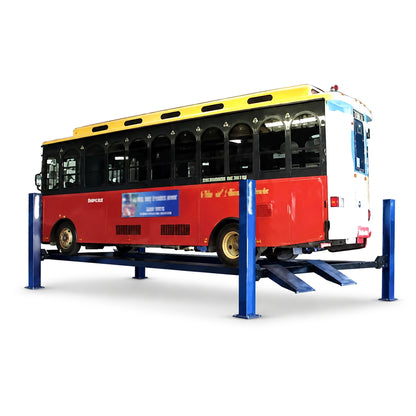

- Transit Bus Maintenance: Adjustable runway width and extended length options accommodate commercial transit buses for scheduled maintenance, brake service, and suspension work.
- Waste Management Vehicles: The synchro-power system handles the uneven weight distribution common in waste trucks, allowing safe lifting of vehicles with heavier front or rear axles.
- Construction Equipment Service: Heavy-duty 30,000 lb capacity supports service work on construction trucks, dump trucks, and other heavy equipment within the wheelbase range.

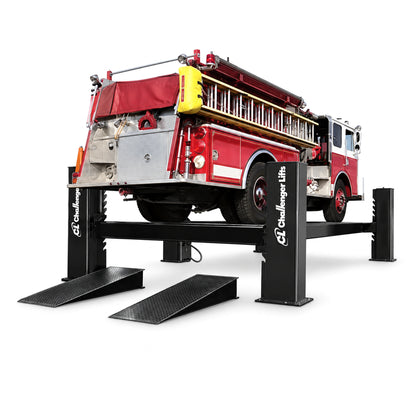

- Municipal Fleet Operations: Ideal for government and municipal fleet maintenance facilities servicing fire trucks, utility vehicles, and other heavy-duty municipal equipment.
Challenger 44030AR Specifications
| Specification | 44030AR | 44030EAR | 44030XAR |
|---|---|---|---|
| Overall Length | 24' 7.5" | 29' 7.5" | 34' 7.5" |
| Max Wheelbase | 230" | 290" | 350" |
| Between Columns | 233.75" | 293.75" | 353.75" |
| Max 2-Wheel Alignment | 206" | 266" | 326" |
| Specification | Value |
|---|---|
| Lifting Capacity | 30,000 lb |
| Rise Height | 68" |
| Lock Positions | 10 |
| Speed of Rise | 105 seconds |
| Specification | Value |
|---|---|
| Overall Width | 12' 5.5" |
| Inside Columns | 132.5" |
| Height Overall | 92" |
| Height of Runways | 9" |
| Width of Runways | 24" |
| Width Between Runways | 54" - 75" |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208-230V |
| Phase | Single Phase |
| Amperage | 30 Amps |
Challenger 44030AR Installation Requirements
Electrical Requirements
Power: 208-230V single phase, 30 amp dedicated circuit with appropriate disconnect. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 6" thick reinforced concrete with 3,000 PSI compressive strength required. The floor must be level and free of cracks in the anchor point areas. Consult installation manual for specific anchor bolt specifications and layout requirements.
Space Requirements
Overall Width: 12' 5.5". Overall Length: 24' 7.5" (Standard), 29' 7.5" (Extended), or 34' 7.5" (Extra Extended). Height Clearance: Minimum 92" ceiling height required. Allow additional clearance for vehicle height when raised and technician movement around the lift.
Professional Installation
Professional installation by a Challenger-authorized service representative is strongly recommended. Proper installation is required for warranty coverage. Installation services, electrical work, and concrete work are not included with lift purchase.
What's Included with the Challenger 44030AR
- Complete four post lift structure with columns, runways, and approach ramps
- 3HP power unit with hydraulic system
- Dual heavy-duty lift cylinders
- Chain-drive system with sealed roller bearings
- Single point air actuated lock release system
- Lever controls for synchro-power operation
- Hardware and anchor bolts for installation
- Installation and operation manual
Optional Accessories: RJ15 Rolling Jack (15,000 lb capacity), RJ25 Rolling Jack (25,000 lb capacity), RJ35 Rolling Jack (35,000 lb capacity), #10500HD Turning Radius Gauges, #10267 Oil Drain Pan Kit (32 gallon), Pivot Ramp Kits for drive-thru operation.
Not Included: Turning radius gauges (#10500HD sold separately for alignment models), electrical work and wiring, concrete work, installation labor, hydraulic oil.
Challenger 44030AR Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships from Louisville, Kentucky. Contact sales for current lead times. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Lift ships on pallets and requires equipment capable of handling heavy components. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the Bill of Lading. Note any visible damage on delivery receipt and photograph damaged packaging.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 44030AR Warranty
Challenger Lifts Limited Warranty
The Challenger 44030AR is backed by Challenger Lifts' comprehensive warranty program, protecting your investment in American-made lift equipment.
- 5 Years: Structural components including columns, runways, cross beams, ramps, and carriages
- 1 Year: Functional parts including power unit, cylinders, hoses, hydraulic fittings, chains, valves, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Warranty registration must be completed online at challengerlifts.com. Lift must be installed, operated, and maintained according to Challenger specifications. Use of unapproved parts or accessories will void warranty. Warranty applies to original purchaser only and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger 44030AR?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44030AR FAQ
What is the lifting capacity of the Challenger 44030AR?
The Challenger 44030AR has a lifting capacity of 30,000 lb, making it suitable for commercial trucks, transit buses, waste management vehicles, and other heavy-duty fleet equipment.
What are the differences between the 44030AR, 44030EAR, and 44030XAR?
The three models differ in overall length and maximum wheelbase capacity. The 44030AR (Standard) is 24' 7.5" long with a 230" max wheelbase. The 44030EAR (Extended) is 29' 7.5" long with a 290" max wheelbase. The 44030XAR (Extra Extended) is 34' 7.5" long with a 350" max wheelbase. All three share the same 30,000 lb capacity and width specifications.
What electrical power does the Challenger 44030AR require?
The lift requires 208-230V single phase power with a 30 amp dedicated circuit. A licensed electrician should install the electrical supply and verify it meets local codes. Three phase power is available as an option - specify at time of order.
What are the concrete requirements for installation?
The lift requires a minimum 6" thick reinforced concrete floor with 3,000 PSI compressive strength. The floor must be level and free of cracks in the anchor point areas. Refer to the installation manual for specific anchor bolt specifications and layout patterns.
What warranty does the Challenger 44030AR include?
The lift includes a 5-year warranty on structural components (columns, runways, cross beams, ramps, carriages), 1-year warranty on functional parts (power unit, cylinders, hoses, chains, valves, controls), and 1-year labor coverage. Warranty registration at challengerlifts.com is required.
Are turning radius gauges included with the alignment model?
No, turning radius gauges are sold separately. The AR alignment models include cutouts in the runways for turning radius gauges. Order part #10500HD for heavy-duty black powder coated turning radius gauges compatible with this lift.
How is the lift shipped and what equipment do I need to unload it?
The lift ships via freight to commercial addresses in the continental US. A forklift or loading dock is required for unloading as the lift components ship on heavy pallets. Curbside delivery is standard. Inspect all packages before signing the Bill of Lading and note any damage.
What rolling jacks are compatible with the 44030AR?
The Challenger 44030AR is compatible with the RJ15 (15,000 lb), RJ25 (25,000 lb), and RJ35 (35,000 lb) air-operated rolling jacks. The built-in runway rail system allows rolling jacks to travel the length of the runways for complete wheel-off service capability. Note that rolling jack use requires fixed runways.
What is the synchro-power system and why is it important?
The synchro-power system features dual heavy-duty lift cylinders with lever controls that can raise the front and rear suspension either simultaneously (synchronous) or independently (variable). This is essential for safely lifting vehicles with uneven weight distribution, such as waste trucks or construction vehicles with heavier front or rear axles.
How long does it take to raise a vehicle to full height?
The Challenger 44030AR has a rise time of approximately 105 seconds to reach the full 68" rise height. The 3HP motor provides consistent lifting power for heavy commercial vehicles.
Can I add accessories to the lift later?
Yes, the built-in runway rail system allows you to add accessories as your service needs evolve. Compatible accessories include rolling jacks (RJ15, RJ25, RJ35), sliding oil drain pan (#10267, 32 gallon capacity), and pivot ramp kits for drive-thru operation.
What colors are available for the Challenger 44030AR?
The Challenger 44030AR is available with black columns only. This applies to all models in the 44030 series (44030AR, 44030EAR, and 44030XAR).
