Challenger 44030 4-Post Lift 30000 lb Chain Drive
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger 44030 Heavy-Duty 30,000 lb Chain-Driven 4-Post Lift for Commercial Fleet Service
The Challenger 44030 delivers 30,000 lb lifting capacity in a rugged chain-driven 4-post design built for medium-duty trucks, buses, and fleet vehicles. Featuring a 230" maximum wheelbase, 68" rise height, and 24" wide diamond-plated runways, this American-made lift provides the foundation for efficient heavy-duty service operations. Powered by a 3HP single-phase motor operating on 208-230V, the 44030 is ideal for shops without three-phase power while still delivering commercial-grade performance. Backed by Challenger's 5-year structural warranty, this lift is engineered for years of dependable service.
Challenger 44030 Features
Heavy-Duty Chain Drive System
The 44030 utilizes a robust BL844 roller chain drive system with precision-machined 4" diameter chain sheaves for smooth, reliable operation. Chain drive technology provides excellent durability and requires minimal maintenance compared to cable-driven alternatives, making it ideal for high-volume commercial environments.
Synchro-Power Hydraulic System
Dual heavy-duty hydraulic lift cylinders with a 5" bore and 60" stroke deliver powerful, synchronized lifting. The lever control system provides variable or synchronous power to front and rear, allowing operators to compensate for vehicles with uneven weight distribution - perfect for lifting waste trucks and construction vehicles with heavier front or rear ends.
Diamond-Plated Runways and Ramps
The 24" wide runways feature diamond-plate surfacing for maximum traction and driver confidence during drive-on positioning. Diamond-plated approach ramps ensure positive vehicle traction in all conditions, reducing the risk of wheel slip during loading.
Single-Phase Power Convenience
Unlike larger capacity models requiring three-phase power, the 44030 operates on 208-230V single-phase electrical service with a 3HP motor. This makes installation feasible in more locations without costly electrical upgrades, while still delivering a 105-second rise time to full height.
Compact Footprint Design
With an overall length of 24' 7.5" and width of 12' 5.5", the 44030 fits in a standard 15'-6" x 30'-0" bay. The 132.5" inside column width and 54" to 75" adjustable runway spacing accommodate a wide range of vehicle track widths.
Pneumatic Safety Lock Release
The 44030 features reliable mechanical safety locks with pneumatic release. The safety latch system engages automatically during lifting, and the pneumatic release allows convenient disengagement when lowering the lift.
Challenger 44030 Applications
- Delivery Fleet Service: The 230" wheelbase capacity handles box trucks, step vans, and delivery vehicles commonly found in courier and logistics operations, making routine maintenance efficient and accessible.

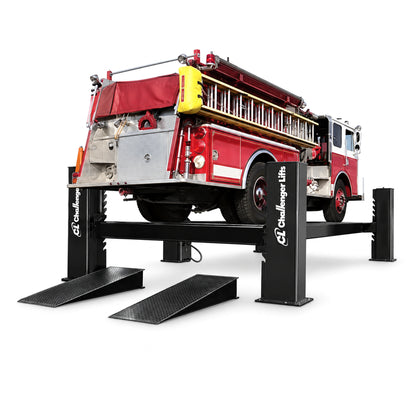

- Municipal Fleet Maintenance: Ideal for servicing medium-duty municipal vehicles including utility trucks, ambulances, and smaller transit buses that fall within the 30,000 lb capacity range.

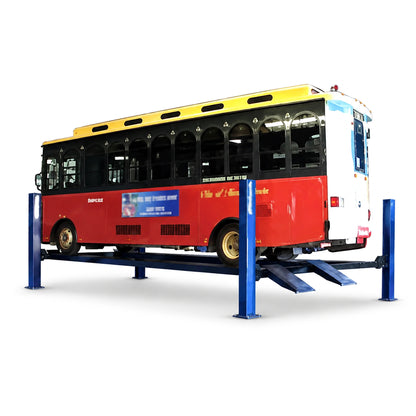

- School Bus Service: Accommodates Type A and Type B school buses for brake service, suspension work, and undercarriage inspections with excellent technician access beneath the vehicle.

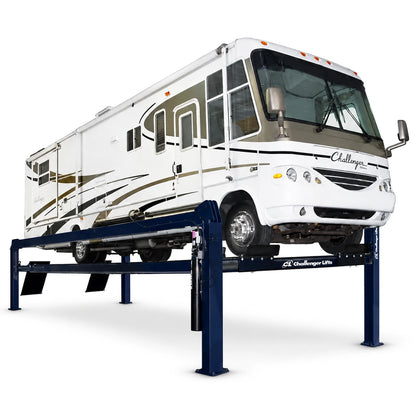

- RV and Motorhome Service: The generous wheelbase capacity and adjustable runway spacing make the 44030 suitable for Class B and smaller Class C recreational vehicles requiring service or storage.
- Landscape and Construction Equipment: Service medium-duty landscape trucks, dump trucks, and construction vehicles with the synchro-power system that compensates for uneven weight distribution.
Challenger 44030 Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 30,000 lb |
| Maximum Wheelbase | 230" |
| Rise Height | 68" |
| Speed of Rise | 105 seconds |
| Specification | Value |
|---|---|
| Overall Length | 24' 7.5" |
| Overall Width | 12' 5.5" |
| Overall Height | 92" |
| Inside Columns | 132.5" |
| Between Columns | 233.75" |
| Runway Width | 24" |
| Runway Height (Lowered) | 9" |
| Width Between Runways | 54" - 75" (adjustable) |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208-230V Single Phase |
| Amperage | 30 amps |
| Minimum Wire Gauge | 10 AWG (8 AWG preferred) |
| Circuit Protection | 30-amp time delay fuse or breaker |
| Specification | Value |
|---|---|
| Drive System | Chain-driven (BL844 roller chain) |
| Hydraulic Cylinder | 5" bore x 60" stroke |
| Hydraulic Oil Capacity | 6 gallons (SAE-10 or equivalent) |
| Colors Available | Black |
Challenger 44030 Installation Requirements
Electrical Requirements
Power: 208-230V single-phase, 30 amps. Requires dedicated circuit with 30-amp time delay fuse or circuit breaker. Minimum 10 AWG wire (8 AWG preferred). A licensed electrician must install and verify the electrical supply.
Concrete Foundation
Thickness: Minimum 4" reinforced concrete. Strength: Minimum 3,000 PSI compressive strength. Reinforcement: Steel rebar required. Anchors must be at least 5" from slab edge or any seam. Maximum floor variation between any two posts is 2".
Space Requirements
Minimum Bay Size: 15'-6" x 30'-0" (standard) or 15'-6" x 35'-0" (extended). Ceiling Height: Minimum 16 feet recommended (higher may be required depending on vehicle height). If 3' track extensions are purchased, increase bay length accordingly.
Professional Installation
Professional installation is strongly recommended to ensure proper alignment, leveling, and safe operation. Improper installation may void warranty coverage and create safety hazards. Contact Garage Supply Guys for installation service referrals in your area.
What's Included with the Challenger 44030
- Complete 4-post lift frame with four columns
- Top rail assembly with hydraulic cylinder
- Two cross rail assemblies with chain drive system
- Two diamond-plated track/runway assemblies
- Two diamond-plated approach ramp assemblies
- Track clamps and stops
- 3HP power unit with hydraulic pump
- Pneumatic control valve and fittings
- Safety latch assemblies
- All mounting hardware and anchor bolts
- Installation, operation, and maintenance manual
Optional Accessories: 15,000 lb rolling air jacks (WAJ15), 3' track extension kits for extended wheelbase capability.
Not Included: Hydraulic oil (6 gallons SAE-10 required), electrical wiring and installation, concrete work, pneumatic supply line, installation labor.
Challenger 44030 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required - lift ships on pallets and crates. Delivery Type: Curbside delivery standard; liftgate service available for additional charge. Inspection: Inspect all packages for damage before signing BOL. Note any damage on delivery receipt and contact us within 48 hours.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs. Contact Challenger Lifts within 30 days of delivery if any parts are missing from shipment.
Challenger 44030 Warranty
Challenger Lifts Limited Warranty
The Challenger 44030 is backed by Challenger's comprehensive warranty program covering parts and labor:
- 5 Years: Structural parts including columns, cross beams, runways, ramps, and carriage
- 1 Year: Functional parts including power unit, cylinders, chains, sheaves, hoses, valves, and controls
- 1 Year: Labor for warranty repairs
Requirements: Warranty valid only when lift is installed, used, and maintained according to Challenger specifications. Must be registered at challengerlifts.com/register-your-lift within 30 days of purchase. Warranty extends only to original purchaser and is non-transferable. Use of unapproved parts or accessories voids warranty.
Documents
Click to open in a new tab.
Questions About the Challenger 44030?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44030 FAQ
What vehicles can the Challenger 44030 lift?
The 44030 has a 30,000 lb capacity and 230" maximum wheelbase, making it suitable for medium-duty trucks, delivery vehicles, box trucks, step vans, smaller buses, RVs, and fleet vehicles. Always verify your vehicle's weight and wheelbase fall within the lift's specifications before use.
What are the space requirements for the 44030?
The 44030 requires a minimum bay size of 15'-6" x 30'-0" (standard configuration) or 15'-6" x 35'-0" (extended). The lift itself measures 24' 7.5" long by 12' 5.5" wide. A minimum ceiling height of 16 feet is recommended, though taller vehicles may require additional clearance.
What electrical service does the 44030 require?
The 44030 operates on 208-230V single-phase power with a 3HP motor drawing 30 amps. It requires a dedicated circuit with a 30-amp time delay fuse or circuit breaker and minimum 10 AWG wiring (8 AWG preferred). Unlike larger models in the series, no three-phase power is required.
Can I install the 44030 myself?
While the installation manual provides detailed instructions, professional installation is strongly recommended. Proper installation requires precise leveling, alignment, and anchoring to ensure safe operation. A concrete hammer drill, various hand tools, and 6 gallons of hydraulic oil are required. Improper installation may void the warranty.
What is the warranty on the Challenger 44030?
Challenger provides a 5-year warranty on structural parts (columns, beams, runways, ramps), 1-year warranty on functional parts (power unit, cylinders, chains, hoses, controls), and 1-year labor coverage. The warranty requires proper installation per Challenger specifications and registration within 30 days of purchase.
What is included with the lift purchase?
The 44030 ships complete with all structural components, chain drive system, power unit, hydraulic cylinder, pneumatic controls, diamond-plated runways and ramps, mounting hardware, anchor bolts, and installation manual. Hydraulic oil (6 gallons), electrical wiring, and installation labor are not included.
How is the 44030 shipped and delivered?
The lift ships via freight carrier on pallets and crates to commercial addresses in the contiguous 48 states with free shipping. A forklift or loading dock is required for unloading. Curbside delivery is standard; inspect all packages for damage before signing the bill of lading.
Can I add rolling jacks to the 44030?
Yes, Challenger offers optional 15,000 lb rolling air jacks (model WAJ15) that work with the 44030. Rolling jacks provide wheel-free service capability for brake work, suspension service, and tire changes. The runway spacing of 54" to 75" accommodates rolling jack installation.
How does the 44030 compare to the 44040 and larger models?
The 44030 is the entry-level model in Challenger's heavy-duty chain-driven series, offering 30,000 lb capacity with single-phase power. The 44040 series and above offer 40,000-60,000 lb capacity with longer wheelbases (310"-430"), wider 32" runways, 10 lock positions, and three-phase power requirements. Choose based on your heaviest anticipated vehicle weight and wheelbase.
What concrete requirements must be met for installation?
The floor must be minimum 4" thick reinforced concrete with steel rebar and minimum 3,000 PSI compressive strength. Anchor bolts must be at least 5" from any slab edge or seam. Maximum floor variation between any two posts is 2". Failure to meet these requirements may affect lift performance and void warranty coverage.
What maintenance does the 44030 require?
Challenger recommends 30-day maintenance checks including inspecting and tightening all bolts, checking chain tension and adjustment, inspecting hydraulic lines for leaks, verifying safety latch operation, and checking anchor bolts. During the first week after installation, anchor bolts should be checked and tightened daily.
Can the 44030 be installed outdoors?
No, the 44030's motors and electrical controls are not sealed against weather or moisture. Outdoor installation without proper enclosure may cause damage or electrical shock and voids the warranty. The lift should only be installed in a protected indoor environment.
