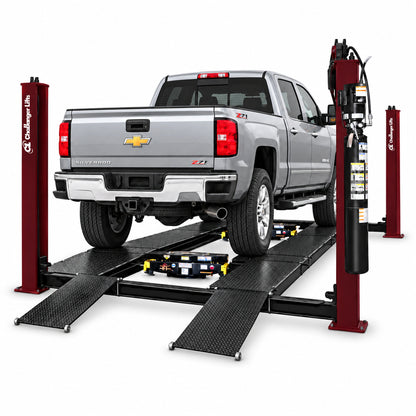

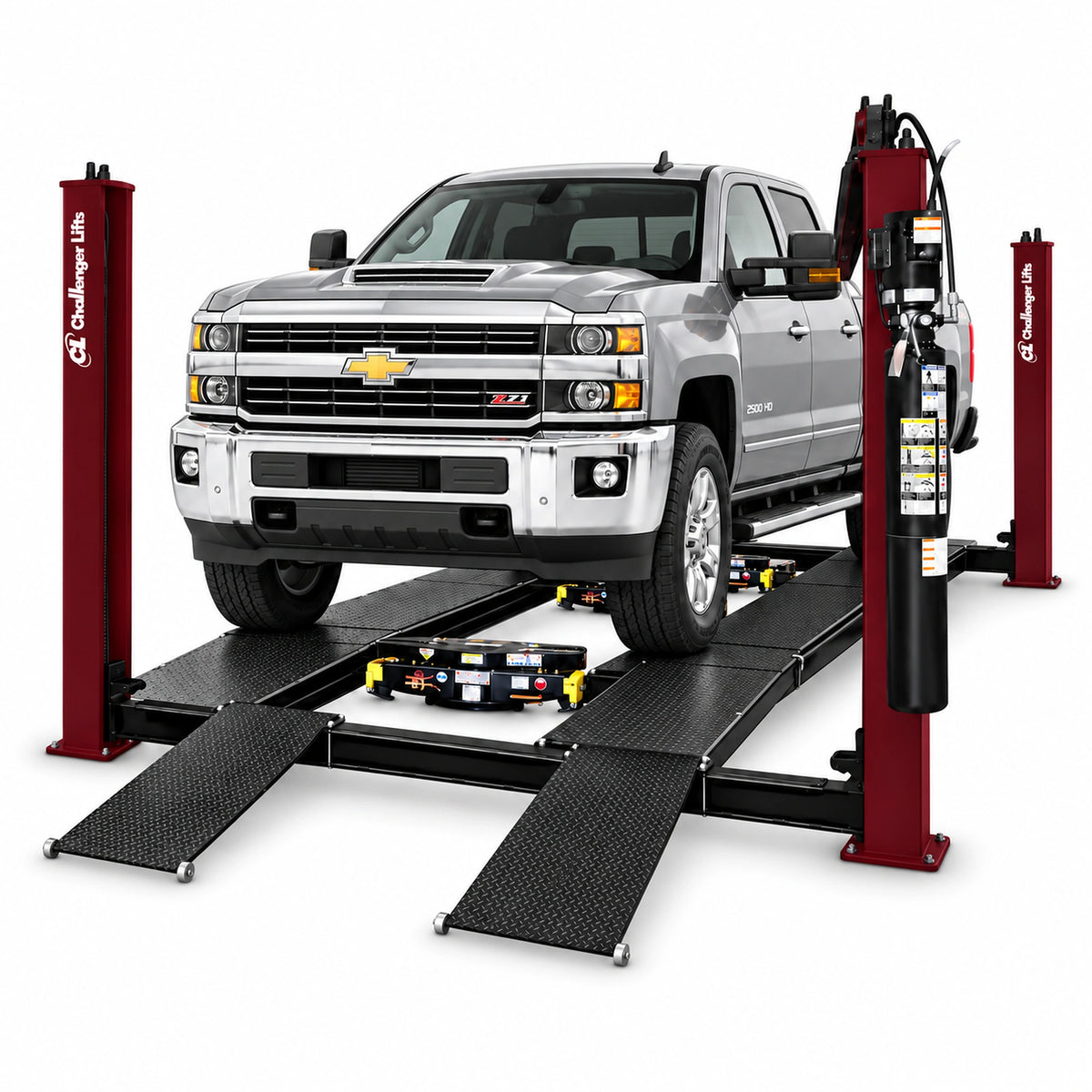

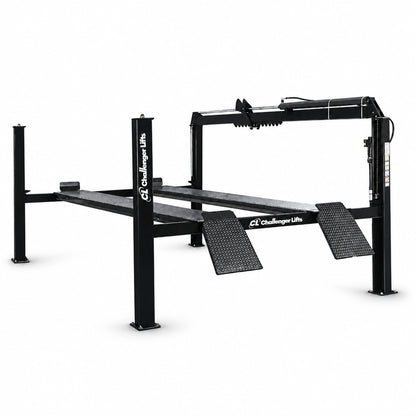

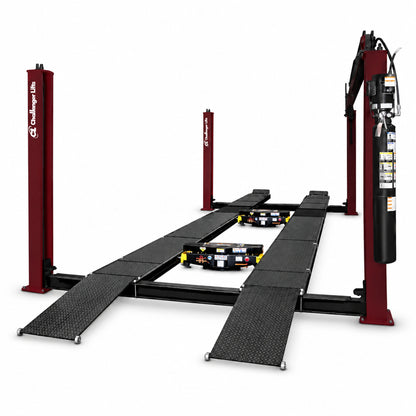

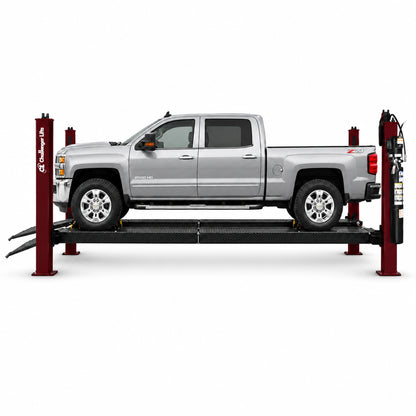

Challenger 44018E 4-Post Automotive Lift 18,000 lb Extended
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger 44018E 18,000 lb Heavy-Duty 4-Post Lift for Commercial Fleet and Transit Vehicle Service
The Challenger 44018E delivers 18,000 lb lifting capacity with an extended 230" maximum wheelbase to accommodate medium-duty transit vehicles, cargo vans, and commercial fleet trucks. This extended-length 4-post lift features a 78.75" rise height, diamond-plate anti-skid runways, and a built-in runway rail system for optional rolling jacks and oil drain pans. Powered by a 3HP, 208-230V single-phase motor, the 44018E reaches full height in just 60 seconds. Backed by Challenger's warranty with 5 years structural coverage, this lift is built for high-volume commercial service environments.
Challenger 44018E Features
Heavy-Duty Lifting System
The 44018E utilizes high tensile strength leaf chain paired with sealed roller bearings for smooth, reliable lift operation. The heavy-duty hydraulic cylinder delivers optimum lifting performance with minimal downtime and reduced maintenance requirements, ensuring maximum productivity in demanding commercial service environments.
Single-Point Air-Actuated Lock Release
Technicians can disengage all column locks simultaneously with a single control, eliminating the need to walk around the lift to release individual locks. This feature significantly reduces cycle time between vehicles and improves workflow efficiency in high-volume service operations.
Diamond-Plate Anti-Skid Runways
The 22" wide runways feature diamond-plate surfaces for positive vehicle traction during drive-on positioning. Combined with the heavy-duty steel roller wheels on approach ramps, vehicles can be safely and easily positioned onto the lift even in wet or oily shop conditions.
Adjustable Runway Width
Runways adjust from 36" to 54" between runways to accommodate a wide range of vehicle tread widths. This versatility allows the 44018E to service everything from standard passenger vehicles to medium-sized transit vehicles and cargo vans within the same bay.
Built-In Runway Rail System
The integrated runway rail system provides a mounting platform for optional rolling jacks and sliding oil drain pans (sold separately). This rail system transforms the 4-post lift into a complete service station, enabling wheel-off service, suspension work, and fluid changes without repositioning the vehicle.
Multi-Position Lock Ladder
The 10-level twin ladder lock positions provide multiple comfortable working heights for a variety of service tasks across different vehicle types. The continuously engaged mechanical lock system ensures technician safety at every height position.
Challenger 44018E Applications
- Commercial Fleet Maintenance: Service delivery vans, cargo vehicles, and medium-duty trucks up to 18,000 lb with the extended 230" wheelbase capacity designed for fleet operations.
- Transit Vehicle Service: Accommodate medium-sized transit buses and shuttle vehicles with adjustable runways that adapt to various tread widths and vehicle configurations.
- Municipal and Government Fleets: Maintain police vehicles, emergency response units, and government fleet vehicles with the heavy-duty construction built for continuous daily use.
- RV and Recreational Vehicle Service: Service Class B and smaller Class C motorhomes, camper vans, and recreational vehicles that fit within the 230" wheelbase and 18,000 lb capacity.
- General Automotive Service: Perform undercar service, exhaust work, transmission service, and general maintenance on standard passenger vehicles with the versatility of adjustable runway spacing.
Challenger 44018E Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 18,000 lbs |
| Maximum Wheelbase | 230" |
| Rise Height | 78.75" |
| Speed of Rise | 60 seconds |
| Specification | Value |
|---|---|
| Overall Length | 292" (24' 4") |
| Overall Width | 138.125" (11' 6-1/8") |
| Overall Height | 102.5" |
| Inside Columns | 121" |
| Between Columns | 240" |
| Width of Runways | 22" |
| Width Between Runways | 36" - 54" (adjustable) |
| Height of Runways | 7.25" |
| Specification | Value |
|---|---|
| Motor | 3HP |
| Voltage | 208-230V Single Phase |
| Amperage | 30 Amps |
| Three Phase Option | Available (specify at time of order) |
| Specification | Value |
|---|---|
| Lock Positions | 10-level twin ladder lock |
| Lock Release | Single-point air-actuated |
| Available Colors | Black |
Challenger 44018E Installation Requirements
Electrical Requirements
Power: 208-230V single-phase, 30 amp circuit (three-phase available upon request). A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4" thick reinforced concrete with 3,000 PSI compressive strength. The concrete must be fully cured and free of cracks, expansion joints, or voids in the anchor locations. Consult the installation manual for exact anchor bolt patterns and torque specifications.
Space Requirements
Overall Length: 292" (24' 4"). Overall Width: 138.125" (11' 6-1/8"). Ceiling Height: Minimum 102.5" plus adequate clearance for vehicle height at full rise. Allow additional clearance for technician access around all sides of the lift.
Professional Installation
Professional installation by a Challenger-authorized installer is recommended and required for warranty validation. Installation includes anchor bolt placement, lift assembly, hydraulic system setup, and operational testing per ANSI/ALI ALCTV standards.
What's Included with the Challenger 44018E
- Complete 44018E 4-post lift assembly with black powder-coated columns
- Diamond-plate runways with built-in rail system
- Diamond-plate approach ramps with heavy-duty steel roller wheels
- 3HP hydraulic power unit (208-230V single-phase)
- Single-point air-actuated lock release system
- Hardware kit with anchor bolts
- Installation and operation manual
Optional Accessories: RJ9S 9,000 lb air/hydraulic rolling jack, 44RK18 pivoting ramp kit (39" for drive-thru operation), 44AK18 internal air line kit for dual rolling jack operation, 10267 32-gallon rolling drain pan, 10500 black powder-coated turn plates, 10500SS stainless steel turn plates.
Not Included: Electrical wiring and installation, concrete work, installation labor (unless purchased separately), hydraulic oil, rolling jacks, oil drain pans, turn plates, and ramp extension kits.
Challenger 44018E Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery is standard. Liftgate service available for additional charge. Inspection: Inspect all packages for visible damage before signing the Bill of Lading. Note any damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer is responsible for return freight costs.
Challenger 44018E Warranty
Challenger Lifts Limited Warranty
Challenger Lifts, Inc. guarantees this lift to the original owner against defects in materials and workmanship.
- 5 Years: Structural parts including columns, runways, wheel stops, ramps, and bolsters
- 1 Year: Functional parts including power units, cylinders, sheaves, hoses, cables, and controls
- 1 Year: Labor coverage for warranty repairs
Requirements: Warranty registration must be completed at challengerlifts.com within 30 days of installation. Installation must follow CLI specifications per the installation manual. Use of unapproved parts or accessories will void the warranty. This warranty extends only to the original purchaser and is not transferable.
Documents
Click to open in a new tab.
Questions About the Challenger 44018E?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger 44018E FAQ
What is the lifting capacity of the Challenger 44018E?
The Challenger 44018E has an 18,000 lb lifting capacity, making it suitable for medium-duty commercial vehicles, transit vans, cargo vehicles, and fleet trucks. The capacity is evenly distributed across all four columns for stable, safe lifting.
What is the maximum wheelbase the 44018E can accommodate?
The 44018E accommodates vehicles with wheelbases up to 230". This extended wheelbase capacity is designed specifically for medium-sized transit vehicles, cargo vans, and commercial fleet vehicles that exceed standard passenger car dimensions.
What are the electrical requirements for the 44018E?
The 44018E requires 208-230V single-phase power with a 30-amp dedicated circuit. A three-phase electrical option is available and must be specified at the time of order. A licensed electrician should verify your facility meets these requirements before installation.
What is the difference between the 44018 and 44018E?
The 44018E is the extended-length version of the standard 44018. The key differences are: maximum wheelbase (230" vs 194"), overall length (292" vs 259"), and distance between columns (240" vs 204"). Both models share the same 18,000 lb capacity, 78.75" rise height, and features. Choose the 44018E for longer transit vehicles and cargo vans.
What concrete requirements are needed for installation?
The 44018E requires a minimum 4" thick reinforced concrete floor with 3,000 PSI compressive strength. The concrete must be fully cured (typically 28 days for new pours) and free of cracks, voids, or expansion joints in the anchor locations. Consult the installation manual for specific anchor bolt patterns.
What is included with the Challenger 44018E?
The 44018E includes the complete 4-post lift assembly, diamond-plate runways with built-in rail system, approach ramps with steel roller wheels, 3HP hydraulic power unit, single-point air-actuated lock release system, hardware kit with anchor bolts, and installation manual. Rolling jacks, oil drain pans, turn plates, and electrical work are not included.
How is the Challenger 44018E shipped?
The 44018E ships via freight truck to commercial addresses. Free freight shipping is included for the 48 contiguous United States. A forklift or loading dock is required for unloading. Liftgate service is available for an additional charge. Inspect all shipments for damage before signing the Bill of Lading.
What accessories are available for the 44018E?
Available accessories include: RJ9S 9,000 lb air/hydraulic rolling jack for wheel-off service, 44RK18 pivoting ramp kit for drive-thru operation, 44AK18 internal air line kit for dual rolling jack operation, 10267 32-gallon rolling drain pan for fluid service, and turn plates (10500 powder-coated or 10500SS stainless steel) for alignment applications.
Can the 44018E be used for wheel alignment?
The standard 44018E is designed for general service rather than alignment. For dedicated alignment applications, consider the 44018AR alignment rack model, which features turn plate cutouts, slip plates, built-in work steps, and 17 alignment height levels with 4-wheel alignment capability from 98" to 206" wheelbase.
What is the warranty on the Challenger 44018E?
The 44018E includes Challenger's standard warranty: 5 years on structural parts (columns, runways, ramps), 1 year on functional parts (power unit, cylinders, cables, controls), and 1 year on labor. Warranty requires registration at challengerlifts.com within 30 days of installation and proper installation per manufacturer specifications.
How long does it take for the lift to reach full height?
The 44018E rises from floor level to full 78.75" height in approximately 60 seconds. The 3HP hydraulic motor and heavy-duty cylinder provide consistent lifting speed regardless of vehicle weight up to the rated 18,000 lb capacity.
What maintenance is required for the 44018E?
Regular maintenance includes visual inspection of cables, chains, and hydraulic hoses; lubrication of pivot points and moving components; checking hydraulic fluid levels; testing safety lock engagement; and verifying anchor bolt torque. Follow the maintenance schedule in the operation manual for specific intervals and procedures.
