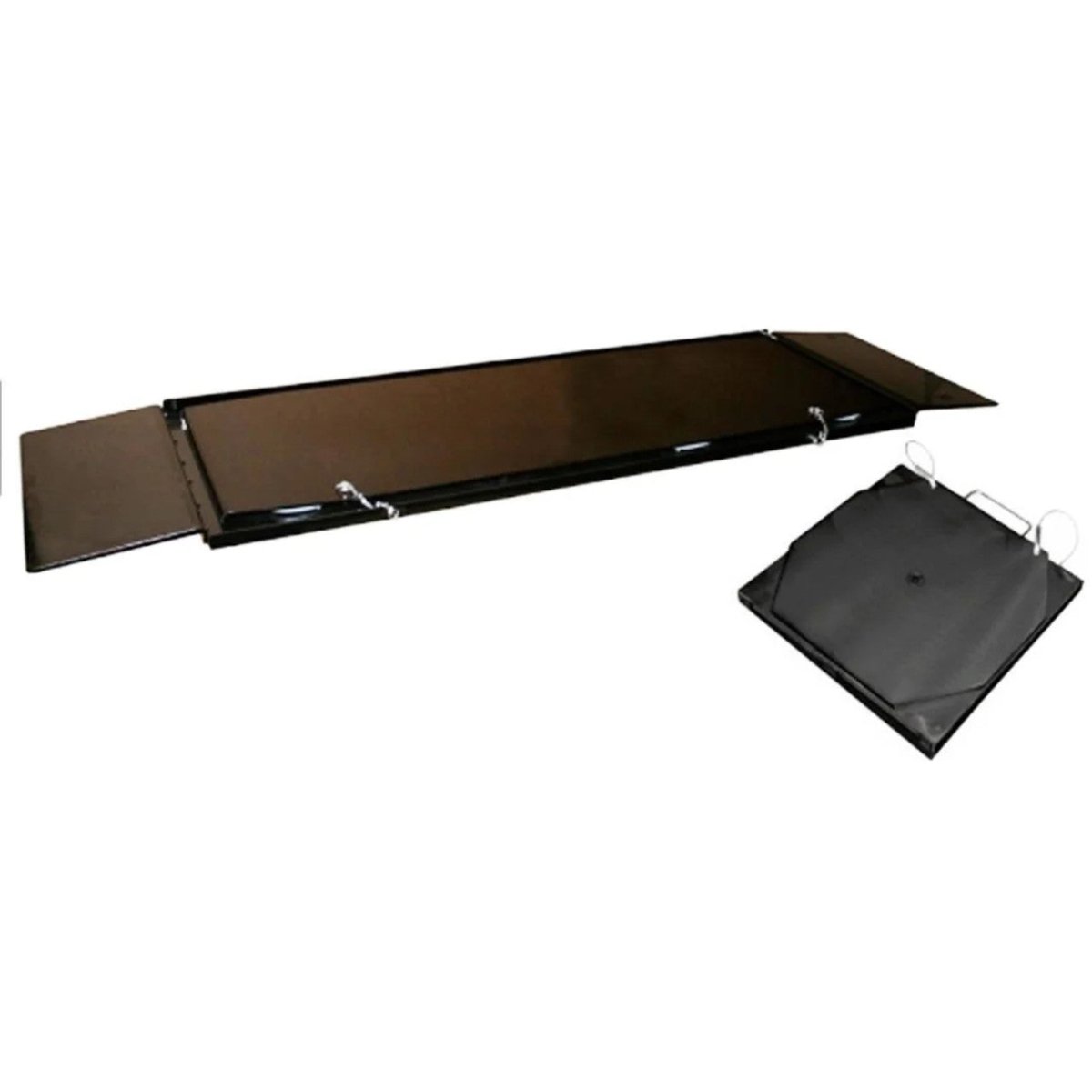

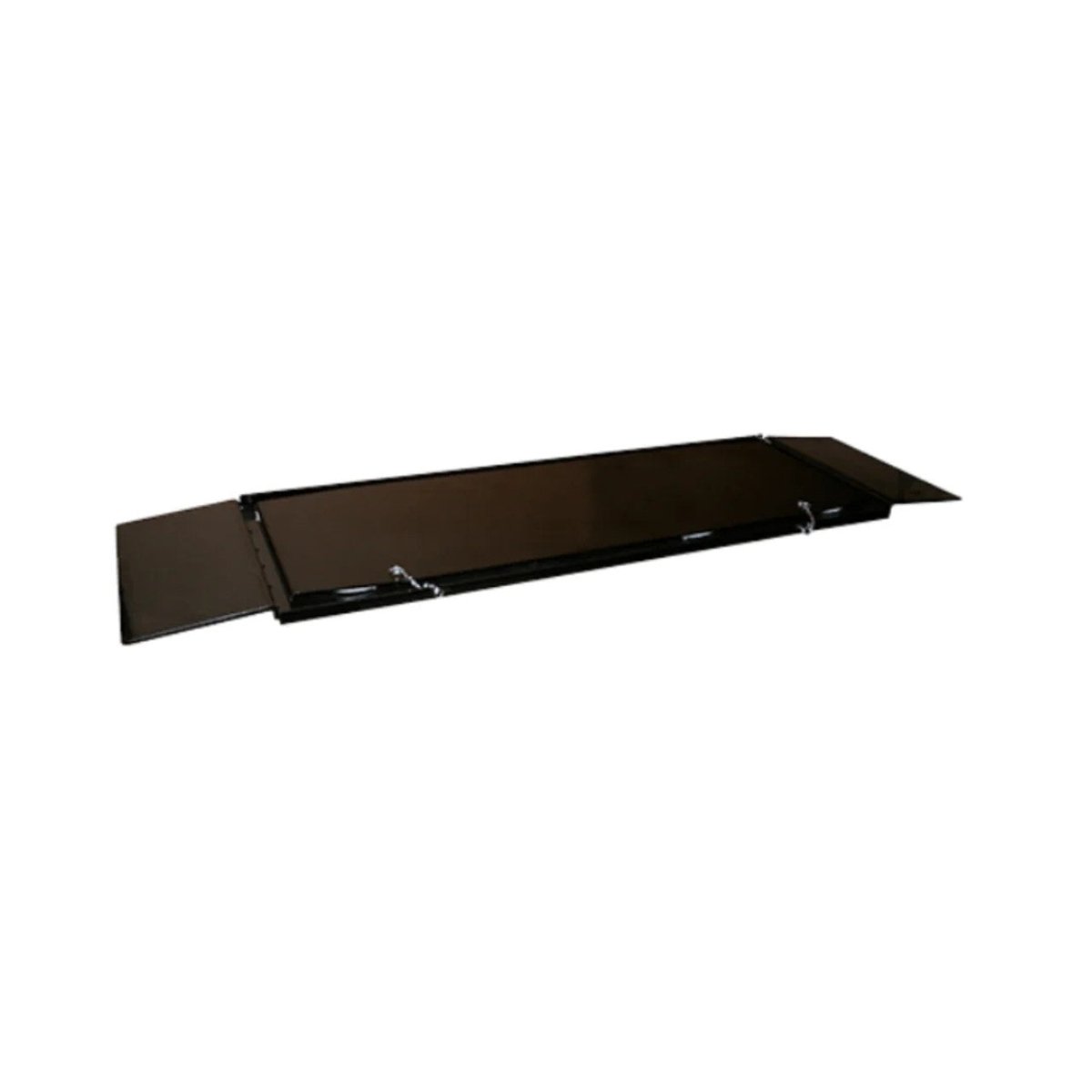

Challenger 40200-3DBK Bolt-On Alignment Kit with Black Powder-Coated Turn Plates for Four-Post Lifts
The Challenger 40200-3DBK bolt-on alignment kit transforms your Challenger general service four-post lift into a fully functional alignment-capable platform. This complete kit includes black powder-coated turn plates and 10500 stainless steel turning radius gauges, delivering everything needed for professional wheel alignment services. Designed for 3D alignment compatibility, this kit works with modern alignment equipment and integrates seamlessly with Challenger 4P14, 4015, and 4115 series four-post lifts. Backed by Challenger's factory warranty and manufactured by the Louisville, Kentucky-based leader in automotive lift equipment.
Challenger 40200-3DBK Features
3D Alignment Compatibility
The 40200-3DBK is designed to work with modern 3D alignment equipment, allowing your shop to offer precise wheel alignment services using the latest alignment technology. This compatibility ensures accurate readings and efficient alignment workflows for passenger vehicles and light trucks.
Black Powder-Coated Turn Plates
The included turn plates feature a durable black powder-coat finish that resists corrosion, chemicals, and daily wear in demanding shop environments. The professional black finish complements your lift's appearance while providing long-lasting performance.
Stainless Steel Turning Radius Gauges
Each kit includes 10500 stainless steel turning radius gauges that provide accurate steering angle measurements during alignment procedures. Stainless steel construction ensures corrosion resistance and maintains measurement accuracy over years of use.
Bolt-On Installation Design
The 40200-3DBK installs via bolt-on hardware with no welding or permanent modifications required. This straightforward integration approach keeps your lift operational with minimal downtime and maintains your original lift warranty coverage.
Rear Slip Plates Included
The kit includes rear slip plates for proper four-wheel alignment capability. Slip plates allow the rear wheels to move freely during alignment adjustments, ensuring accurate readings and proper vehicle positioning throughout the alignment process.
American Manufacturing Quality
Built by Challenger Lifts in Louisville, Kentucky, this alignment kit reflects American engineering standards and manufacturing quality. As a Snap-on Inc. subsidiary, Challenger provides access to an established dealer network and documented parts availability.
Challenger 40200-3DBK Applications
- General Automotive Repair Shops: Convert your existing Challenger four-post lift into an alignment-capable platform, adding wheel alignment services without purchasing a dedicated alignment rack.
- Tire Service Centers: Expand service offerings by adding alignment capability to complement tire sales, mounting, and balancing services.
- Fleet Maintenance Facilities: Provide in-house alignment services for fleet vehicles, reducing downtime and outside service costs for cars, trucks, and vans.
- Dealership Service Departments: Add alignment capacity to existing four-post lifts during peak demand periods or as a secondary alignment station.
- Quick Lube and Express Service: Offer alignment checks and services as an upsell opportunity for customers already visiting for routine maintenance.
Challenger 40200-3DBK Specifications
| Specification | Value |
|---|---|
| Compatible Lift Series | 4P14, 4015, 4115 |
| Alignment Type | 3D Alignment Compatible |
| Installation Method | Bolt-On (No Welding Required) |
| Component | Details |
|---|---|
| Turn Plates | Black Powder-Coated Steel |
| Turning Radius Gauges | 10500 Stainless Steel |
| Rear Slip Plates | Included |
| Runway Integration Hardware | Included |
| Specification | Value |
|---|---|
| Turn Plate Finish | Black Powder Coat |
| Radius Gauge Material | Stainless Steel |
| Hardware | Grade 8 Fasteners |
Challenger 40200-3DBK Installation Requirements
Compatible Lift Models
Verified Compatibility: Challenger 4P14 series, 4015 series, and 4115 series four-post lifts. Confirm your specific lift model number before ordering to ensure proper fitment.
Bolt-On Installation
No Welding Required: The 40200-3DBK installs using bolt-on hardware with no structural modifications needed. Standard hand tools are required for installation. Follow the included installation instructions for proper mounting procedures.
Alignment Equipment
3D Alignment System Required: A compatible 3D wheel alignment system is required to perform alignments (sold separately). The kit provides the lift integration components; alignment equipment must be sourced independently.
Professional Installation
Professional installation by a qualified technician is recommended to ensure proper setup and alignment accuracy. Improper installation may affect alignment readings and could void warranty coverage.
What's Included with the Challenger 40200-3DBK
- Black powder-coated front turn plates (1 set)
- 10500 stainless steel turning radius gauges
- Rear slip plates
- Runway integration components
- Mounting hardware
- Installation instructions
Optional Accessories: Rolling jacks, internal airline kits, and additional lift accessories are available separately to enhance your alignment workflow.
Not Included: 3D wheel alignment equipment, alignment targets/sensors, installation labor, compatible Challenger four-post lift (4P14, 4015, or 4115 series required).
Challenger 40200-3DBK Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 2-4 weeks from order placement, subject to inventory availability. International: Contact sales for international shipping quotes.
Delivery Requirements
Unloading: Forklift or pallet jack with minimum 1,000 lb capacity required for safe unloading. Delivery Type: Curbside delivery to commercial addresses is standard. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the BOL before the driver departs.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 40200-3DBK Warranty
Challenger Lifts Limited Warranty
Challenger Lifts, Inc. guarantees this product to the original owner. CLI shall repair or replace, at CLI's option, parts that prove defective upon inspection during the warranty period.
- Functional Parts: Coverage for wear items including hardware and moving components
- Structural Parts: Coverage for turn plates, slip plates, and structural components
Requirements: Warranty registration must be completed within 30 days of installation at challengerlifts.com. Product must be installed per manufacturer specifications. Use of unapproved parts or accessories will void warranty. Warranty is non-transferable and extends only to the original purchaser. Extended warranty does not apply to accessories.
Documents
Click to open in a new tab.
Questions About the Challenger 40200-3DBK?
Our equipment specialists can help with lift compatibility, installation planning, and product selection for your shop.
Challenger 40200-3DBK FAQ
What Challenger lift models are compatible with the 40200-3DBK?
The 40200-3DBK is compatible with Challenger 4P14 series, 4015 series, and 4115 series four-post lifts. These are among Challenger's most popular general service and alignment-capable four-post models. Verify your specific lift model number before ordering to ensure proper fitment.
What is the difference between the 40200-3DBK and 40200-3DSS?
The 40200-3DBK features black powder-coated turn plates for a professional appearance and corrosion resistance, while the 40200-3DSS includes stainless steel turn plates. Both kits include stainless steel turning radius gauges and provide the same alignment functionality. The choice typically comes down to finish preference and shop aesthetics.
Is this kit compatible with 3D alignment systems?
Yes, the 40200-3DBK is specifically designed for 3D alignment compatibility. The kit works with modern 3D wheel alignment equipment from major manufacturers. The alignment system itself is sold separately and must be sourced independently.
Does installation require welding or structural modifications?
No, the 40200-3DBK uses a bolt-on installation design that requires no welding or permanent structural modifications to your lift. This approach minimizes downtime, maintains your lift's original capabilities, and preserves manufacturer warranty coverage on the lift itself.
What is included in the 40200-3DBK alignment kit?
The kit includes black powder-coated front turn plates, 10500 stainless steel turning radius gauges, rear slip plates, runway integration components, mounting hardware, and installation instructions. A compatible 3D alignment system is required but sold separately.
What is the warranty coverage for the 40200-3DBK?
The 40200-3DBK is covered by Challenger Lifts' limited warranty for accessories. Warranty registration must be completed within 30 days of installation at challengerlifts.com. The warranty covers defects in materials and workmanship when the product is installed and used according to manufacturer specifications.
Can I install the 40200-3DBK myself?
While the bolt-on design allows for installation without specialized welding equipment, professional installation by a qualified technician is recommended. Proper installation ensures accurate alignment readings and maintains warranty coverage. Standard hand tools are required for the installation.
How long does shipping take?
Lead time is approximately 2-4 weeks from order placement, subject to inventory availability and freight carrier scheduling. The kit ships via LTL freight to commercial addresses in the contiguous United States with free shipping included.
What equipment do I need to unload the shipment?
A forklift, pallet jack, or equivalent material-handling equipment with minimum 1,000 lb capacity is required for safe unloading. The freight carrier provides curbside delivery only and will not unload or position equipment inside your facility.
Do I need a rolling jack for alignments?
Rolling jacks are recommended for efficient alignment workflows but are sold separately. Challenger offers rolling jack packages designed to integrate with their four-post lifts. Contact our sales team for rolling jack options compatible with your lift configuration.
Will this kit work with alignment lifts from other manufacturers?
No, the 40200-3DBK is engineered specifically for Challenger 4P14, 4015, and 4115 series four-post lifts. Using this kit on non-compatible lifts could result in improper fitment, inaccurate alignment readings, or safety issues. Always verify lift compatibility before ordering.
What maintenance does the alignment kit require?
Regular maintenance includes keeping turn plates and slip plates clean and free of debris, lubricating moving components as specified in the installation manual, and inspecting hardware for proper torque. The powder-coat finish and stainless steel components are designed for durability with minimal maintenance requirements.
