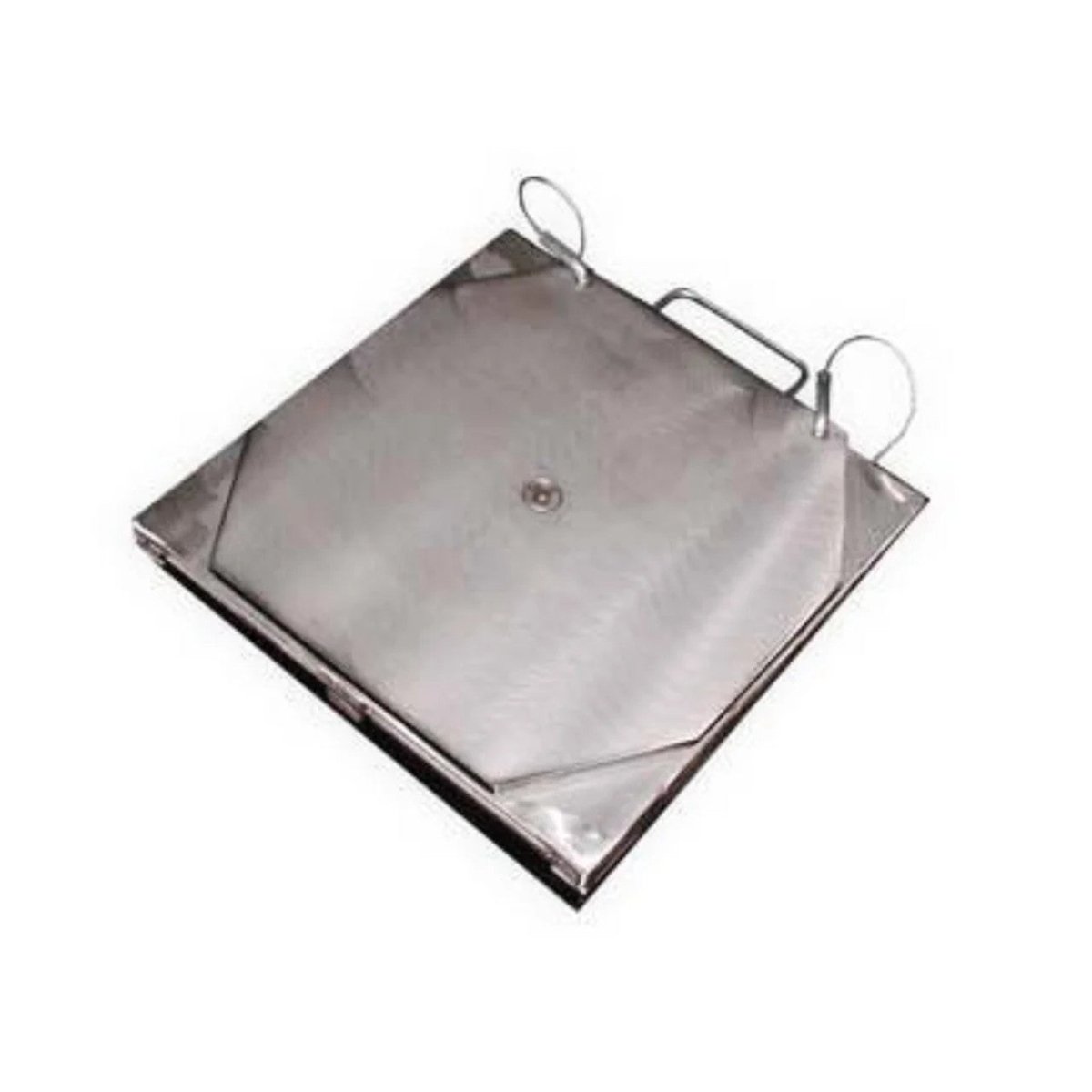

Challenger 10500SS Stainless Steel Turning Radius Gauges for Four Post Lifts
The Challenger 10500SS Stainless Steel Turning Radius Gauges allow you to build your own custom alignment lift or convert your existing flat deck or general service four post lift into a fully functional alignment-capable lift. Sold as a set of 2, these stainless steel turn plates are designed as a bolt-on kit for use with Challenger four post lifts including the 40 Series, 4P14 Series, 4115 Series, AR4115 Series, and 44018AR Alignment Racks. Weighing approximately 88 lb total, these gauges are built to withstand heavy daily use in professional alignment shops. Backed by Challenger's 90-day accessory warranty, the 10500SS is an essential upgrade for shops looking to expand their service offerings and increase revenue.
Challenger 10500SS Features
Stainless Steel Construction
The 10500SS turning radius gauges are manufactured from premium stainless steel, providing superior corrosion resistance compared to standard powder-coated alternatives. This makes them ideal for shops in humid or high-moisture environments where longevity and consistent performance are critical.
3D Alignment System Compatible
These turn plates are fully compatible with modern 3D alignment systems, allowing your shop to perform precise wheel alignments using the latest technology. Pair them with a 3D alignment machine to deliver fast, accurate alignments that keep customers coming back.
Bolt-On Installation Design
The 10500SS installs as a bolt-on kit, meaning no welding or permanent modifications to your existing four post lift are required. This simplifies the upgrade process, reduces downtime, and preserves the integrity of your lift's structure.
Broad Lift Compatibility
Designed to work with a wide range of Challenger four post lifts including the 40 Series, 4P14 Series, 4115 Series, AR4115 Series, and 44018AR Alignment Racks. This versatility ensures you can upgrade your existing Challenger equipment without needing to replace your lift.
Precision Steering Angle Measurement
Turning radius gauges measure how many degrees the front wheels are turned left or right during an alignment. They are essential for accurately measuring caster, camber, and toe-out on turns, ensuring your alignments meet manufacturer specifications every time.
Revenue-Expanding Upgrade
By adding alignment capabilities to your existing general service four post lift, you can increase your shop's profitability without the cost of purchasing a dedicated alignment rack. Offer alignment services alongside your existing maintenance work to capture more revenue per bay.
Challenger 10500SS Applications
- Four Post Lift Alignment Conversion: Convert your existing Challenger flat deck or general service four post lift into an alignment-capable lift, expanding your shop's service menu without purchasing a new rack.
- Custom Alignment Rack Builds: Build a custom alignment setup by pairing the 10500SS turn plates with a compatible Challenger four post lift and your preferred 3D alignment system.
- Professional Alignment Shops: Equip additional bays with alignment capability to reduce wait times and increase throughput during peak service periods.
- Dealership Service Departments: Add alignment functionality to existing Challenger lifts in dealership service bays to handle warranty and maintenance alignment work in-house.
- Fleet Maintenance Facilities: Enable front-end alignment services for fleet vehicles on your existing Challenger four post lifts, reducing the need to outsource alignment work.
Challenger 10500SS Specifications
| Specification | Value |
|---|---|
| Model Number | 10500SS |
| Product Type | Turning Radius Gauges |
| Material | Stainless Steel |
| Quantity | Set of 2 |
| Installation Type | Bolt-On Kit |
| 3D Alignment Compatible | Yes |
| Specification | Value |
|---|---|
| Shipping Weight | 88 lb |
| Shipping Width | 5" |
| Shipping Height | 18" |
| Shipping Depth | 15" |
| Lift Series | Compatible |
|---|---|
| 40 Series | Yes |
| 4P14 Series | Yes |
| 4115 Series | Yes |
| AR4115 Series | Yes |
| 44018AR Alignment Racks | Yes |
Challenger 10500SS Installation Requirements
Bolt-On Installation
Method: The 10500SS turning radius gauges install directly onto compatible Challenger four post lifts using a bolt-on kit design. No welding or permanent structural modifications are required. Follow all instructions provided in the installation manual for proper placement and fastener torque specifications.
Compatible Lift Required
Prerequisite: A compatible Challenger four post lift must already be properly installed and operational. Compatible models include the 40 Series, 4P14 Series, 4115 Series, AR4115 Series, and 44018AR Alignment Racks. Verify your lift model before purchasing.
Alignment System Pairing
3D Alignment: To perform alignments after installation, you will need a compatible 3D alignment system (sold separately). Ensure your alignment equipment is calibrated and configured for use with turning radius gauges on a four post platform.
Professional Installation
Professional installation by a Challenger-authorized technician is recommended to ensure proper fit, function, and warranty coverage. Improper installation may void the warranty on both the gauges and the lift.
What's Included with the Challenger 10500SS
- Stainless steel turning radius gauges (set of 2)
- Bolt-on mounting hardware
- Installation instructions
Optional Accessories: Rear slip plates, heavy-duty turn plates, bolt-on alignment kit (Part #40200-3DSS with stainless steel turn plates), and 3D alignment system (sold separately).
Not Included: Four post lift (sold separately), 3D alignment machine, professional installation labor.
Challenger 10500SS Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-10 business days. International: Contact sales for quote.
Delivery Requirements
Shipping Weight: Approximately 88 lb. Delivery Type: Standard ground shipping. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 10500SS Warranty
Challenger Lifts Accessory Warranty
The Challenger 10500SS is covered under Challenger Lifts' standard accessory warranty, which provides protection against defects in materials and workmanship.
- 90 Days: Functional parts coverage including repair or replacement of defective components
Requirements: Product must be installed according to Challenger's specifications. Warranty registration must be completed online at challengerlifts.com. This warranty extends only to the original purchaser and is not transferable. Use of unapproved parts or accessories will void the warranty. Normal maintenance, adjustments, and damage caused by improper handling, abuse, or misuse are not covered.
Documents
Click to open in a new tab.
Questions About the Challenger 10500SS?
Our equipment specialists can help with compatibility verification, installation planning, and product selection for your shop.
Challenger 10500SS FAQ
What Challenger lifts are compatible with the 10500SS turning radius gauges?
The Challenger 10500SS is compatible with the following Challenger four post lift models: 40 Series, 4P14 Series, 4115 Series, AR4115 Series, and 44018AR Alignment Racks. Verify your specific lift model number before purchasing to ensure compatibility.
Are the 10500SS turning radius gauges 3D alignment compatible?
Yes, the Challenger 10500SS stainless steel turning radius gauges are fully compatible with modern 3D alignment systems. You will need a separate 3D alignment machine to perform alignments - the turn plates provide the necessary steering angle measurement platform.
What is the difference between the 10500SS and the 10500HD?
The 10500SS features stainless steel construction for superior corrosion resistance and durability, while the 10500HD uses a black powder coat finish. Both function identically as turning radius gauges, but the stainless steel version is better suited for shops in humid or high-moisture environments and offers a longer service life.
How do I install the 10500SS turning radius gauges?
The 10500SS uses a bolt-on installation design, meaning they attach directly to your compatible Challenger four post lift without welding or permanent modifications. Professional installation by a Challenger-authorized technician is recommended to ensure proper fit and to maintain warranty coverage.
What is the warranty on the Challenger 10500SS?
The 10500SS is covered under Challenger Lifts' accessory warranty, which provides 90 days of functional parts coverage. The warranty covers defects in materials and workmanship and requires the product to be installed per Challenger's specifications. Warranty registration must be completed online at challengerlifts.com.
What is included in the box?
The 10500SS ships as a set of 2 stainless steel turning radius gauges with bolt-on mounting hardware and installation instructions. The four post lift, 3D alignment machine, and professional installation labor are not included.
How is the 10500SS shipped?
The 10500SS ships via ground freight with a total shipping weight of approximately 88 lb. Free freight shipping is available to commercial addresses in the 48 contiguous United States. Inspect all packages upon delivery and note any damage on the bill of lading before signing.
Do I need any additional parts to perform alignments?
Yes. In addition to the 10500SS turning radius gauges, you will need a compatible Challenger four post lift (if you do not already have one), a 3D alignment machine, and potentially a bolt-on alignment kit (Part #40200-3DSS) if converting a general service four post lift. Optional rear slip plates are also available to complement your alignment setup.
Can I use the 10500SS on non-Challenger lifts?
No. The Challenger 10500SS is specifically engineered for use with Challenger four post lift models including the 40 Series, 4P14 Series, 4115 Series, AR4115 Series, and 44018AR Alignment Racks. Using them on non-compatible equipment is not recommended and may create safety hazards.
What is the return policy?
Returns are accepted within 30 days of delivery. The product must be unopened in its original packaging and accompanied by the purchase receipt. A 20% restocking fee applies, and the buyer is responsible for return freight costs. Contact our team before initiating a return.
What are turning radius gauges used for?
Turning radius gauges measure how many degrees the front wheels are turned left or right during a wheel alignment. They are essential for accurately measuring caster, camber, and toe-out on turns, which are critical alignment angles specified by vehicle manufacturers. Without turn plates, these measurements cannot be performed accurately on a four post lift platform.
How do I maintain the stainless steel turning radius gauges?
Keep the turning plate surfaces clean and free of debris, grease, and brake dust to ensure accurate readings and smooth rotation. Periodically inspect the bolt-on mounting hardware for tightness and check the gauge surfaces for any damage or excessive wear. Stainless steel construction minimizes corrosion concerns, but regular cleaning will keep the gauges performing at their best.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
