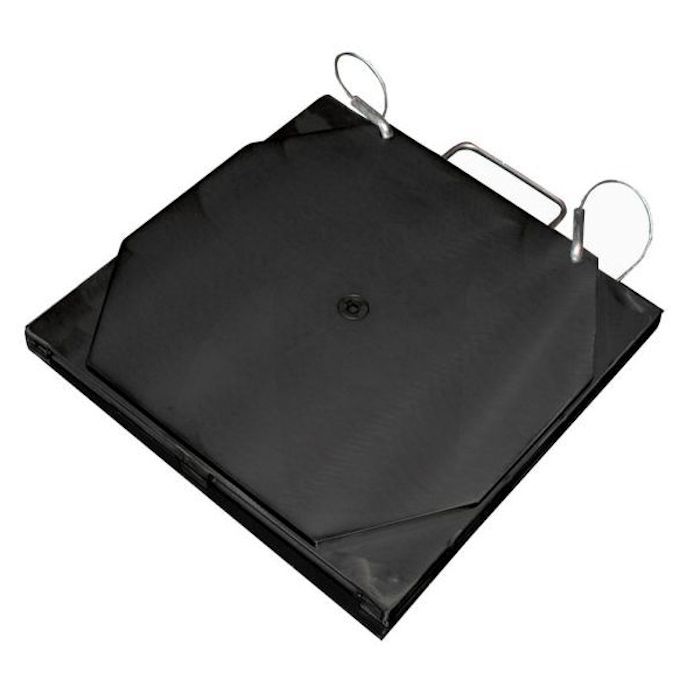

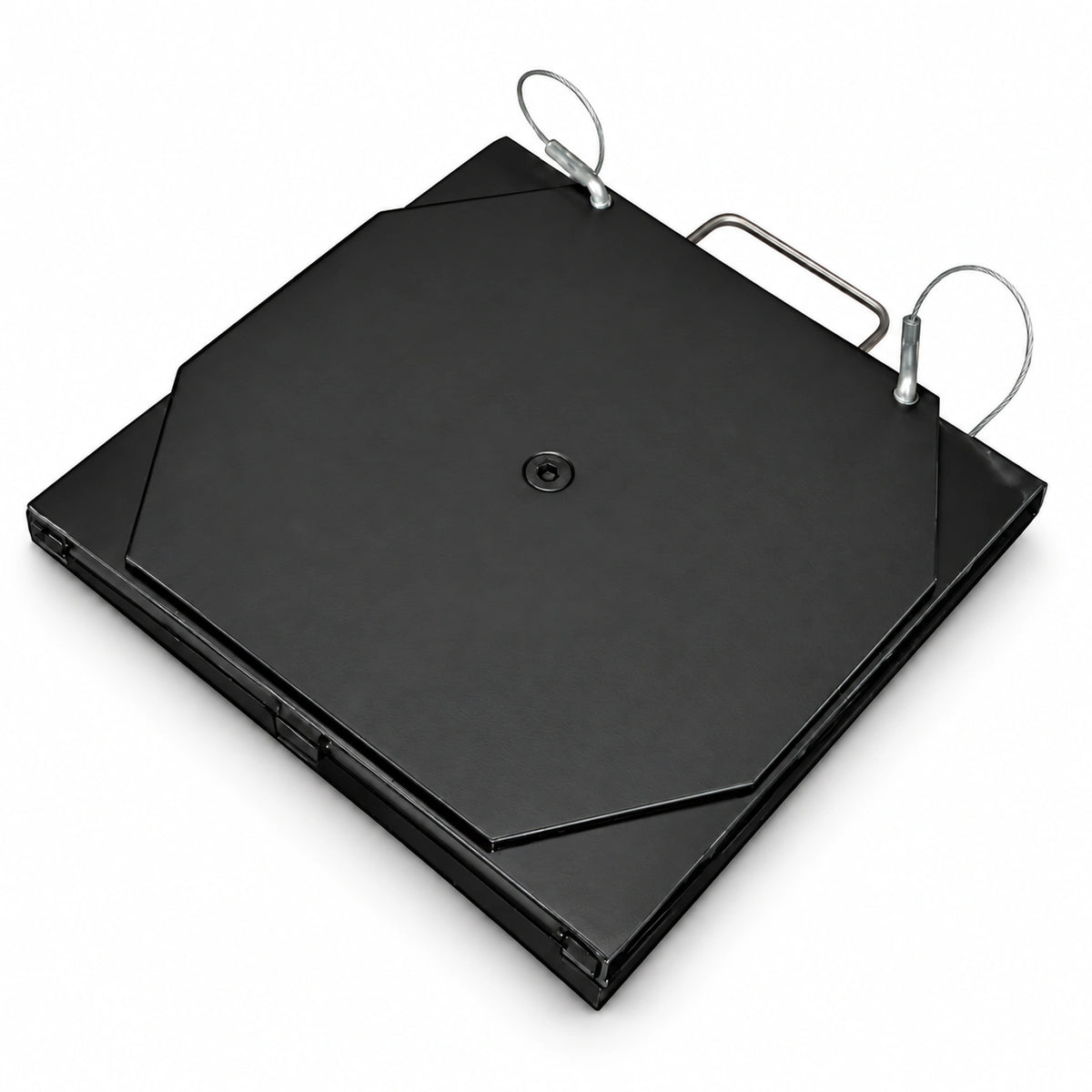

Challenger 10500HD 30K Heavy-Duty Turntables (Pair)
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger 10500HD Heavy-Duty Turning Radius Gauges – Professional Alignment Tool Set
The Challenger 10500HD is a professional-grade pair of heavy-duty turning radius gauges engineered specifically for wheel alignment operations on Challenger four-post alignment racks. These precision gauges enable accurate measurement and verification of vehicle turning radius during alignment procedures, ensuring compliance with manufacturer specifications on heavy-duty vehicles and light trucks.
Key Features & Benefits
Pair Set Configuration for Complete Alignment Measurement
The 10500HD includes a matched pair of turning radius gauges designed to work in tandem during wheel alignment operations on compatible Challenger alignment racks. This paired configuration enables technicians to measure and verify turning radius simultaneously on both vehicle sides, ensuring balanced and symmetrical alignment across the entire steering geometry.
Professional wheel alignment requires precise measurement of vehicle turning characteristics. Single gauge systems force multiple measurements and repositioning, slowing workflow and introducing measurement variance. Paired gauge design addresses this efficiency requirement by enabling side-by-side measurement during a single alignment setup cycle.
This accelerates alignment procedures by eliminating repeated measurements and gauge repositioning between left and right wheel alignment. Technicians complete radius measurement and verification in a single operation, improving shop throughput and measurement accuracy across heavy-vehicle alignment tasks.
ANSI-Approved Design for Compliance and Standardization
The 10500HD carries ANSI approval, confirming that the gauge system meets established professional standards for alignment measurement tools. This approval designation ensures the gauge set complies with industry-wide protocols for precision, accuracy, and measurement reliability, supporting professional alignment facility compliance requirements.
Professional automotive shops must adhere to industry standards when performing warranty work or fleet alignment services. ANSI-approved tools provide documentation of compliance with established measurement practices and quality standards. Non-compliant gauge systems can create liability exposure or invalidate warranty alignment claims on customer vehicles.
This delivers confidence that your shop operates with standards-compliant alignment equipment, supporting customer warranty claims and professional reputation. ANSI approval protects your facility's alignment credibility and enables service documentation that customer manufacturers recognize as meeting established industry protocols.
Black Powder Coat Finish for Durability in Shop Environments
The gauge surfaces feature a black powder coat finish engineered for heavy shop use, providing corrosion resistance, scratch protection, and long-term durability in high-humidity, chemical-exposure environments typical of professional service bays. This industrial finish maintains structural integrity and measurement accuracy across years of daily alignment operations.
Shop environments expose measurement tools to hydraulic fluids, cleaning solvents, moisture, and vibration from lift operations. Unprotected metal gauge surfaces develop corrosion, surface degradation, and measurement drift over time. Black powder coat finishing addresses this durability requirement by providing a protective barrier that maintains tool integrity in demanding shop conditions.
This extends gauge lifespan and maintains measurement reliability across years of professional use. The protective finish prevents surface oxidation and cosmetic degradation, ensuring your alignment gauges remain accurate and professional-looking throughout their operational life in busy service facilities.
Compatibility with Challenger Alignment Rack Systems
The 10500HD is engineered specifically for integration with Challenger 44030AR and 4030 Series four-post alignment racks, ensuring precise fit, proper engagement, and measurement accuracy on these professional-grade alignment platforms. This designed compatibility eliminates the uncertainty of generic gauge systems and ensures the tool functions as an integrated component of your alignment rack ecosystem.
Professional alignment facilities invest in complete lift and alignment tool systems from single manufacturers to ensure component compatibility and integrated functionality. Generic gauge tools often require custom mounting, adapter plates, or measurement adjustments that compromise accuracy or create installation complications. OEM-engineered gauges for specific rack models eliminate these compatibility concerns.
This delivers seamless integration with your existing Challenger alignment system, ensuring consistent performance and measurement reliability. The 10500HD functions as a designed extension of your alignment platform, maintaining the equipment manufacturer's warranty support and ensuring your facility operates with fully integrated, standards-compliant measurement systems.
Applications & Use Cases
- Heavy Vehicle Wheel Alignment: Professional alignment services for light-duty pickup trucks, vans, and heavy vehicles using Challenger four-post alignment racks equipped for precision steering geometry measurement.
- Fleet Alignment Operations: Commercial fleet maintenance facilities performing routine alignment verification and adjustment on multiple vehicles per shift with consistent, standards-compliant measurement equipment.
- Professional Service Shops: Independent automotive repair and alignment facilities requiring ANSI-approved tools that meet customer warranty documentation requirements and professional standards.
- Warranty Alignment Work: Manufacturers' warranty alignment procedures requiring documented use of standards-compliant measurement tools that meet OEM specifications and professional alignment protocols.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Turning Radius Gauges (set) |
| Part Number / SKU | 10500HD / CL-10500HD |
| Configuration | Pair (2-gauge set) |
| Compatible Alignment Racks | Challenger 44030AR and 4030 Series four-post alignment platforms |
| Finish | Black Powder Coat |
| Compliance | ANSI approved for professional alignment applications |
| Unit Weight | 200 lbs (90.7 kg) |
Installation & Setup Requirements
Alignment Rack Integration
- Compatible Rack Required: Challenger 44030AR or 4030 Series four-post alignment rack in proper working condition with gauge mounting provisions
- Gauge Attachment: Turning radius gauges attach to the alignment rack platform using manufacturer-specified mounting method and fasteners
- Positioning: Gauges position relative to vehicle wheel positioning on the alignment rack for turning radius measurement during alignment procedures
Setup & Operational Notes
- Rack Configuration: Verify alignment rack is properly set up and calibrated before using turning radius gauges. Gauge accuracy depends on proper rack functioning and baseline calibration.
- Gauge Verification: Confirm both gauges are securely mounted and properly positioned before beginning alignment measurement procedures
- Measurement Standards: Use gauges according to alignment procedure manuals and manufacturer specifications for accurate turning radius measurement and documentation
- Installation Hardware: Installation hardware inclusion is defined in the seller's order listing. Confirm all required mounting fasteners and attachment components are included with your order before beginning installation.
Warranty Coverage
Limited Warranty
Coverage: The 10500HD turning radius gauges are covered under a limited warranty covering defects in material and workmanship under normal use conditions.
Warranty Duration: Warranty duration varies by seller (typically 90 days to 1 year). Confirm specific warranty period and registration requirements with your seller at time of purchase.
Coverage Scope: Standard limited warranty covers manufacturing defects but excludes normal wear, misuse, unauthorized modifications, improper installation, and inadequate maintenance. Verify complete coverage terms with your seller or Challenger Lifts documentation.
Ready to Upgrade Your Alignment Capability?
Verify compatibility with your Challenger alignment rack, confirm installation requirements, and get expert guidance on tool integration. Our team can help with specification confirmation, rack compatibility verification, and professional setup support.
Frequently Asked Questions
What is the 10500HD used for?
The Challenger 10500HD is a pair of heavy-duty turning radius gauges used for professional wheel alignment operations. The gauges measure and verify vehicle turning radius during alignment procedures on Challenger four-post alignment racks, ensuring accurate steering geometry alignment and warranty compliance on light trucks and heavy vehicles.
Which Challenger alignment racks are compatible with the 10500HD?
The 10500HD is engineered specifically for Challenger 44030AR and 4030 Series four-post alignment racks. Before ordering, verify your alignment rack model matches one of these series. If you are uncertain about your alignment system, contact us to confirm compatibility with your specific rack model. Do not attempt to use this gauge set on other lift models or manufacturers.
What does ANSI approval mean for alignment gauges?
ANSI approval means the 10500HD gauge system meets established American National Standards Institute protocols for professional alignment measurement tools. This approval confirms the gauges meet industry-wide standards for precision, accuracy, and measurement reliability. ANSI compliance supports professional alignment facility requirements and enables customer warranty documentation. The approval designation ensures your shop operates with standards-compliant equipment.
Why are turning radius gauges sold as a pair?
The 10500HD is sold as a pair because professional wheel alignment requires measurement and verification on both sides of the vehicle simultaneously. The paired configuration enables technicians to measure left and right turning radius in a single setup cycle. Paired gauges improve workflow efficiency and measurement accuracy compared to single-gauge systems that require repositioning between multiple measurements. This accelerates alignment procedures in busy service facilities.
What does the black powder coat finish protect against?
The black powder coat finish protects the gauge surfaces against corrosion, rust, hydraulic fluid exposure, cleaning solvents, and moisture typical in professional service bays. This industrial-grade finish maintains surface integrity and prevents oxidation. The protective coating preserves measurement accuracy across years of daily alignment operations in demanding shop environments. The powder coat also maintains the professional appearance of the gauge set throughout its operational lifespan.
What installation support is included?
Installation hardware inclusion varies by seller. Some packages include all mounting fasteners and attachment components; others may require ordering separately. Call +1 (855) 498-2147 to confirm exactly which installation hardware is included with your specific 10500HD order before purchase.
What warranty coverage applies to the 10500HD?
The 10500HD is covered under Challenger's limited warranty covering manufacturing defects in materials and workmanship. Warranty duration is defined by the seller at time of purchase and typically ranges from 90 days to one year depending on your seller and registration compliance. Confirm specific warranty period, registration requirements, coverage scope, and claim procedures with your seller at the time of purchase to ensure you understand all coverage conditions.
Can the 10500HD be used with other alignment rack brands?
No, the 10500HD is engineered specifically for Challenger 44030AR and 4030 Series alignment racks. These gauges are not compatible with other manufacturers' alignment systems or different alignment rack configurations. Use only with compatible Challenger alignment racks to ensure proper fitment, measurement accuracy, and operational safety. Attempting to use these gauges on incompatible racks may compromise alignment results and system functionality.
