Challenger 10500 Turning Radius Gauges - Convert Your Four-Post Lift to an Alignment-Ready Lift
The Challenger 10500 Turning Radius Gauges enable professional automotive shops to add wheel alignment capability to compatible Challenger four-post lifts without investing in a full dedicated alignment rack. These mechanical turn plates accurately measure caster, camber, and toe-out angles during alignment procedures, requiring no electrical power, pneumatic connections, or hydraulic systems. Sold as a set of 2, the 10500 is compatible with Challenger 40 Series, 4P14 Series, 4115/AR4115 Series, 44018AR, and 4030/44030AR lift families. Available in standard powder-coated, heavy-duty, and stainless steel variants, the 10500 is backed by Challenger's 1-year limited warranty and designed and manufactured in Louisville, Kentucky.
Challenger 10500 Features
Alignment Conversion Without System Replacement
The 10500 Turning Radius Gauges transform standard Challenger four-post lifts into alignment-capable units by providing accurate caster, camber, and toe-out angle measurement during service operations. Rather than replacing your entire lift system to add alignment functionality, the 10500 offers a cost-effective bolt-on accessory solution that lets shops expand service offerings incrementally as business needs grow.
Broad Lift Compatibility Across Series Families
Compatible with a wide range of Challenger lift families including 40 Series, 4P14 Series, 4115/AR4115 Series, 44018AR, and 4030/44030AR alignment racks. This broad compatibility maximizes upgrade flexibility for multi-lift facilities, allowing a single gauge set to serve alignment needs across multiple pieces of equipment. Technicians can use the same gauge set across different lift models, reducing training burden and improving operational consistency.
Mechanical Simplicity with Zero Power Dependency
The 10500 operates as a purely mechanical measuring device requiring no electrical power, pneumatic connections, or hydraulic systems. Technicians place gauges under vehicle wheels and measure turning angles manually, eliminating the complexity and failure points associated with powered alignment systems. Shops can perform alignment work even during routine compressor or electrical maintenance without losing service capability.
Material Durability Options for Different Shop Environments

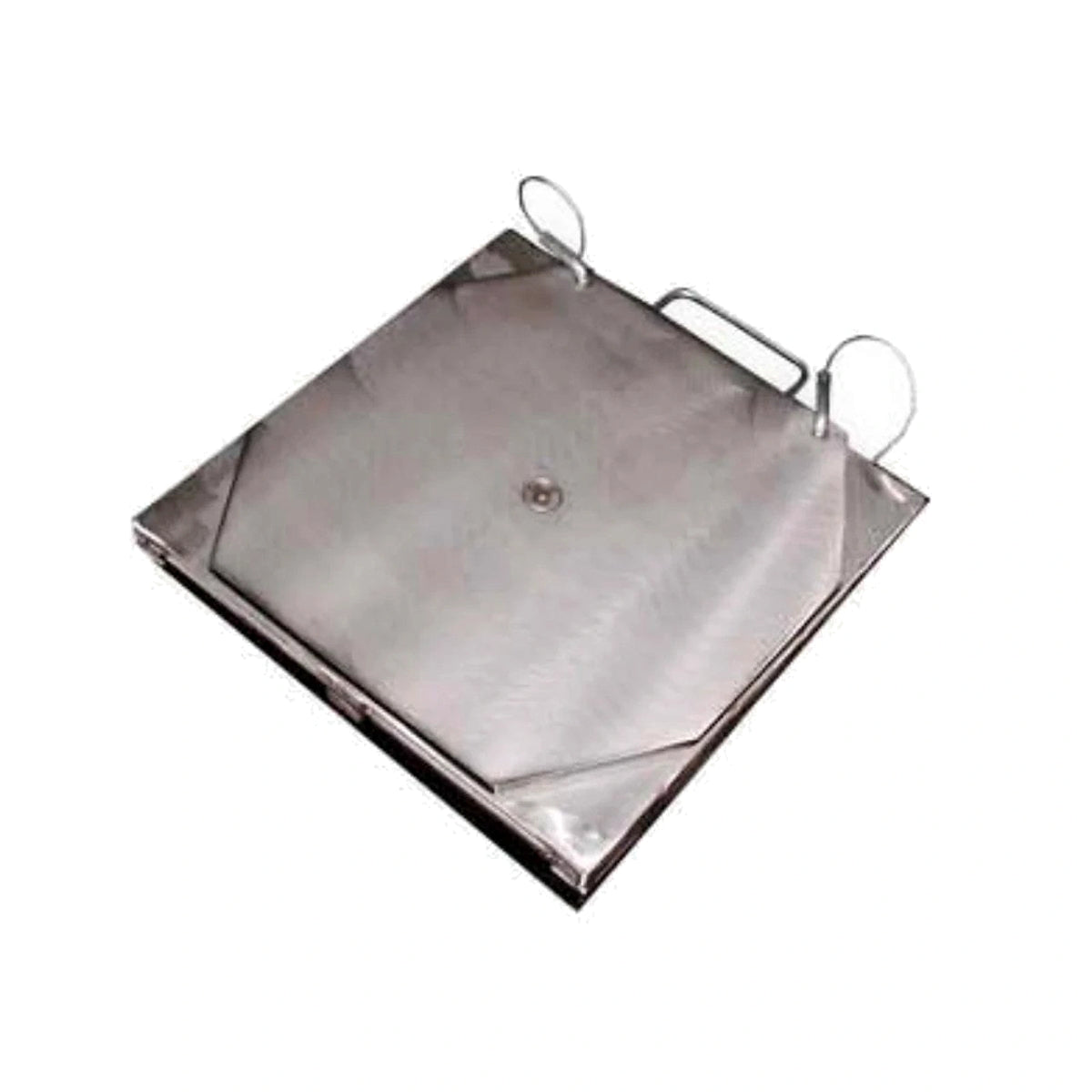

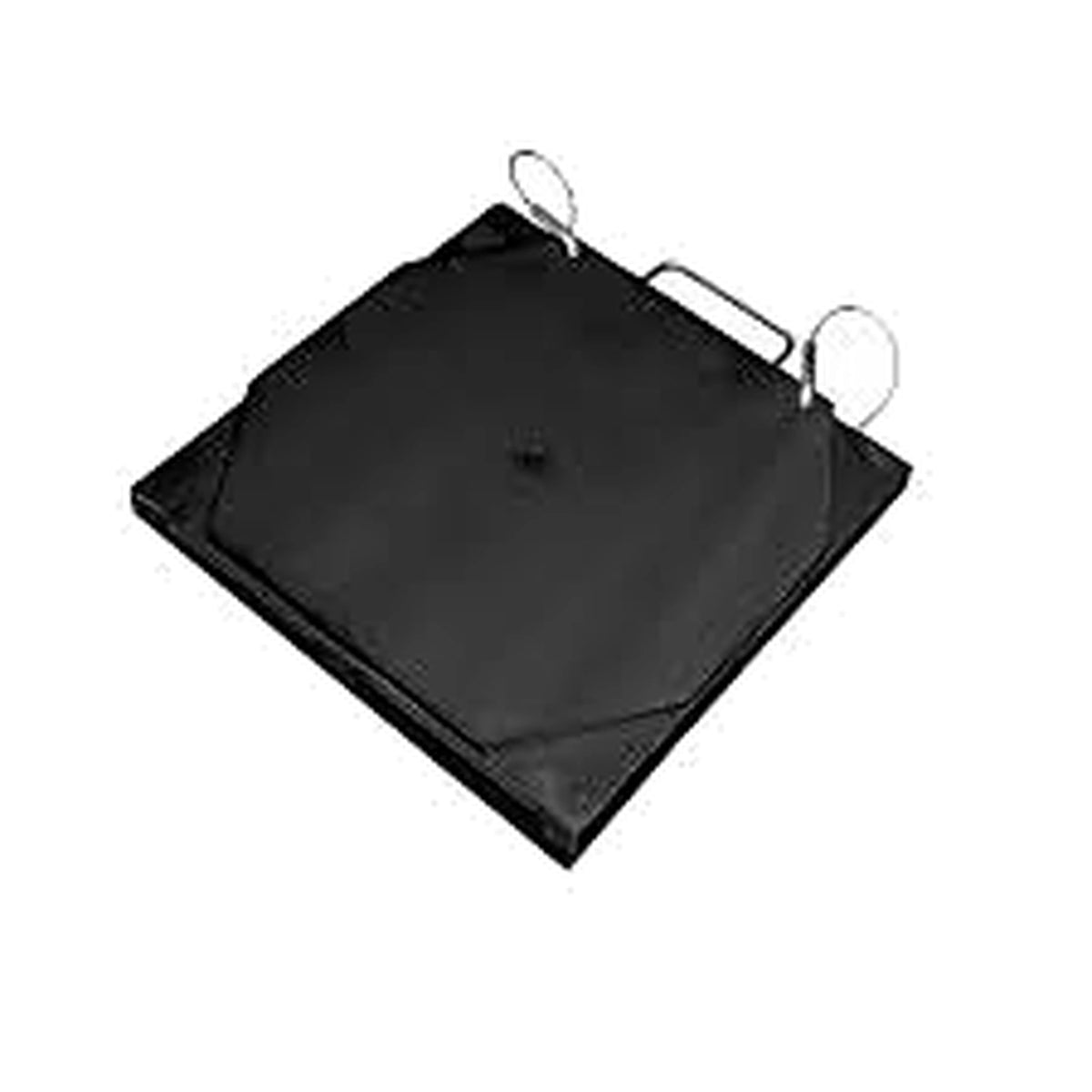

Available in standard powder-coated (10500), heavy-duty powder-coated (10500HD), and stainless steel (10500SS) variants to match specific shop conditions. Stainless steel construction resists corrosion in high-humidity or coastal environments, while heavy-duty variants provide extended durability under frequent use in high-volume service bays. Purpose-built variants extend product life and reduce replacement frequency in demanding environments.
3D Alignment Capable
The 10500 gauges are 3D alignment capable when paired with compatible Challenger bolt-on alignment kits (Part #40200-3D series). This enables shops to perform modern 3D wheel alignment procedures using their existing four-post lift infrastructure, delivering the same measurement capability as dedicated alignment racks without the dedicated equipment investment.
Bolt-On Kit Integration for Custom Lift Configurations
Designed to integrate with Challenger's bolt-on alignment kits, the 10500 gauges work as part of a modular upgrade system. General service four-post lifts can be converted to alignment-capable lifts using the bolt-on kit and turning radius gauges together. This modular approach lets shops build custom alignment lift configurations tailored to their specific service mix and bay layout.
Challenger 10500 Applications
- Professional Repair Shops: Independent and multi-bay automotive service facilities upgrading lift versatility to offer wheel alignment services without purchasing dedicated alignment racks. The 10500 enables shops to add alignment revenue without a major capital expenditure.
- Fleet Maintenance Operations: Commercial fleets and transportation companies performing alignment work on company vehicles using existing four-post lift infrastructure. Reduces the need for outsourcing alignment services or investing in standalone alignment equipment.
- Dealership Service Departments: Automotive dealerships looking to expand alignment capacity across multiple service bays by converting general-service four-post lifts into alignment-capable units during peak demand periods.
- Advanced Home Garages: High-end home workshop operators building multi-function lift capability for serious hobby mechanics or small custom fabrication operations where space and budget favor a modular approach to alignment capability.
- Custom Lift Configurations: Shops building specialized alignment lift setups using Challenger four-post or alignment rack bases with bolt-on accessory kits to create custom solutions tailored to their specific vehicle mix and service workflow.
Challenger 10500 Specifications
| Specification | Value |
|---|---|
| Type | Turning Radius Gauge |
| Quantity | Set of 2 |
| Measurements | Caster, Camber, Toe-Out on Turns |
| Adjustable | Yes |
| 3D Alignment Capable | Yes (with compatible bolt-on alignment kit) |
| Power Requirements | None - Mechanical Operation |
| Hardware Included | Yes |
| Specification | Value |
|---|---|
| Shipping Weight | 88 lb (stainless steel variant) |
| Shipping Dimensions | 15" D x 5" W x 18" H |
| Model | Description |
|---|---|
| 10500 | Standard Black Powder Coated - for 40 Series, 4P14 Series, 4115/AR4115 Series, 44018AR |
| 10500HD | Heavy-Duty Black Powder Coated - for 44030AR, 4030 Series Alignment Racks |
| 10500SS | Stainless Steel - for 40 Series, 4P12 Series, 4P14 Series, 4015 Series, 44018AR |
| Challenger Lift Series | Compatible Models |
|---|---|
| 40 Series | 10500, 10500SS |
| 4P12 Series | 10500SS |
| 4P14 Series | 10500, 10500SS |
| 4015 Series | 10500SS |
| 4115/AR4115 Series | 10500 |
| 44018AR | 10500, 10500SS |
| 44030AR / 4030 Series | 10500HD |
Challenger 10500 Installation Requirements
Power Requirements
None. The 10500 Turning Radius Gauges are purely mechanical devices requiring no electrical power, pneumatic connections, or hydraulic systems. No wiring, compressor hookups, or utility modifications are needed.
Compatible Lift Required
Prerequisite: A compatible Challenger four-post lift must be installed and operational. The 10500 integrates into the lift's existing runway structure. Verify your lift model is compatible before ordering. A bolt-on alignment kit (40200-3D series) may also be required depending on your lift model and desired alignment configuration.
Installation Process
The 10500 gauges are designed for bolt-on installation into compatible Challenger lift runways. No cutting, welding, or permanent structural modification to the lift is required. Gauges are placed into pre-cut turning radius gauge cutouts in the lift's front runways.
Professional Installation
While the 10500 is a bolt-on accessory, professional installation by an authorized Challenger installer is recommended to ensure proper fitment and alignment accuracy. Proper installation is required for warranty validation. Refer to Challenger's installation instructions for your specific lift model.
What's Included with the Challenger 10500
- Turning radius gauges (set of 2)
- Mounting hardware
- Installation instructions
Optional Accessories: Bolt-on alignment kit (Part #40200-3D, 40200-3DBK, or 40200-3DSS depending on configuration), rear slip plates, rolling jacks, ramp kits.
Not Included: Bolt-on alignment kit (sold separately if not already installed on your lift), compatible Challenger four-post lift, alignment system/heads, installation labor.
Challenger 10500 Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-10 business days. International: Contact sales for quote.
Delivery Requirements
Shipping Weight: Approximately 88 lb per set. Delivery Type: Standard ground shipping. Inspection: Inspect all packages for damage before signing the bill of lading. Note any damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger 10500 Warranty
Challenger Lifts Limited Warranty
Challenger Lifts, Inc. guarantees this product to the original owner. Challenger will repair or replace, at their option, parts that prove to be defective upon inspection and pay for reasonable costs of transportation and/or labor for the warranty period.
- 1 Year: Limited warranty covering defects in materials and workmanship
Requirements: Product must be installed, used, and maintained according to Challenger's specifications. Warranty registration must be completed upon installation. Warranty extends only to the original purchaser and is not transferable. Does not cover normal maintenance, adjustments, damage from improper handling, installation, abuse, misuse, negligence, or normal wear and tear. Extended warranty does not apply to accessories.
Documents
Click to open in a new tab.
Questions About the Challenger 10500?
Our equipment specialists can help with lift compatibility, installation planning, and product selection for your shop.
Challenger 10500 FAQ
What do the Challenger 10500 Turning Radius Gauges measure?
The 10500 Turning Radius Gauges measure caster, camber, and toe-out on turns during wheel alignment procedures. Technicians place the gauges under the front wheels and use them to measure the degree of left and right turning angle, which is essential data for performing accurate front-end wheel alignments.
Which Challenger lifts are compatible with the 10500?
Compatibility varies by model variant. The standard 10500 (powder-coated) fits 40 Series, 4P14 Series, 4115/AR4115 Series, and 44018AR lifts. The 10500HD (heavy-duty) fits 44030AR and 4030 Series alignment racks. The 10500SS (stainless steel) fits 40 Series, 4P12 Series, 4P14 Series, 4015 Series, and 44018AR lifts. Check your specific lift model before ordering to ensure compatibility.
What is the difference between the 10500, 10500HD, and 10500SS?
The three variants differ in material and lift compatibility. The 10500 features a standard black powder-coated finish for general shop environments. The 10500HD is a heavy-duty powder-coated version designed for the larger 4030 Series and 44030AR alignment racks. The 10500SS is constructed from stainless steel for maximum corrosion resistance in high-humidity or coastal shop environments. Each variant is engineered for specific Challenger lift families, so selecting the right model depends on both your shop conditions and your lift model.
Do the 10500 gauges require any electrical or pneumatic connections?
No. The 10500 Turning Radius Gauges are purely mechanical devices. They require no electrical power, pneumatic air supply, or hydraulic connections. This eliminates potential failure points associated with powered alignment systems and allows alignment work to continue even during shop utility maintenance.
Do I need a bolt-on alignment kit in addition to the turning radius gauges?
It depends on your lift model. General service four-post lifts typically require both the bolt-on alignment kit (Part #40200-3D series) and the turning radius gauges to convert to alignment capability. Some Challenger alignment rack models (like the 44018AR or 44030AR) have pre-cut gauge cutouts and may only require the gauges. Contact our equipment specialists at +1 (855) 498-2147 to confirm what your specific lift model needs.
Are the 10500 gauges 3D alignment capable?
Yes. The 10500 Turning Radius Gauges are 3D alignment capable when used with a compatible Challenger bolt-on alignment kit and a 3D alignment system. The gauges themselves provide the mechanical turn plate function needed for alignment head target positioning and turning angle measurement during 3D alignment procedures.
What warranty covers the Challenger 10500?
The 10500 is covered by Challenger Lifts' 1-year limited warranty to the original owner. Challenger will repair or replace parts that prove defective upon inspection during the warranty period. The product must be installed according to Challenger's specifications and registered with Challenger Lifts for warranty validation. Note that the extended warranty available for CL/EV Series lifts does not apply to accessories.
What is included in the box?
The 10500 ships as a set of 2 turning radius gauges with mounting hardware and installation instructions. The bolt-on alignment kit, compatible four-post lift, alignment system heads, rear slip plates, and rolling jacks are sold separately.
How are the 10500 gauges shipped?
The 10500 ships via standard ground freight with free shipping to commercial addresses in the 48 contiguous United States. The stainless steel variant weighs approximately 88 lb per set. Inspect all packages for damage before signing the bill of lading and note any damage on the delivery receipt immediately.
Can I install the 10500 myself?
The 10500 is a bolt-on accessory that does not require cutting, welding, or permanent structural modification. However, Challenger recommends professional installation by an authorized installer to ensure proper fitment and alignment accuracy. Proper installation is also required for warranty validation.
What optional accessories complement the 10500?
Challenger offers several accessories that work alongside the 10500 to build a complete alignment-capable lift setup. These include bolt-on alignment kits (40200-3D series), rear slip plates for four-wheel alignment capability, rolling jacks for undercar access, and ramp kits for drive-on convenience. Your specific lift model will determine which accessories are compatible and recommended.
How do I determine which 10500 variant I need?
Start by identifying your Challenger four-post lift model number. The standard 10500 fits most mid-range Challenger four-post lifts (40, 4P14, 4115 Series). The 10500HD is specifically designed for the heavier 4030 Series and 44030AR racks. The 10500SS provides stainless steel durability for the 40, 4P12, 4P14, 4015 Series, and 44018AR. If you're unsure which variant fits your lift, contact our equipment specialists at +1 (855) 498-2147 for assistance.
