BRANICK 6 Bar Truck Inflation Cage, Heavy-Duty Design
Branick 2260 6-Bar Truck Inflation Cage for Heavy-Duty Tire Service
The Branick 2260 is a stationary steel safety cage engineered to contain tire and rim failures while inflating large commercial, agricultural, and off-the-road tires. Built from high-yield 2-1/4" steel tubing with an arched flat-top design, this cage is designed to meet OSHA restraining-device requirements for tire service operations up to 120 psi.
Key Features & Benefits

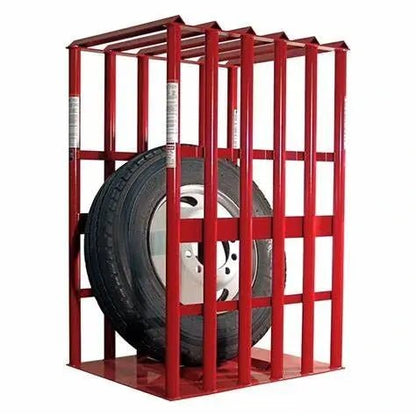

6-Bar Flat-Top Design with Maximum Tire Capacity
The 2260 provides six vertical bars with an arched flat-top profile, designed to contain tires up to 59 inches in overall diameter and 29 inches in cross-section width. This larger envelope accommodates super-single, wide-base, and heavy truck tires that exceed the capacity of typical 4- to 5-bar cages while maintaining a manageable 35-inch by 41-inch floor footprint.
Most competitor cages in this size class top out at 47 to 50 inches in diameter with narrower width capacity, limiting their use to standard truck tires. The Branick 2260 addresses this industry-wide challenge by providing a single cage solution for mixed fleets operating large commercial and agricultural tire equipment without requiring multiple cage sizes for different tire types.
This enables tire shops to consolidate equipment while maintaining compliance for inflating the full range of large-format tires—from over-the-road truck tires to agricultural and earthmover equipment tires—all within standard shop bay dimensions.

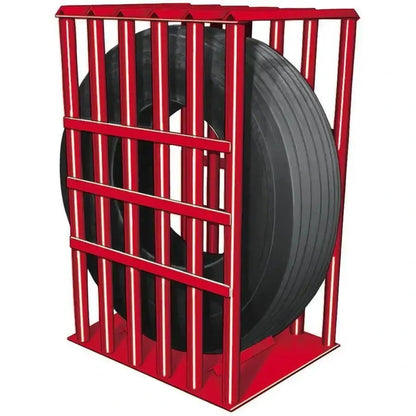

High-Yield 2-1/4 Inch Steel Tubing with Arched Energy Displacement
Constructed from 2-1/4 inch high-yield steel tubing, the cage is engineered with an arched design that distributes and displaces the force energy of catastrophic tire and rim failures across multiple structural surfaces. The heavy-duty tubing and arched geometry work together to contain the violent release of pressurized tire and rim components during explosive failures.
Traditional or lower-grade cage designs use thinner tubing or flat-bar configurations that concentrate failure forces at specific contact points, leading to cage compromise or operator exposure. The Branick 2260's high-yield construction and arched profile addresses this industry-wide safety challenge by providing multi-point force distribution that maintains cage integrity even under extreme failure scenarios.
This improves operator safety by ensuring the cage remains effective at its core function—containing failure debris—regardless of the violence or direction of the tire rupture event. The structural integrity of the tubing and design provides consistent protection across the full spectrum of tire inflation pressures and tire failure modes.
120 PSI Maximum Inflation Rating for Truck and OTR Operations
The Branick 2260 is rated for inflation pressures up to 120 psi, covering the full range of pressure requirements for commercial truck tires, agricultural tires, and most over-the-road equipment. The 120 psi specification is verified across multiple authorized dealer listings and manufacturer documentation, ensuring consistent performance across the tire service spectrum from standard truck operations to specialized agricultural and earthmover applications.
Some competitor cages in comparable size ranges advertise 130 psi ratings, though the Branick 2260's 120 psi rating is appropriate for the vast majority of commercial tire service. The cage is specifically engineered for the tire types and pressure profiles typical of fleet maintenance facilities, truck shops, and agricultural service centers—applications where 120 psi coverage is the practical standard for safe operation.
This delivers confidence that the cage is rated for the full working pressure of large truck and OTR tires without over-specification. The 120 psi rating has been proven through extensive commercial use in high-volume tire service environments, making it the trusted choice for shops prioritizing proven reliability over marketing claims.
OSHA 29 CFR 1910.177 Restraining Device Compliance
The Branick 2260 is explicitly designed to meet OSHA Standard 29 CFR 1910.177 requirements for restraining devices during tire inflation operations. This federal standard mandates the use of certified restraining cages during inflation of certain tire types and specifications, with requirements for remote inflation procedures, operator positioning outside the blast trajectory, and proper containment geometry to catch and contain tire and rim failures.
OSHA 1910.177 applies to inflation of tires exceeding specified size and pressure thresholds, making compliance mandatory in commercial tire service facilities. The Branick 2260 addresses this compliance requirement by providing a cage design that contains failure energy and integrates seamlessly with remote inflation procedures using clip-on chucks, in-line valves, and proper operator positioning at a safe distance from the cage.
This eliminates the compliance risk and liability exposure of using non-certified or undersized cages during high-pressure tire inflation. Tire shops and fleet maintenance centers can operate with confidence that they're meeting federal safety requirements while protecting technicians from catastrophic failure incidents.
385 Pound Weight for Stable, Stationary Installation
The 2260 weighs 385 pounds, providing substantial mass and stability for stationary installation on a solid concrete floor without shifting or tipping during tire inflation operations. The weight is concentrated low in the cage structure, creating a low center of gravity that maintains stability even when handling large, off-center tires or during pressure release events.
Lighter cage designs require anchoring or bolting systems to prevent movement during high-pressure operations, adding installation complexity and potential maintenance concerns. The Branick 2260's mass-based stability addresses this industry-wide challenge by using structural weight to ensure the cage remains stationary during all normal operations, reducing the number of installation variables and recurring maintenance requirements.
This simplifies facility installation and reduces operational risk by eliminating the need for specialized anchoring hardware or periodic bolt inspections. The heavy-duty construction provides passive stability that improves safety margins during rapid pressure release and ensures consistent, predictable cage performance across years of commercial tire service.
Made in USA with Broad Dealer Coverage and Specification Transparency
The Branick 2260 is manufactured in the USA and distributed through a large network of specialist equipment dealers including Tire Equipment Supply, Mile-X Equipment, RepQuip, and others. All authorized dealers reference consistent specification data from the manufacturer, including detailed spec sheets, installation guidance, and warranty information, ensuring buyers receive identical technical documentation regardless of purchase source.
Imported or commodity-grade cages often lack consistent documentation and dealer support, forcing buyers to verify specifications independently or rely on incomplete technical data. The Branick 2260's broad dealer presence and consistent specification language across all authorized retailers addresses this industry-wide challenge by providing buyers with verified, traceable technical information from multiple trusted sources.
This builds confidence in equipment reliability and provides buyers with access to the official Branick documentation ecosystem. Owners can reference consistent technical data for compliance audits, warranty claims, and facility documentation across any Branick-authorized dealer network.
Product Demonstration
Applications & Use Cases
- Commercial Truck & Bus Fleets: Heavy-duty tire service for Class 7-8 trucks and coaches using wide-base or super-single tires, where the large 59-inch diameter capacity is essential for mixed fleet operations.
- Agricultural Equipment Services: Farm and agricultural tire service for tractors, combines, and large farm machinery, including OTR (off-the-road) agricultural tires within the 59-inch diameter and 29-inch width envelope.
- Off-the-Road (OTR) Equipment Services: Tire inflation and service for earthmoving, construction, and mining equipment where tires exceed standard truck dimensions—including wheel loaders, graders, scrapers, and dozers.
- Fleet Maintenance Centers: Multi-brand fleet facilities handling mixed commercial truck fleets with varying tire sizes and pressure requirements, requiring a single-cage solution for OSHA compliance across diverse tire types.
- Tire Specialty Shops: Independent tire retailers specializing in commercial and agricultural tire service, where OSHA-compliant restraining devices are mandated for high-pressure inflation operations.
- Industrial Equipment Service Centers: General tire service facilities requiring certified restraining cages for any inflation of commercial-grade tires exceeding standard automotive size and pressure thresholds.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Tire Diameter | 59 inches (1,500 mm) |
| Maximum Tire Width (Cross Section) | 29 inches (737 mm) |
| Maximum Inflation Pressure | 120 psi (827 kPa) |
| Bar Configuration | 6 bars with flat-top arched design |
| Specification | Value |
|---|---|
| Internal Height | 60.25 inches (1,530 mm) |
| Internal Width | 29.5 inches (749 mm) |
| Internal Length | 40.75 inches (1,035 mm) |
| External Height | 62 inches (1,575 mm) |
| External Width | 35 inches (889 mm) |
| External Depth | 41 inches (1,041 mm) |
| Product Weight | 385 lb (175 kg) |
| Specification | Value |
|---|---|
| Tubing Material | 2-1/4 inch high-yield steel with arched tube design |
| Construction Type | Welded stationary cage assembly |
| Design Origin | Made in USA |
| Safety Standard | Meets OSHA 29 CFR 1910.177 requirements |
| Manufacturer | Branick (Model 2260 / PN 900-309) |
Installation Requirements
Foundation & Mounting
- Installation Surface: Solid, level concrete floor in a dedicated tire service area with adequate clearance for operator positioning and tire handling.
- Floor Space Required: Minimum 35 inches wide by 41 inches deep for cage footprint, plus recommended 3 to 4 feet of clearance on all sides for tire insertion and operator access.
- Weight Distribution: 385 lb unit distributes load across cage base; standard shop concrete slabs (typical 4 inches, 3,000 psi minimum) provide adequate support without special reinforcement.
- Anchoring: Model 2260 documentation on publicly available dealer sites does not explicitly specify anchor holes or mandatory bolting. Refer to Branick owner's manual for precise anchoring requirements and floor bolt specifications if applicable.
OSHA Compliance & Safety Procedure Requirements
- Restraining Device Use: OSHA 29 CFR 1910.177 mandates use of a certified restraining cage (such as the Branick 2260) during inflation of specified tire types exceeding certain size and pressure thresholds.
- Remote Inflation Setup: Operator must use a remote inflation system consisting of a clip-on chuck, inflation hose with in-line valve and gauge, and position operator outside the blast trajectory of the cage during all inflation operations.
- Operator Clearance: Ensure adequate clearance around the cage and away from other personnel during tire inflation. No bystanders or personnel should be positioned directly in line with the cage opening.
- Critical Warning: Tire and rim failures during inflation can result in catastrophic injuries or fatalities if proper restraining devices and remote inflation procedures are not followed. Always consult OSHA 1910.177 and Branick installation documentation before operating this equipment.
Installation Notes
- Permit & Code Compliance: Verify local building codes and safety regulations. Some jurisdictions may require facility inspections or permits before installation of tire service equipment.
- Facility Preparation: Confirm concrete condition and stability before installation. The cage is stationary and designed for indoor tire service areas; protect from outdoor weather exposure.
- Manual & Documentation: Refer to the Branick Model 2260 owner's manual for complete installation guidance, safety procedures, maintenance requirements, and warranty terms. The manual provides model-specific details beyond publicly available dealer specifications.
Shipping & Delivery
Freight Shipping
Delivery Method: The Branick 2260 ships exclusively by truck freight (LTL - less-than-truckload) due to size and weight. Standard delivery is to commercial addresses.
Residential & Limited-Access Delivery: Residential addresses and limited-access locations (farms, remote facilities, narrow driveways) may incur additional surcharges. Request a shipping quote for your specific location to determine exact freight costs and delivery options.
Lift-Gate Service: Optional lift-gate unloading service is available at additional cost and is recommended for locations without forklift access or loading dock facilities.
Delivery Requirements
Equipment Required: Receiving location must have minimum 3,000 lb capacity forklift or loading dock to unload pallet-shipped cage. If forklift is not available, lift-gate delivery service option can be arranged.
Receiving Inspection: Inspect all packages immediately upon delivery before signing bill of lading. Note any visible shipping damage on the BOL; the carrier requires damage notation at time of delivery for concealed damage claims.
Damage Reporting Timeframe: Report concealed damage to carrier within specified days of delivery (refer to freight bill terms). Photographic documentation of damage is required for any freight claims.
Ready to Upgrade Your Tire Service Operation?
Get expert guidance on selecting the right inflation cage for your facility. Our team can help with product questions, OSHA compliance verification, shipping quotes, and technical specifications for your specific applications.
Frequently Asked Questions
What is the maximum tire size the Branick 2260 can handle?
The Branick 2260 accommodates tires up to 59 inches in overall diameter and 29 inches in cross-section width, making it suitable for large truck, agricultural, and OTR equipment tires that exceed the capacity of standard 4- to 5-bar cages. This size range covers most commercial truck applications, farm equipment, and earthmover tires.
Is the Branick 2260 OSHA compliant for tire inflation?
Yes, the Branick 2260 is designed to meet OSHA Standard 29 CFR 1910.177 requirements for restraining devices during high-pressure tire inflation. When used with proper remote inflation procedures (clip-on chuck, in-line gauge and valve, operator outside blast trajectory), it satisfies federal safety requirements for commercial tire service facilities.
What are the installation space requirements for the Branick 2260?
The cage has a 35-inch width by 41-inch depth footprint. Recommended clearance is 3 to 4 feet on all sides for tire insertion and operator access. Installation requires a solid, level concrete floor typical of commercial tire service bays. Refer to the Branick owner's manual for detailed anchoring specifications if required by your facility.
What is included with the Branick 2260?
The Branick 2260 ships as a complete 6-bar cage assembly. Inflator systems, hoses, chucks, and roller kits are sold separately and can be selected based on your facility's existing equipment and workflow. Call to confirm included accessories or discuss compatible accessory options.
What is the shipping method and cost for the Branick 2260?
The cage ships by LTL truck freight only, classified in the 385-640 lb freight range (product weight plus crate), and requires a shipping quote based on your delivery location. Residential addresses, limited-access areas, and optional lift-gate service may incur additional surcharges. Typical delivery timeframe is 7-14 business days from order placement, subject to inventory and carrier availability. Contact sales for a personalized shipping quote to your specific facility.
What is the pressure rating of the Branick 2260?
The Branick 2260 is rated for inflation pressures up to 120 psi, covering the full operating range of commercial truck tires, agricultural tires, and most OTR equipment applications. This pressure specification has been verified across authorized dealer documentation and manufacturer listings.
What is the warranty coverage for the Branick 2260?
Warranty terms are outlined in the Branick owner's manual with coverage addressing defects in materials and workmanship. While the exact warranty duration is not universally published across dealer listings, typical industrial tire cage warranties cover product defects for 1 year from date of purchase and require RMA authorization from Branick before service or return. Contact Branick directly or refer to your owner's manual for specific warranty duration and eligible components.
What tire applications is the Branick 2260 best suited for?
The cage is ideal for commercial truck fleets, agricultural equipment, and OTR/earthmover operations requiring OSHA-compliant tire service. It handles super-single tires, wide-base tires, heavy truck and bus tires, agricultural tractor tires, and equipment tires exceeding standard truck dimensions within the 59-inch diameter and 29-inch width envelope.
