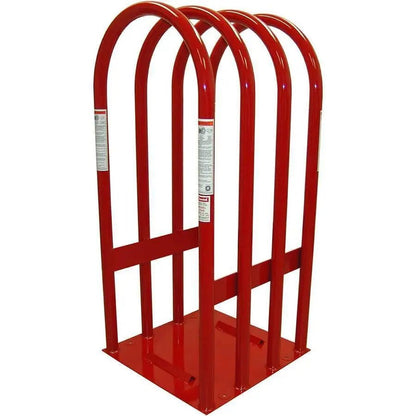

Branick Truck Inflation Cage (4 Bar) - 34 / No / No - Tire

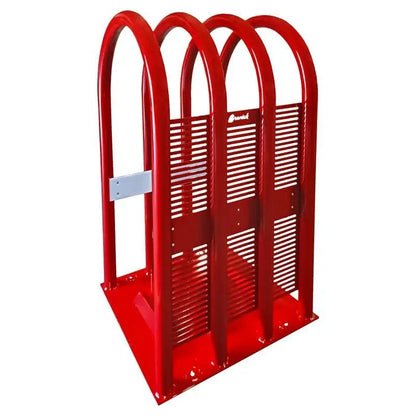

Branick Truck Inflation Cage (4 Bar) - 54 / Yes / No - Tire

BRANICK Truck Inflation Cage, 4 Bar, Heavy-Duty Steel

Q: What tire sizes does the Branick 2240 accommodate? A: The Model 2240 restrains commercial truck tires up to 54 inches in diameter and 21.5 inches wide during inflation to 120 PSI. This capacity covers standard truck tires, super singles, and wide-base tires used in most commercial operations.

Q: What tire sizes does the Branick 2240 accommodate? The Model 2240 restrains commercial truck tires up to 54 inches in diameter and 21.5 inches wide during inflation to 120 PSI. This capacity covers standard truck tires, super singles, and wide-base tires used in most commercial operations.

Q: Is the Branick 2240 OSHA compliant? A: Yes, the Model 2240 meets OSHA Standard 29 CFR 1910.177 requirements for restraining devices used when servicing multi-piece and single-piece rim wheels. It provides compliance documentation for workplace safety audits.

Q: Is the Branick 2240 OSHA compliant? Yes, the Model 2240 meets OSHA Standard 29 CFR 1910.177 requirements for restraining devices used when servicing multi-piece and single-piece rim wheels. It provides compliance documentation for workplace safety audits.

Q: Does the cage need to be bolted to the floor? A: No, the Branick 2240 must not be bolted to floors per OSHA guidance. Anchor bolts can shear during tire failure events. The cage should rest on level flooring with minimum 1-foot clearance from walls. The 170-pound weight provides adequate stability.

Q: Does the cage need to be bolted to the floor? No, the Branick 2240 must not be bolted to floors per OSHA guidance. Anchor bolts can shear during tire failure events. The cage should rest on level flooring with minimum 1-foot clearance from walls. The 170-pound weight provides adequate stability.

Q: What is the No-Mar option? A: The No-Mar variant (Model 2240NM) includes factory-installed poly side strips that protect aluminum wheels from scratches during tire inflation. The strips are field-replaceable and maintain full OSHA-compliant restraint function while preserving wheel appearance for premium fleet applications.

Q: What is the No-Mar option? The No-Mar variant (Model 2240NM) includes factory-installed poly side strips that protect aluminum wheels from scratches during tire inflation. The strips are field-replaceable and maintain full OSHA-compliant restraint function while preserving wheel appearance for premium fleet applications.

Q: What warranty does Branick provide? A: Branick provides a 1-year warranty from date of shipment covering defective materials or workmanship. Warranty claims require contacting Branick Industries at 800-437-4394 for Return Merchandise Authorization with proof of original shipment date.

Q: What warranty does Branick provide? Branick provides a 1-year warranty from date of shipment covering defective materials or workmanship. Warranty claims require contacting Branick Industries at 800-437-4394 for Return Merchandise Authorization with proof of original shipment date.

$564.88

Tire Height: 34"

No-Mar: No

Side Mesh: No

Product variants

Commercial Truck Tire Safety Cage - Branick 2240 (4-Bar, 54" Capacity)

The Branick Model 2240 is a heavy-duty, 4-bar steel tire inflation cage designed for commercial truck tire service operations. Standing 60 inches tall with a 28×28 inch footprint, this OSHA tire cage safely restrains tires up to 54 inches in diameter during inflation to 120 PSI. Constructed from 2.25-inch high-yield steel tubing with an arched energy displacement design, it meets OSHA Standard 29 CFR 1910.177 requirements. Manufactured in Fargo, North Dakota by Branick Industries since 1923, the cage serves fleet maintenance facilities, commercial tire shops, and truck dealership service departments.

Key Features and Benefits

Full Super Single Tire Compatibility - Accommodates commercial truck tires up to 54 inches in diameter and 21.5 inches wide, handling standard dual truck tires and modern wide-base super singles. Eliminates the need for multiple cage sizes in fleet operations.

Arched High-Yield Steel Construction - Features 2.25-inch diameter high-yield steel tubing formed into an arched design for energy displacement during tire failure events. The mandrel-bent geometry provides structural integrity while the powder-coated finish resists corrosion.

OSHA 29 CFR 1910.177 Certified - Meets all OSHA restraining device requirements for commercial tire inflation. Simplifies workplace safety audits and compliance verification for fleet maintenance and tire service operations.

Applications

Fleet maintenance facilities servicing municipal and private trucking operations.
Commercial tire service centers specializing in truck and bus tire service.
Truck dealership service departments handling heavy-duty vehicle maintenance.
Industrial facilities with internal fleet maintenance programs.

Specifications

Branick Model 2240 Technical Specifications
Specification	Value
Model Number	2240
Maximum Tire Diameter	54 inches
Maximum Tire Width	21.5 inches
Overall Height	60 inches
Base Footprint	28" × 28"
Bar Configuration	4-bar restraint system
Steel Tubing Diameter	2.25 inches
Maximum Inflation Pressure	120 PSI
Weight	170 lbs
Manufacturing Origin	Made in USA
Compliance	OSHA 29 CFR 1910.177

OSHA-Compliant Protection from a Trusted Manufacturer

Branick Industries has manufactured tire service safety equipment since 1923. The Model 2240 includes a 1-year warranty and ships via LTL freight. Contact for shipping quotes and warranty details.

Frequently Asked Questions

What tire sizes does the Branick 2240 accommodate?

The Model 2240 restrains commercial truck tires up to 54 inches in diameter and 21.5 inches wide during inflation to 120 PSI. This capacity covers standard truck tires, super singles, and wide-base tires used in most commercial operations.

Is the Branick 2240 OSHA compliant?

Yes, the Model 2240 meets OSHA Standard 29 CFR 1910.177 requirements for restraining devices used when servicing multi-piece and single-piece rim wheels. It provides compliance documentation for workplace safety audits.

Does the cage need to be bolted to the floor?

No, the Branick 2240 must not be bolted to floors per OSHA guidance. Anchor bolts can shear during tire failure events. The cage should rest on level flooring with minimum 1-foot clearance from walls. The 170-pound weight provides adequate stability.

What is the No-Mar option?

The No-Mar variant (Model 2240NM) includes factory-installed poly side strips that protect aluminum wheels from scratches during tire inflation. The strips are field-replaceable and maintain full OSHA-compliant restraint function while preserving wheel appearance for premium fleet applications.

What warranty does Branick provide?

Branick provides a 1-year warranty from date of shipment covering defective materials or workmanship. Warranty claims require contacting Branick Industries at 800-437-4394 for Return Merchandise Authorization with proof of original shipment date.
