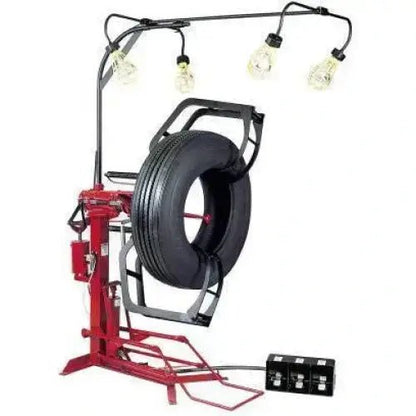

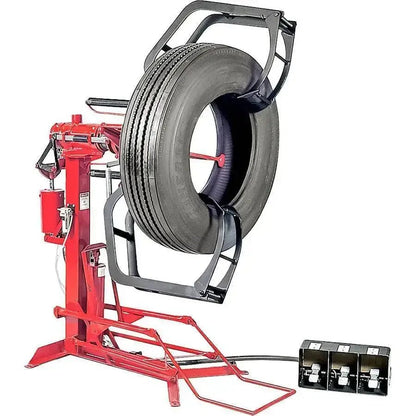

BRANICK 900-102 EF Air Powered Full Circle Truck Tire Spreader
Branick 900-102 EF - Air Powered Full Circle Tire Spreader with 360-Degree Rotation
The Branick 900-102 EF delivers professional tire service capabilities in a floor-standing, air-powered design. Featuring 47.75" working height with full 360-degree rotation, this heavy-duty spreader handles 12"-28" bead diameters across passenger through OTR applications. Built with all-steel construction in Fargo, ND for maximum durability and stability.
Key Features & Benefits
Complete 360-Degree Access System
The full-circle rotation capability provides 360-degree tire access without requiring tire repositioning or technician movement around the spreader. This pneumatically-driven rotation system operates smoothly through the complete range, maintaining consistent positioning control throughout the rotation cycle.
Traditional tire spreaders require multiple manual repositioning steps during inspection and repair operations. This system addresses the industry-wide challenge of incomplete tire access by eliminating blind spots and reducing the number of setup adjustments needed during service procedures.
This enables faster, more thorough tire inspections by providing complete access to all tire surfaces from a single working position. Technicians can perform buffing, patching, and inspection operations without interrupting their workflow to reposition equipment or tires.
Integrated Air-Lift to Working Height
The pneumatic lift system raises tires to an ergonomic 47.75" working height (121.3 cm) using compressed air operation with floor-mounted foot controls. This air-powered mechanism eliminates manual lifting and provides consistent, repeatable positioning for all tire sizes within the capacity range.
Manual tire lifting and awkward working positions cause technician fatigue and potential injury in high-volume tire service operations. The system addresses this challenge by bringing the work to a comfortable standing height, reducing physical strain during extended service sessions.
This improves technician productivity by eliminating the physical effort required for tire positioning and enables safer, more precise work execution. The hands-free foot control operation keeps both hands available for tire manipulation and tool operation.
Maximum Tire Range Versatility
The spreader accommodates 12"-28" bead diameters with 4"-11" cross sections, handling everything from passenger car tires through heavy commercial and OTR applications. The robust spread arm design maintains secure tire holding across this full range without requiring adapter changes or setup modifications.
Multiple tire spreaders are typically required to handle the range from passenger cars to commercial trucks and agricultural equipment. This versatility addresses the equipment proliferation challenge by consolidating multiple tire types into a single unit, reducing shop space requirements and equipment investment.
This enables shops to service diverse tire types with one spreader, reducing equipment costs and simplifying technician training. The wide capacity range supports passenger, truck, super-single, bus, and OTR tire service from a single platform.
Heavy-Duty American Manufacturing
Built with 976-pound all-steel construction and manufactured in Fargo, North Dakota, this spreader provides exceptional stability and durability. The heavy-duty frame design eliminates vibration and movement during operation, while the American manufacturing ensures parts availability and technical support.
Lightweight tire spreaders can shift or vibrate during heavy tire operations, compromising safety and work quality. The substantial construction addresses stability concerns while providing the foundation for reliable long-term operation in commercial tire service environments.
This ensures consistent performance under demanding commercial use while supporting American manufacturing jobs. The robust construction reduces maintenance requirements and extends equipment life in high-volume tire service operations.
Product Demonstration
Applications & Use Cases
- Commercial Tire Shops: Passenger car tire service, light truck tire inspection and repair for complete automotive tire service capabilities
- Heavy Truck Service Centers: Commercial truck tire maintenance including super-single tire service and dual-wheel tire inspection
- Fleet Maintenance Facilities: Bus tire service, delivery truck tire maintenance, and commercial vehicle tire repair operations
- Agricultural Service: Tractor tire work, farm equipment tire service, and agricultural tire inspection and buffing
- Off-the-Road Applications: Construction equipment tire service, industrial vehicle tire maintenance, and heavy machinery tire repair
- Tire Retreading Operations: Commercial tire buffing preparation, retread inspection, and tire casing evaluation for retreading facilities
Technical Specifications
| Specification | Value |
|---|---|
| Bead Diameter Range | 12" - 28" |
| Cross Section Range | 4" - 11" |
| Working Height | 47.75" (121.3 cm) |
| Rotation Capability | Full 360-degree |
| Power Source | Air-operated |
| Specification | Value |
|---|---|
| Overall Length | 60" |
| Overall Width | 29" |
| Overall Height | 78" |
| Unit Weight | 976 lbs |
| Construction | Heavy-duty steel |
| Manufacturing | Made in USA (Fargo, ND) |
| Specification | Value |
|---|---|
| Air Pressure Minimum | 100 PSI |
| Air Connection | 1/4" NPT quick coupler |
| Control Type | Floor-mounted foot controls |
| Operation | Hands-free pneumatic |
Installation Requirements
Foundation & Mounting
- Floor Surface: Solid, level floor surface required for stable operation
- Floor Bolting: Optional anchoring through base frame holes (hardware not included)
- Load Capacity: Floor must support 976 lb unit weight plus maximum tire load
Air Supply Requirements
- Minimum Pressure: 100 PSI continuous supply required
- Connection Type: 1/4" NPT quick coupler fitting
- Air Quality: Clean, dry compressed air recommended for optimal performance
Clearance Requirements
- Rear Clearance: Minimum 12" behind unit for service access
- Side Clearances: Minimum 24" on sides for tire loading and operator movement
- Overhead Clearance: 78" minimum ceiling height for full operation
Assembly & Setup
- Assembly Required: Lift cradle and spread arm springs attachment during setup
- Professional Installation: Qualified personnel recommended for proper setup and safety compliance
Shipping & Delivery
Freight Requirements
Shipping Method: Freight/LTL shipping required due to 976 lb weight and 60" x 29" x 78" dimensions.
Delivery Address: Commercial address delivery typically required by freight carriers.
Shipping Quotes: Custom freight quotes necessary due to dimensional weight considerations and freight class requirements.
Delivery Logistics
Unloading Equipment: Forklift or dock access recommended for safe unloading of 976 lb unit.
Delivery Type: Curbside freight delivery standard (inside delivery available for additional cost).
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Manufacturer Warranty Program
1 Year Coverage: Materials and workmanship defects covered from shipment date
Repair or Replacement: At manufacturer discretion based on defect assessment
Return Authorization: RMA required for all warranty service with prepaid return transportation
Warranty Conditions
Coverage Period: One year from original shipment date (non-transferable)
Eligibility: Valid for original purchaser with proper installation and normal use
Exclusions: Normal wear items, misuse, and damage from improper installation not covered
Ready to Upgrade Your Tire Service?
Get expert guidance on tire spreader selection and installation planning. Our team can help with technical specifications, freight logistics, and setup requirements for your facility.
Frequently Asked Questions
What tire sizes can the Branick 900-102 EF handle?
The spreader accommodates 12"-28" bead diameters with 4"-11" cross sections, covering passenger cars through OTR tires. This range includes passenger vehicles, light trucks, commercial trucks, super-single tires, buses, agricultural equipment, and off-the-road applications in a single unit.
What air pressure is required to operate this tire spreader?
Minimum 100 PSI continuous air supply is required through a 1/4" NPT quick coupler connection. Clean, dry compressed air is recommended for optimal performance and longevity of the pneumatic components. The air supply powers both the lift mechanism and rotation system.
What is included with the Branick 900-102 EF purchase?
The purchase includes the main spreader assembly with integrated tire lift mechanism and spread arms. The complete unit weighs 976 lbs and measures 60" L × 29" W × 78" H when fully assembled. Some assembly is required for the lift cradle and spread arm springs during setup. Call to confirm specific included accessories and components.
What are the installation requirements for this tire spreader?
Installation requires a solid, level floor surface capable of supporting 976 lbs plus tire weight. Air supply of 100 PSI minimum through 1/4" NPT quick coupler is needed. Clearances include 12" behind the unit and 24" on sides for operation and tire loading access.
Is the Branick 900-102 EF suitable for commercial tire shops?
Yes, this spreader is designed specifically for professional commercial tire service operations. With 12"-28" bead diameter capacity and 976 lb heavy-duty construction, it handles passenger car through heavy commercial applications, making it suitable for tire shops, truck service centers, fleet maintenance facilities, and agricultural service operations requiring versatile tire service capabilities.
What safety features does this tire spreader have?
Safety features include hands-free floor-mounted foot controls that keep both hands available for tire work, and heavy-duty all-steel construction providing 976 lbs of stability. The unit carries California Proposition 65 compliance notices and is manufactured to industrial safety standards in Fargo, ND.
What warranty coverage is provided with the Branick 900-102 EF?
The spreader includes a one-year warranty from shipment date covering defective materials and workmanship. Repairs or replacement are handled at manufacturer discretion, with RMA required for warranty service. Prepaid return transportation is provided for warranty claims to the original purchaser.
How is the Branick 900-102 EF shipped and what are delivery requirements?
The unit ships via freight/LTL due to its 976 lb weight and 60" x 29" x 78" dimensions. Commercial address delivery is typically required by freight carriers. Forklift or dock access is recommended for safe unloading, and custom freight quotes are necessary due to dimensional weight considerations.
