BRANICK 7600 Strut Spring Compressor, Safe & Efficient Compression
Professional Strut Spring Compressor - Branick 7600 (3000 lbs Capacity)

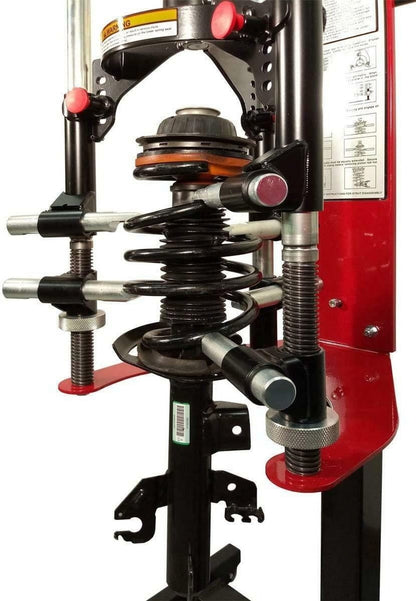

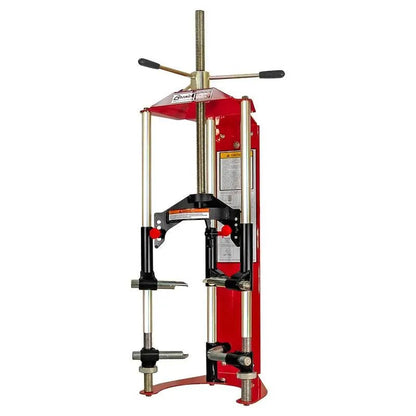

The Branick 7600 Strut Spring Compressor handles suspension service on light trucks, SUVs, and passenger vehicles without requiring adapters. This wall mount strut compressor compresses coil springs up to 3,000 lbs capacity across a 3.5" to 11.5" diameter range. All-steel construction with heavy-duty ACME thread drive provides the control and safety features professional shops need.
OEM approved by Ford, General Motors, and Mopar. Multi-position upper hooks adjust up to 4 inches in 1-inch increments to accommodate different spring configurations.
Key Features and Benefits

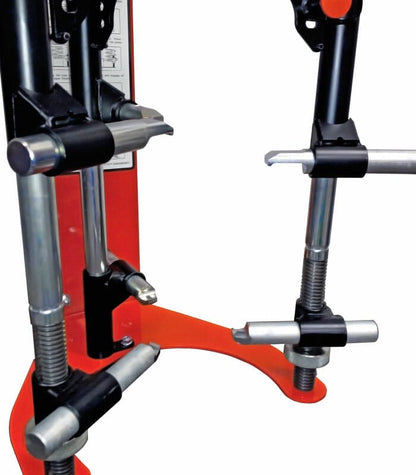

No-Adapter Universal Compatibility - Multi-position upper spring hooks adjust in 1-inch increments to handle 3.5" to 11.5" diameter springs. Eliminates adapter inventory costs and accommodates most light trucks, SUVs, and passenger cars without separate kits.
Heavy-Duty ACME Thread Control - Industrial-grade ACME thread design prevents thread walking during compression. Delivers smooth, controlled operation even on asymmetric spring configurations with reduced risk of binding or failure.
Integrated Ring Guard Safety - Built-in structural ring guard surrounds the upper compressed spring assembly, providing containment in case of hook slippage or spring fracture. Creates a barrier between operator and compressed spring for enhanced workplace safety.
Applications
- Light trucks, SUVs, and crossovers with MacPherson struts.
- Passenger cars requiring strut or coil spring service.
- Strut cartridge replacement and coil spring replacement operations.
- Suspension lowering, lifting, and general repair work.
Specifications
| Specification | Details |
|---|---|
| Max Compression Capacity | 3,000 lbs (1,361 kg) |
| Spring Diameter Range | 3.5" to 11.5" (9 cm to 29 cm) |
| Packaged Dimensions | 18.5" L × 20" W × 43.63" H |
| Shipping Weight | 100 lbs (45 kg) |
| Construction | All-steel, heavy-duty ACME thread |
| Country of Origin | Made in USA |
| OEM Approvals | Ford, General Motors, Mopar |
| Mounting Options | Wall mount (included), bench mount (Model 761), mobile cart (Model 764) |
Installation Requirements
Mounts to solid vertical walls or posts using included hardware. Concrete, cinder block, or solid wood framing recommended. Requires 44" vertical clearance and 24" depth for operation. Optional bench mount or mobile cart available separately. No electrical or pneumatic utilities required.
OEM-Approved Professional Equipment
Made in USA with 1-year warranty. Order your Branick 7600 for reliable professional suspension service.
Frequently Asked Questions
What vehicles is the Branick 7600 compatible with?
The Branick 7600 handles light trucks, SUVs, and passenger cars with MacPherson struts. The 3.5" to 11.5" diameter range covers most applications without adapters. Specific verified applications include Ford F-150, Toyota RAV4, Jeep Cherokee Trailhawk, GM trucks and SUVs, Cadillac ATS, and Chrysler minivans.
Do I need adapters for different spring sizes?
No adapters are required. The multi-position upper spring hooks adjust up to 4 inches in 1-inch increments to accommodate different factory coil spring configurations. This eliminates separate adapter kit costs and allows immediate service across most light truck, SUV, and passenger car applications.
What mounting options are available?
The Branick 7600 includes wall mounting hardware for installation on solid walls or posts. Optional Model 761 bench mount and Model 764 mobile cart are available separately. Both accessories fit current 7600 and legacy 7400 models for workspace flexibility.
Is the Branick 7600 OEM approved?
Yes, the Branick 7600 is approved by Ford, General Motors, and Mopar for professional shop use. This OEM approval means the tool meets manufacturer engineering specifications and safety requirements for servicing warranty-covered vehicles.
What warranty and shipping apply to the Branick 7600?
The Branick 7600 includes a 1-year warranty for defects; call (800) 437-4394 for an RMA before returning. It ships via LTL truck freight due to 100 lb weight, usually palletized, and may need a liftgate. Ships to the 48 contiguous US states.
