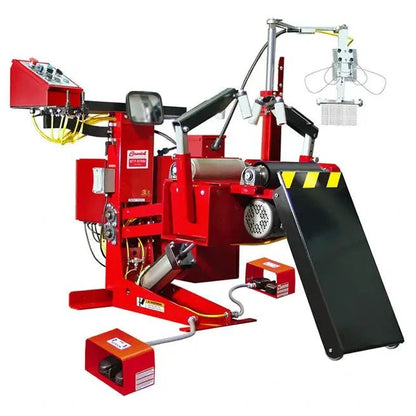

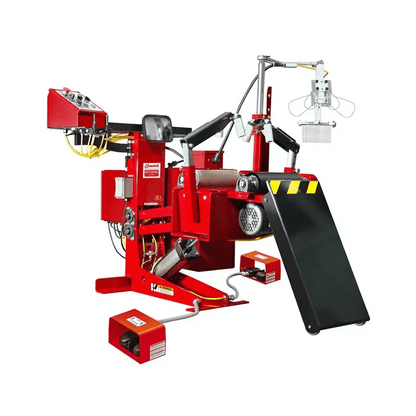

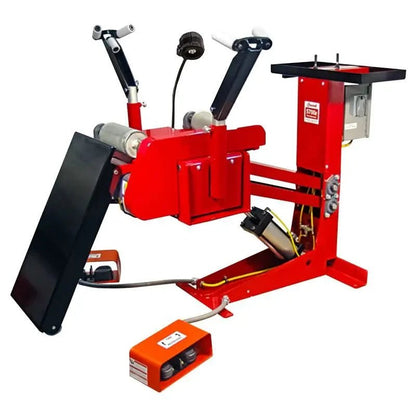

BRANICK 5700E - Electric Tire Inspection Spreader with Adjustable Height
The BRANICK 5700E delivers professional tire inspection capabilities for passenger car through medium truck tires up to 18-inch cross-section width. Featuring electric variable-speed operation, RMA-compliant LED lighting, and adjustable working height from 15-32 inches, this spreader handles commercial tire service operations with hands-free convenience.
Key Features & Benefits
Electric Variable-Speed Drive Operation
The electric motor system delivers consistent power with **variable-speed control** and **bi-directional rotation** capabilities, operating significantly quieter than traditional pneumatic alternatives. The 1/2 HP gearmotor provides reliable drive performance without the fluctuating power delivery common with air-powered systems.
Traditional tire spreaders rely on compressed air systems that create noise and power inconsistencies during operation. Electric drive operation addresses this industry-wide challenge by providing steady torque delivery and virtually silent operation, improving shop environment quality.
This enables extended operation periods without operator fatigue from noise exposure. The variable-speed control allows precise tire positioning during detailed inspection procedures, while the bi-directional rotation provides complete tire surface access.
Ergonomic Height Adjustability System
The pneumatic lift system provides **17 inches of height adjustment** (15-32 inch working range) to accommodate different operator heights and tire sizes. This extensive adjustment range reduces back strain and enables comfortable operation for technicians of varying statures while handling different tire dimensions.
Fixed-height competitor spreaders force technicians into uncomfortable working positions when inspecting various tire sizes. The adjustable height system addresses this ergonomic challenge by allowing optimal positioning for both operator comfort and inspection effectiveness.
This eliminates worker fatigue during extended inspection sessions and reduces workers compensation exposure from repetitive strain injuries. The height adjustment enables efficient handling of both passenger car and medium truck tires within the same unit.
Integrated Power Distribution Workstation
The built-in power system includes **4 air tool ports** and **2 electric outlets** mounted directly on the spreader post, eliminating the need for separate power distribution equipment. This integrated design provides complete service bay functionality within the spreader footprint.
Basic competitor spreaders require additional power distribution equipment and separate compressed air connections, creating workspace clutter and installation complexity. The integrated workstation addresses this challenge by consolidating all power requirements into a single equipment piece.
This improves workspace organization and reduces installation costs by eliminating separate power distribution purchases. Technicians have immediate access to both pneumatic and electric tools without workspace interruption during inspection procedures.
Auto-Extending Loading Ramp System
The automatic extending and retracting tire loading ramp eliminates manual tire lifting requirements when loading tires onto the spreader. The ramp system automatically deploys when needed and retracts to maintain workspace clearance during operation.
Standard spreader designs require technicians to manually lift tires onto the spreader platform, particularly challenging with large truck tires weighing 100+ pounds. The auto-loading ramp addresses this safety and efficiency challenge by providing mechanical assistance for tire positioning.
This reduces workplace injury risk from heavy tire handling and improves operational efficiency by eliminating manual lifting procedures. The automatic operation ensures consistent ramp positioning without requiring operator attention during tire loading procedures.
RMA-Compliant Professional Lighting Integration
The factory-integrated **RMA-compliant LED lighting system** provides optimal inspection area illumination with mounting post positioning for shadow-free tire surface visibility. The LED technology delivers consistent color temperature for accurate defect identification and meets Rubber Manufacturers Association standards for tire inspection.
Separate lighting equipment creates shadows and positioning challenges during detailed tire inspection procedures. The integrated lighting system addresses this visibility challenge by providing professionally positioned illumination that moves with the tire during rotation.
This enables accurate identification of sidewall defects, tread wear patterns, and internal damage that might be missed with inadequate lighting. The RMA compliance ensures inspection quality meets industry standards for safety-critical tire evaluations.
American Manufacturing Heritage
Manufactured in **Fargo, North Dakota** with direct factory support, domestic parts availability, and comprehensive warranty service through the US-based service network. The American manufacturing provides quality control and service responsiveness unavailable with imported alternatives.
Imported tire service equipment often requires extended parts delivery times and limited technical support availability. American manufacturing addresses these service challenges by providing domestic parts inventory and direct factory technical assistance for installation and maintenance questions.
This reduces equipment downtime through faster parts availability and ensures long-term service support through the established domestic service network. Direct manufacturer support provides installation guidance and troubleshooting assistance throughout the equipment lifecycle.
Product Demonstration
Applications & Use Cases
- Passenger Car Tire Service: Complete inspection and repair capabilities for standard passenger vehicle tires including sedans, coupes, and compact vehicles
- Light Truck Tire Operations: Service and maintenance for pickup trucks, SUVs, and light commercial vehicles requiring detailed tire inspection procedures
- Commercial Tire Inspection: Professional-grade inspection for commercial tires up to 24.5-inch bead diameter including delivery vehicles and small commercial fleets
- Fleet Maintenance Operations: Centralized tire inspection and repair for fleet operators requiring systematic tire condition monitoring and maintenance scheduling
- Super-Single Tire Applications: Specialized handling for wide-base single tires used in commercial applications within the equipment's 18-inch cross-section capacity
- Professional Tire Service Shops: Full-service tire retailers and independent tire shops requiring ergonomic inspection capabilities for high-volume daily operations
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Cross-Section Width | 18 inches (455 mm) |
| Maximum Bead Diameter | 24.5 inches (622 mm) |
| Working Height Range | 15-32 inches (381-813 mm) |
| Height Adjustment Range | 17 inches (432 mm) |
| Specification | Value |
|---|---|
| Unit Footprint | 38 × 65 inches (965 × 1651 mm) |
| Overall Dimensions | 51 × 38 × 68 inches |
| Unit Weight | 660 lb (300 kg) |
| Shipping Dimensions | 47 × 29 × 65 inches |
| Specification | Value |
|---|---|
| Drive System | 1/2 HP electric gearmotor |
| Electrical Requirement | 110/120V standard supply |
| Air Supply Requirement | Maximum 150 psi (10.3 bar) |
| Air Tool Ports | 4 ports with quick coupler connections |
| Electric Outlets | 2 standard electrical outlets |
Installation Requirements
Foundation & Mounting
- Floor Surface: Solid, level floor installation surface required for stable operation
- Mounting: Floor bolting capability required for permanent installation (anchor bolts not included)
- Operator Clearance: Adequate clearance space required around unit perimeter for safe operation
Power Requirements
- Electrical Connection: Standard 110/120V electrical supply with appropriate circuit capacity
- Air Supply: Compressed air supply with 1/4" NPT quick coupler connection
- Maximum Air Pressure: 150 psi (10.3 bar) supply pressure capability
Installation Notes
- Professional Installation: Installation should be performed by qualified personnel following manufacturer specifications
- Operator Training: Personnel training requirements emphasized in documentation before operation
- Safety Equipment: Eye protection and safety disconnect procedures must be established per manufacturer guidelines
Shipping & Delivery
Freight Coverage
Shipping: Free ground shipping to commercial addresses in the lower 48 contiguous United States. Additional fees apply for residential delivery and liftgate service.
Delivery Method: LTL freight delivery to commercial locations with appropriate unloading capabilities.
Geographic Coverage: Standard coverage includes lower 48 states with surcharges for Alaska, Hawaii, and rural delivery locations.
Delivery Requirements
Unloading Equipment: Commercial delivery assumes customer has forklift or equivalent unloading capability for 660-pound crated unit.
Delivery Type: Standard curbside commercial delivery. Liftgate service and inside delivery available at additional cost.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs the premises.
Warranty Coverage
Standard Warranty Program
1 Year Limited Warranty: Coverage includes defects in materials and workmanship from date of shipment
Warranty Scope: Repair or replacement at manufacturer discretion during warranty period
Service Contact: Warranty service available through Branick customer service at 800-437-4394
Warranty Requirements
Coverage Eligibility: Valid for original purchaser with proof of purchase documentation
Installation: Warranty coverage assumes proper installation following manufacturer installation manual and specifications
Operator Training: Coverage requires appropriate operator training and adherence to safety procedures outlined in documentation
Ready to Upgrade Your Tire Service Operation?
Get expert guidance on tire spreader selection, installation planning, and operational requirements. Our team can help verify compatibility with your specific tire service applications and facility requirements.
Frequently Asked Questions
What tires can the BRANICK 5700E handle?
The 5700E accommodates tires up to 18-inch cross-section width and 24.5-inch bead diameter, including passenger car, light truck, and commercial tires within these size limits. This covers most standard passenger vehicles, SUVs, pickup trucks, and many commercial applications including super-single tires.
What is included with the BRANICK 5700E purchase?
The complete package includes the main spreader unit with electric drive system, RMA-compliant LED lighting system with mounting post, auto-extending/retracting tire loading ramp, tool tray with slotted tool holder, dual-side foot control system, and integrated power distribution with 4 air tool ports and 2 electric outlets.
What are the electrical and air requirements for installation?
The 5700E requires standard 110/120V electrical supply for the motor and integrated outlets, plus compressed air supply up to 150 psi maximum with 1/4" NPT quick coupler connection. The air supply powers the pneumatic height adjustment system and provides compressed air to the 4 integrated tool ports.
How much height adjustment does the 5700E provide?
The pneumatic lift system provides 17 inches of height adjustment with a working range from 15 inches minimum to 32 inches maximum working height. This extensive adjustment accommodates different operator heights and tire sizes while reducing back strain during inspection procedures.
What safety certifications does the BRANICK 5700E meet?
The 5700E includes RMA (Rubber Manufacturers Association) compliant LED lighting system and meets DOT tire service equipment guidelines plus USTMA recommended practices. The equipment follows professional tire inspection safety standards with operator training requirements emphasized in the documentation.
What is the warranty coverage on the BRANICK 5700E?
The 5700E includes a 1-year limited warranty covering defects in materials and workmanship from date of shipment. Warranty provides repair or replacement at manufacturer discretion during the coverage period, with service contact through Branick customer service at 800-437-4394.
How does the electric drive compare to air-powered tire spreaders?
Electric drive provides consistent power delivery without the fluctuations common in air-powered systems, plus variable-speed control and bi-directional rotation capabilities. The electric system operates significantly quieter than pneumatic alternatives, reducing operator fatigue and improving shop environment quality during extended operation periods.
What floor space and installation requirements are needed?
The 5700E requires a 38 × 65 inch floor footprint with solid, level surface capable of floor bolting for permanent installation (anchor bolts not included). Additional operator clearance space is required around the unit perimeter for safe operation and tire loading access.
