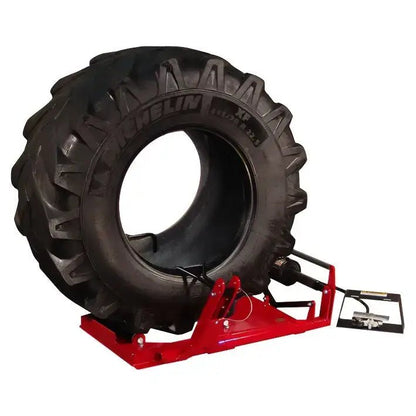

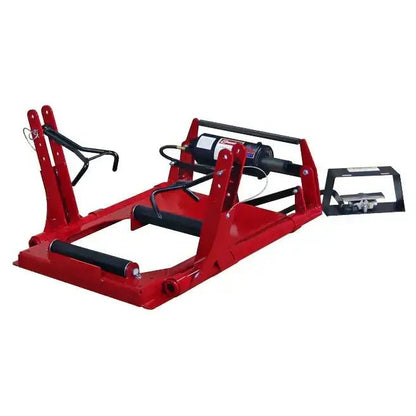

BRANICK 5200 Truck Tire Spreader, Air Powered, Roll-On
Branick 5200 - Air-Powered Ground-Level Truck Tire Spreader for Mobile Service
The Branick 5200 is an air-powered, ground-level truck tire spreader designed for portability and field service applications. Manufactured in Fargo, North Dakota, this roll-on unit spreads tire beads pneumatically for inspection and repair without requiring operators to lift tires onto elevated platforms. It handles tire sizes from 17.50-10 four-ply through 16.00-24.5 twenty-ply with a 24-inch maximum spread capacity and 4-inch working height.
Key Features & Benefits
Portable Air Power for Mobile Service
At 180 lb (82 kg) with a compact 38.5 x 25 x 18 inch footprint, the Branick 5200 delivers air-powered spreading force in a design genuinely engineered for regular transport on service vehicles. The roll-on ramp design eliminates tire lifting entirely, enabling service truck technicians to bring the spreader directly to roadside repairs rather than transporting tires back to a shop.
Competing air-powered models weigh 70% or more, making them impractical for daily loading and unloading cycles. This portability advantage directly translates to faster response times for fleet service operations and mobile repair businesses handling commercial truck, agricultural equipment, and construction vehicle tires.
This enables field technicians to perform professional tire inspection and repair at the job site with the same pneumatic efficiency available in fixed shop installations. The compact size fits standard service truck beds without sacrificing cargo space for other essential equipment.
Ground-Level Operation Without Ergonomic Compromise
The 4-inch working height provides ground-level tire access while eliminating the cumulative back strain and time waste of lifting 100+ lb truck tires onto elevated platforms. Unlike manual ground-level spreaders that require continuous physical force to spread and hold heavy truck tire beads, the 5200 provides air-powered spreading force at ground level with automatic valve hold.
Traditional manual spreaders force technicians to maintain constant hand pressure throughout tire inspection and repair operations. For technicians performing 5-10+ tire repairs daily, the physical demands of manual spreading lead to fatigue-related injuries and slower service times on heavy truck tire sidewalls.
This improves technician safety and productivity by maintaining pneumatic efficiency without the ergonomic penalties of elevated work platforms. The ground-level design reduces fall risks and allows technicians to work in natural standing positions throughout the entire repair process.
Foot-Operated Hands-Free Workflow
Separate foot pedals for spread and release allow technicians to control tire positioning with feet while both hands remain free for tools and repair materials. The pneumatic valve holds spread position automatically without continuous foot pressure or manual ratcheting, and the lock-pin adjustable hooks accommodate tire sizes from 15-inch through 24.5-inch bead diameter without requiring tools for repositioning.
Traditional manual spreaders require technicians to maintain constant hand force or engage mechanical ratchets that lock beads in place but prevent mid-repair adjustments. This forces two-person operations on truck tires that demand sustained spreading force while technicians access interior damage or install section repairs.
This enables true single-technician work on truck tires by freeing both hands for repair tasks while pneumatic pressure maintains consistent bead spreading. The separate release pedal provides controlled, deliberate tire closure without accidental engagement that could damage repair work or injure technicians.
Made in USA Manufacturing Heritage
Manufactured in Fargo, North Dakota by Branick Industries (established 1917), the 5200 represents 107 years of American tire equipment engineering. The all-steel construction and zinc-plated components reflect built-for-generations quality standards, and the unit supersedes the S-FLL model as part number 00-0168, demonstrating product lineage and long-term parts support.
Branick's 100+ patent portfolio demonstrates continuous innovation investment in tire service equipment. Direct factory support, parts availability from the North Dakota facility, and a documented 1-year warranty with clear RMA process provide service certainty that offshore-manufactured alternatives cannot match.
This provides businesses with confidence in long-term parts availability and factory support for equipment maintained over 10-15+ year lifecycles. The transparent supersession communication from S-FLL to model 5200 ensures existing service networks have immediate familiarity with design and repair procedures.
24-Inch Spread Capacity for Truck Tire Service
The Branick 5200 handles tire sizes from 17.50-10 four-ply through 16.00-24.5 twenty-ply with 24-inch (610 mm) maximum spread, providing genuine commercial truck tire capacity. The stiff sidewalls of truck tires require consistent pneumatic spreading force that manual alternatives struggle to generate and maintain throughout inspection and section repair operations.
Typical manual spreaders handle 13-14 inch cross-sections, forcing technicians to use pry bars and supplemental tools on full-size commercial truck tires. This creates safety risks from slipping tools and prevents proper bead access for interior tire inspection, patch application, and casing evaluation for retread suitability.
This positions the 5200 for fleet service applications including delivery trucks, construction vehicles, and agricultural equipment where tire sizes consistently exceed passenger and light truck ranges. The 15-inch minimum bead diameter through standard truck tire capacity covers the full operational range for mobile service and small to mid-size commercial tire shop environments.
Applications & Use Cases
- Mobile Tire Service: Field repairs on service trucks and roadside assistance vehicles for commercial fleets, eliminating the need to transport tires back to shop facilities for inspection and section repairs.
- Fleet Maintenance Operations: On-site truck tire inspection and repair for delivery, construction, and commercial fleets requiring rapid turnaround times and minimal vehicle downtime.
- Small to Mid-Size Tire Shops: Ground-level repair operations for truck tires without lift equipment investment, enabling efficient section repairs, patching, and interior inspection in facilities with space or budget constraints.
- Agricultural Service: Farm equipment tire repair in field conditions where tires cannot be easily transported to shop environments, including tractor, combine, and implement tire service.
- Construction Sites: Portable tire repair for heavy equipment and trucks operating in remote locations, providing professional-grade spreading capability for dump trucks, concrete mixers, and earth-moving equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Tire Size Range | 17.50-10 four-ply to 16.00-24.5 twenty-ply |
| Minimum Bead Diameter | 15 inches |
| Maximum Spread Capacity | 24 inches (610 mm) |
| Maximum Cross-Section | 24 inches (610 mm) |
| Working Height | 4 inches (ground-level design) |
| Specification | Value |
|---|---|
| Footprint (W x D x H) | 38.5 x 25 x 18 inches (98 x 63.5 x 46 cm) |
| Shipping Weight | 180 lb (82 kg) |
| Specification | Value |
|---|---|
| Actuation | Air-powered pneumatic cylinder |
| Control System | Foot-operated spread and release valves |
| Air Requirements | Shop air connection (typical 90-150 PSI) |
| Air Connection | 1/4 NPT quick coupler |
| Spread Mechanism | Adjustable spread hooks with lock-pin positioning |
| Ramp Design | Auto extend/retract roll-on |
| Specification | Value |
|---|---|
| Frame Material | All-steel construction |
| Rollers | Zinc-plated support rollers (2x) |
| Model Number | 5200 |
| Part Number | 00-0168 |
| Supersedes | S-FLL (previous ground-level model) |
| Manufacturer | Branick Industries, Fargo, North Dakota, USA |
Installation Requirements
Foundation & Placement
- Foundation: Floor placement - no anchoring or mounting required (portable design)
- Clearance: 38.5-inch width minimum for unit footprint; additional space required for tire maneuvering
- Operational Space: Allow sufficient clearance around unit for tire positioning and technician movement
Air Supply Requirements
- Air Connection: 1/4 NPT quick coupler connection required for shop air supply
- Compressed Air Supply: Shop air line (typical shop air 90-150 PSI)
- Assembly: Ships assembled - requires only air line connection from shop supply to inline filter
Operation & Maintenance
- Operator Position: Standing, foot-operated controls
- Tire Loading: Roll-on design - tire rolled directly onto unit; no lifting required
- Monthly Maintenance: Lubricate pivot points of spread hooks, spread arms, and cylinder pivot ends
- Six-Month Maintenance: Remove air cylinder components, clean thoroughly, reassemble, add 1/2 cup clean oil to rear cylinder
What's Included
- 5200 Tire Spreader main unit
- Inline air filter - Part 932-001
- Foot valve assembly with foot guard
- Support rollers - 2x zinc-plated, Part 74-0387
- Spread hooks - 2x adjustable, Part 03-0302 with lock pins (2x, Part 54-0055)
- Spread cylinder assembly with internal air line connection
- Tool tray integrated into frame with 4 air ports
- Breather fitting
Not Included (Sold Separately): Air compressor, air hose from compressor to unit, tire repair tools and supplies
Shipping & Delivery
Freight Coverage
Shipping Weight: 180 lb (82 kg)
Freight Method: LTL (Less Than Truckload) freight
Packaging: Crated or palletized for protection during transit
Delivery Requirements
Unloading Equipment: Liftgate service or loading dock recommended due to weight
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
1-Year Limited Warranty
Duration: 1 year from date of shipment
Coverage: Defective materials or workmanship
Remedy: Repair or replacement at Branick's discretion
Contact: 800-437-4394 for RMA (Return Merchandise Authorization)
Warranty Requirements & Exclusions
Warranty Process: Contact Branick at 800-437-4394 to obtain RMA number, provide proof of original shipment date, ship product with RMA to Branick Industries, 4245 Main Ave, Fargo, ND 58103. Branick pays return shipping on repaired or replacement unit.
Exclusions: Ordinary wear and tear, abuse, misuse, overloading, accident, shipping damage, improper maintenance, or unauthorized alteration
Ready to Upgrade Your Mobile Service Equipment?
Get expert guidance on the right tire spreader for your field service or shop facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and air supply requirements for your specific application.
Frequently Asked Questions
What tire sizes does the Branick 5200 handle?
The Branick 5200 handles tire sizes from 17.50-10 four-ply through 16.00-24.5 twenty-ply with a maximum spread capacity of 24 inches (610 mm). The minimum bead diameter is 15 inches, covering passenger, light truck, standard truck, and commercial truck tire applications.
What components are included with the Branick 5200?
The unit ships assembled with inline air filter (Part 932-001), foot valve assembly with foot guard, 2x zinc-plated support rollers (Part 74-0387), 2x adjustable spread hooks (Part 03-0302) with lock pins (Part 54-0055), spread cylinder assembly with internal air line, integrated tool tray with 4 air ports, and breather fitting. Air compressor and connection hose sold separately.
What are the air supply requirements for the Branick 5200?
The Branick 5200 requires a shop air connection via 1/4 NPT quick coupler. Typical shop air pressure is 90-150 PSI. The unit ships assembled and ready to use - simply connect your shop air line to the inline filter and the spreader is operational. Specific CFM consumption is not documented by the manufacturer.
How portable is the Branick 5200 for mobile service trucks?
The Branick 5200 weighs 180 lb (82 kg) with a compact 38.5 x 25 x 18 inch footprint, making it practical for regular transport on service vehicles. The roll-on ramp design eliminates tire lifting requirements, enabling single-technician field repairs. This portability is significantly better than competing air-powered models that typically weigh 310+ lb.
Does the Branick 5200 require anchoring or mounting?
No. The Branick 5200 is a portable, ground-level unit requiring no anchoring or permanent mounting. It operates via floor placement and can be moved between service locations or stored when not in use. The only installation requirement is connecting the unit's quick coupler to your shop air supply.
What applications is the Branick 5200 designed for?
The Branick 5200 is designed for mobile tire service, fleet maintenance operations, small to mid-size tire shops, agricultural service, and construction sites. It handles commercial truck, delivery vehicle, agricultural equipment, and construction vehicle tires requiring field repairs, section repairs, interior inspection, and bead area service without transporting tires to fixed shop facilities.
What warranty coverage does the Branick 5200 include?
The Branick 5200 includes a 1-year warranty from date of shipment covering defective materials or workmanship. Branick will repair or replace defective units at their discretion. Contact 800-437-4394 for RMA authorization. Warranty excludes ordinary wear and tear, abuse, misuse, overloading, accident, shipping damage, improper maintenance, or unauthorized alteration.
What maintenance does the Branick 5200 require?
Monthly maintenance includes lubricating pivot points of spread hooks, spread arms, and cylinder pivot ends. Every six months, remove air cylinder components, clean thoroughly, reassemble, and add 1/2 cup clean oil to the rear cylinder. These maintenance procedures extend equipment life and ensure consistent pneumatic performance.
