BRANICK Tire Spreader, 5130, For Car/LT, Efficient Tire Service
BRANICK 5130 - Professional Air-Powered Tire Spreader for Car & Light Truck Service

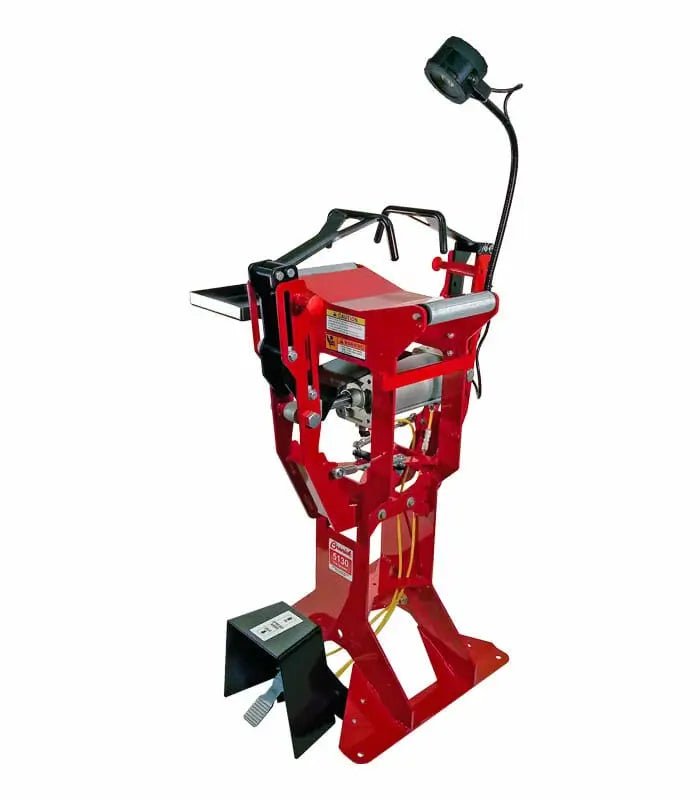

The BRANICK Model 5130 delivers pneumatic hands-free tire spreading for passenger car and light truck tires up to 14-inch cross-section and 22.5-inch bead diameter. Manufactured in Fargo, North Dakota, this professional-grade unit features RMA-compliant LED inspection lighting with 200 foot-candles minimum output and compact 18" x 25" footprint for maximum shop efficiency.
Key Features & Benefits
RMA-Compliant Professional Lighting System
The integrated flexible-arm LED inspection light delivers 200 foot-candles minimum output, meeting Rubber Manufacturers Association standards for tire repair illumination. This certified LED system provides consistent, measurable light output across the tire interior surface for thorough inspection work.
Traditional fluorescent or non-certified LED alternatives fail to provide adequate illumination for detailed tire inspection, often creating shadows or uneven lighting that can obscure critical damage. This RMA-compliant system addresses industry-wide lighting deficiencies with professional-grade illumination standards.
This enables thorough tire inspection by eliminating dark spots and providing uniform interior lighting. Technicians can identify sidewall damage, tread separation, or embedded debris with confidence during repair procedures.
Compact Footprint with Full Capacity Range
The 5130 delivers 22.5-inch bead diameter capability within a compact 18" x 25" base footprint, maximizing shop floor efficiency without sacrificing tire compatibility. The 40-inch overall height and stable base design provide full passenger and light truck tire handling in minimal floor space.
Larger commercial tire spreaders often require significant floor space that many automotive shops can't accommodate, forcing technicians to use manual spreading methods or inadequate equipment. This compact design addresses space constraints while maintaining professional capacity standards.
This improves shop productivity by enabling professional tire spreading capabilities in tight service bay configurations. The space-efficient design allows installation in areas where larger equipment wouldn't fit.
Pneumatic Hands-Free Operation

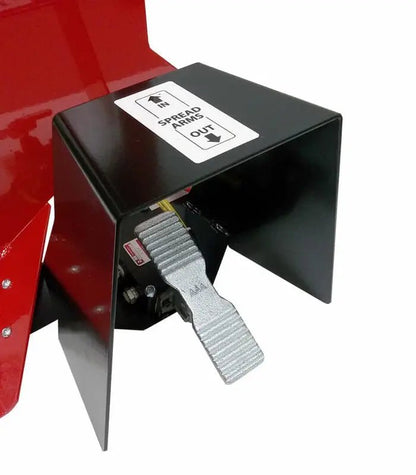

The foot-controlled air-powered spreading mechanism eliminates manual effort and keeps both hands available for tire inspection and repair work. Operating on 100-150 PSI compressed air through a 1/4 NPT connection, the pneumatic system provides consistent spreading force without technician fatigue.
Manual tire spreading requires continuous physical effort and often results in inconsistent bead separation, limiting the technician's ability to perform detailed interior work. Traditional manual spreaders can cause technician fatigue during extended repair sessions and don't provide the consistent spreading force needed for thorough inspection.
This enables efficient tire service by allowing technicians to focus on inspection and repair work rather than maintaining bead separation. The hands-free operation reduces fatigue and improves work quality during extended tire service procedures.
American Manufacturing with Commercial Warranty
Manufactured in Fargo, North Dakota facility with one-year commercial warranty covering defects in materials and workmanship. The Made in USA construction provides domestic parts support and quality assurance backed by manufacturer repair or replacement determination.
Imported tire service equipment often lacks reliable parts availability and warranty support when repairs are needed, leading to extended downtime and higher long-term costs. This domestic manufacturing approach addresses service and support concerns common with overseas alternatives.
This ensures reliable operation with accessible parts and warranty support when service is required. The commercial warranty provides protection for business equipment investments with manufacturer-backed coverage terms.
Integrated Workflow Enhancement Features

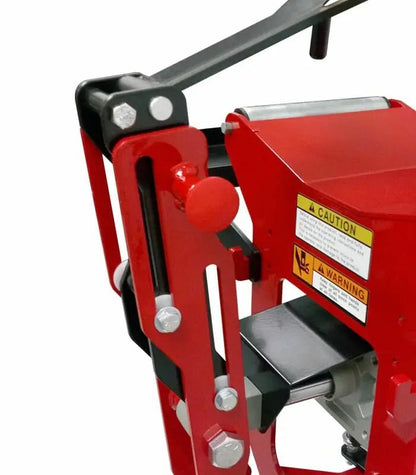

The unit combines zinc-plated rotation rollers for corrosion resistance, reversible tool tray positioning for left or right side mounting, and spring-loaded height adjustment system. The debris-blocking cylinder guard protects operators while maintaining equipment performance.
Standard tire spreaders often require separate accessory purchases and don't include workflow enhancements that improve technician efficiency. Many units lack proper tool storage or height adjustment features that streamline tire service operations in professional environments.
This eliminates the need for separate accessory purchases while providing complete tire service functionality in a single unit. The integrated features reduce setup time and improve workspace organization during tire repair procedures.
Applications & Use Cases
- Automotive Service Centers: Passenger car tire inspection and internal repair access for tire shops and dealership service departments
- Light Truck Service Operations: Commercial fleet maintenance for pickup trucks, delivery vehicles, and light commercial applications
- Professional Tire Shops: RMA-compliant tire repair procedure facilitation for warranty and safety compliance requirements
- Commercial Fleet Maintenance: In-house tire service capabilities for transportation and logistics companies with light truck fleets
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Tire Cross-Section | 14 inches |
| Maximum Bead Diameter | 22.5 inches |
| LED Light Output | 200 foot-candles minimum (RMA-compliant) |
| Air Supply Requirement | 100-150 PSI, 1/4 NPT connection |
| Specification | Value |
|---|---|
| Base Footprint | 18" x 25" |
| Overall Height | 40 inches |
| Shipping Weight | 150 lb |
| Roller Material | Zinc-plated for corrosion resistance |
| Country of Origin | Made in USA (Fargo, North Dakota) |
Installation Requirements
Foundation & Mounting
- Surface Requirement: Stable level concrete floor surface recommended for optimal operation
- Floor Mounting: Base anchor points provided for permanent installation via floor mounting capability
- Clearance: Minimum clearance required for 40-inch overall height in service bay
Power & Air Supply
- Compressed Air: 1/4 NPT quick-connect fitting with 100-150 PSI operating range
- Electrical: Standard 110V electrical outlet required for LED light operation
- Air Connection: Shop air system with adequate pressure and volume for pneumatic operation
Installation Notes
- Professional Installation: Installation should be performed following manufacturer specifications for proper operation
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Coverage
Shipping: Ships via truck freight with 150-pound shipping weight. Free shipping available to commercial addresses in continental United States.
Delivery Requirements: Residential delivery, liftgate service, and non-commercial addresses require additional charges.
Delivery Requirements
Freight Delivery: Truck freight delivery to commercial locations. Liftgate and inside delivery services available at additional cost for residential or limited access locations.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Warranty Coverage
Commercial Warranty Program
1 Year Commercial Coverage: Comprehensive warranty from date of shipment covering defects in materials and workmanship with manufacturer repair or replacement determination
Warranty Requirements
Coverage Terms: Valid for original purchaser with proper installation following manufacturer guidelines
Made in USA Support: Domestic manufacturing provides reliable parts availability and warranty service support
Ready to Upgrade Your Shop?
Get expert guidance on the right tire service equipment for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your specific application.
Frequently Asked Questions
What are the tire capacity specifications for the BRANICK 5130?
The BRANICK 5130 handles tires up to 14-inch cross-section and 22.5-inch bead diameter, covering most passenger cars and light trucks. The pneumatic spreading mechanism operates on 100-150 PSI compressed air through a 1/4 NPT connection for consistent performance.
What components are included with the Model 5130 tire spreader?
The unit includes the base spreader with pneumatic mechanism, RMA-compliant flexible-arm LED light with 200 foot-candles output, reversible tool tray, zinc-plated rotation rollers, spring-loaded height adjustment system, and debris-blocking cylinder guard. The 18" x 25" footprint base provides stable operation for tire sizes up to 22.5-inch bead diameter.
What are the installation requirements for the BRANICK 5130?
Installation requires a stable level concrete floor, 1/4 NPT compressed air connection with 100-150 PSI supply, standard 110V electrical outlet for LED operation, and minimum clearance for 40-inch height. Base anchor points are provided for permanent floor mounting.
What applications is the BRANICK 5130 tire spreader suitable for?
The unit is designed for automotive service centers, tire shops, commercial fleet maintenance, and professional repair facilities requiring passenger car and light truck tire inspection up to 22.5-inch bead diameter capabilities. It's ideal for RMA-compliant tire repair procedures with 200 foot-candles minimum lighting output.
Does the BRANICK 5130 meet safety and compliance standards?
Yes, the unit features RMA-compliant LED lighting with 200 foot-candles minimum output, debris-blocking cylinder guard for operator protection, and stable base design preventing tip-over during operation. The spring-loaded pin system prevents accidental height adjustment during use.
What warranty coverage is provided with the BRANICK 5130?
The unit includes a one-year commercial warranty from date of shipment covering defects in materials and workmanship, with manufacturer repair or replacement determination and Made in USA parts support. The domestic manufacturing provides reliable warranty service and parts availability.
How is the BRANICK 5130 shipped and what are the delivery requirements?
The unit ships via truck freight with 150-pound weight. Free shipping to commercial addresses in continental US, with additional charges for residential delivery, liftgate service, and non-commercial locations. Inspect packages before signing the bill of lading and note any visible damage.
What makes the BRANICK 5130 different from other tire spreaders?
The 5130 combines compact 18" x 25" footprint with full 22.5-inch capacity, RMA-compliant 200 foot-candles LED lighting, pneumatic hands-free operation, and Made in USA manufacturing with one-year commercial warranty. The integrated workflow features eliminate separate accessory purchases.
