BRANICK Wall Mount Airstation, 155, Reliable Air Supply

Q: What is included with the Branick 155 Wall Mount Airstation? A: The Model 155 includes one Blockhead automatic inflator, four 25-foot air hoses with lock-on chucks, manifold and valve assembly, and a wall mounting plate that doubles as hose storage. Lag screws for wall mounting are not included.

Q: What is included with the Branick 155 Wall Mount Airstation? The Model 155 includes one Blockhead automatic inflator, four 25-foot air hoses with lock-on chucks, manifold and valve assembly, and a wall mounting plate that doubles as hose storage. Lag screws for wall mounting are not included.

Q: Can the Branick 155 be used with nitrogen inflation systems? A: Yes, the Model 155 is nitrogen conversion ready. You can connect it to nitrogen inflation systems to offer premium nitrogen tire services without replacing the equipment.

Q: Can the Branick 155 be used with nitrogen inflation systems? Yes, the Model 155 is nitrogen conversion ready. You can connect it to nitrogen inflation systems to offer premium nitrogen tire services without replacing the equipment.

Q: What pressure range does the Branick 155 support? A: The operating pressure range is 0-145 PSI, adjustable in 1 PSI increments. This covers typical passenger vehicle and light truck tire pressures. Maximum inlet pressure from your shop air supply should not exceed 218 PSI.

Q: What pressure range does the Branick 155 support? The operating pressure range is 0-145 PSI, adjustable in 1 PSI increments. This covers typical passenger vehicle and light truck tire pressures. Maximum inlet pressure from your shop air supply should not exceed 218 PSI.

Q: What warranty comes with the Branick Model 155? A: Branick provides a one-year warranty from date of shipment covering defective materials or workmanship. Warranty service requires RMA authorization by calling Branick directly, and return shipping is prepaid by the manufacturer.

Q: What warranty comes with the Branick Model 155? Branick provides a one-year warranty from date of shipment covering defective materials or workmanship. Warranty service requires RMA authorization by calling Branick directly, and return shipping is prepaid by the manufacturer.

Q: How accurate is the Branick 155 tire inflator? A: The Blockhead inflator delivers plus or minus 0.7 PSI accuracy. Each unit is individually tested and calibrated at the factory, ensuring consistent precision for TPMS compliance and manufacturer tire pressure specifications.

Q: How accurate is the Branick 155 tire inflator? The Blockhead inflator delivers plus or minus 0.7 PSI accuracy. Each unit is individually tested and calibrated at the factory, ensuring consistent precision for TPMS compliance and manufacturer tire pressure specifications.

$839.00

Product variants

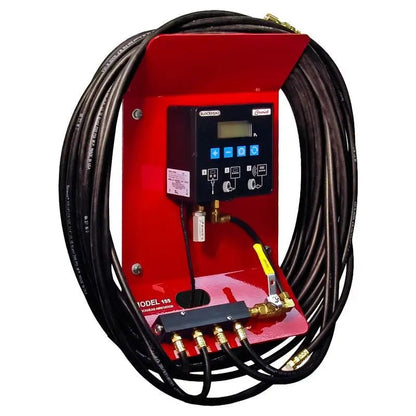

Simultaneous 4-Tire Inflation - Branick Wall Mount Airstation (Model 155)

Automatic Tire Inflation System with Blockhead Technology

The Branick 155 Wall Mount Airstation lets technicians inflate all four vehicle tires at once with ±0.7 PSI accuracy. Connect the four independent 25-foot hoses, set your target pressure, and walk away - the Blockhead inflator handles the rest automatically. Designed for professional shops where bay throughput matters.

This automatic tire inflation system mounts in just 20" x 12" of wall space while keeping 100 feet of total hose length organized. Manufactured by Branick Industries in Fargo, North Dakota - a company with over 100 years in tire service equipment - the Model 155 runs on standard 110/120V power.

Key Features and Benefits

Complete Vehicle Service in One Connection - Four independent hoses with lock-on chucks enable simultaneous inflation of all tires. Set the pressure once while the system auto-inflates and auto-deflates to your exact specification.

Factory-Calibrated Precision - Blockhead technology delivers ±0.7 PSI accuracy for TPMS compliance and manufacturer specs. Each unit is individually tested and calibrated before shipping.

Space-Saving Wall Mount Design - The compact 20" x 12" footprint preserves floor space. The mounting plate doubles as organized hose storage, reducing trip hazards in busy service bays.

Walk-Away Operation - Lock-on chucks maintain secure connections throughout inflation. An audible alert signals completion, freeing technicians for other tasks.

Professional Applications

Auto repair shops and tire service departments.
New and used car dealerships for quick service and PDI.
Fleet maintenance centers requiring consistent tire pressures.
Quick-lube and vehicle inspection facilities.
Passenger vehicles and light trucks with typical 25-50 PSI requirements.

Specifications

Branick Model 155 Technical Specifications
Configuration	Wall-mounted, 4 independent hoses
Hose Length	25 ft each (100 ft total)
Chuck Type	Lock-on chucks
Accuracy	±0.7 PSI
Operating Range	0-145 PSI (1 PSI increments)
Max Inlet Pressure	218 PSI
Wall Space Required	20" W x 12" H
Power Requirement	Standard 110/120V AC
Display	Large digital display
Nitrogen Compatible	Yes

Installation Requirements

Mount to a sturdy wall using lag screws (not included) with minimum 20" x 12" clearance. Connect to compressed air via inline filter - maximum inlet 218 PSI. Standard 110/120V AC outlet required.

Upgrade Your Shop's Tire Service Efficiency

Reduce per-vehicle tire service time with simultaneous 4-tire inflation. Backed by Branick's one-year warranty and over 100 years of American manufacturing expertise.

Frequently Asked Questions

What is included with the Branick 155 Wall Mount Airstation?

The Model 155 includes one Blockhead automatic inflator, four 25-foot air hoses with lock-on chucks, manifold and valve assembly, and a wall mounting plate that doubles as hose storage. Lag screws for wall mounting are not included.

Can the Branick 155 be used with nitrogen inflation systems?

Yes, the Model 155 is nitrogen conversion ready. You can connect it to nitrogen inflation systems to offer premium nitrogen tire services without replacing the equipment.

What pressure range does the Branick 155 support?

The operating pressure range is 0-145 PSI, adjustable in 1 PSI increments. This covers typical passenger vehicle and light truck tire pressures. Maximum inlet pressure from your shop air supply should not exceed 218 PSI.

What warranty comes with the Branick Model 155?

Branick provides a one-year warranty from date of shipment covering defective materials or workmanship. Warranty service requires RMA authorization by calling Branick directly, and return shipping is prepaid by the manufacturer.

How accurate is the Branick 155 tire inflator?

The Blockhead inflator delivers ±0.7 PSI accuracy. Each unit is individually tested and calibrated at the factory, ensuring consistent precision for TPMS compliance and manufacturer tire pressure specifications.
