BENDPAK HDS-14 Four-Post Lift, 14,000 lb Capacity, Standard Length
HDS-14 Product Information
BendPak HDS-14: The Ultimate 14,000 lb Capacity Four-Post Car Lift for Professionals and Enthusiasts

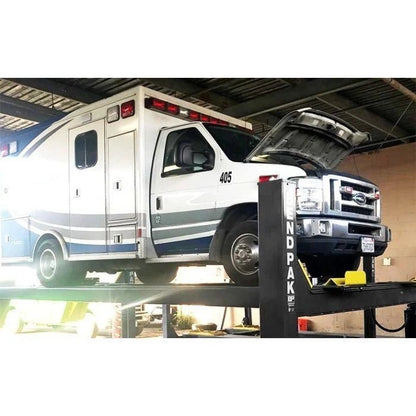

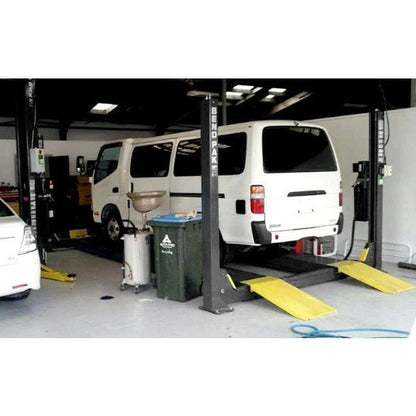

Looking for a car lift that can handle everything from compact cars to heavy-duty trucks? The BendPak HDS-14 is the answer. This professional-grade four-post lift boasts a 14,000 lb lifting capacity, making it perfect for busy commercial shops and serious DIYers alike.
The BendPak Advantage: Quality, Warranty & Support
Free Shipping
Enjoy fast, hassle-free delivery within the contiguous U.S. at no extra cost.
Genuine BendPak Warranty
Enjoy full manufacturer coverage, backed by BendPak’s industry-leading support and service network.
Certified BendPak Quality
Every lift is engineered to ALI/ETL safety standards, ensuring premium craftsmanship and durability.
Expert Support & Guidance
As an authorized BendPak distributor, Garage Supply Guys provides expert guidance, ensuring you get the right lift for your needs.
HDS-14 Features
➤ Extended & Extra-Wide Runways for Versatile Lifting
Say goodbye to overhang worries! Our extended runways are designed to safely handle even the longest vehicles, including trucks and vans with extended wheelbases. No more scraping or damage just smooth, easy loading every time. Your vehicle deserves a lift that fits!

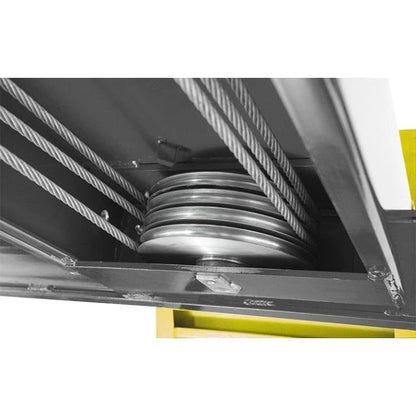

➤ Heavy-Duty Cable Sheaves for Extended Lift Life
Experience superior durability and reduced maintenance with our heavy-duty cable sheaves. These massive 10.5" diameter sheaves, combined with robust 2.25" diameter sheave axles, minimize stress and wear on the lifting cables. This translates to a longer lifespan for your lift and significant savings on service and repairs down the road.
➤ Effortless Maintenance: Built-in Lubrication
A maintenance-free electric-hydraulic power system provides smooth, dependable lifting, and all operator controls are conveniently located within easy reach for effortless operation.
➤ Rock-Solid Stability & Safety Features

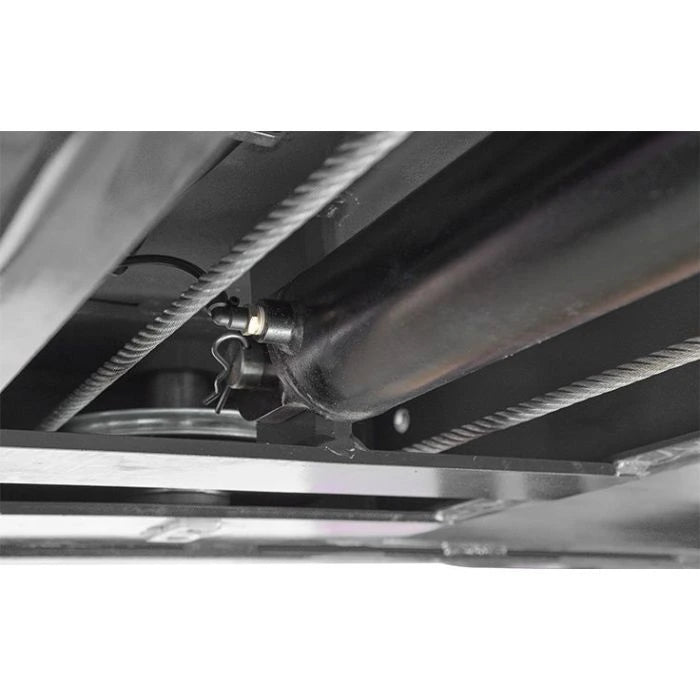

➤ Controlled Descent with Hydraulic Flow Restrictor
An integrated hydraulic flow restrictor prevents sudden descent in the unlikely event of a hose rupture, adding an extra layer of safety.
HDS-14 Specifications
| Lifting Capacity | 14,000 lbs. (6,350 kg) |
| A - Min. Runway Height | 6.75" (171 mm) |
| B - Max. Rise | 71.75" (1,822 mm) |
| C - Max. Lifting Height | 77.5" (1,969 mm) |
| D - Overall Width | 131.75" (3,346 mm) |
| E - Outside Length | 213" (5,408 mm) |
| F - Overall Length | 241" (6,131 mm) |
| G - Height of Columns | 92" (2,337 mm) |
| H - Width Between Columns | 120" (3,046 mm) |
| I - Drive-Thru Clearance | 98" (2,482 mm) |
| J - Runway Width | 20" (508 mm) |
| K - Length of Runways | 199" (5,054 mm) |
| L - Width Between Runways | 34.5" (876 mm) or 41.5" (1,054 mm) |
| M - Runway Centerline | 54.5" (1,384 mm) or 61.5" (1,562 mm) N - Outside Edge of Runways: 74.5" (1,892 mm) or 81.5" (2,070 mm) |
| N - Outside Edge of Runways | 74.5” (1,892 mm) or 81.5” (2,070 mm) |
| Min Wheelbase @ Rated Capacity | 140” (3,556 mm) |
| Min Wheelbase @ 75% Capacity | 120” (3,048 mm) |
| Min Wheelbase @ 50% Capacity | 100” (2,540 mm) |
| Min Wheelbase @ 25% Capacity | 80” (2,032 mm) |
| Locking Positions | 13 |
| Lock Spacing | every 4” (102 mm) |
| Lifting Time | 60 sec |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | 2,605 lbs. (1,182 kg) |
| Shipping Dimensions | 212” x 24” x 40” (5,385 mm x 610 mm x 1,016 mm) |
Concrete Floor Requirements for BendPak Lifts
BendPak lifts require a solid, level concrete foundation to ensure stability and safe operation. The concrete floor must meet certain minimum requirements for thickness and PSI rating.
Click here to learn more about BendPak lift concrete foundation requirements.
(This would link to a page with detailed information about the concrete requirements, including thickness, PSI rating, and levelness.)
Compare Models of the HDS-14
Free Shipping and Delivery Terms
Get your BendPak products delivered quickly and affordably! Most items ship free to direct shipping points within the 48 contiguous United States.
Need it shipped somewhere special? We can ship to most locations, but some places and services may cost a bit extra:
- Rural Areas: If you're in a remote spot, a small surcharge might apply. Just ask us to check your ZIP code!
- Special Services: Need a forklift to unload? Don't have a loading dock? We can handle it, but there might be an extra fee. We also offer residential delivery and other convenient options.
International Shipping? No problem! Contact us for a quote and to arrange the details.
Important Notes:
- Smaller items (under 150 lbs) usually ship via FedEx Ground.
- Accessories and service parts may have separate shipping fees. Contact us for details.
- We choose the best carrier for your area. Want a specific one? There might be a small surcharge.
Have questions about shipping? We're here to help! Contact our team for assistance.
General BendPak FAQs
Do car lifts require maintenance?
BendPak lifts are designed for minimal maintenance. Regular inspections and lubrication are key. Check the owner's manual for your specific model, but typically, monthly inspections of the cables, hydraulic systems, and lubrication points are recommended. This will help ensure optimal performance and longevity.
What are the floor requirements?
A level, structurally sound concrete floor is essential. BendPak recommends a minimum thickness of 4 inches with a PSI rating of 3,000 or greater. The floor should be level within 3 degrees of slope. Proper floor conditions are crucial for the safe and stable operation of your lift.
What's covered under warranty?
(Note: Warranty specifics may vary, so always refer to the official warranty documentation for the most accurate information.)
What voltage options are available?
BendPak offers flexibility with voltage options. Most lifts are available in both 110V and 220V configurations to suit your power supply. Be sure to check the specific requirements for the model you're interested in.
Do I need an air compressor?
Yes, an air compressor is necessary for operating the safety lock releases on BendPak four-post lifts. A typical air supply of 30-40 PSI is sufficient.
How do I find a certified installer?
BendPak recommends professional installation for optimal safety and performance. Contact your authorized distributor for a list of certified installers in your area. They can provide expert installation services to ensure your lift is set up correctly.
HDS-14 Specific FAQs

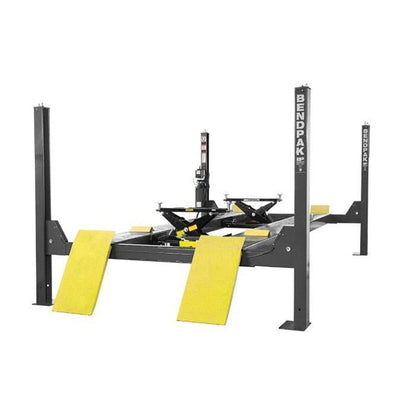

Are rolling jacks available?
Yes, the HDS-14 is compatible with BendPak's RJ7W rolling bridge jacks. These jacks have a 7,000-lb capacity each and are ideal for wheel service and other under-vehicle tasks.
What are the power requirements?
The HDS-14 requires a 220V single-phase power supply with a 30-amp circuit breaker.
What's included with purchase?
The HDS-14 package includes: * Complete lift assembly * Drive-on ramps * Wheel stops * Drip trays * Owner's manual
How long does installation take?
Professional installation typically takes 4-6 hours, assuming proper site preparation and the necessary equipment are available.
Is the HDS-14 ALI certified?
Yes, the HDS-14 is certified by the Automotive Lift Institute (ALI) to meet industry safety and performance standards. This certification provides assurance that the lift has been rigorously tested and meets stringent requirements.
What is the minimum ceiling height required for the HDS-14?
To safely operate the HDS-14, you'll need a minimum ceiling height of 110 inches (9 feet 2 inches). This ensures adequate clearance when the lift is raised to its maximum height.
What are the runway heights when the lift is fully lowered?
The runways sit at a convenient 4.5 inches off the ground when fully lowered. This low profile makes it easy to drive vehicles onto the lift, even those with low ground clearance.
