BENDPAK HD-9 Four-Post Alignment Lift, 9,000-lb. Capacity, Standard Widt

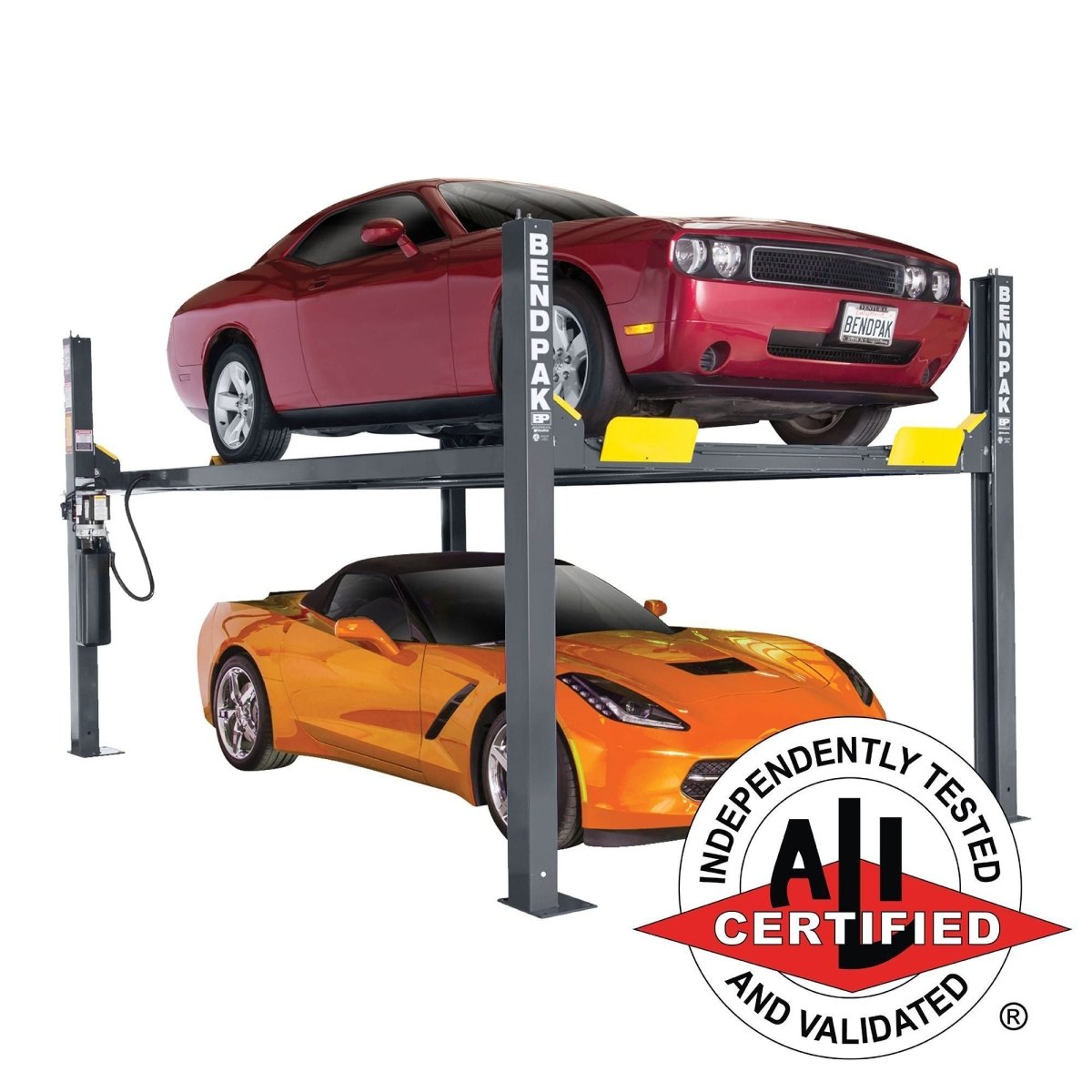

BendPak HD-9 - 9,000 lb Four-Post Lift for Storage and Service

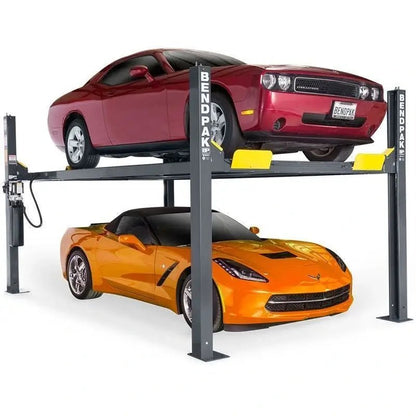

The BendPak HD-9 delivers 9,000 lb capacity in a four-post design engineered for professional shops and home garages. Featuring internal cable routing, 14 automatic locking positions, and serves as the platform for alignment-specific variants, this lift handles vehicle storage and service with dual-layer safety systems.
Key Features & Benefits
Dual-Layer Safety Architecture

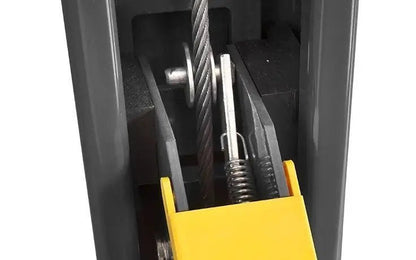

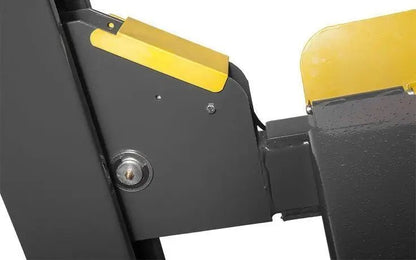

The HD-9 features 14 automatic locking positions spaced every 4 inches, plus an independent slack-cable backup system that exceeds ANSI/ALI requirements. Each lock position undergoes 150% load testing verification, providing redundant protection against mechanical failure.
Traditional single-lock systems can fail under asymmetric loads or when components wear over time. The HD-9's dual-layer approach addresses this industry-wide challenge by combining spring-loaded automatic safety engagement with a completely separate cable tension monitoring system that activates if primary systems detect any anomaly.
This enables confident vehicle positioning at any height without manual lock engagement. The pneumatic safety release provides instant unlocking when needed, while maintaining fail-safe protection throughout the service operation.

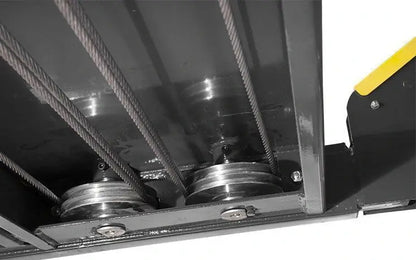

Superior Cable Engineering

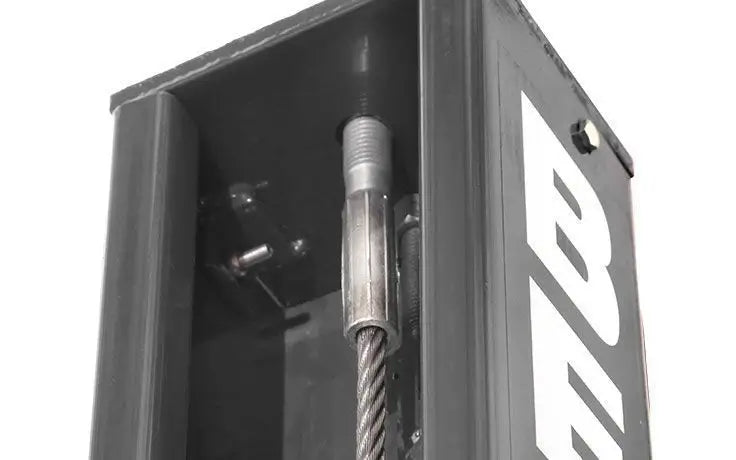

The HD-9 utilizes 3/8-inch aircraft-quality cables rated at 14,400 lb each, providing a combined 640% capacity rating over the lift's 9,000 lb maximum. Dual-hub sheaves distribute cable loads evenly, preventing the premature wear common in single-hub designs.
Standard 5/16-inch cables with single-hub sheaves often develop wear patterns that compromise lifting synchronization and require frequent adjustments. The HD-9's larger diameter cables with dual-hub distribution address this challenge by reducing cable stress at critical bend points while maintaining perfect column synchronization.
This eliminates cable stretch and reduces maintenance intervals significantly. The internal routing through columns protects cables from environmental exposure and accidental damage, extending service life beyond typical external cable systems.
Seven-Model Configuration Range
BendPak offers the industry's broadest 9,000 lb capacity lineup with width options from 100.25 to 110.25 inches and height variants from 88 to 100-inch columns. This comprehensive range includes standard, narrow, extended-height, and extra-wide configurations.
Most manufacturers offer single-configuration four-post lifts that force facilities to compromise on either space utilization or vehicle compatibility. The HD-9 series addresses diverse space constraints and vehicle requirements through seven distinct models, plus alignment-specific HD-9A and HD-9AE variants that add integrated turn plates and slip plates.
This enables precise matching to your facility dimensions and service requirements without oversizing or limiting vehicle access. Whether you're working in a compact home garage or expansive commercial bay, there's an HD-9 configuration optimized for your specific needs.
Low-Profile Entry Design
With a 5-inch minimum runway height and extended approach ramps, the HD-9 accommodates sports cars and lowered vehicles that can't access higher entry point lifts. The matte-finish runways provide enhanced tire grip during positioning.
Typical four-post lifts with 7 to 8-inch runway heights require steep approach angles that can damage air dams, exhaust systems, and underbody components on performance vehicles. The HD-9's lower profile design addresses this accessibility challenge while maintaining full structural integrity through optimized beam engineering.
This improves shop versatility by accepting a wider range of vehicles without requiring special adapters or loading procedures. The anti-slip runway surface ensures safe vehicle positioning even with high-performance tires or wet conditions.
Internal Component Routing
All cables, airlines, and safety mechanisms route internally through the columns, creating a clean, protected system that reduces wear compared to exposed external designs. This architecture maintains consistent cable tension without environmental interference.
External cable systems expose critical components to shop contamination, temperature fluctuations, and accidental impact damage that accelerate wear. The HD-9's internal routing addresses these vulnerabilities by housing all mechanical systems within the protected column structure, similar to how modern elevators protect their lifting mechanisms.
This reduces maintenance requirements and improves long-term reliability. The cleaner external appearance also enhances shop aesthetics while eliminating snag hazards common with external cable configurations.
Industry-Leading Warranty Coverage
BendPak backs the HD-9 with a 5-year structural warranty, 2-year coverage on hydraulic and pneumatic components, and 1-year electrical protection. This exceeds typical industry standard warranties that offer only 1 to 2 years on structural components.
Standard industry warranties often exclude critical wear components or require expensive service contracts for extended coverage. BendPak's tiered warranty structure addresses real-world reliability concerns by providing long-term structural protection while covering hydraulic systems that handle the mechanical workload.
This eliminates unexpected repair costs during the critical early years of lift operation. The warranty transfers with the equipment if you relocate, protecting your investment throughout its service life.
Product Demonstration
Applications & Use Cases
- Vehicle Maintenance: General service operations including oil changes, brake service, exhaust work, and suspension repairs for vehicles up to 9,000 lb

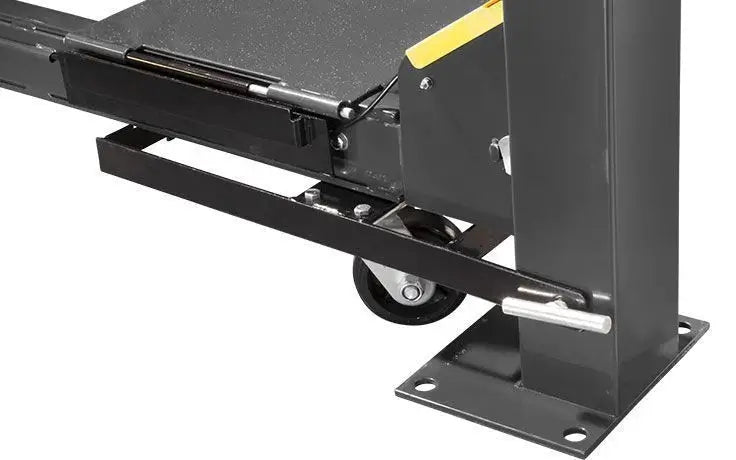

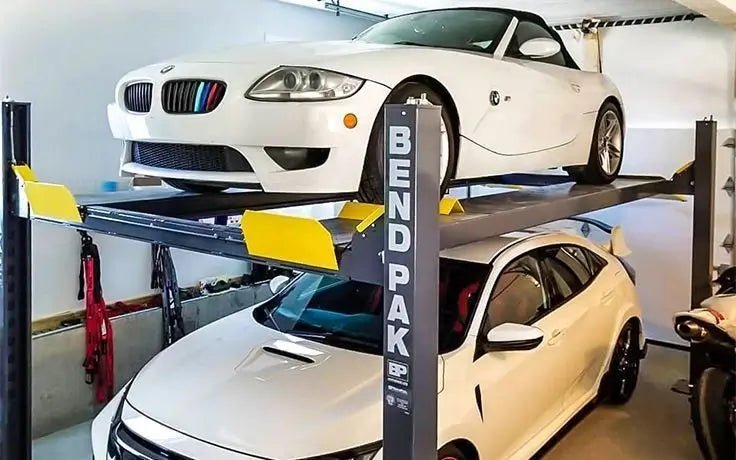

- Vehicle Storage: Double-stacking capability for maximizing garage space in home or commercial facilities
- Professional Service Bays: Light truck and SUV service in commercial shops requiring frequent vehicle lifting
- Alignment Services: Base platform for HD-9A and HD-9AE variants with integrated turn plates and slip plates
- Home Garage Solutions: Personal vehicle maintenance and storage for enthusiasts with adequate ceiling height
- Fleet Maintenance: Service operations for commercial vehicles, vans, and light-duty trucks up to 4,500 lb per axle
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Max Capacity Per Axle | 4,500 lb (2,041 kg) |
| Time to Full Rise | 45 seconds |
| Locking Positions | 14 |
| Lock Spacing | Every 4 inches (102 mm) |
| Specification | Value |
|---|---|
| Min Runway Height | 5 inches (127 mm) |
| Max Rise | 70 inches (1,778 mm) |
| Max Lifting Height | 75 inches (1,905 mm) |
| Overall Width | 110.25 inches (2,800 mm) |
| Overall Length | 200.5 inches (5,093 mm) |
| Column Height | 88 inches (2,235 mm) |
| Width Between Columns | 100.25 inches (2,546 mm) |
| Drive-Through Clearance | 86.5 inches (2,197 mm) |
| Runway Width | 19 inches (483 mm) |
| Runway Length | 158.25 inches (4,020 mm) |
| Width Between Runways | Adjustable 35 or 41 inches |
| Specification | Value |
|---|---|
| Cable Diameter | 3/8 inch |
| Cable Rating (Each) | 14,400 lb |
| Base Plates | 10 x 12 inches (254 x 305 mm) |
| Hydraulic Cylinder | Single 3-inch cylinder |
| Power Requirements | 220 VAC / 60 Hz / Single-phase |
Installation Requirements
Foundation Requirements
- Concrete Thickness: Minimum 4.25 inches
- Concrete Strength: 3,000 PSI compressive strength
- Cure Time: 28-day cure required
- Floor Levelness: Maximum 3 degrees slope
- Anchor Bolts: 16 total (4 per post), 0.75-inch diameter x 4.75-inch length
Power & Air Requirements
- Electrical: 220V single-phase, 60 Hz
- Circuit Protection: 25 amp circuit breaker required
- Air Supply: Minimum 30 PSI / 3 CFM for safety lock release
Space & Clearance
- Side Clearance: Minimum 6 inches from walls/obstructions
- Ceiling Height: Consider maximum lifting height of 75 inches plus vehicle height
Installation Notes
- Professional Installation: Recommended for proper anchoring and electrical connections
- Permits: Verify local code compliance and permit requirements before installation
Model Comparison
| BendPak HD-9 Four-Post Lift | 9,000 lb capacity Max rise: 70"; max lifting height: 75" Overall length: ~200.5"; overall width: ~110.25" Runway width: 19"; runway length: ~158.25" |
Electric-hydraulic power unit 220 VAC / 60 Hz / 1 Ph motor Time to full rise: ~45 seconds |
Freestanding four-post lift for parking, storage, and light service Internal routing for cables, airlines, safety latches, and sheaves for a clean layout 14 locking positions with adjustable lock ladders for flexible working heights Rail kit built into runways for accessories (rolling jacks, drip trays, solid deck, etc.) Low ~5" deck height and long approach ramps for low-clearance vehicles |
Requires 220V single-phase power and a suitable air supply for safety-lock release, which may not be available in all home garages Does not include rolling bridge jacks, caster kit, drip trays, or solid deck by default—these are separate add-ons Standard-width, standard-length configuration may be limiting for very long wheelbase trucks compared with extra-length 4-post alternatives |
|---|---|---|---|---|
| Challenger CL4P9S Four-Post Storage/Service Lift | 9,000 lb capacity (light-duty service/storage) Rise height (top of runway): ~73.25" Clearance under runways (storage): ~67.75" Overall length: ~209.5"; overall width: ~112.25" Runway width: 20"; width between runways: 38" |
1 HP / 2 HP power unit options 110V or 220V single-phase configurations Rise time: 120 seconds on 110V / 60 seconds on 220V |
ALI/ETL certified four-post lift for combined storage and light service Multiple model variants (standard, extra-length, extra-length & width) to match bay size and wheelbase needs Adjustable lock ladders and multi-position locks to compensate for uneven floors Free-standing design where anchoring is not required to maintain certification Built-in runway rail system to accept rolling jacks, drip trays, and other accessories |
Longer overall footprint than the HD-9, which can be harder to fit into compact garages or short bays Higher deck height (~7" runways) makes drive-on slightly steeper for very low vehicles Slower lift speed on 110V (120 seconds to full rise) compared with some 220V-only four-post designs |
| Triumph NOS-9XLT 4-Post Lift | 9,000 lb capacity Lift height: ~85"; height under runway: ~80.5" Overall length: ~239.5"; overall width: ~119" Runway length: ~191.5"; runway width: 18" 15 locking positions |
Electric-hydraulic system 110V single-phase power Lift time: 40 seconds to full rise |
Extended-length four-post design with long runways for larger vehicles High lifting height and generous under-runway clearance to stack taller vehicles Single-point lock release for simultaneous column unlocking Designed primarily for parking/storage and general-purpose use |
Requires more floor space than the HD-9 and CL4P9S due to extended overall length and width 110V-only power can be convenient but may draw higher current on a dedicated circuit and is typically targeted more at storage than frequent professional service use Narrower 18" runways may feel less forgiving when positioning very wide tires compared with 19–20" runway designs |
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to commercial addresses in the 48 contiguous United States. Surcharges may apply for rural areas, Alaska, and Hawaii.
Delivery Timeframe: 2-3 weeks from order placement (subject to inventory availability).
International: Available with custom freight quote.
Delivery Requirements
Forklift Required: Minimum 2,000 lb capacity for unloading. Crate dimensions: 166 x 22 x 28 inches.
Delivery Type: Commercial delivery to loading dock or ground level with forklift access. Residential delivery available with additional fees.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Damage Reporting
Within 15 days: Full coverage for replacement parts and freight
Within 30 days: Coverage for concealed damage (documentation required)
After 30 days: Contact customer service for warranty claim procedures
Warranty Coverage
5-2-1 Warranty Program
5 Years - Structural Components: Complete coverage for lift structure, columns, runways, and crossbeams
2 Years - Hydraulic/Pneumatic: Power unit, cylinders, hoses, fittings, and pneumatic safety systems - exceeds typical 1-year industry standard
1 Year - Electrical Components: Motor, switches, controls, and electrical systems including parts and labor
Warranty Requirements
Registration: Product registration required within 30 days of purchase
Eligibility: Valid for original purchaser (non-transferable)
Installation: Installation must be performed following manufacturer installation manual guidelines
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and optional add-ons for your HD-9 configuration.
Frequently Asked Questions
What are the concrete requirements for installing the BendPak HD-9?
The HD-9 requires a minimum concrete thickness of 4.25 inches with 3,000 PSI compressive strength and a 28-day cure. The floor must be level within 3 degrees of slope, and you'll need 16 anchor bolts (4 per post) that are 0.75 inches in diameter and 4.75 inches long.
What's included with the BendPak HD-9 purchase?
The HD-9 includes the four-post lift structure with integrated columns, electric-hydraulic power unit, four aircraft-quality lifting cables with internal routing, pneumatic safety release system, 14-position automatic safety locks, standard approach ramps, tire stops, slack cable safety system, and internal anti-sway slider blocks. Rolling jacks, caster kits, and drip trays are available as separate accessories.
What are the electrical requirements for the BendPak HD-9?
The HD-9 requires 220V single-phase power at 60 Hz with a 25 amp circuit breaker. You'll also need a minimum 30 PSI air supply with 3 CFM capacity for the pneumatic safety lock release system. These requirements ensure proper operation of the electric-hydraulic power unit and safety systems.
What vehicles can the HD-9 accommodate?
The HD-9 handles vehicles up to 9,000 lb total weight or 4,500 lb per axle. It's designed for passenger vehicles, SUVs, light trucks, and vans. The 5-inch minimum runway height accommodates low-clearance and sports cars, while the adjustable runway width (35 or 41 inches) fits various vehicle widths. The 158.25-inch runway length suits most standard wheelbase vehicles.
What safety certifications does the HD-9 have?
The HD-9 is ALI (Automotive Lift Institute) certified per ANSI/ALI ALCTV standards, CE Approved and Certified to meet EN-1493 European Standard, and ETL Listed per ANSI/UL 201. It features dual safety systems including 14 automatic locking positions with 150% load testing verification plus an independent slack cable backup system.
What warranty coverage does BendPak provide for the HD-9?
BendPak offers a 5-2-1 warranty program: 5 years on structural components including columns and runways, 2 years on hydraulic and pneumatic components (exceeding the typical 1-year industry standard), and 1 year on electrical components including parts and labor. Product registration within 30 days of purchase is required.
How does the HD-9 compare to other BendPak HD-9 series models?
The standard HD-9 is the base model with 110.25-inch overall width and 88-inch columns. The series includes seven variants: HD-9ST (standard width, tall columns), HD-9STX (narrow width, tall), HD-9XW (extra wide), HD-9SW (narrow width), HD-9XL (extended height), and HD-9SWX (narrow, extra tall). HD-9A and HD-9AE add alignment capabilities with turn plates and slip plates.
Can the HD-9 be used for wheel alignment work?
The standard HD-9 provides a stable platform for basic alignment checks, but for professional alignment work, BendPak offers the HD-9A and HD-9AE variants. These models include integrated turn plates and slip plates specifically designed for wheel alignment procedures. The standard HD-9 can be used with portable alignment equipment but isn't optimized for that application.
