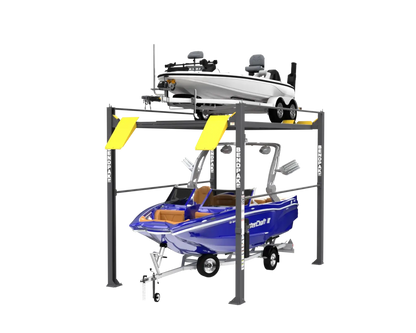

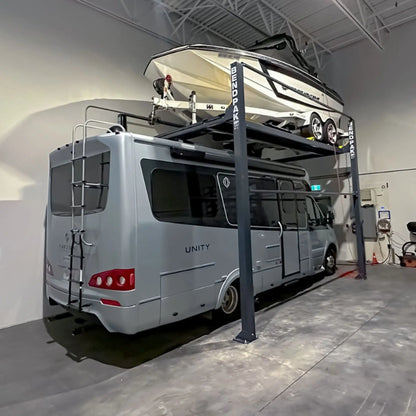

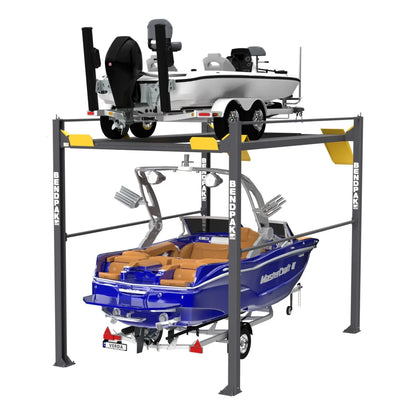

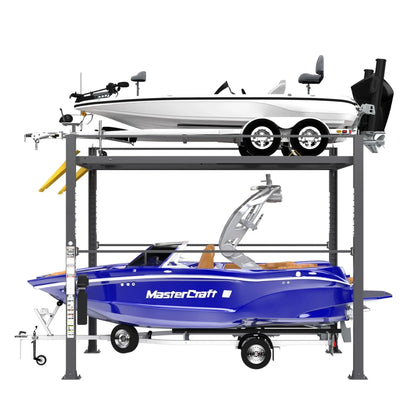

BENDPAK HD-7500PBX Four Post Car Lift, 7,500 lb Capacity, Vehicle and Boat Storage Lift
BENDPAK | HD-7500PBX | Four Post Car Lift | 7,500 lbs Capacity
Protect Your Boat, Elevate Your Storage!
The HD-7500PBX Boat Lift offers a powerful 7,500-lb capacity with smooth electric-hydraulic operation for effortless lifting. Its multi-level locking system ensures secure, adjustable storage, while durable aircraft cables and a rugged powder-coated finish provide long-lasting reliability.
HD-7500PBX Features & Benefits
Max Lift
7,500 lb capacity, CE Certified.
Electric-Hydraulic System
Smooth, effortless lifting.
Multi-Level Locking
Adjustable, secure storage.
Heavy-Duty Build
Durable, low-maintenance design.
Dual Electric-Hydraulic Power System for Effortless Lifting
Say goodbye to manual labor! With an advanced electric-hydraulic power system, raising and lowering your boat is as simple as pressing a button. This system provides smooth and reliable performance, making boat storage quick and hassle-free.
Heavy-Duty 7,500-lb Lifting Capacity
Never worry about the safety of your boat again. This lift is engineered with a powerful 7,500-lb weight capacity, ensuring it can handle even the heaviest boats with ease. Whether you own a fishing boat or a larger vessel, this lift provides ultimate security and peace of mind.
Extended Height & Adjustable Runways for Universal Fit
Designed to accommodate nearly all boat trailer types, this lift features adjustable runways that fit wide and narrow installations. Its extended height model ensures clearance for taller boats, making it a versatile solution for various storage needs.
Rugged, Non-Skid Ramps for Added Safety
Board and exit your boat confidently with sturdy, non-skid ramps that provide maximum traction. These ramps are engineered for stability, preventing slips and ensuring safe access for loading, unloading, and maintenance.Board and exit your boat confidently with sturdy, non-skid ramps that provide maximum traction. These ramps are engineered for stability, preventing slips and ensuring safe access for loading, unloading, and maintenance.
Heavy-Duty Aircraft Cable & Multi-Level Locking Positions
Built with premium 3/8-inch aircraft cable, this lift delivers unmatched durability and strength. The multi-level locking system secures your boat at various heights, allowing for flexible storage options that fit your space and needs.
Low-Maintenance Design with Self-Lubricating Rollers
Enjoy hassle-free operation with oversized, self-lubricating cable rollers that minimize wear and tear. This low-maintenance system ensures a smooth lift experience, reducing upkeep time and letting you focus on enjoying your time on the water.
HD-7500PBX Specifications
| Specification | HD-7500PBX |
|---|---|
| Style | Four-Post Lift |
| SKU# | - |
| Lifting Capacity | 7,500 lbs (3,402 kg) |
| Maximum Capacity - Front Axle | 3,750 lbs (1,701 kg) |
| Maximum Capacity - Rear Axle | 3,750 lbs (1,701 kg) |
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 144.5" (3,681 mm) |
| C - Max. Lifting Height | 132" (3,357 mm) |
| Time to Full Rise | 50 seconds |
| D - Overall Width | 133.75" (3,398 mm) |
| E - Outside Length | 198" (5,028 mm) |
| F - Overall Length (Includes ramps) | 224.5" (5,704 mm) |
| G - Height of Columns | 157.5" (4,010 mm) |
| H - Width Between Columns | - |
| I - Drive-Thru Clearance | - |
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 188.5" (4,788 mm) |
| L - Width Between Runways | 49.5" - 69.5" (1,257 mm - 1,765 mm) |
| M - Runway Centerline | - |
| N - Outside Edge of Runways | 87.5" (2,223 mm) or 107.5" (2,731 mm) |
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
| Locking Positions | 30 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 208-230 VAC / 60 Hz / 1 Ph |
| Air Supply | 3 to 25 CFM at 50 to 150 psi |
| Noise | 45 dB |
HD-7500PBX Documents
Concrete Floor Requirements for BendPak Lifts
BendPak lifts require a solid, level concrete foundation to ensure stability and safe operation. The concrete floor must meet certain minimum requirements for thickness and PSI rating.
Click here to learn more about BendPak lift concrete foundation requirements.
Compare Models of the HD-7500PBX
| Model | HD-7500PBX | HD-75BXT | HD-7500BLX |
|---|---|---|---|
| Style | Four-Post Lift | Four-Post Lift | Four-Post Lift |
| SKU# | - | - | - |
| Lifting Capacity | 7,500 lbs (3,402 kg) | 7,500 lbs (3,402 kg) | 7,500 lbs (3,402 kg) |
| Maximum Capacity - Front Axle | 3,750 lbs (1,701 kg) | 3,750 lbs (1,701 kg) | 3,750 lbs (1,701 kg) |
| Maximum Capacity - Rear Axle | 3,750 lbs (1,701 kg) | 3,750 lbs (1,701 kg) | 3,750 lbs (1,701 kg) |
| A - Min. Runway Height | 5" (127 mm) | 5" (127 mm) | 5" (127 mm) |
| B - Max. Rise | 144.5" (3,681 mm) | 87" (2,210 mm) | 85.75" (2,178 mm) |
| C - Max. Lifting Height | 132" (3,357 mm) | 87" (2,210 mm) | 85.75" (2,178 mm) |
| Time to Full Rise | 50 seconds | 50 seconds | 55 seconds |
| D - Overall Width | 133.75" (3,398 mm) | 133.75" (3,397 mm) | 132" (3,353 mm) |
| E - Outside Length | 198" (5,028 mm) | 222" (5,639 mm) | 198" (5,029 mm) |
| F - Overall Length (Includes ramps) | 224.5" (5,704 mm) | 248.5" (6,313 mm) | 224.5" (5,704 mm) |
| G - Height of Columns | 157.5" (4,010 mm) | 100" (2,537 mm) | 100" (2,537 mm) |
| H - Width Between Columns | - | 122" (3,099 mm) | 122" (3,099 mm) |
| I - Drive-Thru Clearance | - | 108.5" (2,756 mm) | 108.5" (2,756 mm) |
| J - Runway Width | 19" (483 mm) | 25.5" (646 mm) | 25.5" (646 mm) |
| K - Length of Runways | 188.5" (4,788 mm) | 212.5" (5,398 mm) | 188.5" (4,788 mm) |
| L - Width Between Runways | 49.5" - 69.5" (1,257 mm - 1,765 mm) | 46.5" (1,181 mm) or 66.5" (1,689 mm) | 49.5" - 69.5" (1,257 mm - 1,765 mm) |
| M - Runway Centerline | - | 68.5" (1,740 mm) or 88.5" (2,248 mm) | 68.5" (1,740 mm) or 88.5" (2,248 mm) |
| N - Outside Edge of Runways | 87.5" (2,223 mm) or 107.5" (2,731 mm) | 87.5" (2,223 mm) or 107.5" (2,730 mm) | 87.5" (2,223 mm) or 107.5" (2,731 mm) |
| Rated Capacity | 135" (3,429 mm) | 150" (3,810 mm) | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) | 130" (3,302 mm) | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) | 110" (2,794 mm) | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) | 90" (2,286 mm) | 80" (2,032 mm) |
| Locking Positions | 30 | 17 | 17 |
| Lock Spacing | Every 4" (102 mm) | Every 4" (102 mm) | Every 4" (102 mm) |
| Motor | 208-230 VAC / 60 Hz / 1 Ph | 208-230 VAC / 60 Hz / 1 Ph | 220 VAC / 60 Hz / 1 Ph |
| Air Supply | 3 to 25 CFM at 50 to 150 psi | - | - |
| Noise | 45 dB | 45 dB | 45 dB |
Free Shipping and Delivery Terms
Get your BendPak products delivered quickly and affordably! Most items ship free to direct shipping points within the 48 contiguous United States.
Need it shipped somewhere special?
- Rural Areas: If you're in a remote spot, a small surcharge might apply. Just ask us to check your ZIP code!
- Special Services: Need a forklift to unload? Don't have a loading dock? We can handle it, but there might be an extra fee. We also offer residential delivery and other convenient options.
International Shipping? No problem! Contact us for a quote and to arrange the details.
Important Notes:
- Smaller items (under 150 lbs) usually ship via FedEx Ground.
- Accessories and service parts may have separate shipping fees. Contact us for details.
- We choose the best carrier for your area. Want a specific one? There might be a small surcharge.
Have questions about shipping? We're here to help! Contact our team for assistance.
The BendPak Advantage: Quality, Warranty & Support
Free Shipping
Enjoy fast, hassle-free delivery within the contiguous U.S. at no extra cost.
Genuine BendPak Warranty
Enjoy full manufacturer coverage, backed by BendPak's industry-leading support and service network.
Certified BendPak Quality
Every lift is engineered to ALI/ETL safety standards, ensuring premium craftsmanship and durability.
Expert Support & Guidance
As an authorized BendPak distributor, Garage Supply Guys provides expert guidance, ensuring you get the right lift for your needs.
General BendPak FAQs
Do car lifts require maintenance?
BendPak lifts are designed for minimal maintenance. Regular inspections and lubrication are key. Check the owner's manual for your specific model, but typically, monthly inspections of the cables, hydraulic systems, and lubrication points are recommended. This will help ensure optimal performance and longevity.
What are the floor requirements?
A level, structurally sound concrete floor is essential. BendPak recommends a minimum thickness of 4 inches with a PSI rating of 3,000 or greater. The floor should be level within 3 degrees of slope. Proper floor conditions are crucial for the safe and stable operation of your lift.
What's covered under warranty?
BendPak offers a comprehensive warranty for peace of mind. This typically includes: * 5-year structural warranty, * 2-year power unit warranty, * 1-year parts warranty
(Note: Warranty specifics may vary, so always refer to the official warranty documentation for the most accurate information.)
What voltage options are available?
BendPak offers flexibility with voltage options. Most lifts are available in both 110V and 220V configurations to suit your power supply. Be sure to check the specific requirements for the model you're interested in.
Do I need an air compressor?
Yes, an air compressor is necessary for operating the safety lock releases on BendPak four-post lifts. A typical air supply of 30-40 PSI is sufficient.
How do I find a certified installer?
BendPak recommends professional installation for optimal safety and performance. Contact your authorized distributor for a list of certified installers in your area. They can provide expert installation services to ensure your lift is set up correctly.
HD-7500PBX Specific FAQs
Can this lift be used for vehicles as well as boats?
Yes! The HD-7500PBX features adjustable runways that can accommodate both boats and vehicles. This dual-purpose design makes it an excellent investment for those needing versatile storage options.
How does the safety locking mechanism work?
The lift includes multi-level locking positions that automatically engage when raising your boat. This ensures secure, stable storage at various heights, preventing accidental drops and keeping your boat safely elevated.
What type of boats can this lift accommodate?What type of boats can this lift accommodate?
With its extended height and 7,500-lb capacity, this lift can handle a wide range of boats, from smaller fishing boats to larger trailers. The adjustable runway system also allows it to fit various trailer sizes.
Does the lift require frequent maintenance?
No, the HD-7500PBX is designed with self-lubricating rollers and durable aircraft cables that minimize maintenance needs. Regular inspections and basic upkeep will keep it running smoothly for years to come.
Is the HD-7500PBX ALI certified?
Yes, HD-7500PBX is certified by the Automotive Lift Institute (ALI) to meet industry safety and performance standard. This certification provides assurance that the lift has been rigorously tested and meet stringent requirements.
