BendPak HD-7500BLX 7,500 lb Vehicle and Boat Storage Lift

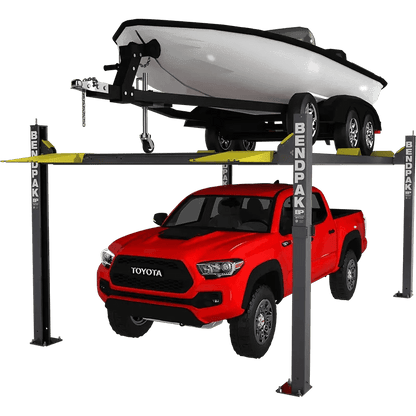

The BendPak HD-7500BLX is a dual-purpose boat and vehicle storage lift. With 7,500 lb lifting capacity and 82 in of rise, this lift keeps your boat protected from saltwater corrosion, barnacles, and weather damage. Adjustable runways accommodate both boat trailers and ground vehicles. 17 locking positions provide variable-height parking. CE certified. 5-2-1 warranty.
BendPak HD-7500BLX: Who It's For

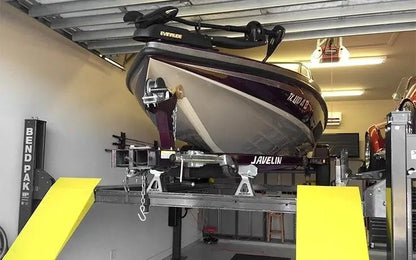

- Home Dry Dock: Stop paying monthly marina storage fees. Keep your boat protected from saltwater corrosion, barnacles, and weather damage.
- Boat Storage Businesses: Maximize facility capacity with vertical storage. More boats per square foot.
- Dual-Purpose Storage: Adjustable runways fit both boat trailers and ground vehicles. Switch configurations seasonally.

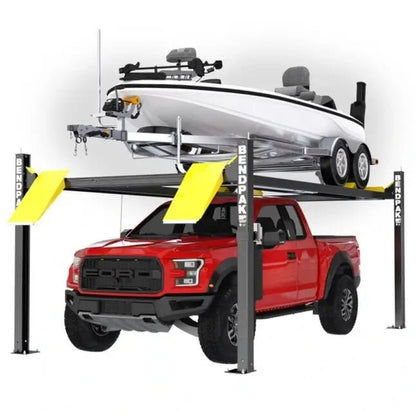

- Vehicle Collectors: Use as a professional-grade vehicle storage lift when the boat isn't on it. 82 in rise provides clearance for a second vehicle underneath.
- High-Ceiling Garages: 100 in column height requires 12+ ft ceilings for full functionality.
HD-7500BLX Features
7,500 lb Lifting Capacity
7,500 lb total capacity with 3,750 lb maximum per axle. Handles most recreational boats on trailers, plus cars, trucks, and SUVs.
82 Inch Rise
82 in maximum rise with 87 in maximum lifting height. Provides clearance for a second vehicle underneath. 17 locking positions every 4 in for variable-height parking.
Adjustable Runway Widths
Runways adjust between 46.5 in and 66.5 in width. Fits narrow boat trailers and wider vehicle configurations. True dual-purpose for boats and vehicles.
Extended Approach Ramps
Low-profile ramps with gradual incline for easy trailer loading. 182.25 in runway length. Overall length with ramps is 224.5 in (approximately 19 ft).
Heavy-Duty Aircraft Cables
Four 3/8 in stainless steel wire ropes, each rated at 14,400 lb (57,000+ lb combined). Corrosion-resistant with minimal maintenance required.
Electric-Hydraulic Power System
Single hydraulic cylinder with maintenance-free power unit. 55 seconds to full rise. 45 dB operating noise.
Automatic Safety Lock System
Push-button pneumatic release disengages all 4 locks simultaneously. Spring-loaded locks engage continuously as the lift rises. Secondary slack-cable device for backup protection. Requires air supply: minimum 30 PSI / 3 CFM.
BendPak HD-7500BLX Specifications
| Lifting Capacity | 7,500 lb (3,402 kg) |
|---|---|
| Max Capacity Front Axle | 3,750 lb (1,701 kg) |
| Max Capacity Rear Axle | 3,750 lb (1,701 kg) |
| Min Wheelbase at Rated Capacity | 135 in (3,429 mm) |
| Min Wheelbase at 75% Capacity | 115 in (2,921 mm) |
| Min Wheelbase at 50% Capacity | 95 in (2,413 mm) |
| Min Wheelbase at 25% Capacity | 80 in (2,032 mm) |
| Overall Width | 132 in (3,353 mm) |
|---|---|
| Outside Length | 198 in (5,029 mm) |
| Overall Length (with ramps) | 224.5 in (5,702 mm) |
| Column Height | 100 in (2,540 mm) |
| Width Between Columns | 122 in (3,099 mm) |
| Drive-Thru Clearance | 108.5 in (2,756 mm) |
| Runway Width | 19 in (483 mm) |
|---|---|
| Runway Length | 182.25 in (4,629 mm) |
| Width Between Runways | 46.5 in (1,181 mm) or 66.5 in (1,689 mm) |
| Runway Centerline | 68.5 in (1,740 mm) or 88.5 in (2,248 mm) |
| Outside Edge of Runways | 87.5 in (2,223 mm) or 107.5 in (2,731 mm) |
| Minimum Runway Height | 5 in (127 mm) |
|---|---|
| Maximum Rise | 82 in (2,083 mm) |
| Maximum Lifting Height | 87 in (2,210 mm) |
| Time to Full Rise | 55 seconds |
| Locking Positions | 17 positions every 4 in |
| Operating Noise | 45 dB |
| Motor | 220 VAC / 60 Hz / 1 Phase |
|---|---|
| Air Supply Required | Minimum 30 PSI / 3 CFM |
| Shipping Weight | 1,910 lb (866 kg) |
|---|---|
| Shipping Dimensions | 191 in x 22 in x 28 in |
Documents
Click to open in a new tab.
HD-7500BLX Installation Requirements
Concrete Foundation
- Thickness: Minimum 4 in, fully cured (28 days minimum)
- Strength: Minimum 3,000 PSI
- Surface: Flat and level within 3 degrees of slope
- Condition: No cracks or defects within 6 in of anchor points
Electrical
- Power: 220 VAC / 60 Hz / Single-phase
- Circuit: Dedicated breaker required
- Disconnect: Main power disconnect switch required within sight of operator
- Installation: Licensed electrician required
Air Supply
- Requirement: Air compressor required for safety lock release
- Specification: Minimum 30 PSI / 3 CFM
- Note: User responsibility to provide and maintain
Space Requirements
- Ceiling Height: Column height is 100 in (8.3 ft). Plan for 12-14 ft minimum for full functionality.
- Floor Space: 224.5 in x 132 in (approximately 19 ft x 11 ft)
- Environment: Indoor use only in dry, well-ventilated area
Certification
The HD-7500BLX is CE certified. Verify current status at autolift.org.
What's Included with the HD-7500BLX
- Complete lift assembly
- Extended approach ramps with non-skid surface
- Runways with rail-kit for optional accessories
- Adjustable lock ladders (17 positions)
- Installation and operation manual
Note: Professional installation required. Licensed electrician required. Air compressor required (not included).
HD-7500BLX Shipping and Delivery
Freight Shipping
Free shipping to direct shipping points within the 48 contiguous United States. LTL freight delivery.
Additional Services
- Rural/Remote Areas: Surcharges may apply for RATZ/DAS addresses
- Liftgate Service: Available for additional fee
- Residential Delivery: Additional charges apply
Receiving Requirements
Unloading: Forklift recommended. Shipping weight is 1,910 lb.
Inspection: Inspect all crates before signing BOL. Note any visible damage before driver leaves.
HD-7500BLX Warranty
BendPak 5-2-1 Warranty
- 5 Years: Structural components
- 2 Years: Hydraulic cylinders and power unit
- 1 Year: Operating and electrical components
- 1 Year: Labor (on-site or factory)
- 1 Year: Free shipping on warranty parts (continental US)
Requirements: Proper installation per manual. Regular maintenance. Non-transferable.
Questions About the HD-7500BLX?
Boat trailer compatibility, garage space planning, or help choosing between boat storage lift models.
BendPak HD-7500BLX FAQ
Will my boat trailer fit on this lift?
Width between runways adjusts from 46.5 in to 66.5 in. Runway length is 182.25 in. Measure your trailer's tire width spacing and overall length to confirm fit.
Can I store my boat for extended periods?
Yes. The robust safety locks and heavy-duty construction are designed for extended storage. Many boat owners store for the entire off-season.
How much ceiling height do I need?
Column height is 100 in (8.3 ft). Most boat owners need 12-14 ft minimum for full functionality.
Can I use this lift for car storage?
Yes. Adjust the runway width for your vehicle's track width. The 7,500 lb capacity handles cars, trucks, and SUVs. 82 in rise provides clearance for a second vehicle underneath.
Do I need an air compressor?
Yes. Minimum 30 PSI / 3 CFM required for the pneumatic safety lock release. User responsibility to provide.
Is this suitable for commercial boat storage?
Yes. Boat storage businesses use these lifts to maximize capacity. Professional-grade construction handles commercial use cycles.
