BendPak 20AP 20,000 lb 2 Post Lift - Heavy-Duty Clearfloor Car Lift
BendPak 20AP 2-Post Lift - 20,000 lb Heavy-Duty Clearfloor Two-Post Lift for Commercial Vehicle Service
The BendPak 20AP is a professional 20,000 lb (9,072 kg) clearfloor two-post lift engineered for Class 1-5 commercial vehicle service. Featuring patented ASARS automatic swing-arm restraints with 2,000+ lb holding force, dual direct-drive hydraulic cylinders, and multi-face columns, this symmetric two-post design handles medium-duty trucks, emergency vehicles, and fleet equipment with 126 inches between posts and 107.75 inches drive-thru clearance.
Key Features & Benefits
ASARS Safety System for Two-Post Lift Operation
The Automatic Swing Arm Restraint System (ASARS) delivers 2,000+ lb of holding force through a 360-degree load-holding grip engineered from heavily forged steel. This patented mechanism automatically secures swing arms against unplanned movement when load distribution changes, maintaining position even under elevated forces.
Traditional two-post lift restraint systems fail when technicians remove heavy drivetrain components like engines, transmissions, or axles. ASARS addresses this industry-wide challenge by providing automatic adaptive grip that engages on contact with the vehicle frame, requiring no manual lock activation or adjustment during lift operation.
This enables safer component extraction and installation by eliminating arm slippage risks that can occur when removing significant weight from one end of the vehicle. The quick-release operator lever provides instant pressure release when needed, without compromising the system's holding strength during active service operations.

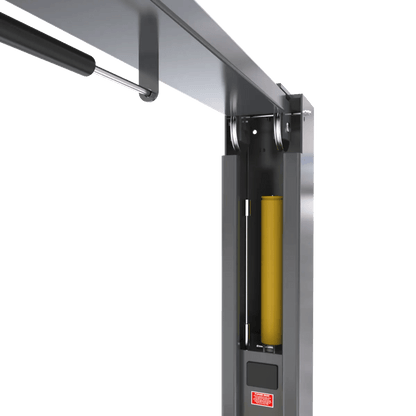

Direct-Drive Hydraulic System
Dual hydraulic direct-drive cylinders eliminate the cables, chains, and pulleys found in conventional lift systems. Each cylinder operates independently with 5 HP motor power, providing synchronized two-post lift operation through precision-machined components that maintain alignment without constant adjustment requirements.
Cable-driven lifts require frequent tension adjustments and synchronization checks to prevent uneven lifting. Direct-drive technology addresses these maintenance challenges by using sealed hydraulic cylinders that maintain consistent pressure and movement throughout the lift cycle, regardless of load positioning or environmental conditions.
This reduces maintenance intervals from monthly cable adjustments to annual hydraulic fluid checks. The elimination of wear-prone mechanical components extends service life while providing smoother, quieter operation that improves shop working conditions and reduces technician fatigue during repeated lift cycles.
Extended Height Configuration for Commercial Vehicles
The 20AP-192 variant provides 193 inches of overall height, offering 24 additional inches compared to standard models. This extended clearfloor two-post lift design accommodates tall commercial vehicles and improves technician ergonomics when servicing elevated components on Class 4-5 trucks.
Standard height lifts often limit overhead clearance for taller vehicles and restrict access to roof-mounted equipment on emergency vehicles. The extended height configuration addresses these operational constraints by providing additional working space above the vehicle, enabling complete service access without repositioning or specialized adapters.
This enables full-height door opening on lifted vehicles, unrestricted access to top-mounted HVAC units and emergency equipment, and improved lighting angles for underbody inspections. The additional clearance also accommodates future fleet additions without lift replacement, protecting long-term facility investments.
Comprehensive 12-Piece Adapter Package
Includes a complete adapter set as standard equipment: 4 frame cradle pads, 4 medium adapters, and 4 tall adapters, providing immediate compatibility with diverse chassis configurations. Each adapter features precision-machined contact surfaces that distribute load across frame rails without point-loading stress.
Typical competitor packages require additional adapter purchases ranging from hundreds to thousands of dollars to achieve full vehicle compatibility. The included 12-piece set addresses this hidden cost by providing complete lifting solutions for passenger vehicles through medium-duty trucks without supplementary investments.
This eliminates adapter compatibility delays that can stall service operations. The integrated adapter storage system keeps all components organized and accessible, reducing setup time between different vehicle types and preventing adapter loss that could compromise lifting safety or require emergency reordering.
Industry-Leading 5-2-1 Warranty Program
Structural components carry 5-year coverage, while hydraulic cylinders and power units receive 2-year protection. The first year includes comprehensive coverage of operating components, electrical systems, labor, and ground freight - exceeding typical 1-year industry standard warranties.
Standard industry warranties often exclude labor costs and freight charges, creating unexpected expenses when repairs are needed. The 5-2-1 program addresses these coverage gaps by including first-year labor and shipping, reducing total ownership costs during the critical break-in period when component issues are most likely to surface.
This comprehensive coverage structure eliminates budgetary surprises from warranty claims. The extended structural warranty reflects the robust construction quality, while the inclusive first-year terms reduce administrative burden and downtime costs associated with warranty service coordination.

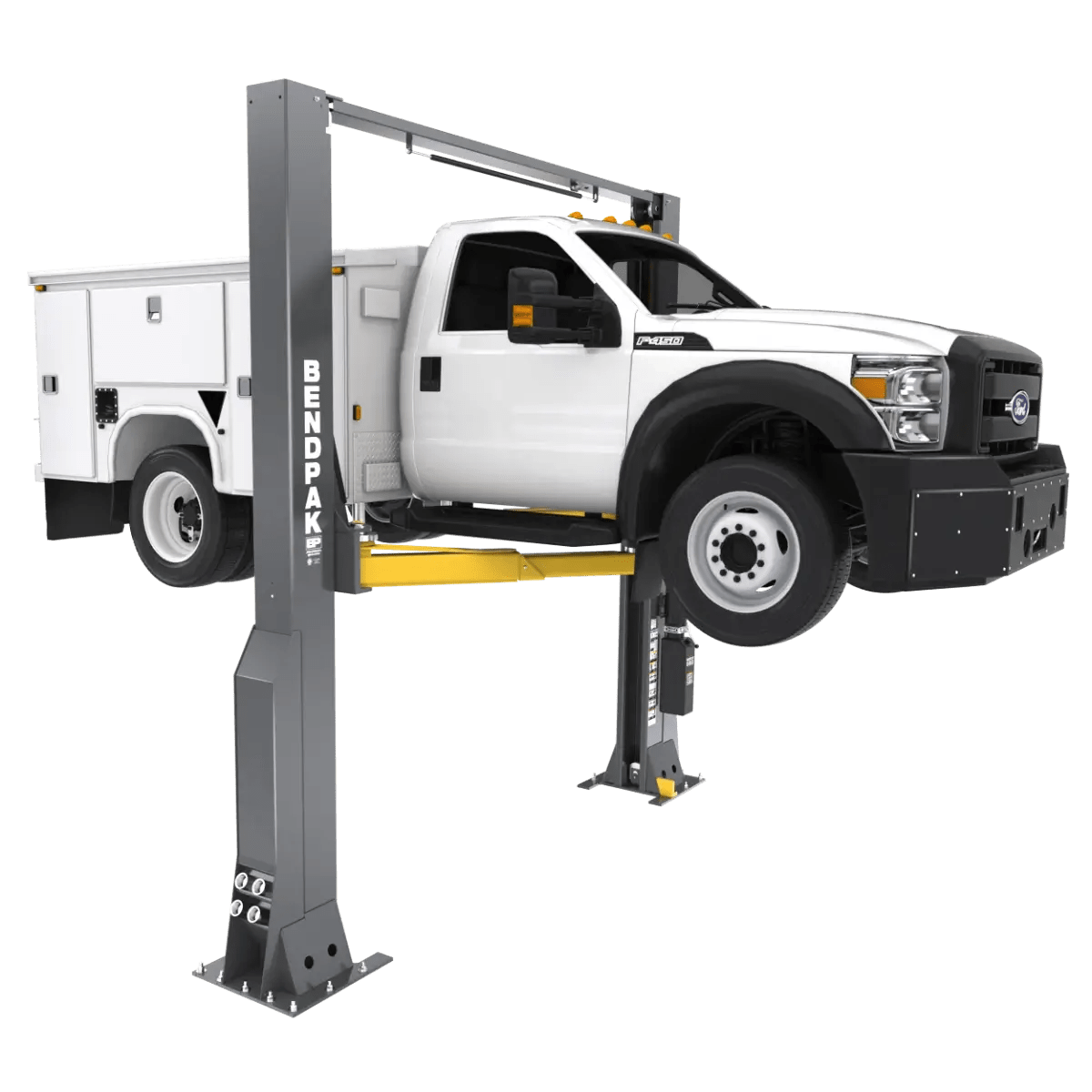

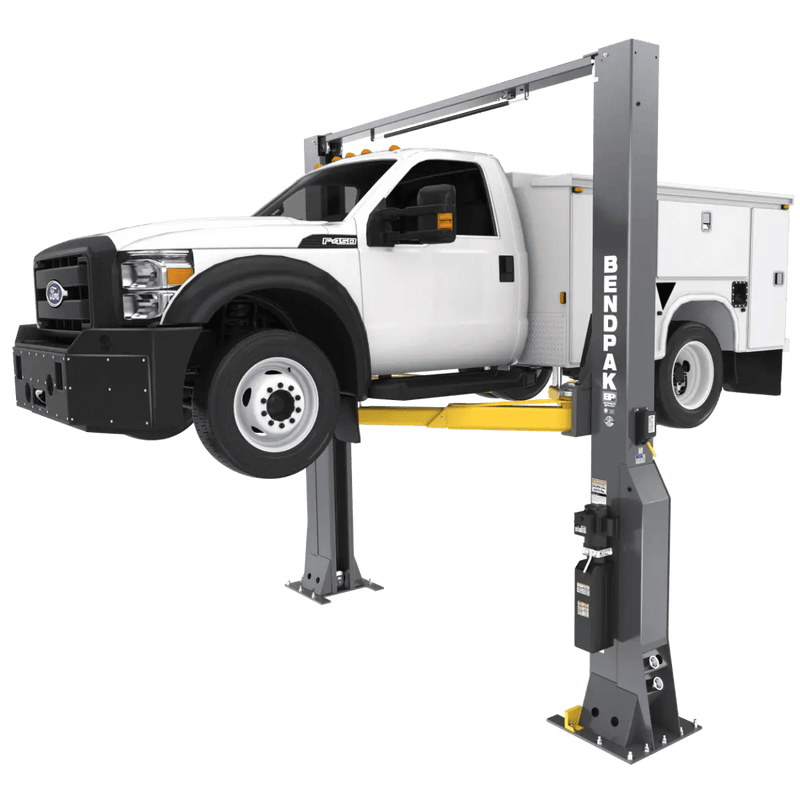

Product Demonstration
Applications & Use Cases
- Heavy-Duty Fleet Service: Professional two-post lift maintenance operations for Class 1 through 5 vehicles including delivery trucks, utility vehicles, and medium-duty commercial trucks requiring 20,000 lb capacity.
- Airport Maintenance Facilities: Service for ground support equipment including baggage tugs, fuel trucks, and specialized aircraft support vehicles with varying wheelbases and configurations.
- Emergency Vehicle Management: Fire trucks, ambulances, and rescue vehicles requiring extended height clearance for roof-mounted equipment access and specialized chassis designs.
- Commercial Truck Service: Box trucks, stake beds, and flatbed vehicles up to Class 5 specifications requiring stable lift operation for drivetrain and suspension work.
- Mixed Fleet Operations: Facilities servicing diverse vehicle types from passenger cars to medium-duty trucks, utilizing the wide adjustment range and comprehensive adapter set.
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 20,000 lb (9,072 kg) |
| Motor Power | 5 HP |
| Time to Full Rise | 79 seconds at rated load |
| Safety Lock Positions | Every 3-4 inches |
| Arm Holding Force (ASARS) | 2,000+ lb |
| Specification | Value |
|---|---|
| Overall Height (Standard 20AP) | 169 inches |
| Overall Height (20AP-192 Variant) | 193 inches |
| Inside Posts Width | 126 inches |
| Drive-Thru Width | 107.75 inches |
| Minimum Pad Height | 8 inches |
| Maximum Lifting Height with Adapters | 90.25 inches |
| Arm Reach Range | 35-62 inches |
| Specification | Value |
|---|---|
| Voltage | 208-230V, 50/60Hz, Single Phase |
| Compressed Air (Lock Release) | 30-40 PSI |
Installation Requirements
Concrete Requirements
- Minimum Thickness: 8 inches (verified requirement)
- Minimum Strength: 3,000 PSI (28-day aged concrete)
- Floor Level: Maximum 3-degree slope permitted
- Post-Tension Slabs: Engineering verification required before installation
Ceiling Height Requirements
- Standard 20AP Model: 14 feet minimum ceiling height
- 20AP-192 Extended Model: 16 feet minimum ceiling height
- Clearance Above Posts: 6 inches minimum for safe operation
Electrical Requirements
- Primary Power: 208-230V single-phase service
- Circuit Protection: Dedicated circuit with appropriate breaker rating
- Electrical Code: Installation must comply with NEC and local electrical codes
Installation Notes
- Professional Installation: Factory-trained technician installation recommended for warranty validation
- Permits: Verify local code compliance and permit requirements before installation
- Anchor System: Includes installation hardware and anchors per manufacturer specifications
- Bay Requirements: Minimum 12 feet wide x 24 feet deep for safe installation
Model Comparison
| BendPak 20AP 2-Post Lift | 20,000 lb (9,072 kg) clearfloor 2-post lift Max lift height w/ adapters: 90.25 inches Min pad height: 8 inches Inside posts: 126 inches; drive-thru: 107.75 inches |
Motor: 5 HP, 208-230V, single-phase Time to full rise: 79 seconds at rated load Air: 30-40 PSI for safety lock release |
Super-duty symmetric two-post design for Class 1-5 vehicles, including medium-duty trucks, emergency vehicles, and fleet equipment. Dual direct-drive hydraulic cylinders (no chains/cables) for smooth lifting and reduced maintenance. Patented ASARS automatic swing-arm restraints provide 2,000+ lb of holding force to prevent arm drift under heavy loads. Includes a complete 12-piece adapter set (frame cradle pads, medium and tall adapters) and integrated adapter storage. Backed by BendPak's 5-2-1 warranty program (5 year structural / 2 year hydraulics / 1 year operating components). Extended-height 20AP-192 option offers 193 inches overall height for tall vehicles. Limitation: Requires robust shop infrastructure: minimum 14 foot ceiling for the standard 20AP and 16 foot for the 20AP-192, plus an 8 inch / 3,000 PSI concrete slab; the 8 inch pad height is not ideal for very low-slung sports cars. |
|---|---|---|---|
| Alternative 20K Symmetric 2-Post Lift | 20,000 lb (9,072 kg) symmetric 2-post lift Arm load rating: 5,000 lb per arm Adapter height range: 5.97 - 8.03 inches |
Standard AC motor: 4 HP, 208-230V Optional fast-rise package: DC system, 5 HP equivalent, 110V Time to full rise: 81 seconds standard / 60 seconds with fast-rise option |
Heavy-duty symmetric 2-post lift with patented 3-stage arms for extended reach and flexible spotting over a wide range of wheelbases. Double-column design enhances rigidity and column strength. Multiple width options (narrow/standard/wide) and standard or low-ceiling configurations allow tailoring to shop bay size and ceiling height. Optional fast-rise technology significantly speeds lift and lower times for higher throughput, and integrated automatic arm restraints plus overhead shutoff bar improve safety. Limitation: Optimal installation still requires 13.5-16.5 foot ceiling height and a larger 15 foot x 30 foot bay than many light-duty lifts; fast-rise performance is an extra-cost option and the more complex 3-stage arm system can add setup and maintenance complexity compared with simpler direct-drive designs. |
| Alternative Heavy-Duty 2-Post Lift | 20,000 lb capacity heavy-duty 2-post lift Adjustable width: approx. 154.75-166.75 inches overall Designed for commercial and fleet vehicles up to 20,000 lb |
Motor: 3 HP, 208/230V AC (single-phase), with shop air 90-120 PSI for locking system Rise time: 62 seconds to full height (typical spec) |
Heavy-duty symmetric 2-post lift aimed at fleet maintenance and commercial shops. Uses 2-stage front and rear arms with adjustable column width, allowing the installer to tune the lift to available bay dimensions. Optional 2 foot column extensions support taller vehicles and enclosed service trucks. Clearfloor design keeps the work area between posts unobstructed, and the lift is widely supported with installation and inspection programs. Limitation: 2-stage arms provide less extreme reach than 3-stage designs, which can make spotting very long-wheelbase or very short-wheelbase vehicles more finicky; minimum pad height in the 6.2-7.6 inch range can still be high for extremely low vehicles, and the adjustable-width, extension-capable columns demand a generous bay footprint. |
Choose the BendPak 20AP when heavy commercial and fleet workloads, extended overhead clearance, and maximum arm stability are the priority. It outperforms alternatives by combining direct-drive cylinders, ASARS automatic arm restraints, a full 12-piece adapter set, and BendPak's 5-2-1 warranty, making it the best fit for high-volume shops servicing Class 1-5 trucks, emergency vehicles, and mixed commercial fleets that need a 20,000 lb clearfloor 2-post lift with long-term support.
Shipping & Delivery
Freight Coverage
Shipping: Free shipping to lower 48 states. Surcharges may apply for remote locations.
Delivery Timeframe: Typical lead time is 1-2 weeks from order placement (subject to inventory availability).
Delivery Requirements
Forklift Required: Equipment with adequate capacity needed for unloading. Forklift not provided by carrier.
Delivery Type: LTL freight carrier, curbside delivery standard. Inside delivery available at additional cost.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Additional Services
Professional Installation: Factory-trained technician installation recommended for proper setup and warranty validation.
Pickup Option: Available for pickup at distribution centers for local customers.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Lift Structure: Complete structural components including columns, carriages, and cross members
2 Years - Hydraulic System: Cylinders and power unit coverage - exceeds typical 1-year industry standard
1 Year - Operating Components: Electrical systems, controls, and includes labor and ground freight coverage
What's Included
Complete 12-Piece Adapter Set: 4 frame cradle pads, 4 medium adapters, 4 tall adapters
Safety Equipment: Padded overhead safety shutoff bar, single-point lock release system
Installation Hardware: Complete anchor and mounting hardware per manufacturer specifications
Storage System: Integrated adapter holder for organized component storage
Ready to Upgrade Your Shop?
Get expert guidance on the right lift that meets your facility requirements. This lift includes free shipping to the lower 48 states. Our team can help with product selection, installation planning, and technical specifications.
Frequently Asked Questions
What are the concrete requirements for the BendPak 20AP two-post lift?
The BendPak 20AP requires a minimum 8-inch thick concrete slab with 3,000 PSI strength (28-day aged). The floor must be level with no more than a 3-degree slope. Installation on post-tension slabs requires engineering verification before proceeding with installation.
What ceiling height do I need for the BendPak 20AP-192 extended height model?
The 20AP-192 extended height variant requires a minimum 16-foot ceiling height for safe operation. The standard 20AP model needs 14 feet minimum. Both models require at least 6 inches of clearance above the posts when fully extended.
What are the electrical requirements for the BendPak 20AP?
The BendPak 20AP requires 208-230V single-phase electrical service with appropriate circuit protection. A dedicated circuit with proper breaker rating is recommended. Installation must comply with NEC and local electrical codes. The lift also requires 30-40 PSI compressed air for the safety lock release system.
What adapters are included with the BendPak 20AP?
The BendPak 20AP includes a complete 12-piece adapter set: 4 frame cradle pads, 4 medium height adapters, and 4 tall height adapters. This comprehensive set provides immediate compatibility with diverse chassis configurations from passenger vehicles through Class 5 medium-duty trucks.
What vehicles can the BendPak 20AP handle?
The BendPak 20AP accommodates Class 1 through 5 vehicles with its 20,000 lb capacity. This includes medium-duty trucks, delivery vehicles, emergency vehicles, buses, and specialized fleet equipment. The 35-62 inch arm reach range and 107.75-inch drive-thru width handle diverse wheelbases and vehicle widths.
How does the ASARS system improve safety on the BendPak 20AP?
The patented ASARS (Automatic Swing Arm Restraint System) provides 2,000+ lb of holding force through a 360-degree grip that automatically engages when arms contact the vehicle. This prevents dangerous arm movement when removing heavy components like engines or transmissions, eliminating manual lock requirements.
What warranty coverage does the BendPak 20AP include?
The BendPak 20AP features a 5-2-1 warranty program: 5 years on structural components, 2 years on hydraulic cylinders and power unit, and 1 year on operating components including electrical systems. The first year includes labor and ground freight coverage, exceeding typical industry standards.
How long does it take for the BendPak 20AP to reach full height?
The BendPak 20AP reaches full height in 79 seconds at rated load capacity. The 5 HP motor and direct-drive hydraulic system provide consistent lift speed without cable adjustment requirements. Safety lock positions are available every 3-4 inches during the lift cycle.
