BendPak 12APX - 12,000 lb 2 Post Lift EV-Ready, Clearfloor
BendPak 12APX - 12,000 lb BendPak 2 Post Lift
The BendPak 12APX is a high-rise clearfloor 2 post lift with 12,000-pound capacity, designed as a premium lift for professional shops handling modern heavy vehicles including electric cars and light trucks. If you're comparing models in this class, this EV-ready model gives you Bi-Metric arms, Low-Pro arms, and ALI-certified safety in one footprint. The 12APX features exceptional 169-inch overall height and handles everything from low-slung EVs to full-size trucks.
Searching for the BendPak 12APX or comparing 12,000 lb 2 post lifts? Here's exactly how this model differs from other BendPak lifts and competing 12K-class options.
Why Choose a BendPak Two Post Lift for Modern EV & Truck Service
This professional shop lift delivers the versatility modern service bays need. Here's what sets the 12APX apart:
Bi-Metric Arm Versatility
The Bi-Metric arm system lets you switch between symmetric and asymmetric lifting configurations without any equipment changes. Need optimal door clearance for a short-wheelbase sports car? Switch to asymmetric. Working on a long-bed truck? Go symmetric. This patented dual-mode capability means you don't need separate lifts for different vehicle types. One lift handles everything from compact EVs to full-size commercial vans, improving workflow efficiency and maximizing your shop's versatility.
Superior Under-Vehicle Clearance
With 169 inches overall height and 82.5 inches maximum lift height (using optional extension adapters), this high-rise design gives you more working room than most competitor lifts in the 12K class. You'll work comfortably on high-roof commercial vans and get better access for complex undercarriage procedures. The extra clearance reduces technician fatigue during extended repairs and makes service on tall fleet vehicles significantly easier.

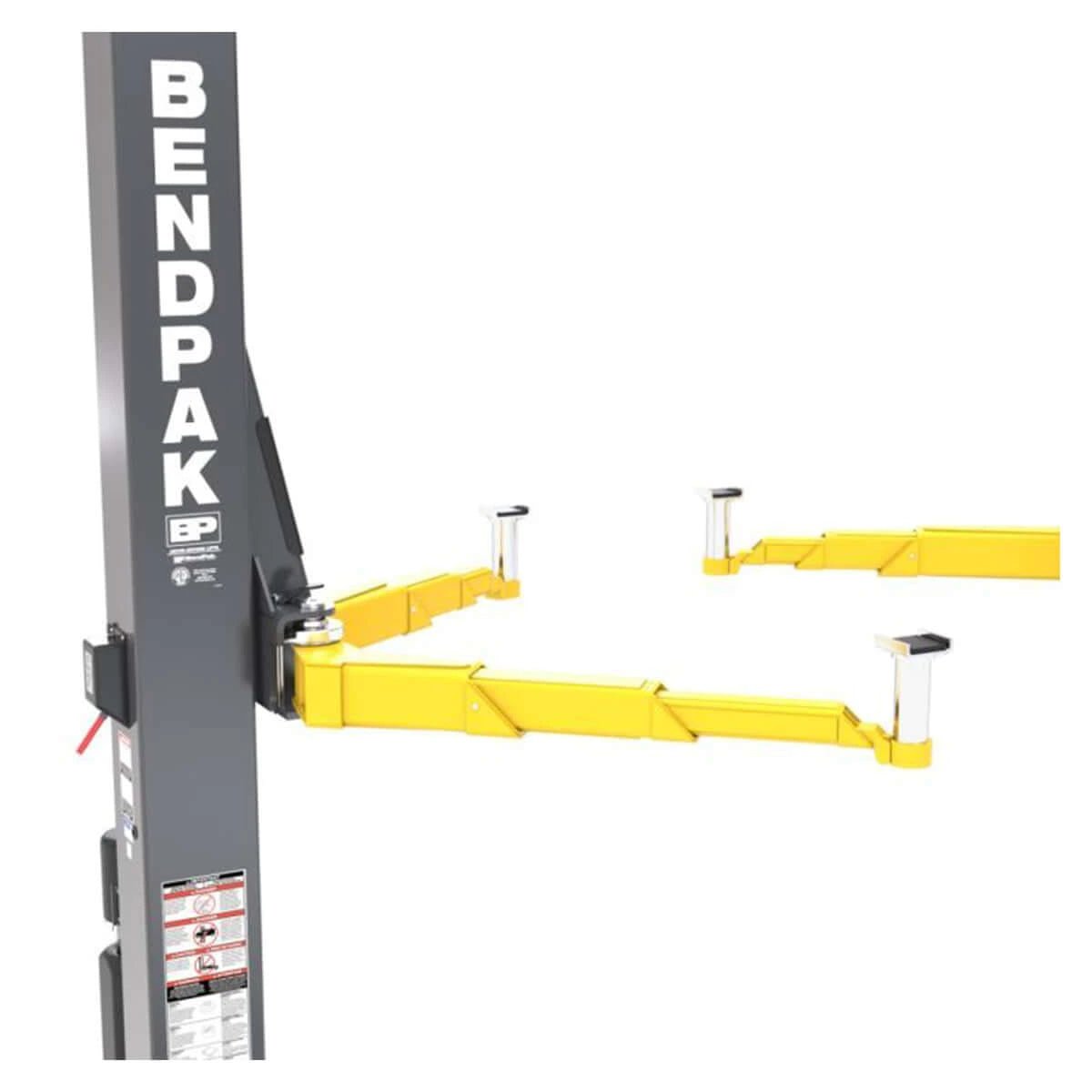

EV-Optimized Low-Pro Triple-Telescoping Arms
These Low-Pro arms start at just 4 inches minimum pad height and extend far enough to reach the outer lifting points on modern EVs and low-clearance sports cars. They're specifically engineered for EV battery pack configurations and reinforced to handle concentrated electric vehicle weight up to the full 12,000 lb capacity. This means you can safely service Teslas, BMW i-series, Audi e-trons, and other EVs with specialized lifting requirements. It's a great way to expand your service capabilities into the growing EV market.

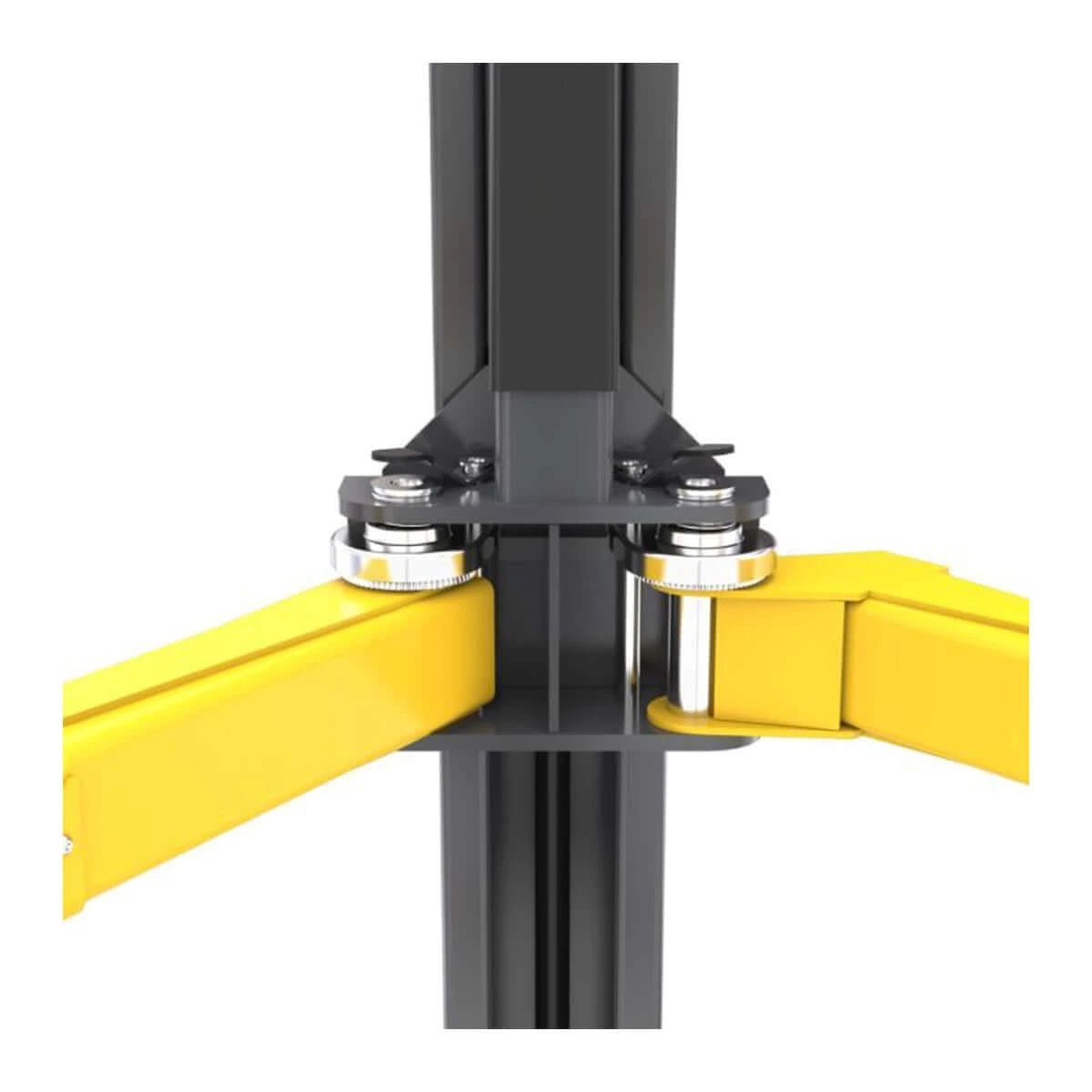

Advanced ASARS Safety Integration
The Automatic Swing Arm Restraint System (ASARS) provides 2,000+ lb side force resistance through a patented mechanism that automatically engages when arms contact the vehicle. Unlike basic mechanical locks that can fail under side loading, ASARS gives you redundant safety protection with self-adjusting grip pressure. This eliminates arm slippage risks even when you're pulling heavy engines, transmissions, or axles, with a quick single-point release when you need it.
Professional-Grade ALI Certified Construction
ALI certified to meet ANSI/ALI ALCTV-2017 standards with aircraft-quality equalizer cables, oversized cable sheaves, and self-lubricating UHMW polyethylene bearings. The high-strength steel construction comes with a comprehensive 5-2-1 warranty (5 years structural, 2 years hydraulic, 1 year components), which is far better than the typical 1-year coverage you'll find elsewhere. This ensures insurance compliance, long-term reliability, and protection against unexpected repair costs.
Product Demonstration

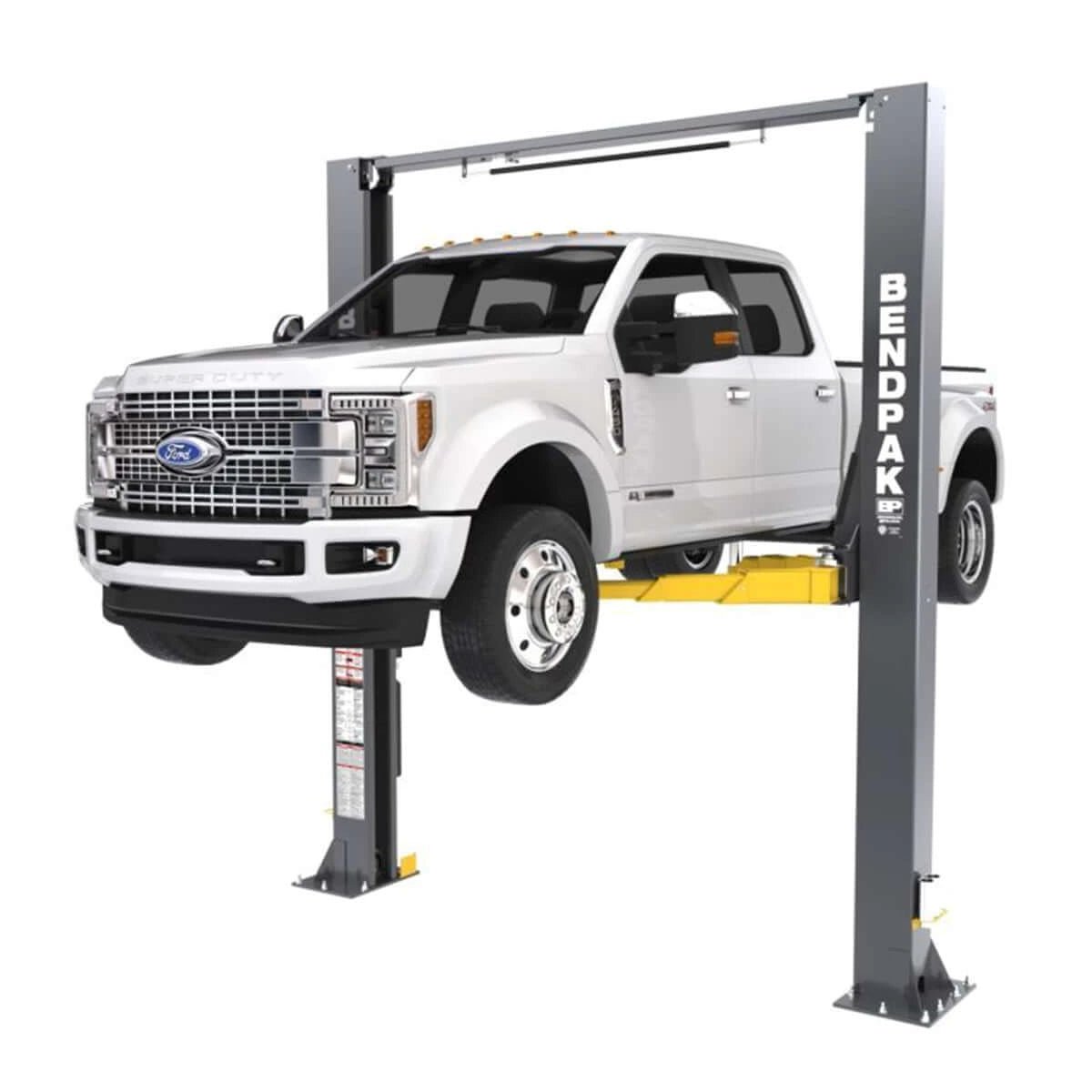

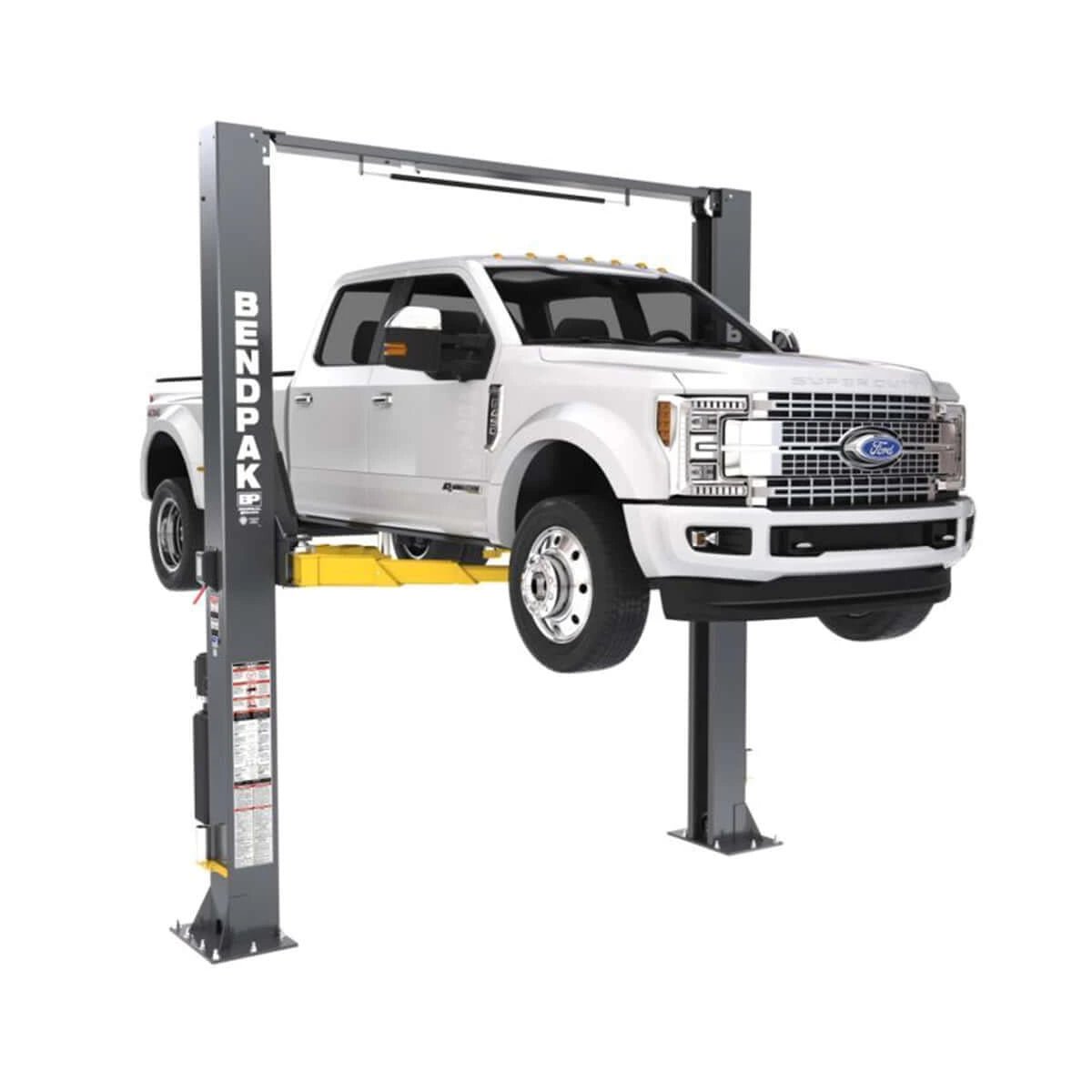

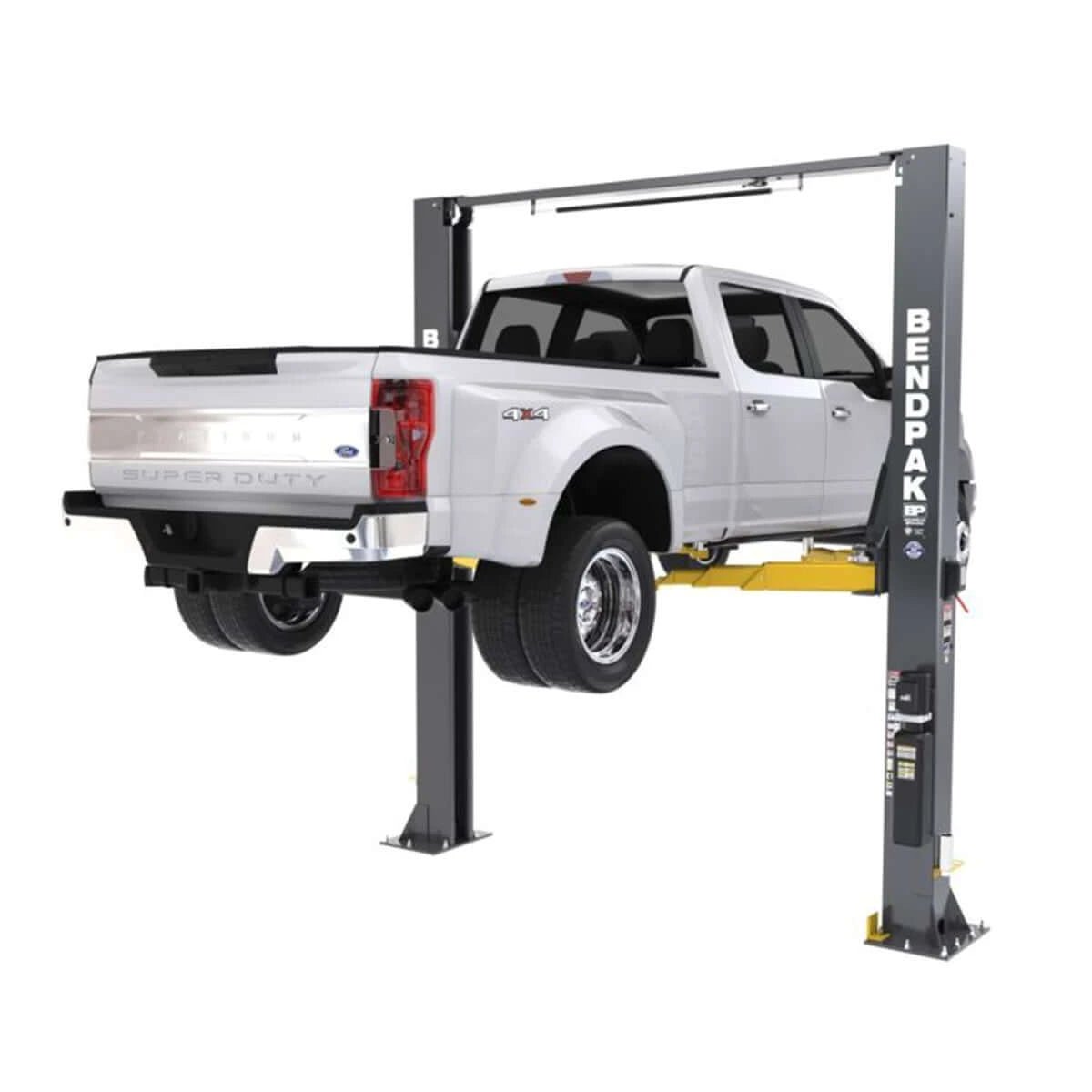

High-Rise 2 Post Lift for EVs, SUVs & Light Trucks
This 12,000 lb two-post car lift is engineered for shops that need one lift to handle low-slung EVs and full-size trucks. As an EV-ready 2 post lift, the 12APX is built to handle concentrated battery pack weight and low lift points. If you're adding your first dedicated EV 2 post lift to an existing bay of standard 10K lifts, this is the obvious upgrade path. Shopping for a 2 post car lift for sale that's capable of handling the full range of modern vehicles? This model delivers professional-grade versatility.
- Professional Automotive Repair Shops (dealerships & independents): Complete vehicle service including passenger cars, SUVs, and light trucks up to 12,000 lb with enhanced EV capabilities. This professional shop lift is ideal for modern service environments requiring EV-ready equipment.
- Commercial Fleet Maintenance (delivery, municipal, utility): This 2 post truck lift handles delivery vans, pickup trucks, and commercial vehicles requiring high lift capacity and clearance for undercarriage access and component replacement.
- Heavy-Duty Home Garages (advanced enthusiasts): Advanced DIY mechanics with adequate ceiling height requiring professional-grade 2 post garage lift capability for personal vehicles including trucks, SUVs, and specialty vehicles. This 2 post lift home garage installation requires careful planning.
- Electric Vehicle Service Centers (EV specialists): Specialized EV service with Low-Pro arms designed for electric vehicle lifting points, battery access, and specialized undercarriage components unique to electric powertrains.
- High-Roof Vehicle Service (commercial fleets): Commercial vans, ambulances, and tall fleet vehicles requiring maximum under-vehicle clearance for exhaust, suspension, and drivetrain service operations.
2 Post Car Lift Dimensions & Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 12,000 lb (5,443 kg) |
| Maximum Rise | 75.75 inches (1,922 mm) |
| Maximum Lifting Height (with adapters) | 82.5 inches (2,095 mm) |
| Maximum Lifting Height (extended kit) | 86.5 inches (2,210 mm) |
| Minimum Pad Height | 4 inches (101.2 mm) |
| Time to Full Rise | 45 seconds |
| Maximum Load per Arm | 3,000 lb (1,361 kg) |
2 Post Lift Layout Dimensions & Bay Planning
When planning your shop layout for this high-rise 2 post automotive lift, consider the following 2 post lift layout dimensions: The 156-inch overall width provides 103 inches of drive-through clearance, while the 169-inch column height requires careful ceiling planning. Recommended bay dimensions should allow adequate space around the columns for vehicle positioning and door clearance, typically 12-14 feet wide by 20-24 feet deep depending on your largest vehicles.
| Specification | Value |
|---|---|
| Overall Height | 169 inches (4,294 mm) |
| Overall Width | 156 inches (3,959 mm) |
| Drive-Through Clearance | 103 inches (2,616 mm) |
| Noise Level | Less than 70 dB |
| Specification | Value |
|---|---|
| Power Requirements | 220 VAC, 60 Hz, single-phase, 5 HP |
| Motor Type | Electric/hydraulic power unit |
| Hydraulic Fluid | 10-weight non-foaming hydraulic oil or Dexron-III ATF |
2 Post Lift Installation Requirements
Professional 2 post lift installation is required for the 12APX. Here are the key requirements for successful BendPak two post lift installation:
Foundation Requirements
- Concrete Thickness: Minimum 6 inches thick
- Compressive Strength: 3,000+ PSI minimum
- Floor Level: Maximum 3-degree slope tolerance
- Anchor System: Included anchor bolts and hardware
Electrical Requirements
- Power Supply: 220 VAC, 60 Hz, single-phase
- Motor Rating: 5 HP electric motor
- Installation: Certified electrician required for electrical connections
- Controls: Included electrical components and controls
2 Post Car Lift Height Requirements & Clearance
- Ceiling Height: Minimum 169 inches (14.08 feet) clearance required. The 12APX requires more 2 post lift ceiling height than standard lifts due to its exceptional under-vehicle working clearance. These 2 post car lift height requirements should be carefully verified before installation in facilities with limited overhead clearance.
- Operating Space: Adequate clearance around posts for vehicle positioning
- Ventilation: Adequate airflow for hydraulic system cooling
BendPak Two Post Lift Installation Notes
This overview covers the key steps of BendPak two post lift installation: foundation prep, anchoring, hydraulic setup, and electrical connections. For detailed step-by-step guidance on how to install a BendPak two post lift, always follow the official installation manual and local code requirements.
- Professional Installation: Qualified personnel required following manufacturer installation manual. See official 2 post lift installation instructions (BendPak 12APX manual) for complete details.
- Permits: Verify local code compliance and permit requirements before installation
BendPak 12APX Price & Shopping Guide
If you're pricing out a lift in the 12,000 lb class, the 12APX sits in the best 2 post lift tier for mixed EV and truck service. We don't publish a fixed BendPak 12APX price online because freight and installation vary, but we'll quote the total BendPak two post lift price for your shop. Our team can compare pricing to other models in your budget and help you understand the complete project cost. Contact us for current pricing information specific to your location and installation requirements.
Shipping & Delivery
Freight Coverage
Shipping: Freight shipping terms vary by manufacturer and dealer. Contact us to confirm specific shipping costs and freight coverage for your location.
Delivery Timeframe: Typical lead time is 2-4 weeks from order placement (subject to inventory availability).
Freight Type: LTL freight delivery required due to size and weight (shipping weight is 2,400-2,800 lb).
Delivery Requirements
Unloading Equipment Required: Forklift or equivalent unloading equipment necessary with minimum 3,000 lb capacity for largest components. Cannot be hand-unloaded from delivery truck.
Delivery Type: Standard curbside freight delivery. Optional delivery to freight terminal for customer pickup may be available.
Receiving: Inspect all packages before signing bill of lading. Note any visible damage on BOL before driver departs.
Damage Reporting
Specific damage coverage and reporting requirements vary by manufacturer. We'll confirm the exact claims process and timeframes on your order confirmation. Report any damage immediately upon receipt.
Warranty Coverage
5-2-1 Warranty Program
5 Years - Lift Structure: Complete structural components including columns, base plates, and frame assemblies
2 Years - Hydraulic System: Hydraulic cylinders and power unit coverage - exceeds typical 1-year industry standard
1 Year - Components: Electrical and operating components coverage including labor and freight charges for warranty service. Genuine BendPak 2 post lift parts are available for the life of the lift with comprehensive dealer support.
Warranty Requirements
Registration: Product registration required within 30 days of purchase for full warranty activation
Eligibility: Valid for original purchaser only (non-transferable to subsequent owners)
Installation: Installation must be performed by qualified personnel following manufacturer installation manual for warranty validity
Product Documentation
Ready to Upgrade Your Shop?
Get expert guidance on the right 2 post lift for sale for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and installation requirements for your facility.
Frequently Asked Questions
Is the BendPak 12APX a good 12,000 lb 2 post lift for EVs?
Yes, the BendPak 12APX is specifically engineered as an EV-ready lift. It features Low-Pro triple-telescoping arms with 4-inch minimum pad height designed for electric vehicle lifting points and battery pack configurations. The arms reach outer lifting points common on EVs while handling the concentrated weight distribution of electric vehicle powertrains up to the full 12,000 lb capacity. This makes it one of the best options for shops servicing both traditional vehicles and modern EVs.
What 2 post car lift height requirements do I need for the BendPak 12APX?
The BendPak 12APX requires a minimum ceiling height of 169 inches (14.08 feet) due to its high-rise column design. These 2 post car lift height requirements are higher than standard lifts but provide exceptional under-vehicle clearance for working on tall vehicles and performing complex undercarriage service. The high-rise 2 post lift ceiling height requirement should be carefully verified before installation in facilities with limited overhead clearance.
How much does 2 post lift installation cost?
Actual 2 post lift installation cost depends on concrete work, electrical runs, permits, and labor rates in your area. Most professional shops get quotes from local installers before committing to a specific model. The cost varies based on several factors: local labor rates for professional installation, concrete foundation preparation or repair needs, electrical work by a certified electrician (220V circuit and proper amperage), permit and inspection fees required by local jurisdictions, and any facility modifications needed for ceiling height clearance or bay layout. Contact local installers for specific quotes based on your facility conditions.
Is the 12APX the best 2 post lift for home garage setups?
The BendPak 12APX can work as the best 2 post lift for home garage installations for advanced enthusiasts, but requires careful planning. You'll need: (1) minimum 169-inch (14.08 ft) ceiling height, (2) adequate concrete foundation (6" thick, 3,000+ PSI), (3) 220V single-phase electrical service, and (4) sufficient bay dimensions for vehicle positioning. This is a professional-grade lift best suited for serious enthusiasts with commercial-grade garage facilities rather than typical residential garages.
Is the BendPak 12APX a good 12,000 lb 2 post lift for my shop?
Yes, the BendPak 12APX is an excellent choice if you need a versatile 12,000 lb 2 post lift that handles both traditional vehicles and modern EVs. This clearfloor 2 post lift excels in professional shops, fleet maintenance facilities, and advanced home garages with adequate ceiling height. The Bi-Metric arms, Low-Pro EV-optimized design, and high-rise clearance make it ideal for mixed-fleet service environments that need one lift to handle everything from sports cars to commercial vans.
Where can I find BendPak two post lift reviews?
For BendPak two post lift reviews, check BendPak's official website, industry publications, and professional shop forums. Many shops share their experiences with BendPak lifts on automotive service forums and YouTube channels. The 12APX specifically is well-regarded for its EV capabilities and Bi-Metric arm versatility. Contact us if you'd like to speak with current 12APX owners in your area about their real-world experience.
What is the maximum lifting capacity of the BendPak 12APX?
The BendPak 12APX has a maximum lifting capacity of 12,000 pounds (5,443 kg) with a maximum load of 3,000 pounds per arm. This four-arm two-post car lift is designed to handle electric vehicles, SUVs, light trucks, and commercial vehicles safely within the rated limits.
What adapters are included with the BendPak 12APX?
The 12APX includes four 2.5-inch medium stack adapters, four 5-inch tall stack adapters, two column-mounted adapter holders, four drop-in cradle pads, and installation hardware. This complete adapter set provides flexibility for different vehicle types and lifting point configurations.
What are the electrical requirements for the BendPak 12APX?
The 12APX requires 220 VAC, 60 Hz, single-phase power with a 5 HP motor. Installation must be performed by a certified electrician following local electrical codes. The lift includes electrical components and controls as part of the package.
Is the BendPak 12APX suitable for electric vehicles?
Yes, the 12APX features Low-Pro triple-telescoping arms with 4-inch minimum pad height specifically designed for EV lifting points and battery pack configurations. The arms are engineered to handle concentrated EV weight distribution and reach outer lifting points common on electric vehicles.
What safety certifications does the BendPak 12APX have?
The 12APX is ALI certified meeting ANSI/ALI ALCTV-2017 compliance standards and includes ASARS with 2,000+ pound side force resistance. It also features automatic safety lock systems, aircraft-quality equalizer cables, and padded overhead shutoff bar for comprehensive safety protection.
What warranty coverage does the BendPak 12APX include?
The 12APX includes 5-year structural coverage, 2-year hydraulic system coverage, and 1-year electrical and operating components coverage including labor. This 5-2-1 warranty program exceeds typical industry standards and requires product registration within 30 days of purchase for activation.
How does the Bi-Metric arm system work on the 12APX?
The Bi-Metric arms allow both symmetric and asymmetric lifting configurations in one lift without equipment changes, providing optimal door clearance for different vehicle types. This patented system enables shops to service everything from short-wheelbase sports cars to long commercial vehicles with the same 12,000 lb capacity lift, maximizing versatility across the entire vehicle fleet.
What is the 2 post lift width and drive-through clearance?
The BendPak 12APX has an overall 2 post lift width of 156 inches, providing 103 inches of drive-through clearance between the columns. This clearance accommodates most passenger vehicles, SUVs, and light trucks. When planning your shop layout, consider bay dimensions of 12-14 feet wide by 20-24 feet deep to allow adequate working space around the lift.
How is this BendPak two post lift installed?
BendPak two post lift installation requires professional installation by qualified personnel following the manufacturer's installation manual. The process includes: (1) preparing a concrete foundation with minimum 6-inch thickness and 3,000+ PSI compressive strength, (2) positioning and leveling the columns, (3) installing anchor bolts and hardware, (4) connecting hydraulic and electrical systems by a certified electrician (220 VAC, 60 Hz, single-phase required), and (5) testing and safety verification. See the official installation manual for complete 2 post lift installation instructions.
How does this compare to other 2 post lifts in the 12,000 lb range?
Compared to other 2 post lifts in the 12,000 lb capacity class, the BendPak 12APX stands out with its Bi-Metric arms that allow both symmetric and asymmetric lifting modes in one lift, EV-optimized Low-Pro triple-telescoping arms designed specifically for electric vehicles, and high-rise design providing 169" overall height for maximum under-vehicle working clearance. While competitors like the Rotary SPO12 and Challenger CL12A offer solid symmetric-only designs, the 12APX's dual-mode capability and EV-specific engineering make it one of the best 2 post lifts for modern mixed-fleet service environments.
