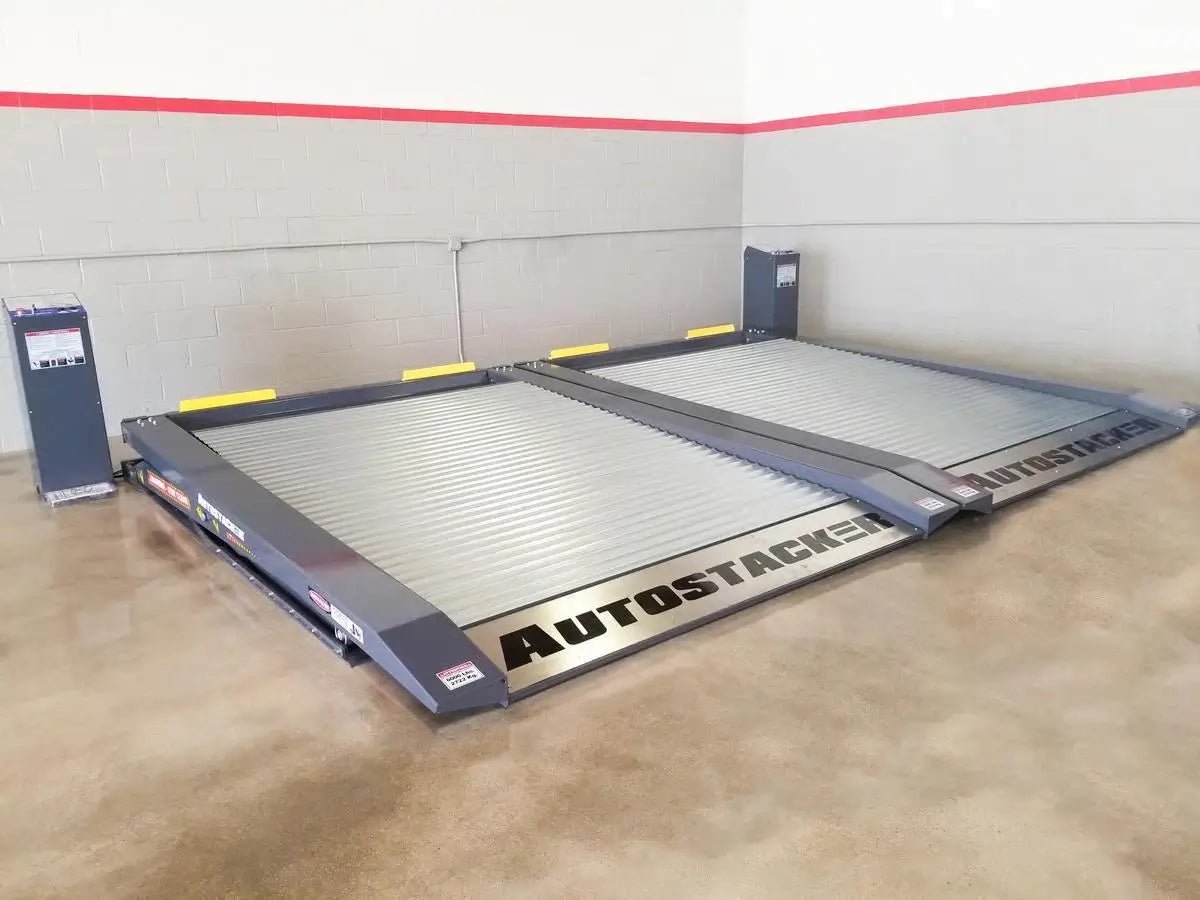

Autostacker A6S-OPT1 Platform Parking Lift by BendPak - 6,000 lb Capacity
Popular Add-ons
Product Highlights
Norco
Test
Zero-post 6,000-lb platform parking lift for 9-ft ceilings
The Autostacker A6S-OPT1 220V platform parking lift by BendPak is the best home garage car lift for residential applications, converting single-bay spaces into two-vehicle parking with zero-post scissor design. Engineered for standard 9-ft residential ceilings, this fully collapsible car stacker delivers 6,000-lb capacity and unobstructed 360-degree access to both vehicles without requiring expensive garage construction or expansion. Free freight shipping from authorized BendPak dealers.
Need extra width for full-size trucks or wide SUVs? Check out the Autostacker A6W-OPT1 with 97" drive-through width.
Rated Best Car Lift for Residential Use
The A6S-OPT1 combines commercial-quality engineering with residential garage compatibility, delivering the performance of commercial parking lifts in standard 9-ft ceilings.
Why Choose the A6S-OPT1 for Residential Garages with 9-ft Ceilings
When converting limited garage space into dual-level parking, this residential scissor lift addresses critical homeowner concerns: fitting in existing low ceiling garages without renovation, maintaining vehicle accessibility for sedans through SUVs, and ensuring long-term safety. This car stacker delivers commercial-grade performance while working within the constraints of standard residential garages.

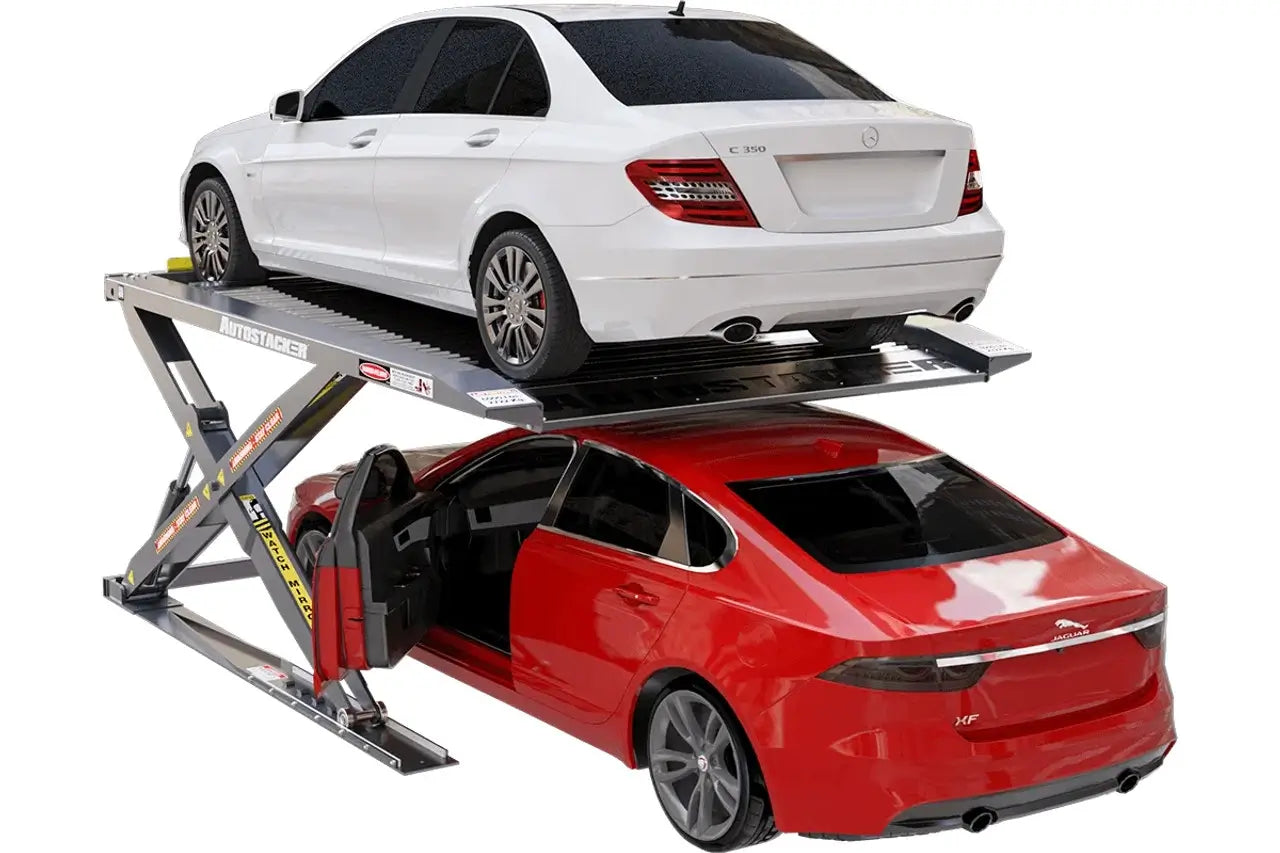

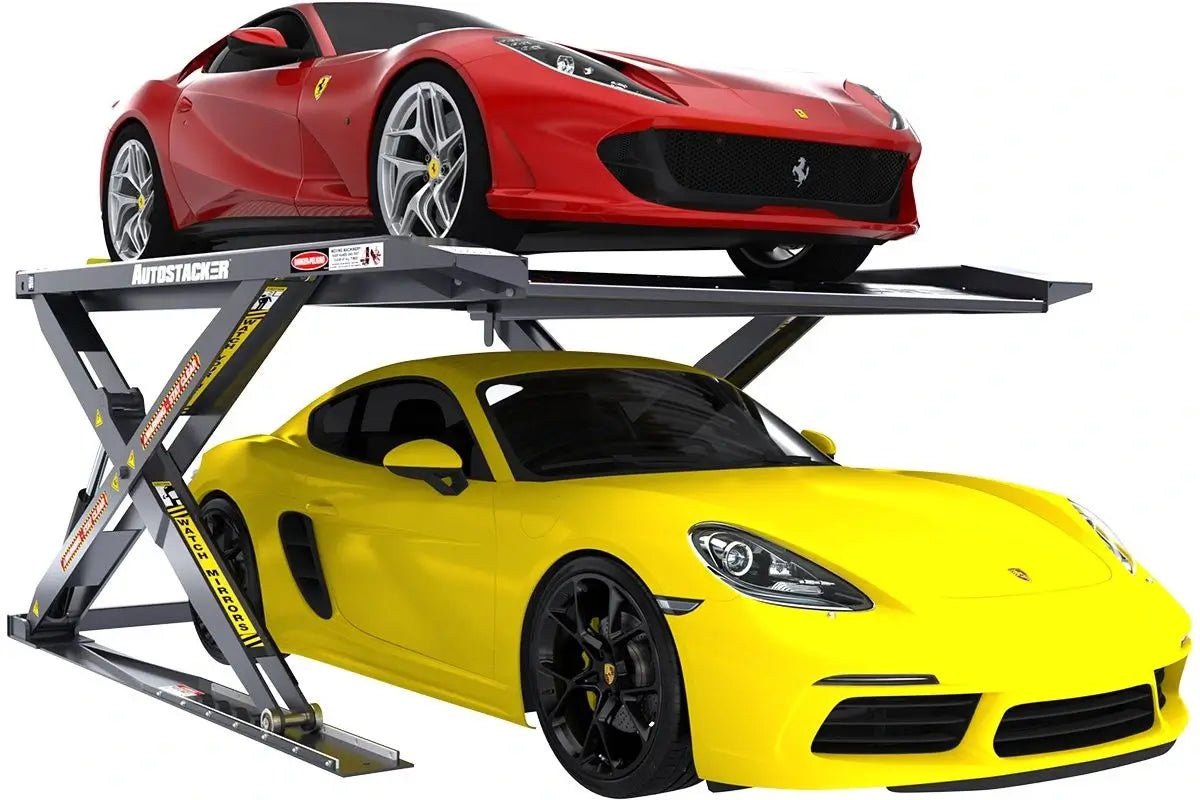

Zero-Post Car Stacker Design vs Traditional Four-Post Lifts
Unlike traditional four-post lifts that obstruct garage walls and doors, this zero-post car stacker provides unobstructed access to both vehicles, storage shelves, and garage doors. The scissor lift platform design maximizes every square foot of existing garage space without corner posts blocking movement.
With 83.13-inch drive-through width and zero corner posts, homeowners enjoy fully-opening car doors, unrestricted wall storage access, and free garage movement. Benefit: Professional double-parking functionality without sacrificing usable space or requiring costly construction modifications.

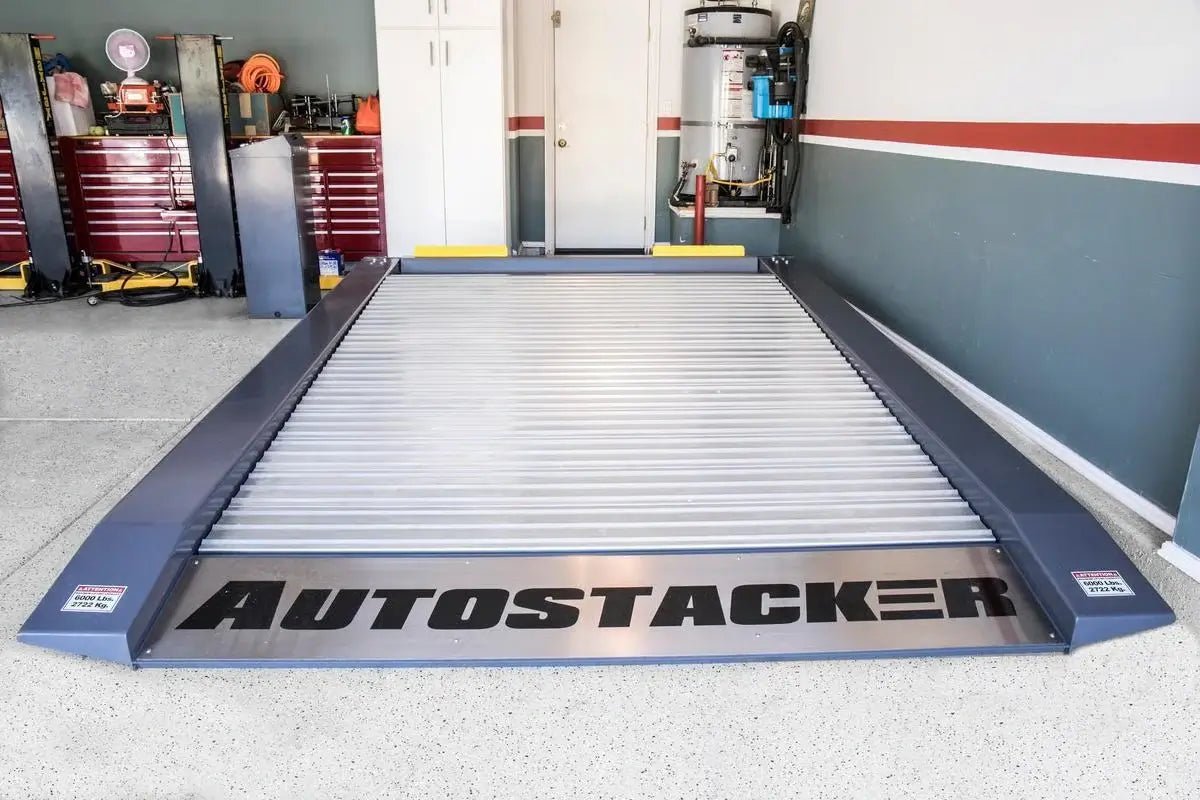

Engineered for Standard 9-Foot Residential Ceilings
The A6S-OPT1 solves the biggest challenge facing homeowners: installing a car stacker in low ceiling garages. With 85-inch maximum platform height and five adjustable lock positions (52.5" to 81.25" under-clearance), this residential scissor lift accommodates sedans, crossovers, compact SUVs, and light trucks in standard 9-foot ceiling garages.
This eliminates the need for costly ceiling modifications or garage expansions that traditional four-post lifts require. Real-world advantage: Park your daily driver sedan underneath while storing your SUV, weekend sports car, classic vehicle, or seasonal automobile overhead—all in the garage you already have.

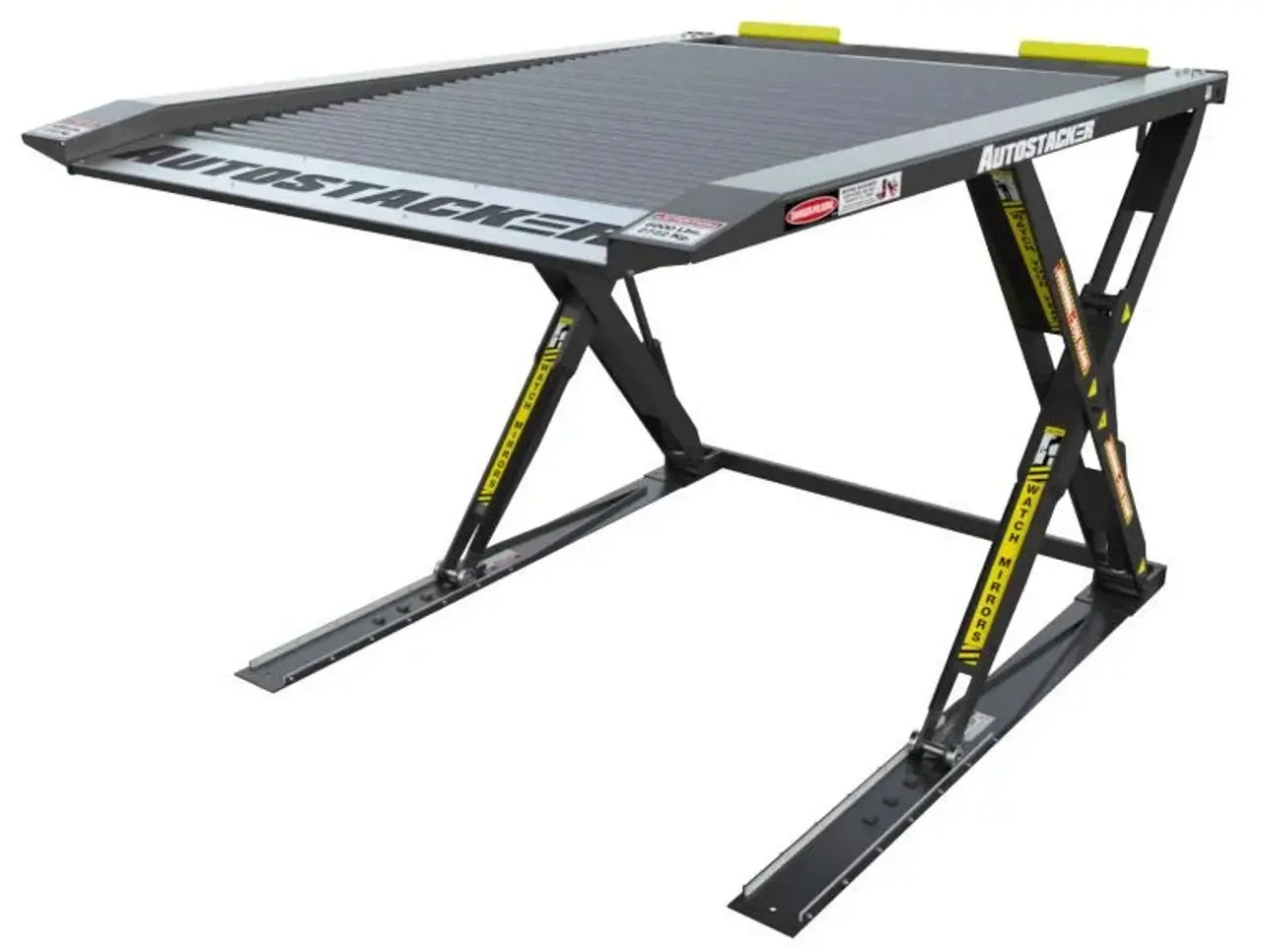

Heavy-Duty Steel Construction for Decades of Residential Use
This industrial-strength garage parking lift supports up to 6,000 lbs with structural integrity designed for daily residential use. The powder-coated steel platform provides durable protection for indoor residential garages, while the optional galvanized finish (A6S-OPT1-G) resists corrosion from road salt, moisture, and garage humidity for coastal or high-humidity environments.
Premium hydraulic components and certified safety systems ensure reliable performance year after year. Long-term value: Your investment in residential garage parking efficiency remains protected through daily vehicle cycling without structural compromise.
Patented Door-Sentry Protection System Guards Against Vehicle Damage
The built-in Door-Sentry™ system uses full-length, energy-absorbing rubber guards permanently affixed to the scissor-lift superstructure, creating a protective buffer zone between your parked vehicle doors and the steel lift frame. When parking on the lower level, these industrial-grade rubber protectors automatically shield your vehicle from accidental door contact with the lift arms—even when fully extended.
This engineered safeguard protects luxury finishes, classic paint, and daily drivers from dings, dents, and scratches during normal garage use. Combined with low-profile 2" approach ramps and synchronized hydraulic carriages that maintain perfectly level travel, the A6S-OPT1 delivers comprehensive protection for high-value vehicles throughout the entire lift cycle. Benefit: Park with confidence knowing your vehicle investment remains protected from structural contact damage during thousands of lift cycles.

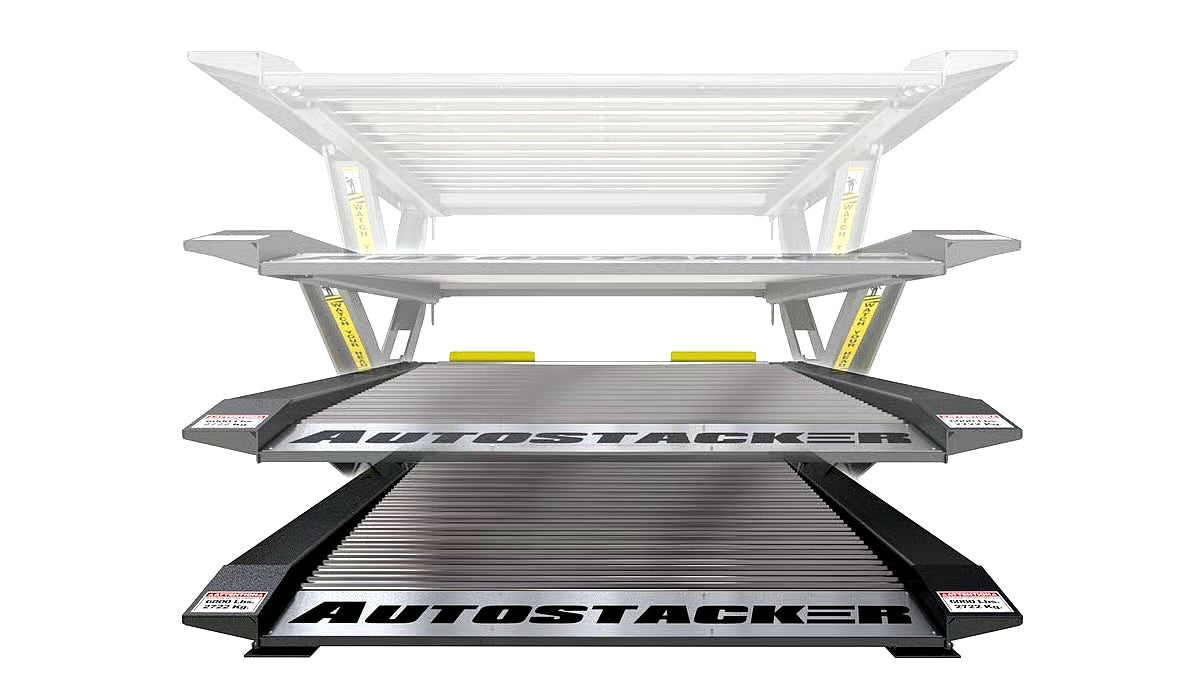

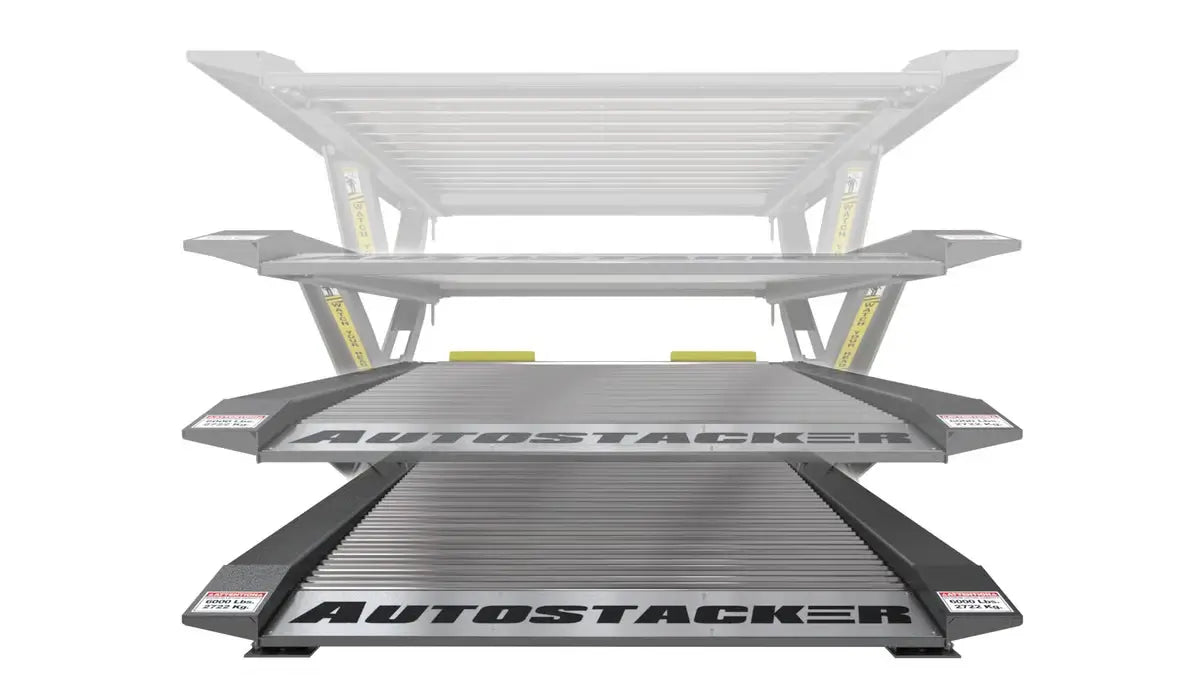

Fast 45-Second Lift Cycle for Easy Two-Vehicle Access
Hydraulic scissor lift system raises 6,000 lbs to full 85" height in approximately 45 seconds at whisper-quiet 70 dB operation. This rapid cycle time means quick daily vehicle access for your double parking setup without disturbing family or neighbors. It's quieter than normal conversation and faster than shuffling cars in your driveway.
The 3 HP motor delivers reliable power for smooth, controlled ascent and descent. Daily convenience: Whether accessing your daily driver sedan or rotating seasonal SUVs and trucks, the A6S-OPT1 car stacker makes dual-level residential parking effortless for everyday use.
Video: Autostacker Platform Parking Lift in Action
Five Adjustable Lock Positions for Vehicle Height Flexibility
The A6S-OPT1 features five automatic ratcheting lock positions, allowing you to optimize under-car clearance based on your specific vehicle combination. Each position provides precise control over the height relationship between upper and lower vehicles.
| Lock Position | Under-Clearance (inches) | Under-Clearance (feet) | Typical Use Case |
|---|---|---|---|
| Position 1 (Lowest) | 52.5" | 4.38' | Compact sedans, low-profile sports cars |
| Position 2 | 60.75" | 5.06' | Mid-size sedans, coupes |
| Position 3 | 68.5" | 5.71' | Full-size sedans, crossovers |
| Position 4 | 75" | 6.25' | Compact SUVs, mid-size trucks |
| Position 5 (Highest) | 81.25" | 6.77' | Full-size SUVs, light trucks |
Usage Note: Measure your lower vehicle's total height including roof racks, antennas, and luggage carriers. Ensure at least 6 inches of clearance above the lower vehicle for comfortable door opening and passenger entry/exit. Contact us to verify optimal lock position for your specific vehicle pairing.
Verifying Compatibility for Your Residential Garage
How to Determine if This Platform Parking Lift Will Fit Your Garage
Use this simple formula to verify compatibility with your specific garage and vehicles:
Required Total Height = Upper Vehicle + Platform (6") + Lower Vehicle + Safety Margin (6")
Example: Successful 9-Foot Ceiling Configuration
- 9-foot ceiling = 108 inches total available
- Upper vehicle (Mazda Miata): 49 inches
- Platform thickness: 6 inches
- Lower vehicle (Honda Accord): 57 inches
- Safety margin: 6 inches
- Total needed: 49 + 6 + 57 + 6 = 118 inches (9.83 feet)
- Result: Won't work at full height (requires 9.83'), but fits perfectly using Lock Position 4 (75" under-clearance) or Position 3 (68.5" under-clearance)
Example: Configuration Requiring Taller Ceiling
- Upper vehicle (Jeep Wrangler with roof rack): 76 inches
- Platform thickness: 6 inches
- Lower vehicle (Ford F-150): 77 inches
- Safety margin: 6 inches
- Total needed: 76 + 6 + 77 + 6 = 165 inches (13.75 feet)
- Result: Requires 14-foot ceiling—exceeds A6S-OPT1 capabilities
Contact us with your specific vehicle heights and garage ceiling measurement for personalized fitment verification at each lock position.

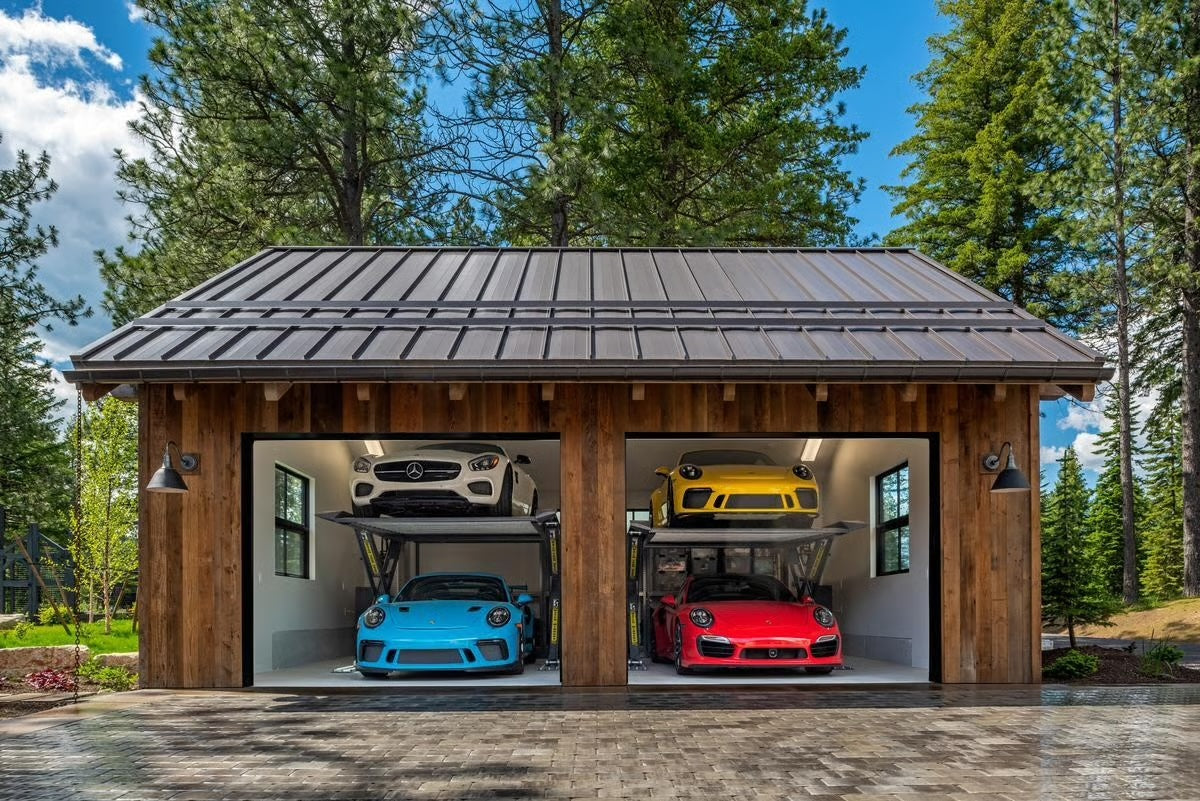

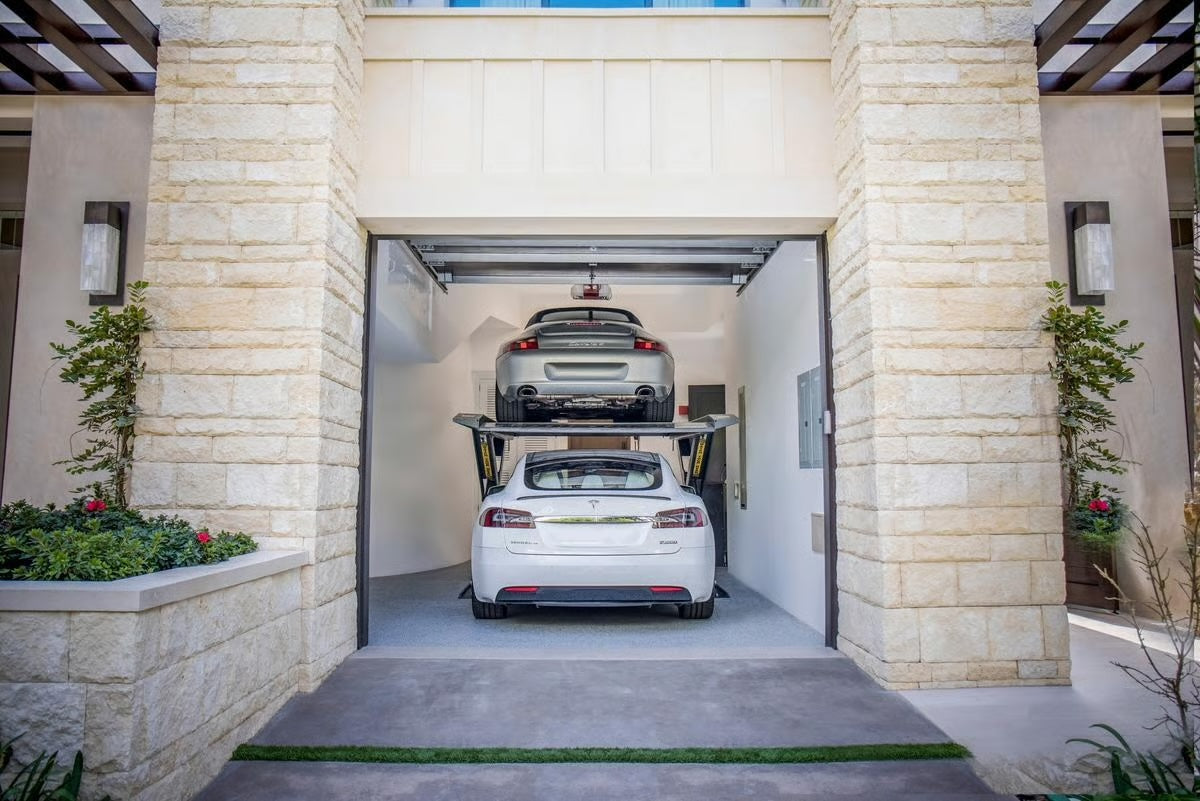

Residential & Commercial Applications
The A6S-OPT1 car stacker meets diverse parking challenges while delivering commercial-grade reliability. Homeowners and businesses choose this residential scissor lift to maximize existing space without expensive construction or renovation.
- Single-bay to two-vehicle conversions for homeowners needing additional vehicle storage
- Urban townhomes and condos with limited parking space and low ceiling garages (9-foot)
- Car collectors and enthusiasts storing sedans, classic cars, sports cars, SUVs, or seasonal vehicles
- Multi-vehicle families requiring independent daily access to trucks, SUVs, and sedans
- HOA-restricted communities prohibiting outdoor vehicle storage or driveway parking
- Luxury apartment buildings offering premium two-vehicle parking amenities to residents
- Valet parking operations at restaurants, hotels, and event venues
- Auto dealership showrooms maximizing inventory display capacity
Available Finishes: Powder-Coated or Galvanized Steel
The Autostacker A6S-OPT1 platform parking lift is available in two finish options. The standard powder-coated version provides durable protection for indoor residential garages, while the galvanized A6S-OPT1-G offers maximum corrosion resistance for coastal or high-humidity environments. Both versions share identical specifications, 6,000-lb lifting capacity, and 220V single-phase operation.
Complete Technical Specifications - Autostacker A6S-OPT1
Specifications verified against Autostacker/BendPak A6S-OPT1 manual. Measurements include standard configuration with wheel stops and ramps installed. Slight variations may exist between production batches.
| Brand | Autostacker |
|---|---|
| Model | A6S-OPT1 |
| Maximum Lifting Capacity | 6,000 lbs (2,722 kg) |
| Maximum Platform Height | 85" (2,159 mm) |
| Overall Height (Structure) | 91" (2,311 mm) |
| Lifting Speed (Full Cycle) | ~45 seconds to full height* |
| Operating Noise Level | ~70 dB (conversational volume) |
| Safety Lock Positions | 5 automatic ratcheting positions |
| Entry Ramp Height | 2" (51 mm) |
* Cycle time varies with load weight
| Platform Width | 83.75" (2,127 mm) |
|---|---|
| Platform Length | 124" (3,150 mm) |
| Overall Width (outer frame) | 103.13" (8.59 feet) |
| Overall Length (with ramps) | 141.25" (11.77 feet) |
| Power Requirements | 208-240V / 50-60Hz / Single-Phase |
| Motor Power | 3 HP (2.2 kW) |
| Minimum Ceiling Height | 9 feet (108 inches) |
| Rated for Outdoor Use | No - indoor use only |
| Unit Weight | ~2,516 lbs (1,141 kg) |
Platform dimensions can vary slightly by configuration; verify your wheelbase and overhang requirements.
Autostacker A6S vs A6W vs Traditional Four-Post Lifts
| Feature | A6S-OPT1 (This Model) |
A6W (Wide Version) |
Traditional Four-Post |
|---|---|---|---|
| Weight Capacity | 6,000 lbs | 6,000 lbs | 6,000-9,000 lbs |
| Drive-Through Width | 83.13" (6.93') | 97" (8.08') | 96-108" |
| Minimum Ceiling | 9 feet (low ceiling) | 9 feet (low ceiling) | 11-12 feet |
| Post Obstruction | Zero posts (scissor lift) | Zero posts (scissor lift) | Four corner posts |
| Best For | Sedans, crossovers, compact SUVs | Full-size trucks, wide SUVs, dually | High-ceiling garages, commercial |
| Residential Use | Ideal for home garages | Ideal for home garages | Requires taller ceilings |
Professional Installation Requirements for Residential Garages
Foundation & Space Specifications
Proper installation ensures safety compliance and maximizes equipment lifespan for your platform parking lift:
- Level concrete floor: Maximum 1/8" variance per 10 feet (critical for safety)
- Minimum slab thickness: 4" concrete (residential standard)
- Concrete strength: 3,000 PSI minimum
- Floor condition: Free of cracks, spalling, or deterioration
- Clear floor space: 12' x 9' minimum for ramp extension and frame
- Ceiling height: 9-foot minimum (10+ feet recommended for larger SUVs)
- Indoor installation only: Not rated for outdoor use
Electrical Requirements
- Power requirements: 208-240V / 50-60Hz / Single-Phase
- Dedicated outlet: Within 10 feet of lift location
- Circuit breaker: Follow local electrical code requirements
- Professional installation: Consult a licensed electrician for code compliance
- No compressed air: Fully electric operation
Professional Installation Highly Recommended
- Installation time: 4-6 hours with two technicians
- Heavy equipment required: For positioning 2,500+ lb unit
- Hydraulic system: Must be properly bled and tested
- Warranty protection: Professional installation preserves manufacturer warranty
- Code compliance: Electrical work must meet local building codes
Warranty Protection & Free Shipping
Authorized BendPak / Autostacker Dealer
Garage Supply Guys is an authorized online dealer for BendPak and Autostacker equipment. All units ship directly from official BendPak/Autostacker U.S. distribution centers with full manufacturer warranty and support. We provide expert fitment verification and installation guidance for every order.
Comprehensive Warranty Coverage
- 2-year structural warranty on lift frame and main body components
- 1-year warranty on hydraulic cylinders, power unit, and operating components
- 1-year labor warranty for on-site or factory repairs
- 1-year free ground shipping on warranty-related parts within continental USA
- Covers manufacturer defects in materials and workmanship
- U.S.-based customer support team (phone & email)
- Nationwide authorized service center network
Warranty Requirements:
- Original purchaser only (proof of purchase required)
- Professional installation strongly recommended to maintain warranty validity
- Must operate and maintain per manufacturer instructions
- Does not cover abuse, neglect, improper installation, or use beyond rated capacity
- Does not cover damage from outdoor use, corrosive environments, or incorrect voltage
What's Included with Your Platform Parking Lift
- Complete A6S-OPT1 platform parking lift assembly rated for 6,000 lbs
- Hydraulic power unit (208-240V single-phase)

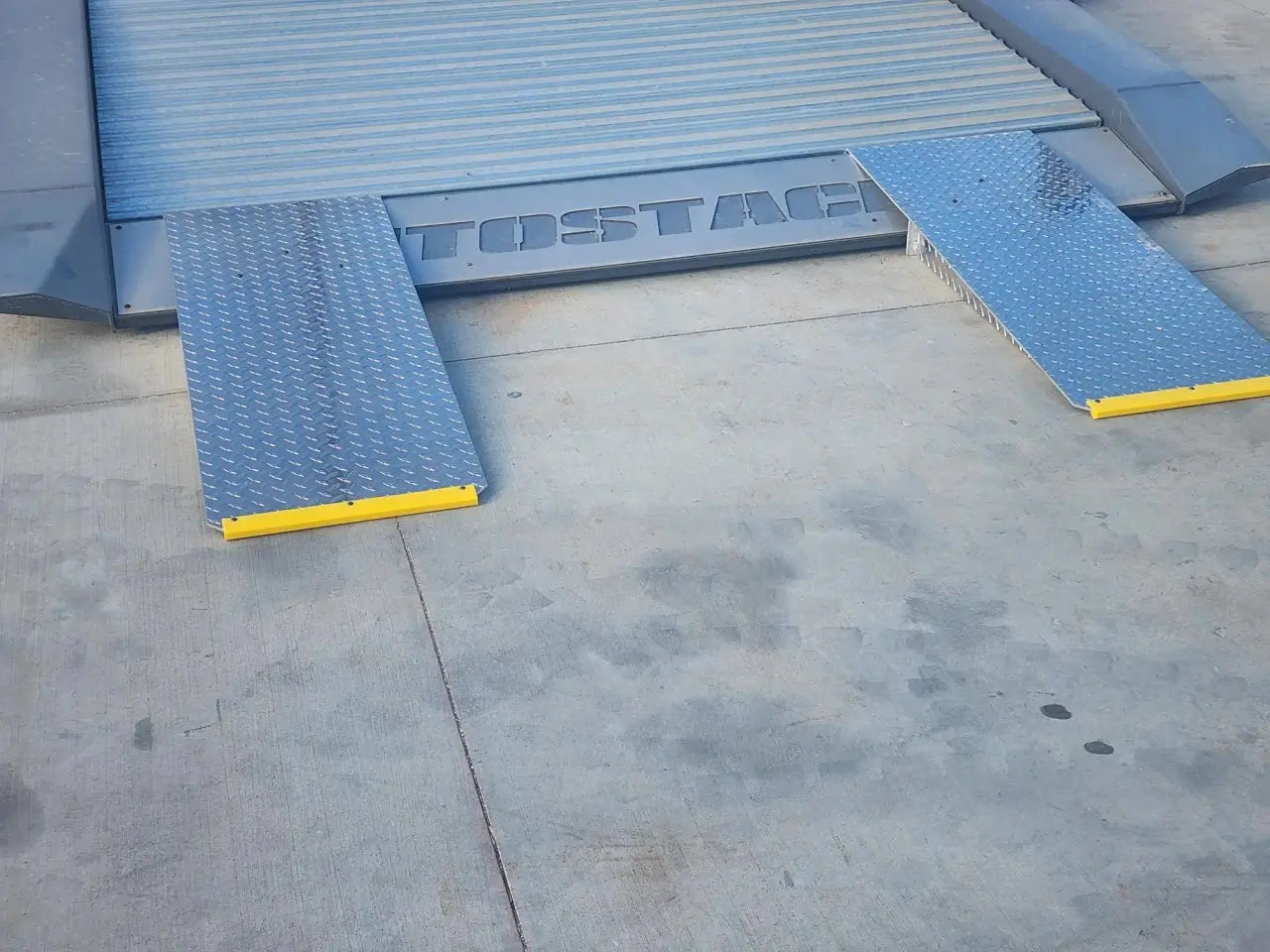

- Entry/exit ramps with low-profile 2" approach height
- Wheel stops and tire positioning guides
- Complete mounting hardware and anchor bolts
- Professional installation and operation manual
- Safety lock system with 5 automatic ratcheting positions
- Ships crated on pallet (~2,700 lbs); forklift or liftgate required for unloading
Note: Professional installation recommended to maintain warranty validity.
FREE Freight Shipping to Continental USA
- FREE freight shipping to all 48 states
- Ships from BendPak/Autostacker distribution centers
- 1-3 business days order processing
- 3-7 business days delivery (freight carrier)
- Residential delivery with appointment scheduling
- Lift gate service available for unloading
- Tracking number provided via email
- Curbside delivery (garage door) standard
Delivery Note: Unit arrives crated on pallet. Inspect immediately upon arrival and note any damage before signing.
Download Autostacker A6S Documents
Ready to Transform Your Garage with the A6S-OPT1?
Have questions about installation, ceiling compatibility, or vehicle specifications? Our parking lift specialists are ready to help you verify fitment and choose the right configuration.
Frequently Asked Questions
Will a platform parking lift fit in my 9-foot garage ceiling?
Yes, if your vehicles meet height requirements. The A6S-OPT1 is engineered for standard 9-foot ceilings with 85-inch maximum platform height. This platform parking lift uses a simple formula: Upper vehicle height + 6" platform + Lower vehicle height + 6" margin must be less than or equal to ceiling height. Contact us to verify your specific vehicle combination.
Autostacker A6S vs A6W: Which model should I buy for my garage and SUV?
Choose the A6S-OPT1 if you're parking sedans, crossovers, compact SUVs, or sports cars with wheel track widths under 83". Choose the A6W (wider version) for full-size trucks, dual rear-wheel trucks, or vehicles exceeding 83" track width. The key difference: A6S has 83.13" drive-through width vs A6W's 97".
What electrical do I need for a 6,000 lb platform parking lift?
The A6S-OPT1 requires 208-240V single-phase power. Consult a licensed electrician to install a dedicated circuit that meets local electrical code requirements. The lift operates on a 3 HP motor with approximately 45-second lift cycle time.
What size vehicles fit on the Autostacker 6,000 lb platform parking lift?
The A6S-OPT1 platform parking lift accommodates most sedans, crossovers, SUVs, and light trucks up to 6,000 lbs. With 83.13" drive-through width and approximately 76" under-car clearance, it fits vehicles including Toyota Camry, Honda CR-V, Ford F-150, BMW 3-Series, and similar sized vehicles. Measure your vehicle's track width (tire center to tire center) to verify fit.
Can I install a platform parking lift in my home garage myself?
Professional installation is strongly recommended for this residential parking lift. The unit weighs 2,516 lbs requiring heavy equipment, hydraulic systems must be properly filled and bled, and 220V wiring must meet code. Professional installation preserves warranty, ensures safety compliance, and typically takes 4-6 hours vs 8-12+ hours DIY. Installation typically costs $500-$1,200.
What are the shipping times for Autostacker platform parking lifts?
FREE freight shipping to continental USA takes 1-3 business days processing plus 3-7 business days delivery from BendPak/Autostacker distribution centers. Residential delivery with appointment scheduling included. Unit ships crated on pallet (~2,700 lbs) requiring forklift or liftgate for unloading. Tracking provided via email.
