AFF 852ASD 30 Ton Super Duty Hydraulic Press 5.9" Stroke
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

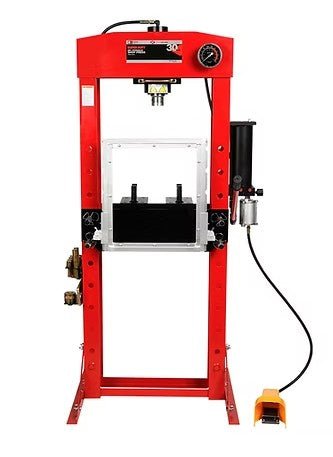

American Forge and Foundry 30 Ton Hydraulic Press - 852ASD Super Duty
When bearing replacements, bushing removals, and shaft straightening are stacking up in your bay, the last thing you need is a press that slows you down. The American Forge and Foundry 852ASD is a 30 ton hydraulic press with fully welded construction and dual air motor operation, built to handle heavy, repetitive work without flinching. At 40 inches wide and 71 inches tall, it fits into a working shop without consuming your entire floor plan.

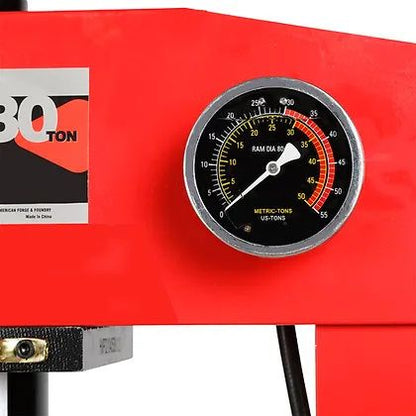

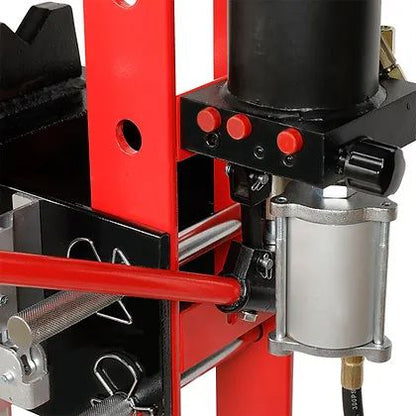

Speed matters when you're moving through jobs. The double pump air motor drives the ram fast during approach, and when you need precision on final pressure, you switch to the manual handle for slow, deliberate control. The glycerin-filled gauge reads your pressing force accurately the whole time so you're never guessing how hard you're loading the work piece. No overshooting. No second-guessing. This 30 ton air hydraulic press gives you both pace and accuracy in the same unit.

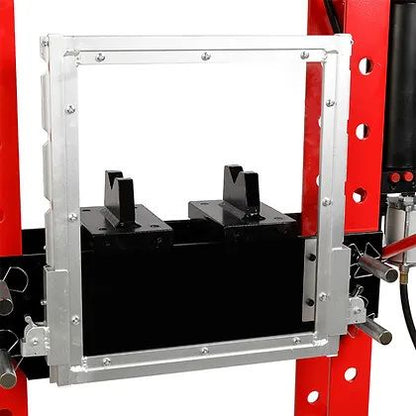

Seven bed height positions mean you're set up for nearly any part size this heavy duty hydraulic press machine encounters. The lateral head adjuster moves the press head side to side for a wider working range without repositioning the work piece. A shatter-resistant polycarbonate shield is standard on every ASD model, giving you and your crew real protection from debris. This is american forge and foundry equipment built to the standard professional shops actually expect.
The 852ASD ships free to the lower 48, and our team is a direct phone call away for anything that comes up before or after the order. That's the kind of backup that matters when you're mid-job and need a quick answer.
Specifications
| Model | 852ASD |
| Capacity | 30 Ton |
| Ram Stroke | 5.90" (150 mm) |
| Overall Dimensions | 40" W x 71" H |
| Bed Depth | 7.25" |
| Bed Width | 21.50" (550 mm) |
| Throat Depth | 6.50" |
| Throat Width | 15.00" |
| Working Range | 2" - 44.5" (51 - 1,131 mm) |
| Hydraulic System Pressure | 58.5 MPa |
| Air Inlet | NPT 1/4" |
| Required Air Pressure | 0.75 - 0.85 MPa (108 - 123 PSI) |
| Ram Speed | 1.2 mm/s |
| Bed Height Positions | 7 |
| Ship Weight | 363 lbs (184 kg) |
What's Included
- 852ASD 30 Ton Super Duty Press

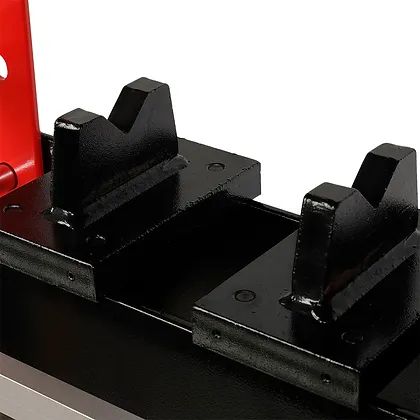

- 2-piece press plate set

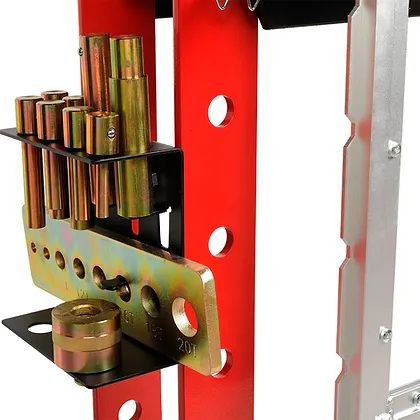

- 10-piece pin and bearing press adapter set
- Shatter-resistant polycarbonate shield
- Glycerin-filled pressure gauge
- Foot-operated air control valve
Installation & Setup
The 852ASD ships partially assembled and requires on-site setup before first use. You'll attach the foot section and support brackets to the connecting plates, install the pressure gauge into the gauge fitting with the included nylon ring, and reposition the pump assembly to the outside of the leg. Before operating, anchor the press to the floor with anchor bolts. The installation surface must be firm, level, and adequately lit.
Air Supply Requirements
This press connects to shop air through an NPT 1/4-inch fitting. Your supply line needs to deliver a consistent 108 to 123 PSI (0.75 to 0.85 MPa). Before first use, add a teaspoon of quality air tool lubricant into the air supply inlet, connect to air, and run the motor for about 3 seconds to distribute the lubricant throughout the system.
Hydraulic System Priming
Before the first pressing operation, purge air from the hydraulic system. Open the release valve counterclockwise, connect the foot control to your air supply, and cycle the pump several times until the system is clear. Confirm that all four bed pins are fully seated through the press bed and legs and secured with circlips before loading any work piece.
Applications
The 852ASD fits naturally into any automotive, truck, fleet, or industrial repair environment where pressing, bending, straightening, forming, or holding is part of the daily work. The included 10-piece adapter set means you have the tooling to cover most common jobs the moment the press hits the floor.
Press bearings and bushings in and out cleanly. The adapter set gives you the right fit for most common sizes without sourcing additional tooling separately.
Suspension components, drivetrain parts, and wheel assembly work are where this american forge and foundry hydraulic press earns its place in a professional shop day after day.
Seven bed positions let you work with a wide range of part lengths. When the load isn't perfectly centered under the ram, the lateral head adjuster brings the head to where you need it.
Precise force control through the manual handle and live gauge readings make the 852ASD useful for assembly work where applying too much pressure ruins the part.
Model Comparison - Super Duty ASD Series
American Forge and Foundry builds the Super Duty ASD series across six capacity levels. If the 852ASD's 30 ton rating covers your work, you're set. If your shop regularly handles heavier frames, larger press fits, or higher-volume industrial applications, the table below shows where to step up. The current product is highlighted.
| Model | Capacity | Ram Stroke | Overall Dimensions | Bed Width | Throat Width | Ship Weight |
|---|---|---|---|---|---|---|
| 850ASD | 20 Ton | 7.50" | 35" W x 64" H | 19.25" | 10.75" | 282 lbs |
| 852ASD (This Model) | 30 Ton | 5.90" | 40" W x 71" H | 21.50" | 15.00" | 363 lbs |
| 854ASD | 50 Ton | 7.75" | 54" W x 75" H | 28.75" | 16.75" | 660 lbs |
| 856ASD | 75 Ton | 9.75" | 57" W x 77" H | 31.50" | 19.75" | 1,030 lbs |
| 859ASD | 100 Ton | 11.58" | 55" W x 84" H | 31.00" | 16.50" | 1,476 lbs |
| 862ASD | 150 Ton | 12.78" | 55" W x 85" H | 39.37" | 25.24" | 2,645 lbs |
Note: A heavy-duty cable winch for effortless bed adjustment is standard on the 50, 75, and 100 ton models. Call us to confirm current availability on any model in the series.
Product Video
Shipping
Free Shipping To Lower 48
Warranty
1-Year Limited Warranty
American Forge and Foundry warrants this press to the final purchaser to be free from operating defects in material and workmanship for one year from the date of purchase. If the equipment is found defective during that period, AFF will repair or replace it at no charge, provided the unit is shipped prepaid with proof of purchase to AFF or an authorized service depot.
This warranty does not cover products damaged by accident, overload, or abuse, or any product that has been altered or used with attachments not recommended by American Forge and Foundry. AFF reserves the right to change appearance, specifications, and pricing at any time.
Documents
Click to open in a new tab.
Sale Sheet
Manual
Ready to Order or Have Questions?
Call our team at (855) 498-2147 for product questions, order support, or help choosing the right model for your shop.
Frequently Asked Questions
What air pressure does the AFF 852ASD require to operate?
The 852ASD requires shop air at 108 to 123 PSI (0.75 to 0.85 MPa) through a standard NPT 1/4-inch fitting. Make sure your compressor and supply line can deliver consistent pressure in that range. Before first use, add a teaspoon of quality air tool lubricant into the air inlet and run the motor briefly to distribute it through the system.
Does this press require assembly before use?
Yes. The 852ASD ships partially assembled. You'll need to attach the foot section and support brackets to the connecting plates, install the pressure gauge into the gauge fitting with the included nylon ring, and reposition the pump assembly to the outside of the leg. The press must also be anchored to the floor with anchor bolts before first operation. Full assembly instructions are included in the manual.
What accessories are included with the 852ASD out of the box?
The press includes a 2-piece press plate set, a 10-piece pin and bearing press adapter set, and a shatter-resistant polycarbonate shield. The glycerin-filled pressure gauge and foot-operated air control valve are also part of the press assembly as delivered.
Can I apply pressure manually instead of using the air motor?
Yes. The dual air motor handles fast ram travel during approach, but you can switch to the manual handle any time you need slower, more precise pressure application. This is especially useful for delicate parts where dialing in exact force matters. The glycerin gauge gives you real-time feedback either way.
