20 Ton Hydraulic Press - American Forge & Foundry 850ASD Super Duty

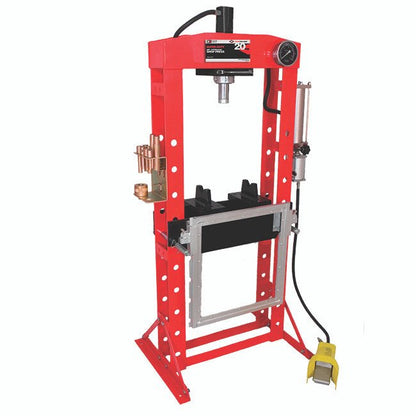

If you're pressing wheel bearings, punching out worn bushings, or straightening bent shafts on a regular basis, you need a press that actually keeps up with the workload. The American Forge & Foundry 850ASD is a hydraulic press 20 ton rated, fully welded H-frame unit built for real automotive, fleet, and industrial shop use - not the kind that sits in a corner gathering dust. Fully welded construction means no flex under load, and the 7.5" stroke gives you serious working range in a compact 35" wide footprint that won't eat your floor space.

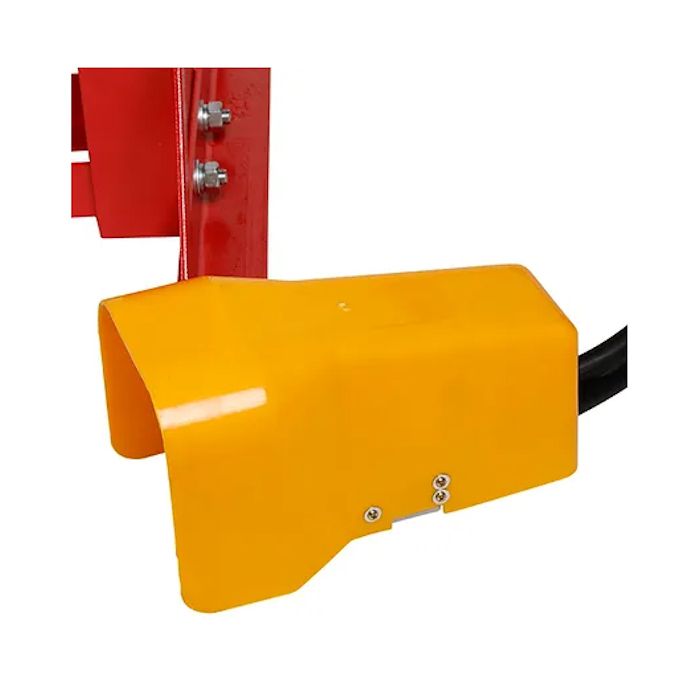

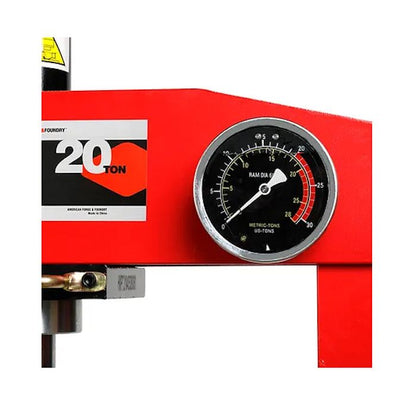

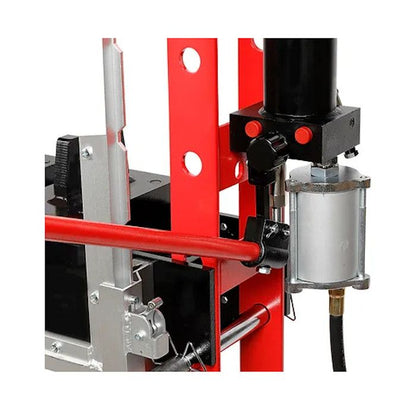

The double pump air motor is what separates this from a basic manual press. You're not cranking a handle to build pressure all day. Hook up your shop air, step on the foot control valve, and the ram moves - fast enough to noticeably speed up your workflow. When you need more precision for a tight press fit, you can switch to the manual handle for slower, more controlled movement. The glycerin-filled gauge shows you exactly how much force you're applying in real time, so you're never guessing and never overloading the work piece. Overload protection is built in as a backup.

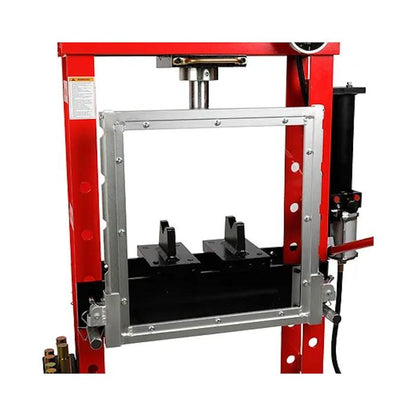

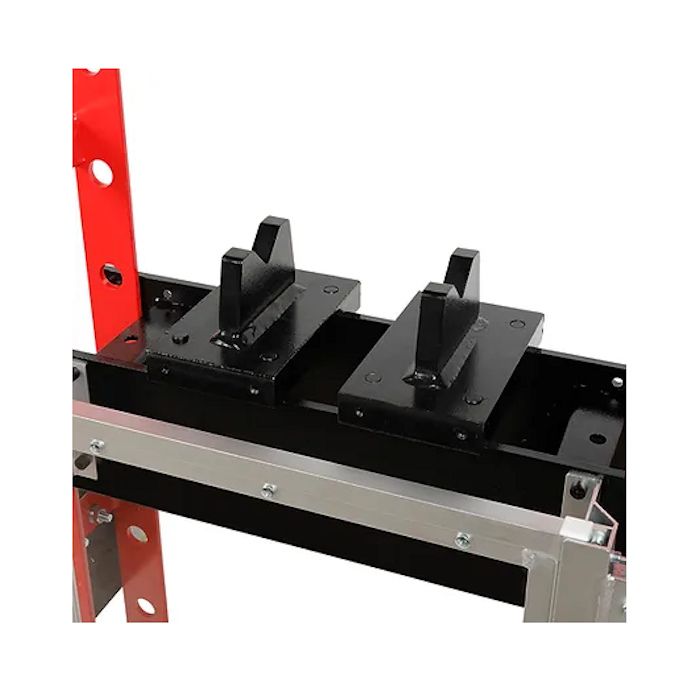

Seven bed height positions give this heavy duty shop press the flexibility to handle everything from small components to larger assemblies without fighting the setup every time. The lateral head adjuster shifts the press head side to side across a wider working range - you move the head to the work, not the other way around. A shatter-resistant polycarbonate shield comes standard on the entire ASD series, putting a real barrier between you and whatever might let go under pressure. This is a 20 ton h-frame industrial heavy duty floor shop press that's thought through from an operator's perspective, not just spec'd on paper.
It ships free to the lower 48, and we carry the full AFF Super Duty line. Have questions before you order? Call us directly at (855) 498-2147.
Specifications
| Model | 850ASD |
| Capacity | 20 Ton |
| Ram Stroke | 7.50" (190 mm) |
| Overall Dimensions | 35" W x 64" H |
| Bed Depth | 7.00" |
| Bed Width | 19.25" (176 mm) |
| Throat Depth | 5.75" |
| Throat Width | 10.75" |
| Working Range | 2.1" - 41.1" (54 - 1,044 mm) |
| Bed Positions | 7 |
| Air Inlet Fitting | NPT 1/4" |
| Required Air Pressure | 109 - 123 PSI (0.75 - 0.85 MPa) |
| Ram Speed | 1.2 mm/s |
| Hydraulic System Pressure | 69.36 MPa |
| Footprint | 27.6" W x 25.6" D (700 mm x 650 mm) |
| Ship Weight | 282 lbs (128 kg) |
What's Included
The 850ASD ships ready to work. These 20 ton hydraulic press accessories mean you're pressing on day one, not ordering add-ons after the fact.
- AFF 850ASD 20 Ton Super Duty Press
- 2 pc press plate set

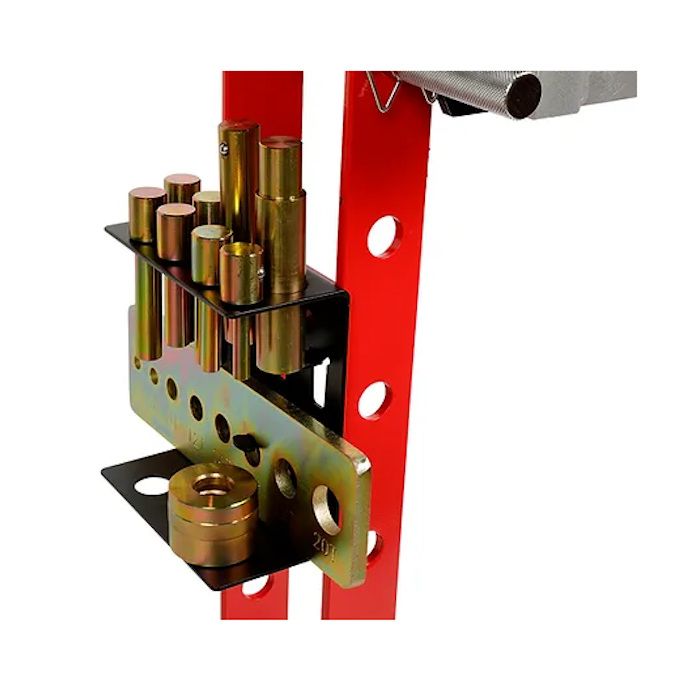

- 10 pc pin and bearing press adapter set
- Shatter-resistant polycarbonate shield (installed)
- Glycerin-filled pressure gauge (installed)
- Foot-operated air control valve
Installation & Setup
The 850ASD ships partially disassembled for transport. Assembly involves attaching the foot sections and support legs to the connecting plates, threading the pressure gauge assembly into the gauge fitting until tight, and repositioning the pump assembly to the outside of the leg. All hardware is included. Plan on two or more people for assembly - and any time you need to raise or lower the press bed, the bed is heavy enough that 2 to 3 people is the recommended minimum.
Before First Use
Anchor the press to the floor with anchor bolts before operating. The floor surface must be firm, level, and rated to handle the load. Before first use, add a teaspoon of quality air tool lubricant into the air supply inlet, connect your air line, and run the pump for about 3 seconds to distribute it through the system. Check the hydraulic oil level at the filler plug on top of the reservoir and top off with quality hydraulic jack oil if needed. Do not use brake fluid or mix different oil types.
Air Supply Requirements
The press runs on shop air at 109 - 123 PSI (0.75 - 0.85 MPa) connected via a standard NPT 1/4" fitting. Purge air from the hydraulic system before first use by opening the release valve counterclockwise and cycling the foot control valve several times. For precision work, the manual handle gives you slower, more controlled ram movement than the air motor. Always monitor the pressure gauge and stay within the 20 ton rated capacity.
Applications
The 850ASD is built for any shop environment where pressing force needs to be controlled, repeatable, and fast. Here's where it earns its floor space.
Press wheel bearings, ball joints, u-joints, and control arm bushings without sending work out to a dealer or specialty shop. This is the core use case for an automotive hydraulic press - and the 7-position bed handles most suspension and drivetrain jobs without a custom fixture fight every time.
Keep pins, bushings, and seals moving on heavy equipment without the downtime of farming it out. The lateral head adjuster and 10 pc adapter set give you enough range to work through a variety of component sizes in a single session.
Press, size, rivet, and form small metal components with consistent, measurable force. The gauge takes the guesswork out of precision assemblies where overloading the part isn't an option. Use the manual handle when you need to go slow.
Whether it's a busy commercial garage or a well-equipped home shop, this garage hydraulic press gives you professional-grade pressing capability in a 35" wide footprint. A proper automotive hydraulic shop press without the large-format floor commitment.
Model Comparison - AFF Super Duty Press Series
The American Forge & Foundry shop press Super Duty ASD series runs from 20 to 150 tons. All models share the same fully welded construction, standard polycarbonate shield, and double pump air motor design. Pick the capacity that matches your heaviest regular job.
| Model | Capacity | Ram Stroke | Overall Dimensions | Bed Width | Throat Width | Ship Weight |
|---|---|---|---|---|---|---|
| 850ASD - This Model | 20 Ton | 7.50" | 35" W x 64" H | 19.25" | 10.75" | 282 lbs |
| 852ASD | 30 Ton | 5.90" | 40" W x 71" H | 21.50" | 15.00" | 363 lbs |
| 854ASD | 50 Ton | 7.75" | 54" W x 75" H | 28.75" | 16.75" | 660 lbs |
| 856ASD | 75 Ton | 9.75" | 57" W x 77" H | 31.50" | 19.75" | 1,030 lbs |
| 859ASD | 100 Ton | 11.58" | 55" W x 84" H | 31.00" | 16.50" | 1,476 lbs |
| 862ASD | 150 Ton | 12.78" | 55" W x 85" H | 39.37" | 25.24" | 2,645 lbs |
Note: The heavy-duty cable winch bed adjustment is featured on the 50, 75, and 100 ton models. The 20 and 30 ton models use a manual pin-and-circlip bed adjustment system.
