American Forge & Foundry 3598 - 10 Ton Air Operated End Lift

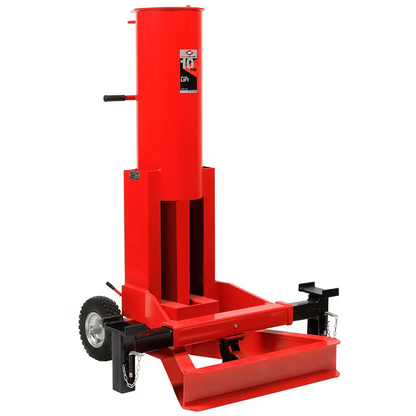

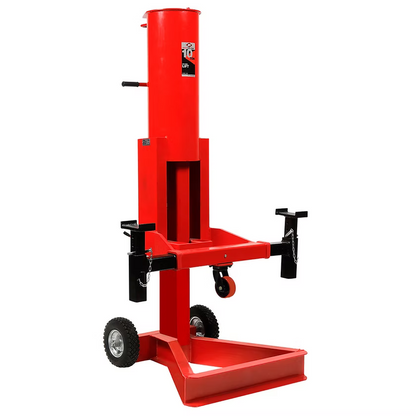

Most shops have a floor jack. Not every shop has something that can lift the entire front or rear end of a heavy-duty truck in one shot. That's the gap the american forge and foundry 3598 fills. This 10 ton air operated end lift handles what your standard equipment can't - full-end raises on large trucks, buses, farm vehicles, and heavy construction equipment, without repositioning, without guessing, and without eating up your time.

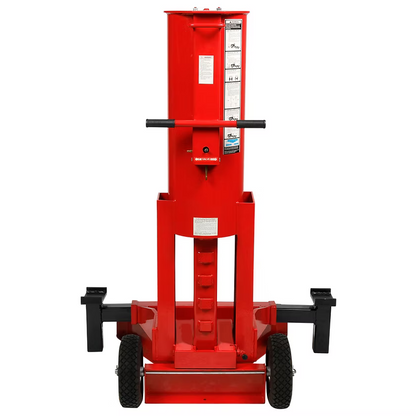

The extra-wide stance is the key. Saddle arms spread from 36" to 50" to straddle frames of all sizes, and those arms reverse for low-clearance work when you're dealing with a load that sits close to the ground. Connect it to your shop air at 200 PSI and you've got full 10-ton capacity on demand. Three-way air valve control gives you fine, precise movement going up and coming down, not just an on-off toggle. That matters when you're working under a loaded chassis.
Safety isn't an afterthought here. The automatic mechanical safety lock engages at five positions between 17-1/2" and 50", so the lift stays where you put it without you having to babysit it. Two pneumatic rear tires and a front swivel caster make rolling it into position easy on a busy shop floor. At 750 lbs shipped weight, this is a serious piece of equipment built for serious work. It ships free to the lower 48, and our team is standing by if you have questions before you order.
If you're comparing it to alternatives like the hein-werner automotive 10-ton air-operated end lift or the mahle 10 ton air end lift, the AFF 3598 holds its own on every spec that matters to a working shop. American Forge & Foundry builds these for the long haul, and this one's no exception.
Specifications
| Model | 3598 |
| Capacity | 10 Tons (20,000 lbs) |
| Required Air Supply | 200 PSI |
| Saddle Size | 4" x 6" Steel |
| Saddle Width Adjustment | 36" to 50" |
| Safety Lock Positions | 5 heights from 17-1/2" to 50" |
| Max Lift Height | 50" |
| Min Lift Height (Safety Lock) | 17-1/2" |
| Forward Reach | 13" (cylinder to saddles) |
| Air Valve | Three-way (lift, lower, hold) |
| Air Fittings | Shop air supply + Schrader valve |
| Mobility | Front swivel caster, two pneumatic rear tires |
| Ship Weight | 750 lbs |
What's Included
- AFF 3598 air operated end lift unit

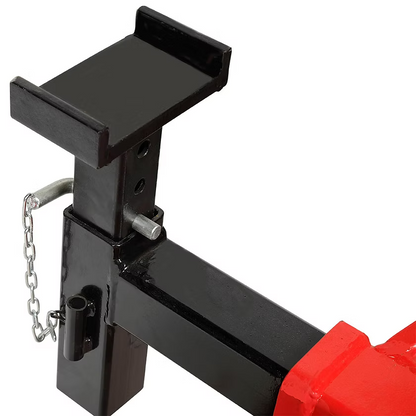

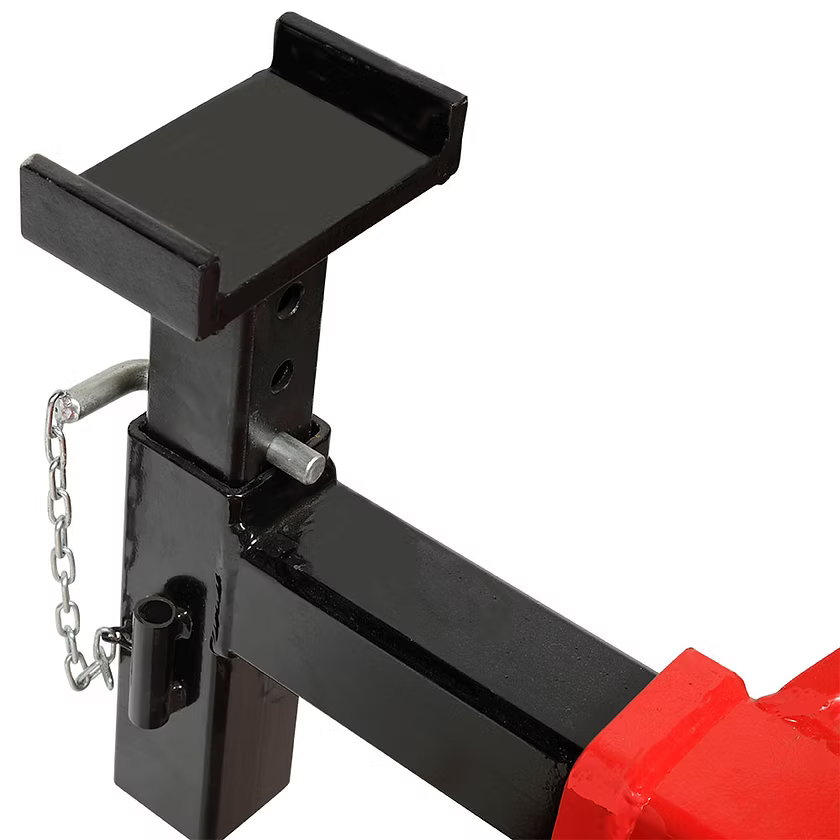

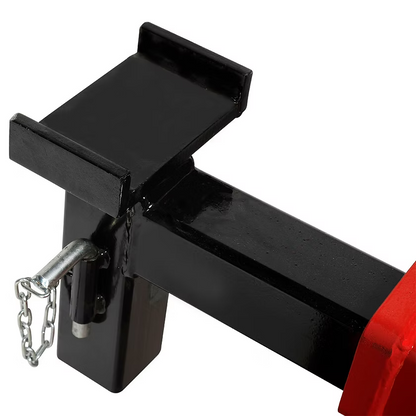

- Two 4" x 6" steel saddle arms (adjustable and reversible)
- Three-way air control valve
- Shop air supply fitting
- Schrader valve fitting
- Front swivel caster
- Two pneumatic rear tires
- Automatic mechanical safety lock mechanism
Installation & Setup
Air Supply Requirements
This air end lift jack requires a dedicated shop air supply capable of sustaining 200 PSI to achieve full 10-ton capacity. That's a firm requirement - undersupply the air and you won't get the rated lift. Most commercial compressor setups in a working shop will meet this spec, but confirm your line pressure before you put this into service. The unit includes two fittings: one for your main shop air line and one for a Schrader valve connection, giving you flexibility in how you plumb it.
Positioning and Saddle Setup
Saddle arm width adjusts between 36" and 50" to match the frame width of the vehicle you're lifting. Set the width before you position the lift under the vehicle. If your load sits low to the ground, flip the saddle arms to their reversed position for reduced height access. The three-way valve handles the lift from there. No special mounting or floor anchoring is required - the pneumatic tires and swivel caster give you the mobility to position it exactly where you need it.
Safety Lock Engagement
The mechanical safety lock engages automatically at five preset heights. You don't need to manually set it. Once the lift reaches a lock position during ascent, it catches. Use the three-way valve to lower past a lock point when you're ready to bring the load down. Never bypass or disable the safety lock mechanism.
Applications

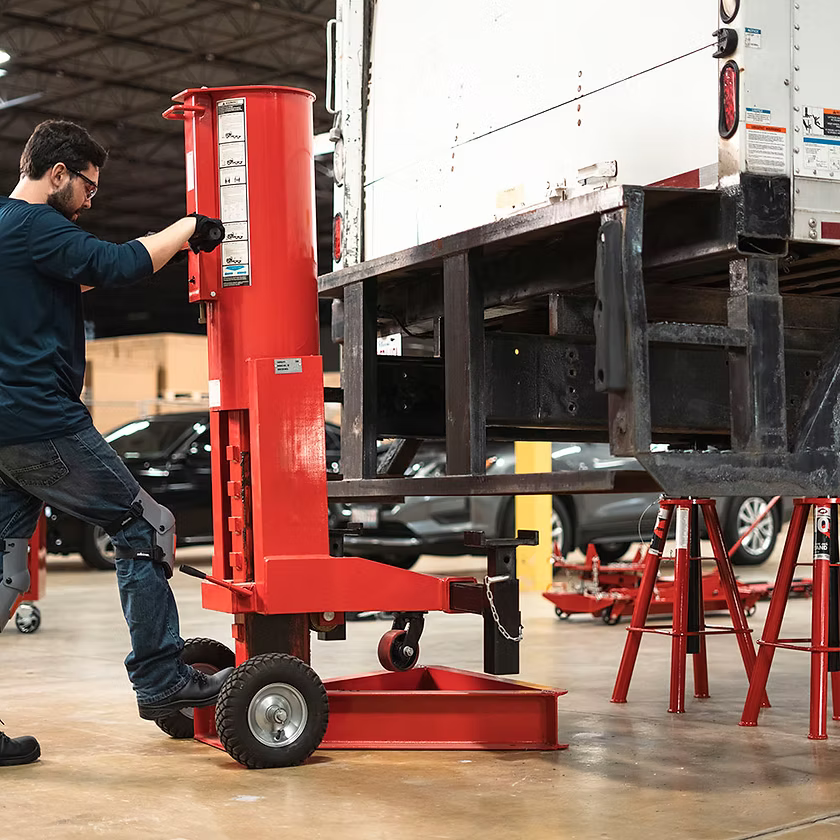

Lift the entire front or rear axle end of class 6, 7, and 8 trucks in a single setup. Wide saddle adjustment handles varying frame widths without repositioning.
Bus frames demand a wide, stable base. The extra-wide stance and adjustable saddle arms give you the spread you need for full-end raises on passenger and commercial buses.
Tractors, combines, and large ag vehicles with low-clearance frames benefit from the reversible saddle arm design. This american forge and foundry jack gets under what other lifts can't reach.
Heavy construction machines require serious capacity and a stable platform. The 10-ton air end lift delivers both, with five automatic safety lock positions to keep the load secure while you work.
Product Video
Shipping
Free Shipping To Lower 48
Warranty
One-Year Limited Warranty
American Forge & Foundry warrants this equipment to the final purchaser to be free from defects in material and workmanship for one year from the date of purchase. If the unit is found defective during the warranty period, AFF will repair or replace it at no charge, provided the equipment is returned with prepaid shipping and proof of purchase to American Forge & Foundry or an authorized Field Service Depot.
This warranty does not cover damage from accident, overload, abuse, or use of unauthorized attachments. No other warranties, express or implied, apply. AFF's sole obligation is to repair or replace defective parts. AFF is not liable for incidental, consequential, or indirect damages of any kind.
