American Forge and Foundry 3400A - 10 Ton Air Lift Jack Pair
When you're working under a loaded trailer, a semi, or a piece of heavy construction equipment, a standard floor jack isn't going to cut it. You need something that gets low enough to slide under and lifts high enough to actually work. The American Forge and Foundry 3400A 10 ton air lift jack does exactly that - starting at a low 18 inches and extending to 52 inches with all extensions in place, running entirely off your existing 200-PSI shop air. This listing is for a pair.
Hook up your air line and you've got 10 tons of lift under precise control. The heavy-duty air valve lets you raise and lower with accuracy - you're not fighting the jack or guessing where it's going to hold. Extension tubes lock into multiple positions so you can stage the lift height exactly where the job needs it. When you're done, the removable T-handle comes off clean for storage. Twelve inches of total lift travel means real working range once the load is up.
This is what a professional-grade pneumatic lift jack looks like in practice. Whether your shop calls it an air jack lift, a pneumatic jack lift, or just the thing keeping your big iron in the air safely - the AFF 3400A is built to handle the equipment that most shops can't touch with a standard two-post lift. The large-diameter rubber tread wheels make repositioning manageable even at 172 lbs per unit, and American Forge and Foundry's build quality means this jack holds up through daily professional use.
Parts are available and we're easy to reach. Call us directly at (855) 498-2147 and you'll talk to someone who knows the product.
Specifications
| Capacity | 10 tons (20,000 lbs) |
| Air Supply Required | 200 PSI |
| Lift Travel | 12" |
| Min Height | 18" |
| Max Height (all extensions) | 52" |
| Shipping Weight | 172 lbs per unit |
| Quantity | Pair (2 jacks) |
What's Included
- 2x AFF 3400A 10 Ton Air Lift Jacks
- Extension tubes (per jack)
- Removable T-handle (per jack)
Installation & Setup
The AFF 3400A runs on a standard 200-PSI compressed air supply - the same line you're already running in most professional shops. There's no hydraulic fluid to prime and no manual pumping required. Connect your air line, position the jack under the lift point, and you're ready to go.

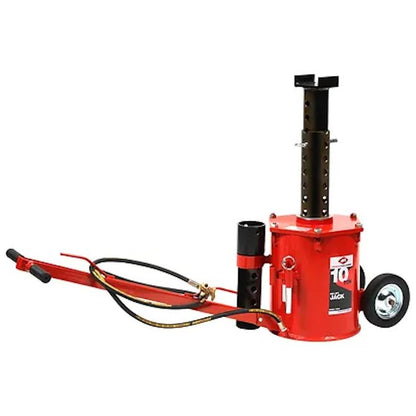

Extension tubes slot in to reach the height you need and lock into position once set. Start with the jack at its base 18-inch height when sliding it under equipment, then add extensions to reach your target lift point. The heavy-duty air valve keeps you in control throughout the lift, and the removable T-handle comes off for flat storage when the job's done.
These units ship at 172 lbs each - plan your delivery location ahead of time and have a pallet jack or forklift on hand for shop placement.
Applications
These air lift jacks are built for equipment that doesn't fit on a standard two-post lift. If it's heavy, tall, or sitting on a worksite, this is the tool for the job.

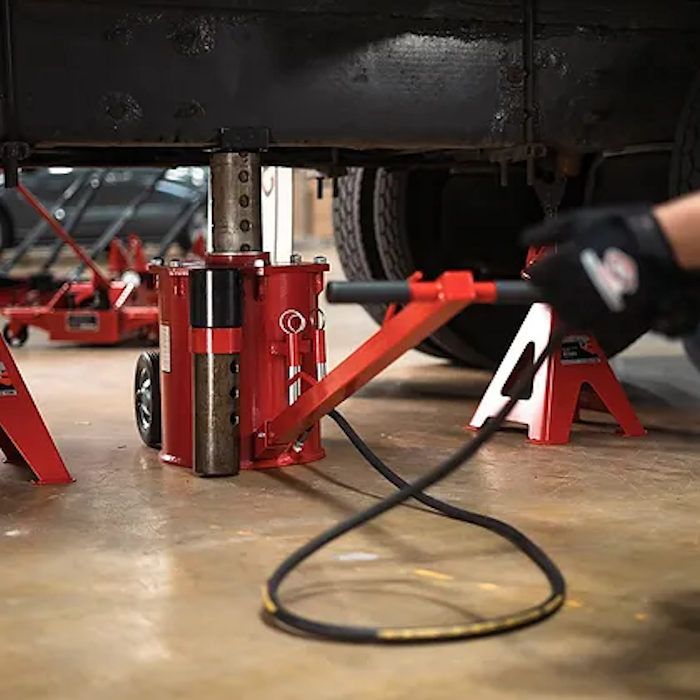

Get under frame rails and drive axles safely. The low starting height clears most truck clearances, and the wide lift range handles the difference between loaded and unloaded configurations.
Tandem axle, flatbed, or enclosed - trailers sit low and need a pneumatic jack lift that can get underneath them. The AFF 3400A handles trailer work without the guesswork.
Transit fleets and coach operators need reliable air lift jacks that hold up under repetitive daily use. The 10-ton rating and heavy-duty air valve deliver on both fronts.
Tractors, combines, and implements often need support in the field or the shop. As a heavy duty lifting jack, the AFF 3400A handles the irregular frame points and varied heights common in ag equipment.
Excavators, loaders, and heavy industrial machinery demand serious capacity. The 52-inch max height with all extensions gives you working range that most shop jacks simply can't match.
If your shop works on anything over Class 4, this American Forge and Foundry air jack belongs in your tool lineup. Sold as a pair so you've got two lift points when the job calls for it.
Product Video
Shipping
Free Shipping to the Lower 48 states.
Warranty
Limited One-Year Warranty
American Forge and Foundry warrants this equipment to the final purchaser to be free from operating defects in material and workmanship for one year from purchase. If the equipment is found to be defective during that period, AFF will, at its option, repair or replace it at no charge - provided the unit is shipped prepaid with proof of purchase to AFF or an authorized Field Service Depot.
This warranty does not cover damage from accident, overload, or abuse, and does not apply to products that have been altered or used with attachments not recommended by American Forge and Foundry.
AFF's sole obligation is to repair or replace any product or part determined to be defective as described above. AFF is not liable for any special, direct, indirect, incidental, or consequential damages, including loss of profits, production time, or related expenses.
Documents
Click to open in a new tab.
Have Questions? Call Us.
Talk to someone who knows this equipment. Call (855) 498-2147 and we'll help you get the right answer before you order.
Frequently Asked Questions
What air pressure does the AFF 3400A require to reach full capacity?
The AFF 3400A reaches its full 10-ton capacity at 200 PSI. That's a standard pressure level for most professional shop compressors, so no special equipment is required beyond your existing air supply.
Is this sold as a single unit or as a pair?
This listing is for a pair - two AFF 3400A 10 ton air lift jacks. Having two units lets you support equipment at multiple lift points simultaneously, which is standard practice for safe heavy-duty lifting work.
What is the maximum height this jack can reach with all extensions installed?
With all extension tubes in place, the AFF 3400A reaches a maximum height of 52 inches. The base height without extensions is 18 inches, and total lift travel within that range is 12 inches.
Does this ship for free?
Yes - the AFF 3400A ships free to the lower 48 states. These units ship at 172 lbs each, so freight delivery is standard. Plan ahead for moving them once they arrive at your location.
