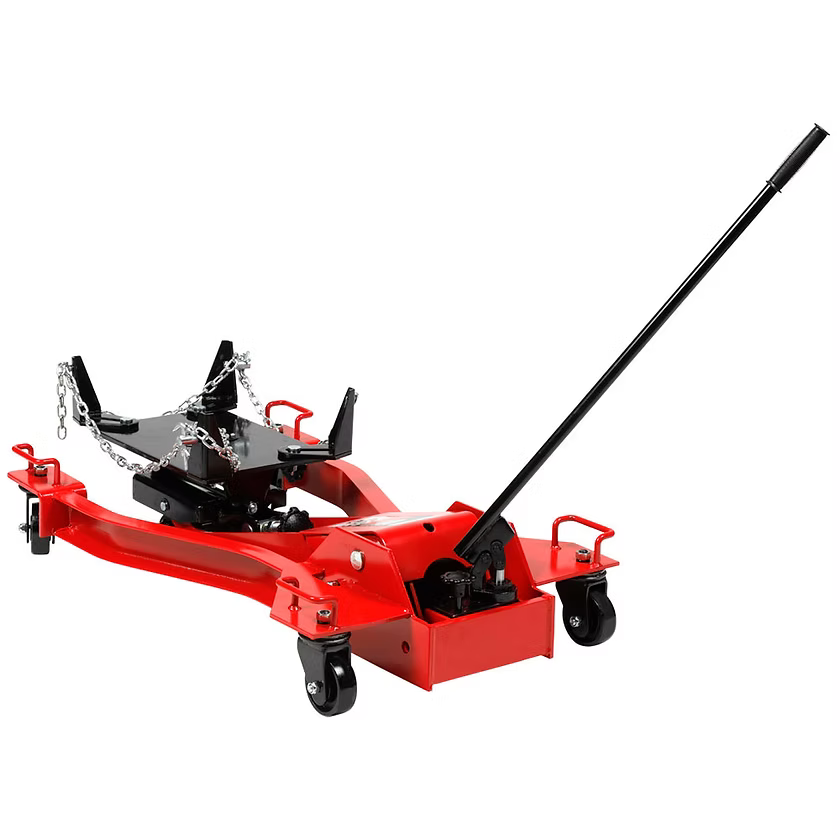

Low Profile Transmission Jack Built for Heavy-Duty Work

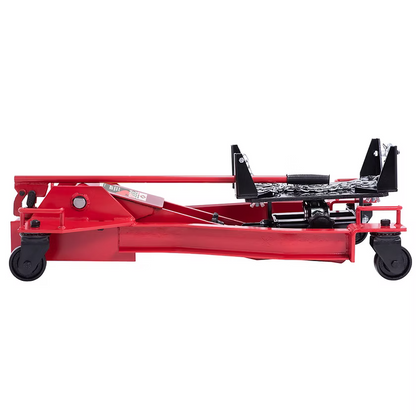

Pulling a heavy transmission out of a full-size truck is a two-person job with the wrong equipment. The AFF 3179A changes that. It's a hydraulic transmission jack rated at 3,000 lbs., with a low profile design that bottoms out at just 6.5" - low enough to slide under trucks that would stop a standard jack before you even get started. One technician, one jack, no extra hands required.

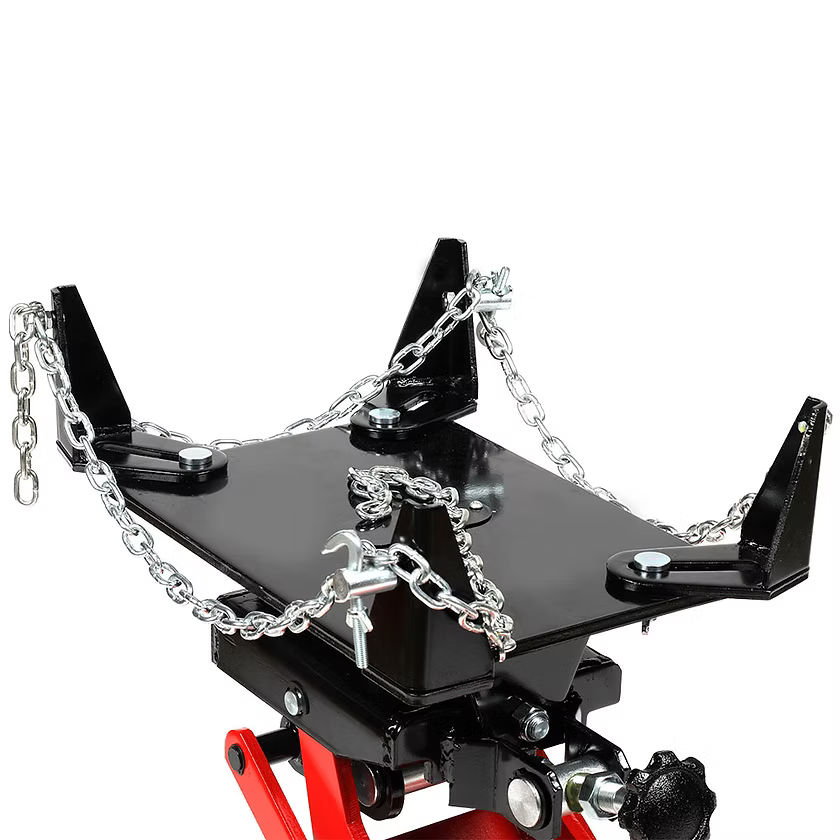

The wide chassis isn't just structural. It keeps load distribution even when you're maneuvering heavy components, so you're not fighting instability at the worst possible moment. The 4-way tilting head - front, rear, and both sides - gives you the fine angle control you need to align transmissions, differentials, and transfer cases without forcing anything. The universal saddle adjusts to fit your load, and the long handle pivots 360 degrees around the pump so you're always working from the right position, not repositioning the jack to compensate.
American Forge & Foundry has been building hydraulic shop equipment since 1963. This isn't a rebadge operation - they manufacture, support, and stock parts for their own gear, with service centers across the country. The 3179A reflects that. It's a heavy duty transmission jack built to stay in service, not to be replaced every few years when something wears out.
Free shipping to the lower 48 and direct phone support from our team mean you're not navigating a manufacturer phone tree when you have a question. We stock replacement parts and can help you find what you need fast.
Specifications
| Model | 3179A |
| Capacity | 3,000 lbs. |
| Low Height | 6.5" |
| High Height | 31.7" |
| Front Tilt | 79° |
| Rear Tilt | 9° |
| Side Tilt | 10° - 18° |
| Head Width | 18.25" |
| Head Length | 28" |
| Weight | 319 lbs. |
California Residents: This product is subject to Proposition 65 warnings. Contact us at (855) 498-2147 for details.
What's Included
Call to confirm included accessories.
Installation & Setup
Floor and Clearance Requirements
The 3179A needs a solid, level surface - 319 lbs. of jack on uneven or soft flooring is an accident waiting to happen. Verify your vehicle's ground clearance against the 6.5" minimum height before you order. The jack extends to 31.7" at full height, so confirm overhead clearance in your lift area as well.
Positioning and Load Control
The long handle pivots 360 degrees around the pump. Before you lift, pick the side that gives you the clearest sightline to the transmission mount - adjust your position once, then work from there. Use the adjustable saddle arms to secure the load fully before raising. The 4-way tilt lets you dial in the angle of the component during both removal and installation - take the time to get the angle right before you're fighting the weight of the transmission against a misaligned bellhousing.
California Proposition 65
This product carries a Proposition 65 warning for California residents. Call us at (855) 498-2147 for more information.
Applications
The 3179A is built for light to large heavy-duty truck transmissions. If your shop runs these jobs regularly, it's the auto transmission jack that handles the heaviest work without a second technician.
The fully adjustable saddle and 4-way tilt give you the control you need to support, lower, and position differentials cleanly - not just hold them up while you figure out the angle.
Transfer cases demand precise positioning on the way out and on the way back in. The tilting head and adjustable arms handle both sides of that job.
Any heavy component that needs controlled raising or lowering benefits from a stable, wide-chassis platform. The 3179A covers more than just transmission jacks work - it's the right tool for fuel tanks and other bulky undercarriage components too.
Shipping
Free Shipping to the Lower 48 states. For Alaska, Hawaii, or international inquiries, call us at (855) 498-2147.
Warranty
American Forge & Foundry warrants this equipment to the final purchaser to be free from operating defects in materials and workmanship for one year from the date of purchase. Torque wrench calibration is covered for 90 days from purchase.
If a defect is confirmed within the warranty period, AFF will repair or replace the product at no charge, provided the equipment is shipped prepaid with proof of purchase to AFF or an authorized Field Service Depot.
This warranty does not cover damage from accident, overload, abuse, or use with attachments not recommended by AFF. No other warranties, express or implied, apply. AFF's sole obligation is repair or replacement of defective components.
Questions about warranty service? Call (855) 498-2147.
Documents
Click to open in a new tab.
Sale Sheet
Parts
Ready to Order or Have Questions?
Call our team at (855) 498-2147. We'll help you confirm fitment, check availability, and get your transmission jack for sale order moving the same day.
Frequently Asked Questions
What types of vehicles and components is the AFF 3179A designed for?
The 3179A is rated for up to 3,000 lbs. and is designed for light to large heavy-duty truck transmissions. It also handles differentials, transfer cases, fuel tanks, and other bulk undercarriage components. If you're unsure whether it fits your specific application, call us at (855) 498-2147 before ordering.
What is the minimum clearance needed to use this jack under a vehicle?
The 3179A has a minimum height of 6.5" and extends to a maximum of 31.7". Verify your vehicle's ground clearance against the 6.5" minimum before ordering. If you're working in a lift bay, also confirm adequate overhead clearance at full extension.
Does this transmission jack ship for free?
Yes. The AFF 3179A ships free to the contiguous lower 48 states. For Alaska, Hawaii, or international shipping options, call us at (855) 498-2147 and we'll work out the details.
What does the warranty cover and for how long?
American Forge & Foundry provides a one-year limited warranty covering defects in materials and workmanship from the date of purchase. AFF will repair or replace the unit at their option. The warranty does not cover damage from accident, overload, abuse, or use with unauthorized attachments. For warranty service questions, call (855) 498-2147.
Are replacement parts available if something needs servicing?
Yes. AFF maintains a large inventory of replacement and repair parts and has service centers across the country. You can download the parts diagram from the Documents section above to identify what you need, or call (855) 498-2147 and our team will help you find the right part.
