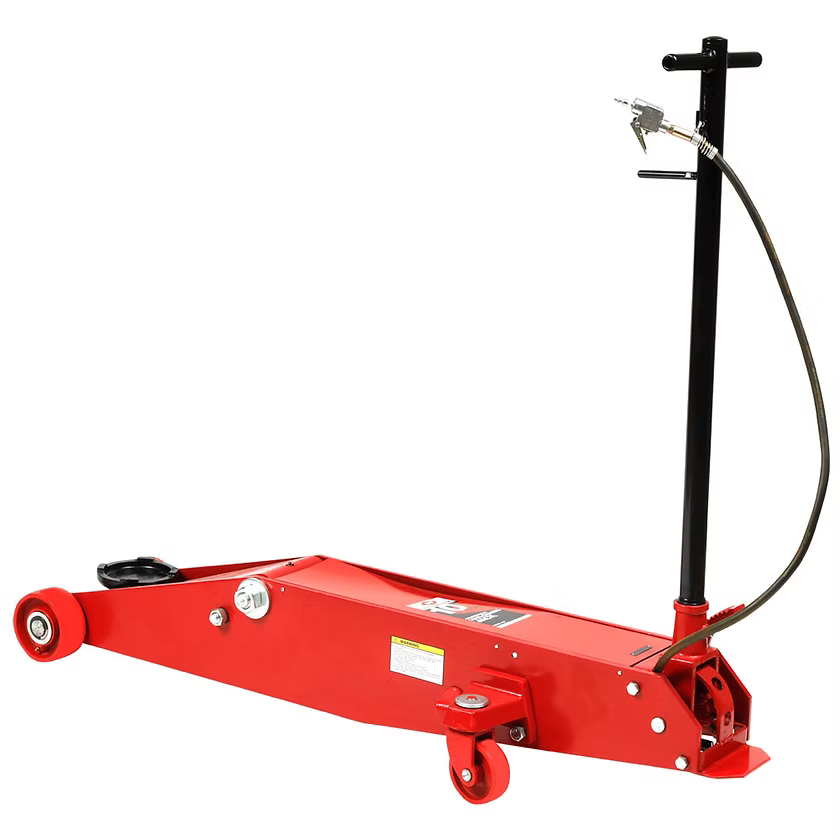

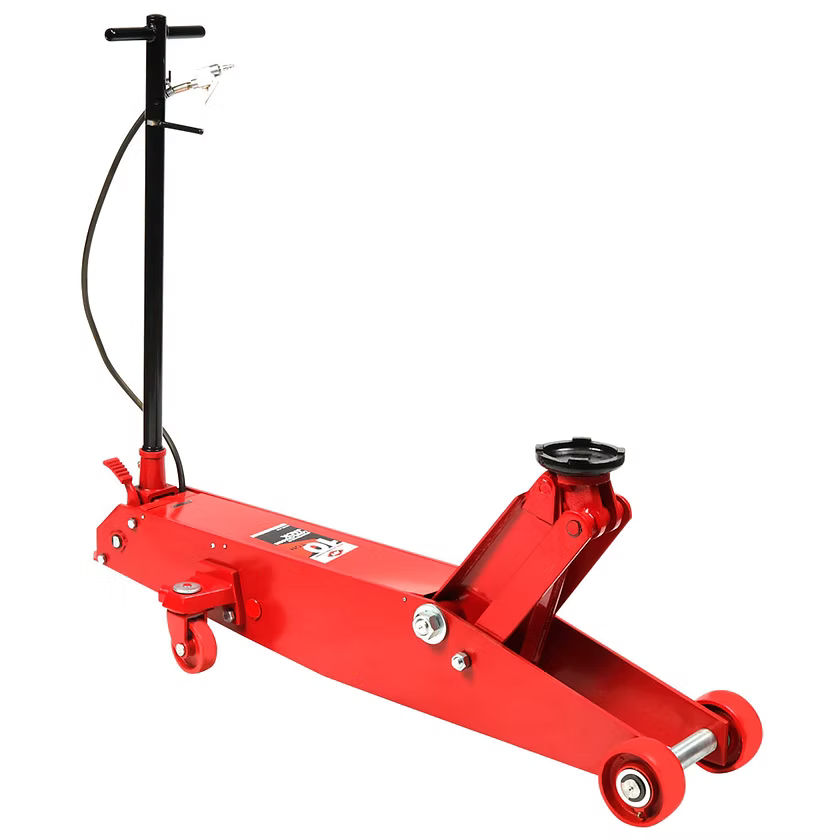

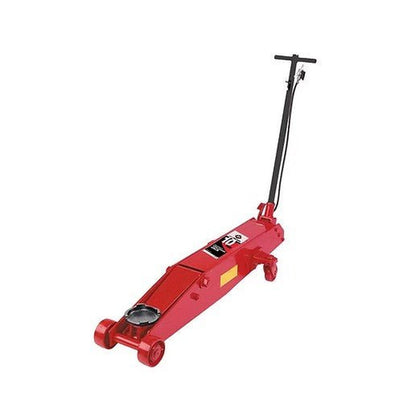

AFF 3135 American Forge & Foundry 10 Ton Air Hydraulic Floor Jack
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
American Forge and Foundry 10 Ton Jack - 10 Ton Air Floor Jack for Heavy-Duty Shops
When you're working under buses, semi trucks, or heavy construction equipment every day, a bargain jack isn't just frustrating - it's a liability. The AFF 3135 is an american forge and foundry 10 ton jack built specifically for the kind of abuse that most floor jacks can't survive. Thick-walled steel frame. Precision-machined rams and cylinders. Double-sealed hydraulics that don't weep fluid after six months of daily use. This is commercial-grade equipment priced so it actually makes sense to buy it.

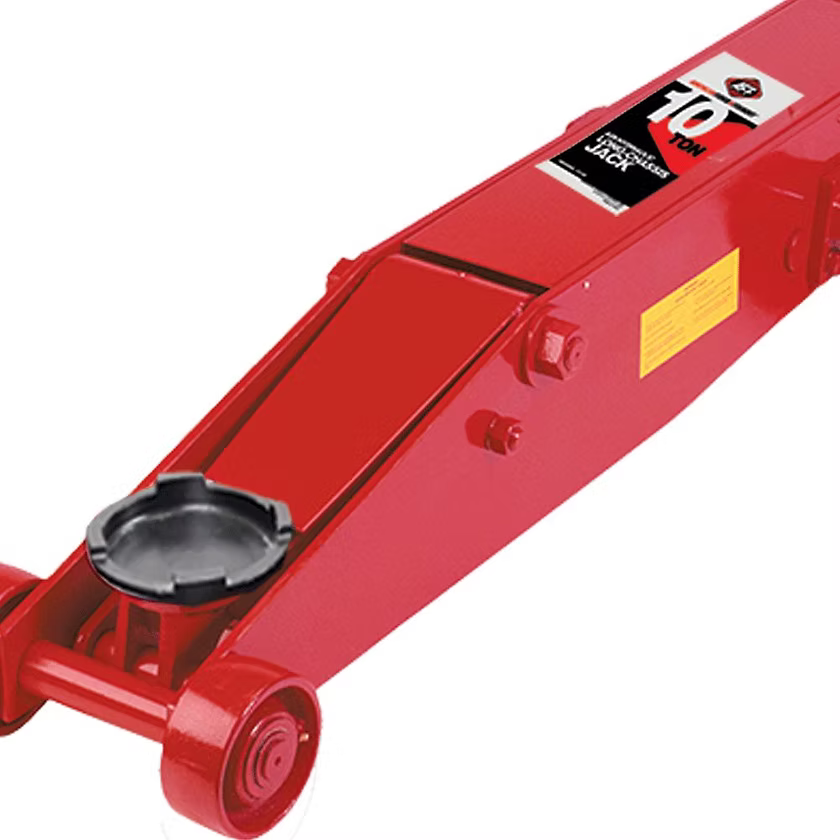

The long chassis is the reason this jack exists. At 61" from front to rear, it rolls under vehicles with deep overhangs - the frames, crossmembers, and axles that a standard-length jack simply can't reach without repositioning the vehicle. Low saddle height of 7" gets you under even slammed frames. The 10 ton air floor jack function connects to your compressed air line at 115-200 PSI (7.8 CFM) and drives the lift fast, so you're not standing there pumping manually between every raise. And when shop air isn't available? You can still run it by hand. Nothing stops your workflow.
Safety isn't an afterthought on the 3135. Automatic overload valves cut in before you exceed rated capacity. Integrated descent control release valving brings the load down slow and controlled - not a sudden drop that puts your equipment and your crew at risk. The handle-mounted locking control lever locks into one of three positions, so you can find the angle that gives you clearance without fighting the handle every time. Full-swivel rear casters and large 4-1/2" front wheels mean you can maneuver this 387-lb jack around a crowded shop without breaking a sweat.
American Forge & Foundry has been making heavy-duty shop equipment since 1963, with over 300 service centers nationwide and a full supply of replacement parts. If you ever need an american forge and foundry floor jack rebuild kit or individual components down the road, you're not stuck hunting for a discontinued part. We ship the AFF 3135 free to the lower 48 states, and our team is one call away if you have questions before or after the sale.
Specifications
| Model | AFF 3135 |
| Capacity | 10 Tons |
| Low Height (Min Saddle) | 7" |
| High Height (Max Lift) | 23" |
| Chassis Length | 61" |
| Front Width | 13" |
| Rear Width | 18" |
| Frame Height | 8-1/4" |
| Air Pressure Requirement | 115-200 PSI |
| Air Flow Requirement | 7.8 CFM |
| Front Wheel Size | 4-1/2" |
| Rear Caster Size | 2-3/4" |
| Ship Weight | 387 lbs. |
What's Included
Call to confirm included accessories.
Installation & Setup
Air Supply Requirements

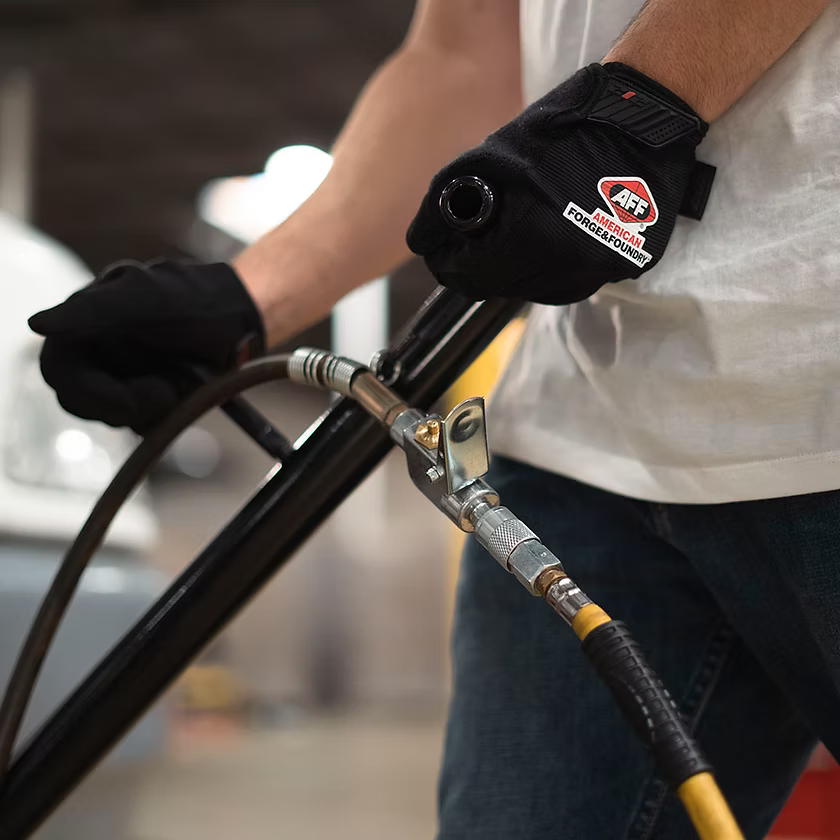

The AFF 3135 is an air over hydraulic jack that requires a compressed air source delivering 115-200 PSI at a minimum of 7.8 CFM. Most heavy-duty shop compressors handle this without issue, but confirm your line pressure and flow capacity before putting the jack into service. Connect your shop air line to the inlet fitting on the jack and you're ready to lift.
Manual Operation
No air available? The 3135 can be operated as a standard hydraulic floor jack using the foot pump. This makes it useful during mobile service calls or in facilities where air lines aren't run to every bay. Lifting speed will be slower without air assist, but the full 10-ton capacity remains available.
Handle and Positioning

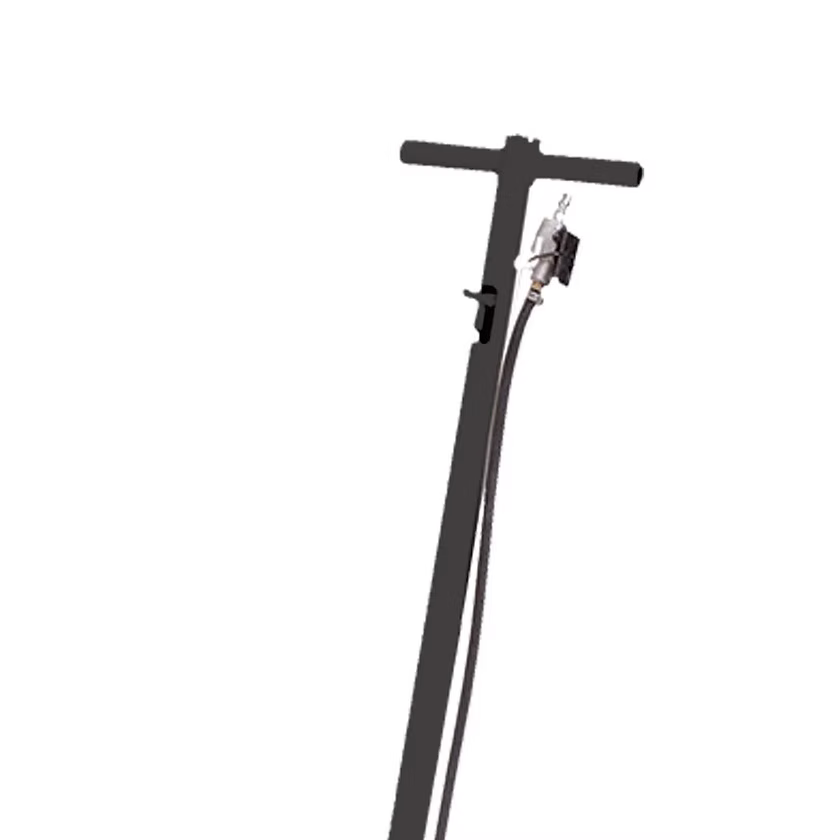

The control lever on the handle locks into one of three positions. Set it before you roll the jack into position under the vehicle so you're not fighting for clearance once you're committed. The extra-wide rear stance and full-swivel casters give you real maneuverability in tight bays - push from the handle and steer with your feet to line the saddle up precisely without repositioning the vehicle.
Lowering
The integrated descent control release valving is designed to lower the load slowly and evenly. Don't bypass or override this system. A controlled descent protects the vehicle, your equipment, and anyone working in the bay.
Applications
The 3135 was built for shops that can't afford downtime and can't afford mistakes. Here's where it earns its place.
The 61" long chassis rolls under full-size commercial vehicles and reaches axles and frame points that shorter jacks miss entirely. If you're running a fleet maintenance operation, this is the air hydraulic floor jack built for your bays.
Skid steers, compact excavators, and construction vehicles with low ground clearance and heavy frames are exactly what the 7" low saddle height and 10-ton capacity were designed for. This pneumatic floor jack handles the weight and the geometry.
Tractors, combines, and utility vehicles require lifts that can handle uneven weight distribution and awkward frame geometry. The wide rear stance and overload protection make the 3135 a reliable choice for ag shop environments.
Heavy-duty vehicles used in industrial facilities and military operations demand equipment that meets ANSI commercial jack standards. AFF builds the 3135 to those specs, with the precision-machined internals to back them up.
When you're running multiple lifts per day on everything from diesel pickups to delivery vans, the air-assist pump saves you time and effort on every single raise. An air powered floor jack at this capacity keeps the bays moving.
The manual foot pump backup means you can put this jack to work even when shop air isn't available. One jack that handles both scenarios means you're not hauling two pieces of equipment to every job site.
Model Comparison
AFF's long-chassis air/hydraulic service jacks come in two capacities. Here's how the 3135 stacks up against the heavier 3140 so you can pick the right tool for your shop's workload.
| Model | Capacity | Low Height | High Height | Chassis Length | Rear Width | Ship Weight |
|---|---|---|---|---|---|---|
| AFF 3135 | 10 Tons | 7" | 23" | 61" | 18" | 387 lbs. |
| AFF 3140 | 20 Tons | - | - | - | - | - |
If your shop regularly lifts vehicles or equipment at or near 10-ton capacity, the 3135 is the right fit. Need more headroom on the heavy end? The 3140 steps up to 20 tons in the same long-chassis platform. Call us to confirm current specs on the 3140 before ordering.
Product Video
Shipping
Free Shipping to Lower 48
Warranty
Limited 1-Year Warranty
American Forge & Foundry warrants the AFF 3135 to the final purchaser to be free from operating defects in material and workmanship for a period of one year from the date of purchase. If the jack is determined to be defective within this period, AFF will, at its option, repair or replace it at no charge - provided the equipment is shipped prepaid with proof of purchase to AFF or a designated authorized service depot.
This warranty does not cover damage from accident, overload, abuse, unauthorized modification, or use with non-recommended attachments. There are no other warranties, express or implied. AFF's sole obligation is to repair or replace the defective product. AFF is not liable for incidental, consequential, or other damages including loss of production time or profits.
AFF maintains over 300 authorized service centers nationwide and a complete inventory of replacement parts - so if you ever need american forge and foundry floor jack parts, finding them won't be a problem.
Documents
Click to open in a new tab.
Sale Sheet
Have Questions? Talk to a Specialist.
Call us at (855) 498-2147 - we'll help you confirm this is the right jack for your shop before you order.
Frequently Asked Questions
What air pressure and flow does the AFF 3135 require to operate?
The AFF 3135 requires shop air at 115-200 PSI with a minimum flow of 7.8 CFM. Most heavy-duty shop compressors meet these requirements without issue. If your compressor falls short on flow, the jack can still be operated manually using the foot pump - you'll just lose the air-assist speed advantage.
Can the AFF 3135 be used without shop air?
Yes. The 3135 includes a foot-operated hydraulic pump that lets you lift without a compressed air connection. This makes it useful for mobile service work or locations where air lines aren't available. The full 10-ton rated capacity is maintained in manual mode - only the lift speed is affected.
What types of vehicles and equipment is the AFF 3135 designed for?
The 3135 is built for heavy-duty applications including bus and truck fleets, agricultural equipment, heavy construction equipment, and industrial vehicles. The 61" long chassis is specifically designed to reach axles and frame points on vehicles with long overhangs - the clearance situations where a standard-length jack simply won't reach. Its 7" minimum saddle height also handles low-clearance equipment frames.
Are parts and service available for the AFF 3135 after purchase?
Yes. American Forge & Foundry maintains a complete inventory of replacement parts and over 300 authorized service centers nationwide. If you need an american forge and foundry floor jack rebuild kit or specific components down the road, AFF's parts network is one of the most comprehensive in the heavy-duty jack category. This is a long-term tool, not a disposable one.
Does the AFF 3135 ship for free?
Yes. The AFF 3135 ships free to all addresses in the contiguous lower 48 states. At 387 lbs. shipping weight, this is a meaningful savings. Call us at (855) 498-2147 if you need delivery to Alaska, Hawaii, or have questions about freight delivery logistics for your location.
