American Forge and Foundry 3102A - Air Assist Transmission Jack

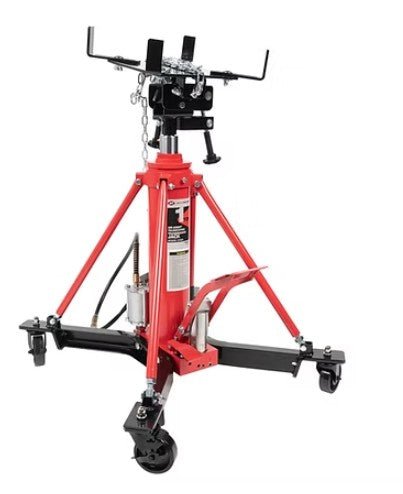

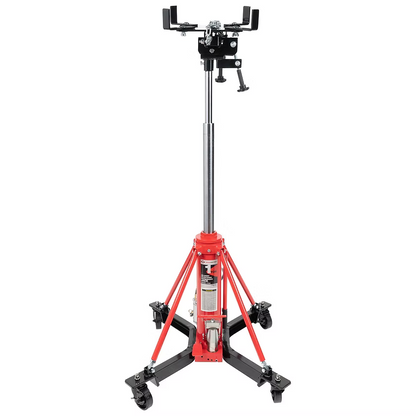

Pulling a transmission is already one of the heavier jobs on the floor. Doing it with a jack that fights you the whole way just adds time and frustration you don't need. The American Forge and Foundry 3102A air assist transmission jack takes that friction out of the equation. Two-stage telescopic ram, 2,000 lb rated capacity, and air-assisted lift that climbs smoothly from 37 inches to 76 - no straining, no fighting the pump through every inch.
The air assist is what separates this from a straight manual unit. Connect your shop air at 100 PSI minimum and the double pump hydraulic system does the heavy lifting for you. Fast rise when you need it, fine control on the way down. The chrome-plated pump core and piston rod keep operation smooth over years of daily use, and the powder coat finish handles the corrosives, chemicals, and scrapes that come with life in a working shop. This is the kind of american forge and foundry jack that earns its floor space on the first job.

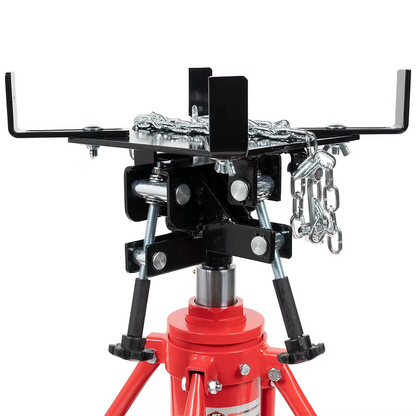

The adjustable saddle is where this air-assisted transmission jack really shows its range. Four L-shaped arms telescope out to cradle transmissions of varying sizes and shapes. Fore-aft and side-to-side tilt adjustment let you dial in perfect alignment before the load comes free. Lock it down with the safety chain and corner bracket, and you're working with confidence instead of hoping it holds. The saddle arms can be positioned using the short or long portions of the L to fit the transmission's specific footprint.
ASME 2014 compliant. An optional Fuel Tank Adapter (Model 3198) is available for expanded capability. Ships free to the lower 48, and when you have a question about this unit before or after purchase, one call gets you a real answer: (855) 498-2147.
Specifications
| Model | 3102A |
| Rated Capacity | 2,000 lbs |
| Operation | Air Assist |
| Ram Stages | 2 |
| 1st Stage Stroke | 19" |
| 2nd Stage Stroke | 20" |
| Low Height | 37" |
| High Height | 76" |
| Front Tilt | 28° |
| Rear Tilt | 49° |
| Base Width | 28" x 32" |
| Ship Weight | 183 lbs |
| Min. Air Pressure Required | 100 PSI |
| Compliance | ASME 2014 |
California Residents: This product is subject to Proposition 65 warnings. Contact us at (855) 498-2147 for details.
What's Included
- AFF 3102A Transmission Jack
- Adjustable saddle with corner bracket
- Safety chain
- Air hose and air connector
- Casters - 2 with brake, 2 standard
- Assembly hardware
- Instruction manual
The optional Fuel Tank Adapter (Model 3198) is sold separately and includes safety straps and grounding cables.
Installation & Setup
Air Supply Requirements

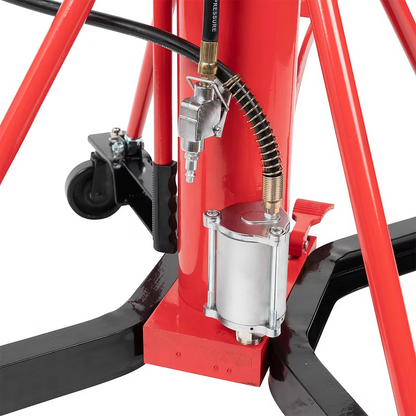

The 3102A requires a minimum of 100 PSI of compressed air to operate the air assist at full 2,000 lb capacity. Make sure your shop air supply is clean, dry, and regulated to meet that minimum before connecting. When installing your air disconnect fitting into the air valve, apply pipe tape to seal the threads and keep debris out of the air system.
Assembly
The jack ships partially disassembled. Key steps include securing the casters to the leg bases, attaching the leg assemblies to the hydraulic pump body, fitting the support rod, and mounting the saddle to the second piston rod. The full sequence is documented step by step in the included instruction manual. Basic hand tools and a wrench are all you need.
Air Purging
Air can get trapped in the hydraulic system during shipping. If the ram lifts slowly, won't reach full height, or doesn't descend smoothly, the system needs to be bled. The pump and ram each have accessible bleed screws for this purpose. The complete purging procedure is in the instruction manual - follow it before first use and any time symptoms return.
Surface and Use Requirements

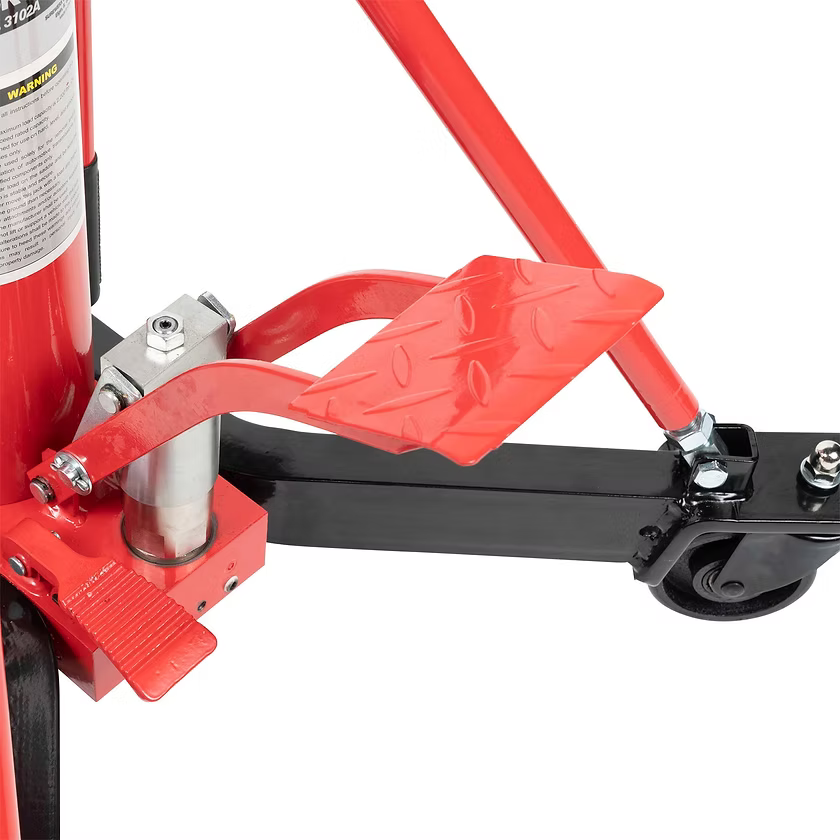

Use this jack on a hard, level surface only. Support the engine with a properly rated stand before unbolting the transmission. Never use the 3102A as a vehicle lift or vehicle support. For lowering under load, use the release valve handle rather than the foot release pedal - the handle gives you fine, controlled descent; the pedal is for quick lowering without a load on the saddle. Use hydraulic jack oil only - brake fluid, alcohol, and transmission fluid will damage the seals.
Applications
Two-stage telescopic reach and 2,000 lb capacity make this the right stand-up transmission jack for medium duty truck work. The adjustable saddle arms fit the transmission's footprint, and the safety chain keeps everything locked down during the drop.
Transfer cases demand the same controlled, tilting support as a transmission. Fore-aft and side-to-side saddle adjustment lets you match the angle of the case for a clean pull without fighting the drivetrain or re-positioning mid-job.
Drop a differential with the same control you'd bring to a transmission job. The saddle cradles irregular shapes, and the release valve handle gives you precise, slow descent so nothing gets rushed or dropped.
Front-wheel drive transaxle work benefits from the tilt range this jack provides. Dial in the angle before the unit comes free and lower it at your pace - the manual release valve puts the rate of descent in your hands.
This jack is rated for removal, installation, and lowered-position transport of transmissions, transfer cases, and transaxles. It is not a vehicle lift or vehicle support. Always consult the vehicle manufacturer for the transmission center of balance before positioning the saddle.
Model Comparison
American Forge and Foundry offers four transmission jacks in this series. The 3052 and 3052A handle 1,100 lb loads; the 3102 and 3102A step up to 2,000 lbs. If you want air assist efficiency at either capacity level, the A-suffix models are the choice. The 3102A - this product - is the 2,000 lb air assist configuration.
| Model | Operation | Capacity | Ram Stages | Low Height | High Height | Front Tilt | Rear Tilt | Base Width | Weight |
|---|---|---|---|---|---|---|---|---|---|
| 3052 | Manual | 1,100 lbs | 2 | 37" | 78" | 28° | 49° | 28" x 32" | 161 lbs |
| 3052A | Air Assist | 1,100 lbs | 2 | 37" | 78" | 28° | 49° | 28" x 32" | 170 lbs |
| 3102 | Manual | 2,000 lbs | 2 | 37" | 76" | 28° | 49° | 28" x 32" | 174 lbs |
| 3102A - This Product | Air Assist | 2,000 lbs | 2 | 37" | 76" | 28° | 49° | 28" x 32" | 183 lbs |
Need help choosing between the manual 3102 and this air assist model? Call us at (855) 498-2147 and we'll sort it out based on your shop volume and setup.
Product Video
Shipping
Free Shipping to the Lower 48 states. No freight charges, no hidden handling fees - the price you see is the price you pay.
Warranty
1-Year Limited Warranty
American Forge and Foundry warrants all equipment to the final purchaser to be entirely free from operating defects in material and workmanship for one year from date of sale.
If the equipment is found defective during the warranty period, AFF will at its option repair or replace it at no charge, provided the unit is returned transportation charges prepaid with proof of purchase to American Forge and Foundry or a designated authorized Field Service Depot.
This warranty does not cover damage from accident, overload, or abuse, nor does it apply to products altered or used with attachments other than those expressly recommended by American Forge and Foundry. There are no other warranties, express or implied. The seller's sole obligation is repair or replacement of defective parts as described above.
For warranty service or questions, call (855) 498-2147.
