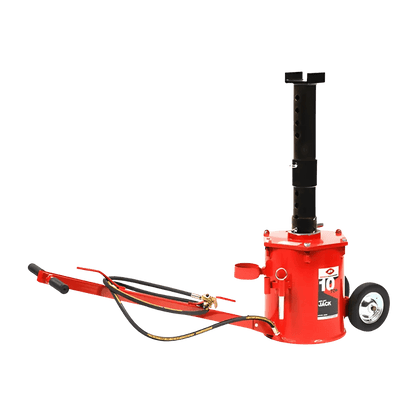

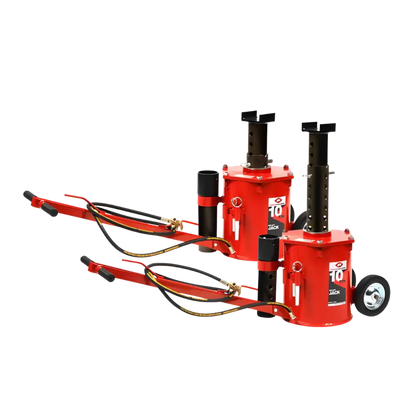

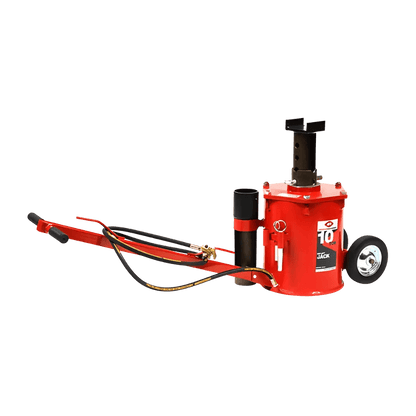

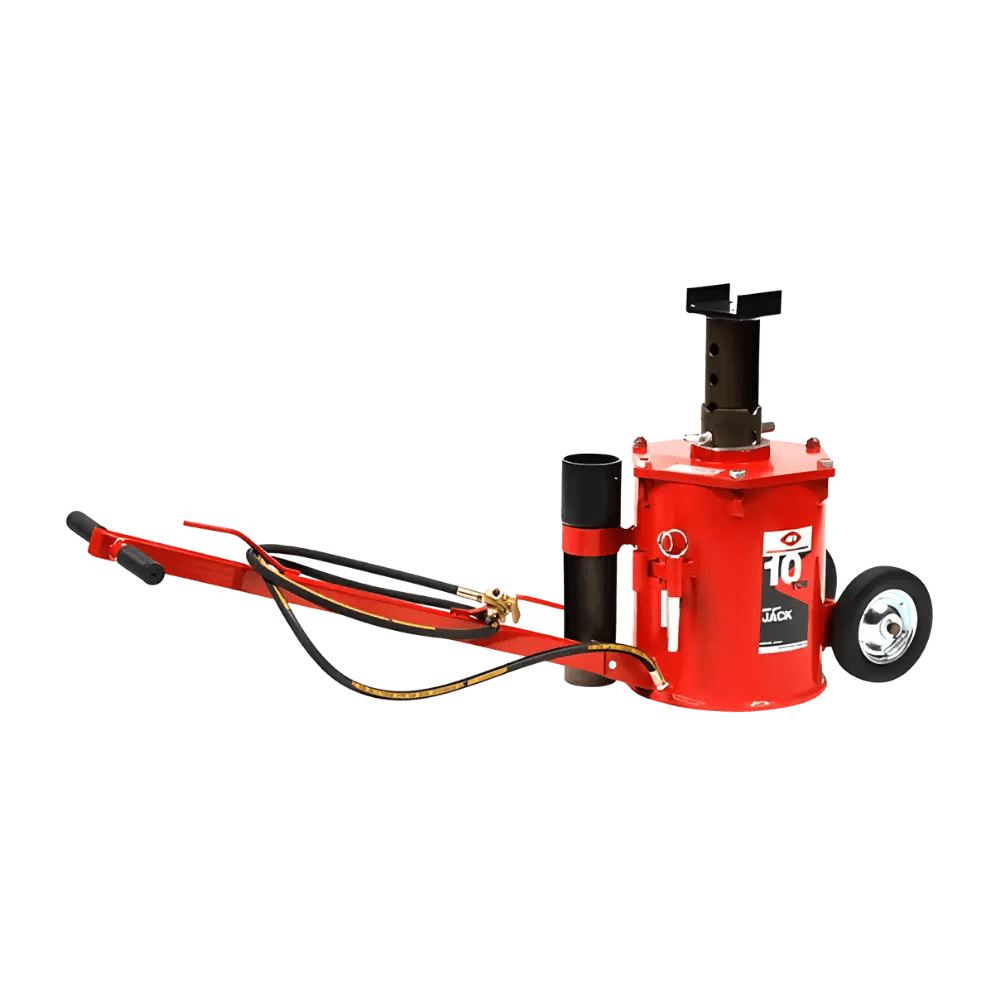

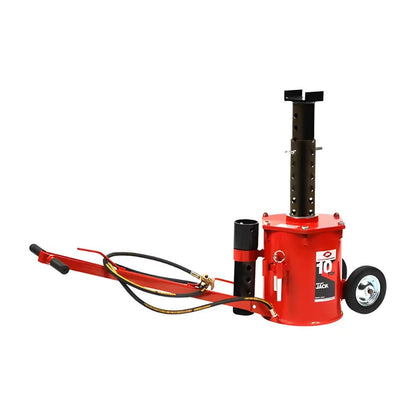

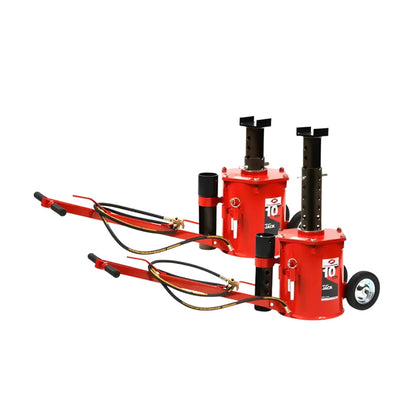

American Forge and Foundry 3400A - 10 Ton Air Lift Jack (Pair)
When you're rolling heavy iron every day, you need a jack that doesn't flinch. The American Forge and Foundry 3400A is a 10 ton air lift jack that delivers 20,000 lbs. of lifting capacity at 200 PSI of shop air. It goes from 18" low height to 52" with all extensions in play, giving you the range to get under semi trailers, farm equipment, and big construction rigs without swapping tools. This listing includes two jacks, so you're set up for tandem lifts right out of the box.
What sets this american forge and foundry 10 ton jack apart is how it handles control. The heavy-duty air valve gives you precise lift adjustment, not the jerky, overshot movements you get with cheaper valves. The removable T-handle keeps it compact for storage between uses, and the extension tubes lock into multiple positions so you're not stuck guessing the right height. Large diameter rubber tread wheels mean you can roll it across a shop floor without it catching every crack in the concrete.
AFF has been making heavy-duty shop equipment since 1963 and backs it up with over 300 service centers nationwide and a full supply of replacement parts. This isn't a throw-away jack. It's a piece of equipment your shop can rely on for years, with the parts and support network to keep it running when you need it most. Free shipping to the lower 48 means it lands at your dock without an extra line item on the invoice.
California residents, note that this product carries a Proposition 65 warning.
Specifications
| Capacity | 10 Ton (20,000 lbs.) @ 200 PSI |
| Low Height | 18" |
| High Height (all extensions) | 52" |
| Lift Travel | 12" |
| Length | 27" |
| Base Width | 12.75" |
| Overall Height | 18.25" |
| Air Supply Required | 200 PSI |
| Shipping Weight | 172 lbs. (per jack) |
| Quantity | Pair (2 jacks) |
What's Included
- AFF 3400A 10-Ton Air Lift Jack x2 (pair)
- Removable "T" handle (per jack)
- Extension tubes with multiple locking positions (per jack)
Installation & Setup
Air Supply Requirements
This air lifting jack runs on shop air. You need a compressor capable of delivering a sustained 200 PSI to achieve the full 10-ton capacity. Before your first use, confirm your shop's air supply line and fittings are rated for that pressure. Connect the air line to the jack's heavy-duty air valve, verify the connection is secure, and you're ready to lift.
Extension Tube Configuration

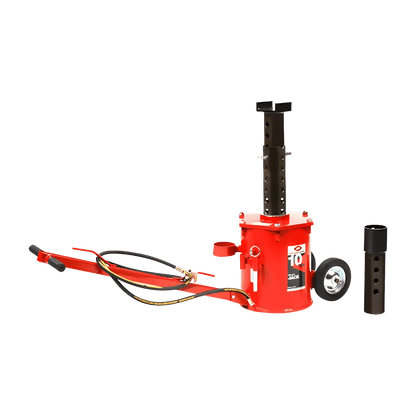

The extension tubes can be added or removed to dial in the working height before you lift. Set the extensions to your target height range while the jack is on the ground, not under load. Each tube locks into position, giving you a stable platform at heights from 18" up to 52" with all tubes installed.
Surface and Positioning Notes
Position the jack on a hard, level surface. The large-diameter rubber tread wheels make it easy to maneuver into position, but always confirm the lift point is aligned with a rated jack point on the vehicle or equipment before applying air pressure. Never operate the air jack lift under an unsupported load. Use rated jack stands in tandem when you need to work under lifted equipment.
Applications
The height range and 20,000 lb. capacity make this a natural fit for trailer maintenance, fifth wheel work, and heavy truck axle service. Use the pair together for tandem lifts on long frame jobs.
Tractors, combines, and large implements often need more height and capacity than a standard floor jack can offer. This air bag lift jack reaches the frame rails and holds steady while you work.
Wheel loaders, skid steers, and other construction machinery demand a jack that won't buckle under a heavy corner weight. The 10-ton capacity and stable base handle it without complaint.
Fleet shops running bus maintenance need a heavy duty air jack that keeps up with volume. The air lift car jack format moves fast, sets up quickly, and the removable T-handle keeps it storable in tight shop spaces.
Product Video
Shipping
Free Shipping To Lower 48
Warranty
Limited One-Year Warranty
American Forge & Foundry warrants to the final purchaser that all equipment is free from operating defects in material and workmanship for one year from the date of purchase. If the jack is found to be defective within the warranty period, AFF will, at its option, repair or replace the unit at no charge, provided it is shipped prepaid with proof of purchase to AFF or an authorized Field Service Depot.
This warranty does not cover damage from accident, overload, abuse, or use of unauthorized attachments. AFF's sole obligation is repair or replacement of the defective product. No other warranties, express or implied, apply.
Note: Torque Wrenches carry a separate 90-day calibration warranty and does not apply to this product.
Documents
Click to open in a new tab.
Parts
Have Questions? We're Here to Help.
Call us at (855) 498-2147 to talk through your application, confirm fitment, or get order support. Our team knows this equipment and can help you make the right call.
Frequently Asked Questions
What air pressure does the AFF 3400A need to reach its full 10-ton capacity?
The jack achieves its full 10-ton (20,000 lb.) lifting capacity at 200 PSI. Your shop compressor and air line must be able to sustain that pressure at the tool connection point. If your supply line drops below 200 PSI under load, you'll get reduced capacity, so verify your system's output before lifting heavy equipment.
What's the height range of this american forge and foundry air jack with and without the extensions?
The low height with no extensions is 18". With all extension tubes installed and locked, the jack reaches 52". The total lift travel is 12", and the extensions add multiple intermediate locking positions in between, giving you flexibility to set your working height before you lift.
Does this listing include two jacks or just one?
This listing is for a pair - two AFF 3400A 10-Ton Air Lift Jacks. Each jack comes with its own removable T-handle and extension tubes. If you need to confirm exactly what's included or have questions about a specific application, call us at (855) 498-2147.
Can I use this air lift jack for cars and light trucks, or is it only for heavy equipment?
The 3400A is engineered for heavy-duty applications - trailers, large trucks, buses, farm and construction equipment. While the capacity would handle most passenger vehicles, the 18" low height means it won't slide under a standard car at ride height without a ramp. For a dedicated air lift jack for car use, a lower-profile model is usually a better match. This unit is best suited for high-clearance heavy equipment and fleet applications.
What does the AFF warranty cover and how long does it last?
American Forge & Foundry provides a one-year limited warranty covering defects in material and workmanship from the date of purchase. If a defect is found, AFF will repair or replace the unit at no charge, provided it's shipped prepaid with proof of purchase. The warranty does not cover damage from overload, accident, abuse, or use of unauthorized attachments.
