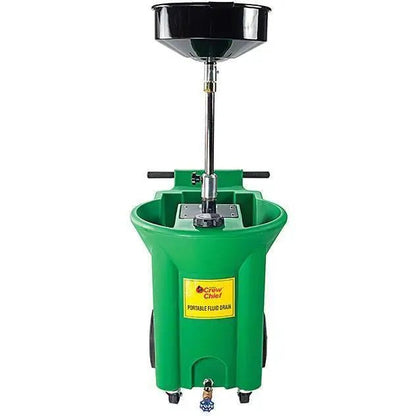

John Dow 22 Gal Portable Poly Antifreeze Drain - 40-69in Height
SKU: JDI-22DCAF
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
- Authorized Johndow Industries Dealerdirect manufacturer relationship
- Manufacturer Warrantyincluded with purchase
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax
22 Gal Portable Poly Antifreeze Drain Overview
Antifreeze drains that only work at one height become a problem the moment a lifted truck or a low sedan rolls into the same bay. The John Dow Industries 22 Gal Portable Poly Antifreeze Drain solves that by adjusting from 40 inches to 69 inches, so you're not swapping equipment or improvising a funnel setup between jobs.
The 22-gallon poly tank is virtually indestructible under daily high-volume shop use, and the 16 inch deep-drawn steel funnel with its expanded metal screen keeps debris out of the fluid you're recovering. A built-in filter drain adds a second layer of separation, and the gravity drain valve empties the tank without any extra hardware. When you're ready to switch to pump evacuation, the optional conversion kit (No. 61431-2) adapts the unit without buying a new drain.
Key Features & Benefits
| 22-Gallon Poly Tank | Big enough to run multiple antifreeze drains before you stop to empty it. |
| High-Impact Polyethylene Construction | Takes daily bay abuse without denting or cracking like a metal tank. |
| 16" Deep-Drawn Steel Funnel with Screen | Catches debris before it reaches the tank, keeping the recovered fluid cleaner. |
| Adjustable Height (40" to 69") | Sets to match sedans, trucks, or anything in between without extra equipment. |
| 3" Swivel Casters and 10" Fixed Wheels | Rolls easily across the shop and holds a straight line when you're pushing it loaded. |
| Pop-Up Fluid Level Indicator | Shows you at a glance when it's time to empty, no lifting the lid to check. |
| Padded Push Handlebars | Comfortable grip when you're maneuvering it loaded. |
| Gravity Drain Valve | Empties the tank without a pump or extra hardware. |
| Built-In Filter Drain | Separates debris from fluid as it drains for a cleaner catch. |
| Optional Conversion Kit (No. 61431-2) | Adapts the unit for pump evacuation if you want that setup later. |
Specifications
| Tank Capacity | 22 gallons |
| Height Range | 40" to 69" (101.6 cm to 175.3 cm) |
| Funnel Depth | 16" (40.6 cm), deep-drawn steel |
| Caster Size | 3" swivel |
| Wheel Size | 10" fixed |
| Weight | 58 lbs (26.3 kg) |
What's Included
- 22-Gallon Poly Antifreeze Drain Tank
- 16" Deep-Drawn Steel Funnel with Expanded Metal Screen
- Pop-Up Fluid Level Indicator
- Gravity Drain Valve
- Built-In Filter Drain
- Padded Push Handlebars
- 3" Swivel Casters and 10" Fixed Wheels
Applications
- High-Volume Service Bays: Built for shops running back-to-back antifreeze drains without downtime between vehicles.
- Mixed Vehicle Fleets: The 40 to 69 inch height range covers sedans, trucks, and everything in between in the same bay.
Questions Before You Buy?
Call our team at (855) 498-2147 if you need help matching the conversion kit or confirming fit before you order.
Frequently Asked Questions
What makes this drain adjustable to different vehicles?
The funnel height adjusts anywhere from 40 inches to 69 inches, so you can set it for sedans, trucks, or anything in between without swapping equipment.
How do I adjust the height for different vehicles?
The funnel telescopes across the full 40 to 69 inch range. Set it once for the vehicle in the bay and you're ready to drain.
Does it filter debris on its own?
Yes. The 16 inch deep-drawn funnel has an expanded metal screen plus a built-in filter drain, so debris gets caught before it mixes with the recovered antifreeze.
Can I switch this to pump evacuation later?
Yes, with the optional conversion kit, No. 61431-2, which adapts the unit from gravity drain to pump evacuation.
How do I empty the tank once it's full?
The built-in gravity drain valve empties the 22-gallon tank without needing a separate pump.
How do I know when the tank needs emptying?
The pop-up fluid level indicator rises as the tank fills, so you can see it's time to empty without lifting the lid.
