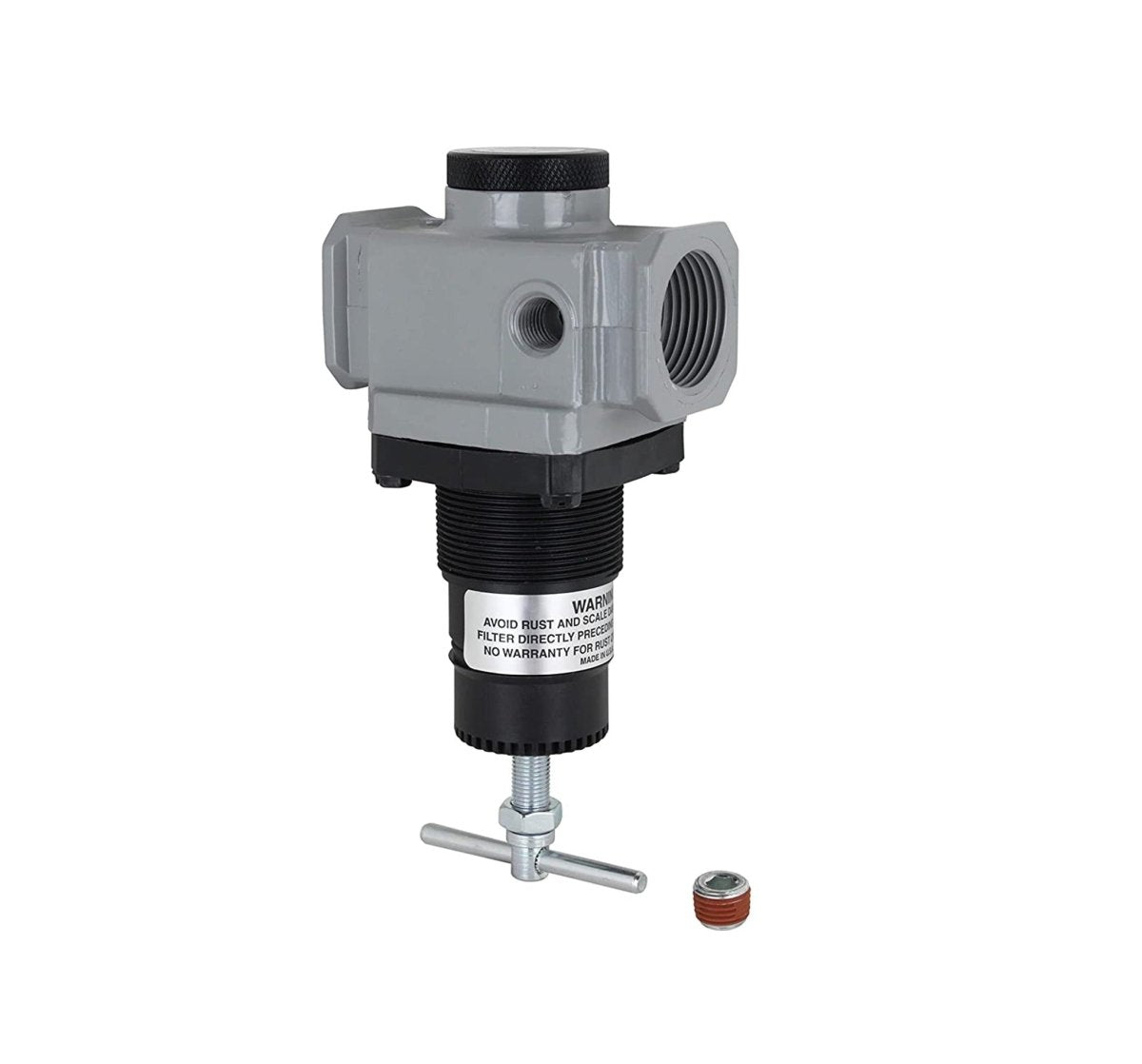

MILTON MIL-1027-8 gray and black air regulator with side ports and T handle, shown with small separate fitting.

MILTON MIL-1027-8 1" NPT Air Regulator, 250 PSI, 250 SCFM

Q: Does this air regulator come with a pressure gauge? A: No, the pressure gauge is sold separately to allow you to choose the appropriate gauge range and style for your specific application needs. The dual 1/4" NPT ports accept standard pneumatic gauges, giving you flexibility to select pressure ranges that match your system requirements and monitoring preferences.

Q: Does this air regulator come with a pressure gauge? No, the pressure gauge is sold separately to allow you to choose the appropriate gauge range and style for your specific application needs. The dual 1/4" NPT ports accept standard pneumatic gauges, giving you flexibility to select pressure ranges that match your system requirements and monitoring preferences.

Q: What size air compressor do I need for this regulator? A: This regulator handles up to 250 SCFM flow capacity, so you'll need an air compressor rated for at least that output. Most 7.5 HP or larger stationary compressors can supply adequate airflow, though smaller portable units may work for lighter-duty applications with reduced flow requirements.

Q: What size air compressor do I need for this regulator? This regulator handles up to 250 SCFM flow capacity, so you'll need an air compressor rated for at least that output. Most 7.5 HP or larger stationary compressors can supply adequate airflow, though smaller portable units may work for lighter-duty applications with reduced flow requirements.

Q: How does this compare to smaller 1/2" NPT air regulators? A: The 1" NPT connection provides significantly higher flow capacity than 1/2" regulators. While standard 1/2" units typically max out around 100-150 SCFM, this model delivers 250 SCFM with minimal pressure drop, making it ideal for high-demand pneumatic tools and multiple-station setups.

Q: How does this compare to smaller 1/2" NPT air regulators? The 1" NPT connection provides significantly higher flow capacity than 1/2" regulators. While standard 1/2" units typically max out around 100-150 SCFM, this model delivers 250 SCFM with minimal pressure drop, making it ideal for high-demand pneumatic tools and multiple-station setups.

Q: Can I use both gauge ports as air supply outlets? A: Yes, the offset 1/4" NPT ports can function as supply lines instead of gauge connections, giving you flexibility to create multiple air distribution points from one regulator. This feature is particularly useful for workbenches or production lines where you need to supply air to multiple tools simultaneously.

Q: Can I use both gauge ports as air supply outlets? Yes, the offset 1/4" NPT ports can function as supply lines instead of gauge connections, giving you flexibility to create multiple air distribution points from one regulator. This feature is particularly useful for workbenches or production lines where you need to supply air to multiple tools simultaneously.

$150.40

Product variants

Silver aluminum Milton air regulator with brass fittings and dual gauge ports

Professional Grade Air Pressure Control - Milton High-Pressure Air Regulator (MIL-1027-8, 1" NPT)

Heavy-Duty Compressed Air Regulator for Industrial Applications

The Milton MIL-1027-8 is a professional-grade air regulator that delivers precise airflow control up to 250 PSI (≈17.2 bar) with 250 SCFM capacity. This 1" NPT regulator is built for automotive shops and industrial applications requiring consistent pressure regulation.

Key Benefits and Performance Features

Maximum Airflow Capacity - Delivers up to 250 SCFM with minimal pressure drop, ensuring pneumatic tools receive consistent air supply for optimal performance.

Heavy-Duty Construction - Aluminum die-cast body with balanced piston design withstands demanding industrial environments.

Professional Applications

Perfect for automotive repair shops, manufacturing facilities, industrial air compressor systems, and commercial spray operations requiring high-flow pneumatic performance with dual gauge port flexibility.

Technical Specifications

Milton MIL-1027-8 Air Regulator Specifications
Specification	Value
Connection Size	1" NPT
Maximum Pressure	250 PSI (≈17.2 bar)
Flow Capacity	250 SCFM (≈7079 L/min) at 100 PSI
Temperature Range	40°F to 120°F (4°C to 49°C)
Body Material	Aluminum Die-Cast
Diaphragm Material	Buna-N
Gauge Ports	Two 1/4" NPT
Model Number	MIL-1027-8

Installation Requirements

For optimal performance and longevity, install a moisture filter upstream from this air pressure regulator to prevent contamination damage. The relieving-type design automatically vents excess downstream pressure when inlet pressure drops, ensuring stable operation across varying load conditions.

Important Note: Pressure gauge sold separately. Choose from compatible 1/4" NPT gauges based on your specific pressure monitoring needs.

Get Professional Air Pressure Control Today

Experience the reliability of Milton's heavy-duty air regulator technology. Perfect for professional shops and industrial applications requiring consistent, high-flow pneumatic performance.

Order your Milton MIL-1027-8 air regulator now for immediate shipping.

Frequently Asked Questions

Does this air regulator come with a pressure gauge?

No, the pressure gauge is sold separately to allow you to choose the appropriate gauge range and style for your specific application needs. The dual 1/4" NPT ports accept standard pneumatic gauges, giving you flexibility to select pressure ranges that match your system requirements and monitoring preferences.

What size air compressor do I need for this regulator?

This regulator handles up to 250 SCFM flow capacity, so you'll need an air compressor rated for at least that output. Most 7.5 HP or larger stationary compressors can supply adequate airflow, though smaller portable units may work for lighter-duty applications with reduced flow requirements.

How does this compare to smaller 1/2" NPT air regulators?

The 1" NPT connection provides significantly higher flow capacity than 1/2" regulators. While standard 1/2" units typically max out around 100-150 SCFM, this model delivers 250 SCFM with minimal pressure drop, making it ideal for high-demand pneumatic tools and multiple-station setups.

Can I use both gauge ports as air supply outlets?

Yes, the offset 1/4" NPT ports can function as supply lines instead of gauge connections, giving you flexibility to create multiple air distribution points from one regulator. This feature is particularly useful for workbenches or production lines where you need to supply air to multiple tools simultaneously.
